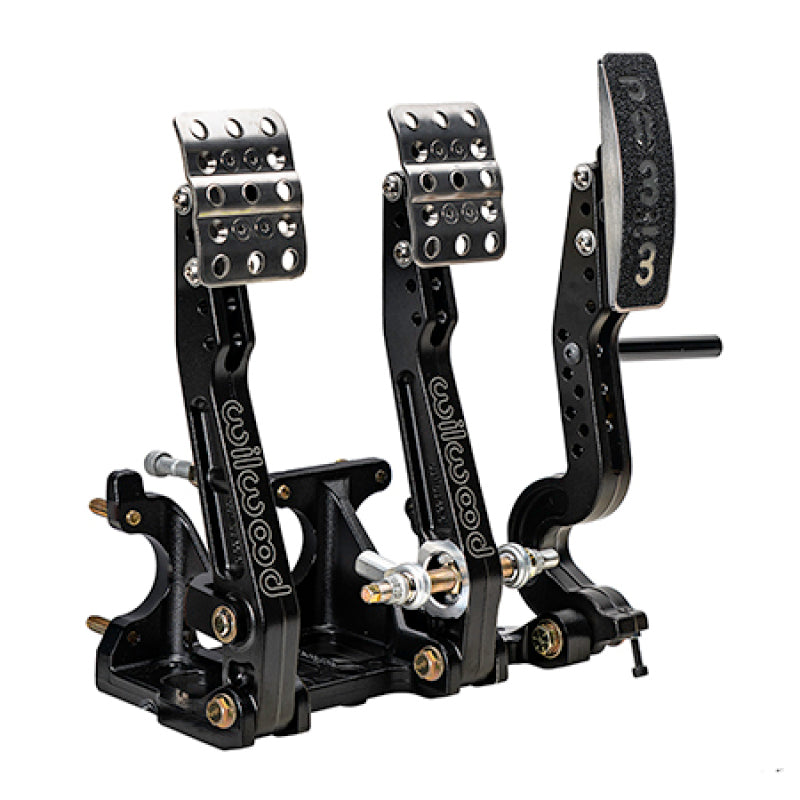

Wilwood Floor Mount Tru-Bar Brake, Clutch and Throttle Pedal - Adjustable Ratio
Earn [points_amount] when you buy this item.
Adjustable ratio Tru-Bar brake pedal, in a floor mount throttle, brake and clutch pedal assembly for rear engine cars. Pedal head adjusts vertically to provide a 4.75, 5.25, or 5.75:1 ratio for more feel or less pedal effort. A clutch and two brake master cylinders mount to the assembly, with a friction-free, trunnion based adjustable Tru-Bar balance bar providing front to rear brake bias fine tuning. The throttle pedal includes a pull rod for rear engine applications. The non-skid waffled pedal pads can be laterally adjusted to place the clutch and brake from 3.75 to 5.75 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms.The Tru-Bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments reducing compliance and friction for more accurate brake feel. Tru-Bar pedals utilize the same chassis and master cylinder mounting as Wilwood balance bar style pedals. This pedal accepts three Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.
Pit Stop USA offers Wilwood Floor Mount Tru-Bar Brake, Clutch and Throttle Pedal - Adjustable Ratio 340-16604 at low everyday prices. Check out all our products from Wilwood Engineering including Throttle / Brake / Clutch Pedal Assemblies.
Wilwood is a leading manufacturer of high-performance brake systems and components to fit a wide range of track and street applications. They offer everything from individual components like rotors, calipers, and pads to complete bolt-on kits.
Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motorsports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.
With headquarters in Camarillo, California, Wilwood employs approximately 320 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment to heavy-duty original equipment brakes for the U.S. military Humvee.
Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.
Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
