Helmets & Accessories

Pit Stop USA offers the latest Snell SA2025 and FIA Homologated helmets. A correctly fitted helmet should feel as if an evenly distributed pressure is continuously being exerted around the head and cheeks. Helmets, like shoes, will break in. For this reason, the helmet should fit as tight as you can stand to wear it. Once fastened, make sure the helmet cannot be pulled off of the head in any direction. If the helmet moves significantly, the helmet is too big. First time helmet buyers tend to choose helmets that are too loose or too big. If the helmet does not fit well, it cannot deliver the level of protection you need. The Snell Memorial Foundation, Inc. has finalized its SA2025 Standard for Protective Headgear which applies to auto racing helmets. Although there are several changes in test requirements and procedures from the SA2025 Standard, Snell certified auto racing helmets are very much the same as they have been.

The Snell SA2025 certification for helmets introduces several important changes and enhancements aimed at improving safety standards for racers. Here’s a summary of what’s new:

Key Updates for SA2025

1. Enhanced Pre-Impact Protection

  • Chemical, Heat, and Water Exposure Tests: Helmets are tested for their ability to withstand various environmental factors that could impair performance during a crash.

2. Oblique Impact Testing

  • Real-World Simulation: The testing regime now includes oblique-impact tests, which better mimic actual crash scenarios.
  • Multiple Impact Locations: Snell specifies various impact areas on the shell to ensure the EPS liner provides optimal protection.

3. Post-Impact Protection Standards

  • Flame Resistance: Helmets must pass a flame-resistance test, ensuring that padding and lining materials do not exceed 70°C (158°F) during a 30-second exposure.
  • Thicker EPS Liners: A thicker liner aids in meeting the flame-resistance requirement.

4. Ease of Helmet Removal

  • Neck and Spine Safety: The design of cheek pads allows for helmet removal without significant movement of the neck or spine, promoting safety during emergency situations.

5. Rigorous Testing Protocols

  • New Acceleration Limits: The peak g-force limit is set at 275, aligning with the FIA 8859-2024 standard for international racing.
  • Increased Impact Velocities: First-impact velocities are raised to 8.70 m/s or 8.30 m/s (up from 8.50 m/s or 8.15 m/s in SA2020), ensuring that helmets undergo more severe testing.

Implications for Racers

  • Drivers will need to transition to helmets that meet the SA2020 or SA2025 standards as SA2015 helmets will be phased out.
  • The new standards drive innovation and improvements in helmet safety, contributing to better protection for drivers during races.

Conclusion

The Snell SA2025 standards represent a significant step forward in helmet safety, with updated testing protocols and requirements that reflect the evolving needs of motorsport safety. Racers and manufacturers alike will benefit from these advancements as they prepare for the 2026 racing season.

If you’d like more information on specific helmets or manufacturers adapting to these changes, just let us know!

Key Features of FIA 8859-2024 Certification

The FIA 8859-2024 standard is the latest international benchmark for motorsport helmets, designed to enhance driver safety through advancements in energy management and impact protection. Below are the essential aspects of this standard:

1. Enhanced Protection

  • Improved Energy Management: This standard features a 14% improvement in overall energy management.
  • Increased Impact Resistance: There is a 5% increase in resistance to impact energy, ensuring better protection during collisions.

2. Peak G-Force Limit

  • Testing Standards: The maximum allowed peak g-force during impact testing is set at 300G, ensuring that helmets can withstand high-impact scenarios.

3. Locking Shields

  • Safety Enhancement: All helmets under the 8859-2024 standard must have locking visors, which are designed to provide enhanced penetration resistance.

4. M6 Inserts

  • Frontal Head Restraints: Helmets are required to have factory-installed M6 threaded inserts for the secure installation of frontal head restraint (HANS) devices, enhancing head and neck protection.

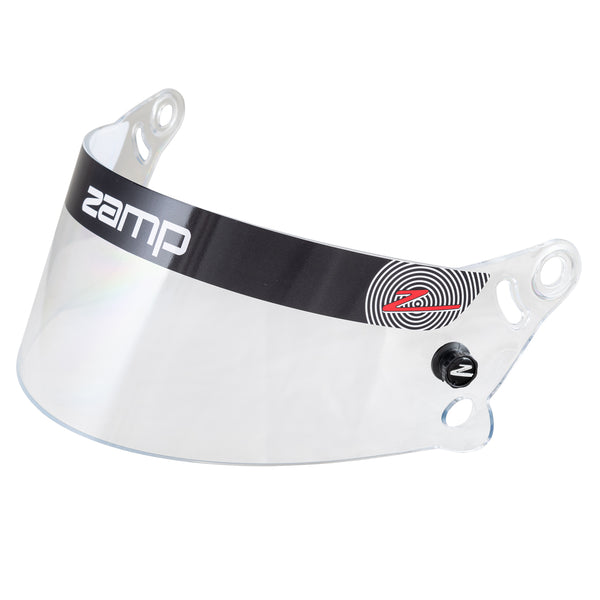

5. Visor Technology

  • Impact Testing: Visors undergo rigorous impact testing and are permanently attached to the helmet.
  • Counterfeit Prevention: Visors include holograms to prevent counterfeiting and may feature a ventilation position for partial opening during competition.

6. Certification Label

  • Homologation Confirmation: Helmets must display a specific FIA 8859-2024 sticker under the lining to confirm their compliance with the standard.

How It Differs from Previous Standards

  • Evolution from 8859-2015: The 8859-2024 standard is an advancement over the 8859-2015, incorporating more advanced safety features without increasing the helmet's weight or bulk.
  • Stricter Testing Protocols: It introduces more rigorous testing for both energy absorption and visor penetration, ensuring higher safety levels for drivers.

Validity and Use

  • Duration: FIA homologation for helmets is valid for 10 years from the date of manufacture.
  • Compatibility with Other Standards: While not all helmets conforming to the new Snell SA2025 standard are FIA-approved, some may carry both certifications, indicating a move towards broader acceptance of both FIA 8859-2024 and Snell SA2025 in the racing community.

Conclusion

The FIA 8859-2024 standard embodies significant advancements in helmet safety, focusing on improved energy management, enhanced visor durability, and mandatory features for better protection during races.

Overview of FIA 8859-2024 ABP Certification

The FIA 8859-2024 ABP (Advanced Ballistic Protection) certification is a new standard from the Fédération Internationale de l'Automobile (FIA), designed to enhance frontal impact resistance for drivers in open-cockpit cars. This certification builds upon the general 8859-2024 standard by incorporating military-grade ballistic protection, ensuring superior safety against projectile impacts.

Key Features of the FIA 8859-2024 ABP Certification

  1. Advanced Ballistic Protection (ABP)
    • Ballistic Standards: Helmets certified under this standard provide protection against high-velocity debris and projectiles, ensuring enhanced safety for drivers.

  1. Enhanced Impact Energy Management
    • Energy Management Improvement: Requires a 14% increase in overall energy management and a 5% increase in impact energy resistance, leading to a lower peak g-force limit during impacts.

  1. Improved Visor and Shell Integrity
    • Stronger Visor Locking Device: Features enhanced visor locking systems for better structural integrity and increased penetration resistance.

  1. Stricter Testing Protocols
    • Rigorous Testing: Helmets undergo more stringent tests for penetration and impact energy absorption compared to previous standards, ensuring higher safety levels.

  1. Targeted Application
    • Specific Use Cases: While the general 8859-2024 standard is applicable across various motorsport disciplines, the ABP standard is particularly advantageous for open-wheel, open-top, and formula racing, where drivers face a greater risk from debris.

The 8859-2024 ABP Standard in Context

  • Next Level of Protection: The ABP certification signifies a higher level of approval, adhering to the most stringent safety standards available in the industry.
  • Complementary to Existing Standards: The FIA 8859-2024 ABP standard is categorized among the "Advanced Helmets" standards, alongside FIA 8860-2018 and 8860-2018 ABP.
  • Benchmark for Safety: With its advanced features, the FIA 8859-2024 ABP standard is poised to become the benchmark for motorsport helmets worldwide.

Examples of FIA 8859-2024 ABP Helmets

  • Manufacturers Leading the Way: Brands like Bell Racing and Stilo have been early adopters of the 8859-2024 ABP standard, producing helmets that meet these advanced safety requirements.
  • Notable Products: The Stilo ST6 FN ABP Carbon Fiber Helmet serves as a prime example, showcasing how these advanced standards are incorporated into high-performance headwear.

Conclusion

The FIA 8859-2024 ABP certification represents a significant advancement in helmet safety, particularly for drivers in high-risk racing environments. With its focus on enhanced ballistic protection and rigorous testing protocols, it sets a new benchmark for safety in motorsport helmets.

If you have any further questions or need more information, feel free to ask us!

Key Aspects of FIA 8860 Certification

The FIA 8860 certification represents the highest safety standard for motorsport helmets, specifically designed for elite racing environments. Here’s a detailed breakdown of its key aspects:

1. Superior Protection

  • Enhanced Impact Energy Absorption: The 8860 standard provides advanced protection against high-impact forces.
  • Penetration Resistance: Helmets meeting this standard are designed to resist penetration from sharp objects.

2. Mandatory for Top-Tier Racing

  • Professional Requirement: This certification is mandatory for drivers in elite racing series like Formula 1, Formula 2, Formula 3, and Formula E, due to the high risks involved in these environments.

3. Versions and Designations

  • FIA 8860-2018: This is the primary standard for advanced helmet safety.
  • FIA 8860-2018ABP: This variant offers advanced ballistic protection, specifically for open-cockpit and open-wheel racing, and is also required in Formula 1.

4. Construction

  • Materials: FIA 8860-certified helmets are typically made from high-strength carbon fiber.
  • Liner Systems: They feature advanced, multi-density, multi-piece liner systems designed for optimal energy management during impacts.

5. Longer Validity

  • Certification Duration: Helmets with FIA 8860-2018 certification are generally valid for ten years from the date of manufacture, making them a durable investment.

6. Features for High-Level Motorsport

  • Integrated Channels: Designed for drink tubes and communication systems for driver convenience.
  • Aerodynamic Shells: Optimized for stability and reduced noise during high-speed racing.
  • Advanced Visors: Often equipped with double-screen anti-fog technology to ensure clear visibility.

Conclusion

FIA 8860-certified helmets are essential for professional drivers, offering unparalleled safety and advanced features tailored to the demands of elite motorsport. The combination of superior materials, extended validity, and specialized design makes them a crucial component of a driver’s safety gear.

Overview of FIA 8860-2018 ABP Certification

The FIA 8860-2018 ABP certification signifies that a helmet not only meets the rigorous FIA 8860-2018 standard but also includes the additional requirement for Advanced Ballistic Protection (ABP). This certification is crucial for drivers in top-tier open-wheel racing series, such as Formula 1 and Formula E, providing enhanced safety against projectiles.

What the Certification Means

  1. FIA 8860-2018 Standard
    • Highest Level of Certification: This standard focuses on:
      • Impact Attenuation: Reducing the force of impacts to protect the driver.
      • Light Carbon Construction: Ensuring helmets are lightweight yet strong.
      • Fire Resistance: Providing protection against fire hazards.

  1. ABP (Advanced Ballistic Protection)
    • Enhanced Protection: The ABP feature includes:
      • Smaller Eyeport: A reduced opening that increases structural strength and frontal protection.
      • Ballistic Testing: Helmets undergo tests based on military standards to ensure they can withstand high-velocity projectiles.

  1. "Super Helmet" Designation
    • Helmets with the ABP designation are often referred to as "super helmets" due to their advanced protective features, making them suitable for the highest levels of motorsport.

Key Characteristics of ABP Helmets

  • Smaller Eyeports:
    • The reduced opening provides increased strength and better frontal protection for the driver.

  • Enhanced Frontal Protection:
    • The ABP addition specifically reinforces the forehead area against potential impact threats.

  • Rigorous Testing:
    • Helmets must pass a ballistic impact test at specific projectile speeds (e.g., 250 km/h), ensuring they can withstand high-speed impacts.

Where They Are Used

  • Top-Tier Motorsport:
    • FIA 8860-2018 ABP certified helmets are mandatory for professional drivers in prestigious series such as:
      • Formula 1
      • Formula 2
      • Formula 3
      • Formula E

How to Identify an ABP Helmet

  • Certification Label:
    • To confirm a helmet's compliance, look for the certification label inside the helmet, which will clearly state "FIA 8860-2018 ABP."

Conclusion

The FIA 8860-2018 ABP certification represents the pinnacle of helmet safety, integrating advanced ballistic protection features tailored for elite motorsport environments. These helmets are essential for ensuring the utmost protection for drivers competing at the highest levels.

If you have any further questions or need additional details, feel free to ask us!

ARAI HELMETS

Arai's mission has always been the protection and comfort of racers. Every Arai helmet is 100 percent handmade. Arai doesn't build helmets to meet any safety standards; they build them to exceed the standards. The foundation principals of protection formulated over three generations have never been forgotten in six decades of helmet design and manufacturing.

BELL HELMETS

Bell Racing Helmets is the world’s leading manufacturer of state-of-the-art head protection designed for professional and amateur drivers competing in the sport of auto racing. The Bell name is synonymous with safety, innovation, performance and engineering excellence. Since 1954, Bell helmets have been worn and trusted by more champions, in all forms of racing, than any other brand.

The current generation of Bell Racing helmets combines leading-edge technology, superior engineering, outstanding comfort and fit, excellent ventilation, forward thinking design and winning features using the latest material innovations and manufacturing techniques to create advanced helmets that maximize protection and enhance driver performance. Bell is the leading supplier of helmets in Formula 1 and manufactures purpose-built designs used in all forms of motorsports worldwide. Today, Bell Racing Helmets is a brand of Racing Force, the leading Group in the Motorsport Safety Product Industry with the most advanced and complete range of protection and performance products used worldwide by top professionals, amateur athletes, racing teams and car manufacturers from Formula 1 to World Rally Championship, Sportscar, Stockcar, Offroad, Drag Racing, Open Wheel and Karting. Racing Force Group Brands including Bell Helmets, OMP, Zeronoise and Racing Spirit have won more than 60 FIA World Championship titles along with IndyCar®, NASCAR®, NHRA® and Supercars® championships. Bell Racing Helmets are produced in an exclusive, 60,000 square meter manufacturing operation, Racing Force International based in Bahrain and adjacent to the Bahrain International Circuit (BIC) is Bell Racing’s exclusive production facility and houses corporate offices, factory showroom, research and development, and distribution activities. Bell Racing Helmets are sold and distributed through Racing Force USA, Inc., headquartered in Miami, Florida, serving customers in North and South America with Pro Shop retail locations in Speedway, Indiana, located near the Indianapolis Motor Speedway, and in Mooresville, North Carolina in the heart of NASCAR country. Bell began as a small auto parts store in a suburb of Los Angeles, Bell California. Growing under the leadership of Roy Richter, Bell became a leader in safety equipment for auto racing, motorcycling and bicycling. His commitment to creating great products through a close connection with the sport, along with his trust and care for the people who worked for him, turned Bell from a one-man entrepreneurial operation to the premier safety helmet company in the world. Roy Richter’s product development philosophy was based on working with the best drivers to develop purpose-built products proven in the most demanding racing environments including the Bonneville Salt Flats and the Indianapolis Motors Speedway.

IT TAKES A LOT TO FINISH FIRST

As a racer, car builder and inventor, Richter understood winning requires an amazing combination of cutting-edge technology, seamless teamwork, proven skill, dedication and unwavering nerve. It also takes a good deal of precaution. As a company of first, Bell has never stopped the pursuit of serious head protection through innovation and a focus on the future. Bell was the first company to be Snell certified, introduce an energy absorbing liner system, build a full-face helmet, fire retardant helmet, aerodynamic helmet, anti-fog shield and homologate an FIA 8860 “super helmet”. That same forward thinking defines everything we do and is exhibited in every high-performance racing helmet we build. Delivering the ultimate in protection, innovation, technology and reliability, it’s no wonder why more champions have proudly worn Bell Helmets than any other brand.

TIME TESTED, CHAMPION TRUSTED

For over 65 years, our commitment to innovative design and progressive approach to safety has defined Bell Racing. That same attention to detail continues today throughout our entire line of products making each Bell helmet unique and worthy of being worn by the world’s best drivers. From our first helmet manufactured in a garage behind Bell Auto Parts in 1954 under the leadership of Roy Richter, to the present line, we're constantly breaking new ground in safety and technology innovation. We know that, as quick as the final flash of that checkered flag, the future soon becomes the past—so we don't look back, we keep pushing forward, searching for the next finish line, the next win in a long history of wins. That legacy continues today with the purpose of creating and producing state-of-the-art auto racing helmets that enhance driver performance and maximizes protection.

G-FORCE RACING GEAR HELMETS

Founded over 25 years ago, G-FORCE Racing Gear, based in Acworth, GA, manufactures suits, helmets, gloves, shoes, racing harnesses, window nets and restraints, crew gear, flame retardant underwear, and more.

IMPACT HELMETS

At Impact, we are a company that takes what we do to heart. We aren't just a website and email address. We are the faces you see at many of the events; from the heart of motorsports in Indy and Charlotte, to the Chili Bowl and Baja. We proudly support and advance the safety of our men and women in the armed forces and also thousands of racers in all complements of motorsports with our innovative products made right here in the USA. There are a handful of companies involved in motorsports safety, but what sets Impact apart is that it's run by motorsports enthusiasts. Impact is more than just a business. it is the passion and calling for everyone from the manufacturing and shipping departments to the highest levels of management. Many race competitors are personal friends and we have enjoyed celebrating their wins and life's milestones along the way. We take pride in knowing that the products of the dedicated Impact staff play a part in returning our friends and fellow competitors home to their families after both the good and bad days at the track.

PYROTECT HELMETS

Pyrotect offers a complete line of quality safety equipment for Racers, Race Crews and Track Safety Personnel. Pyrotect is proud to continue to uphold our pioneering tradition of providing the finest quality safety equipment and service available. From the early days of racing up to today, we continue to strive to stay out front in the development of innovative advances in auto racing safety.

RACEQUIP HELMETS

RaceQuip was founded in Columbus, Ohio in 1975. Since then, RaceQuip has enjoyed a reputation for manufacturing high quality auto racing safety equipment at a great value. Racers worldwide look to the RaceQuip name for all their motorsports safety needs. Now part of the Holley family of brands, RaceQuip will carry on the tradition of premium materials, designs, and features while catering to the grassroots racer to help them live their motorsports dreams. Get to the winner’s circle with RaceQuip!

SIMPSON HELMETS

Since 1959, NASCAR, racing enthusiasts and motorcycle riders have trusted Simpson Performance helmets, head and neck restraints, harnesses, racing suits, gloves, shoes, off-road seats, window nets, drag parachutes and more to provide an unparalleled level of comfort, performance and protection. Simpson has the largest selection of auto racing helmets certified to the prestigious Snell SA2025 helmet safety certification. When you sit behind the wheel with a Simpson Snell SA2025 Rated Auto Racing Helmet, you give yourself the advantage of over five decades of safety innovation and experience. Simpson's Snell SA 2025 helmets meet Snells latest and most stringent safety standards. In addition to the strict testing for high impact crashes that Snell certified helmets are subjected to, new tougher requirements have been added for Snell SA 2025 certification that also include low velocity and low lateral testing. Additionally, SA 2025 helmets must now be equipped with FIA 8858-2010 compliant M6 terminal mounts for frontal head restraints.

SPARCO HELMETS

The Sparco helmet line is a result of over 40 years of research and development experience, including wind tunnel testing. The new range was designed to meet the requirements of the new FIA 8859-2024 and New Snell SA2025 ratings. The 2025 type-approval introduces new impact requirements, the helmets need to dissipate large amounts of energy in different ways. To meet these requirements Sparco is introducing new innovations for driver safety and comfort. All shells now have layers of carbon-Kevlar for greater strength. The helmets have also been wind-tunnel tested to maximize exterior vent placement and flow. The EPS interiors and padding have also been redesigned for increased airflow and driver comfort. Sparco also introduces a new size: Medium/Large. This M/L size takes advantage of using the smaller shell which is lighter and more compact.

STILO HELMETS

The name Stilo comes from the tool used by the Bronze Age to write, to imprint their first thoughts, their first ideas, their first concepts. In time the word "stilo", that is the way each person uses a stilo, your own style. And our style is that of making products that leave a mark, exactly like a stilo in our ancestors wax boards. Top functionality. Everything a driver needs must be standard feature: intercom, connections, earmuffs, drinking system, etc.

ZAMP RACING HELMETS

Zamp Racing was established in 2000 by David Zampierin, who has been in the helmet business since 1985. The primary focus of the company is their products and developing them to be leaders in features, quality, and protection. Zamp offers a variety of racing products featuring leading edge technology, including: Helmets, Head & Neck Restraints, Suits, Shoes & Gloves. Zamp products meet severe safety standards like FIA 8860-2018, Snell SA2025, FIA 8859-2024, Snell M2020D, SFI 38.1, SFI 24.1, SFI 3.2A/20, SFI 3.2A/5, SFI 3.3A/5, ECE and DOT. At every price point, you will see that Zamp products offer the best value, features, and selection.
