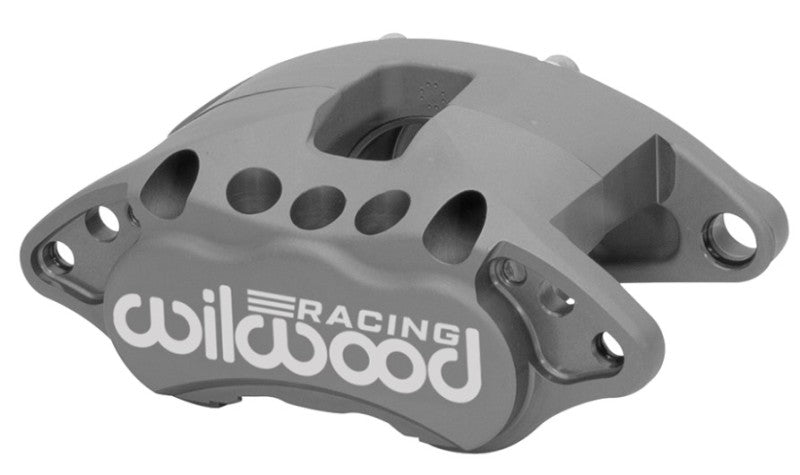

Wilwood D52-R Brake Caliper - 1 Piston - Gray Anodized - 12.190 in OD x 0.810 in Thick Rotor - 7.060 in Floating Mount 120-15607

Wilwood D52-R Brake Caliper - Gray - 12.190" OD x 0.810" Thick Rotor - 7.060" Floating Mount 120-15607

Wilwood's GM III caliper represents the latest refinements in caliper design and manufacturing through the use of solid modeling and stress simulation programs. The result is the most rigid, highest torque, lightweight aluminum caliper in its class.

The real strength comes from its exclusive triple bridge configuration which provides a tremendous increase in clamping force over other twin bridge calipers. Efficient designs further maximize weight savings: Material is properly placed to fortify all load bearing points. Each caliper model has its own unique casting: 2. 38" diameter piston calipers incorporate a smaller external contour than the larger 2. 75" diameter piston calipers. Any material that did not contribute to strength, was eliminated for weight reduction, resulting in a caliper that weighs just over three pounds.

The GM III incorporates standard Wilwood features like stainless steel pistons for increased fluid protection and high temperature seals for controlled retraction which provides improved driver feel. The GM III for 1. 00" width rotor is machined and fitted with OEM type slide pin vibration dampeners for a direct OEM caliper interchange. These tight grained, high density aircraft alloy aluminum castings are fully machined, assembled and tested in-house by fully trained technicians at Wilwood to assure top quality and peak performance.

Product Description: Brake Caliper, D52-R, 1 Piston, Aluminum, Gray Anodized, 12.190 in OD x 0.810 in Thick Rotor, 7.060 in Floating Mount, Each

Pit Stop USA offers Wilwood D52-R Brake Caliper - Gray - 12.190" OD x 0.810" Thick Rotor - 7.060" Floating Mount 120-15607 at low everyday prices. Be sure to check out all our products from Wilwood Engineering like Wilwood GM III Single Piston Floater Brake Calipers.

Wilwood is a leading manufacturer of high-performance brake systems and components to fit a wide range of track and street applications. They offer everything from individual components like rotors, calipers, and pads to complete bolt-on kits.

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motorsports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 320 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment to heavy-duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.
