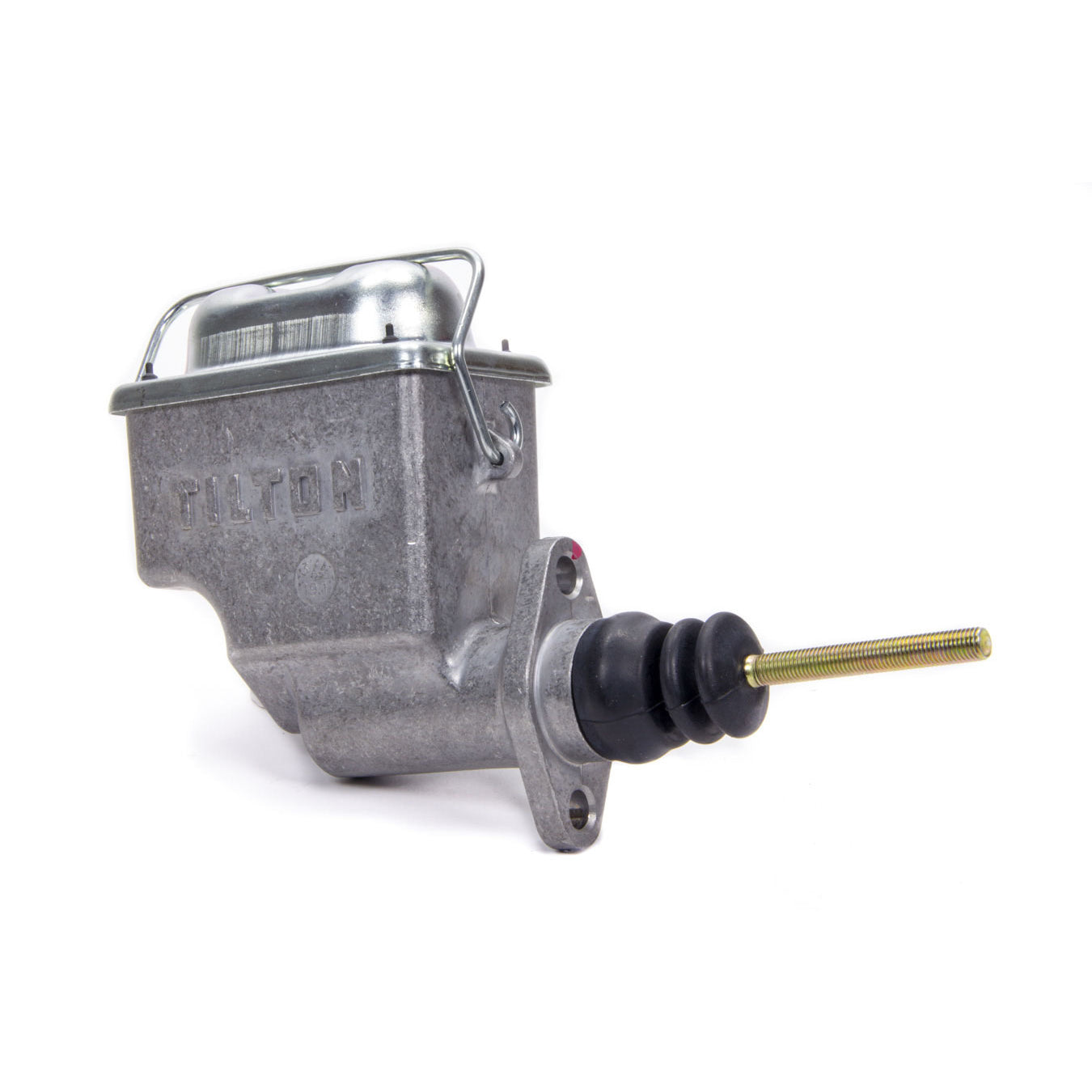

Tilton Integral Reservoir Master Cylinder - .750" Bore
Tilton Integral Reservoir Master Cylinder - .750" Bore
Tilton Engineering

Tilton Integral Reservoir Master Cylinder - .750" Bore

Only 3 left
SKU: TIL73-750
Master Cylinder, 73-Series, 0.75 in Bore, 1.100 in Stroke, Integral Reservoir, Aluminum, Natural, 2-1/4 in Flange Mount, Each

Earn [points_amount] when you buy this item.

$63.75
Sale $75.00 $63.75
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Nickel (metallic), which is/are known to the State of California to cause cancer

73-Series Master Cylinder 73-Series master cylinders are designed for applications that require large brake fluid capacity in a leak-proof integral reservoir.

Features:

  • Reliable seal/piston design.
  • High pressure die-cast aluminum provides machined-look finish.
  • 1. 1" of stroke provides the fluid displacement needed for a wide variety of applications.
  • Integral 10 oz. reservoir provides plenty of fluid capacity.
  • Internal baffle within reservoir keeps port covered with fluid if reservoir runs low.
  • Engineered bellows from a tight seal and keep elements away from brake fluid. Bellows expands to fully fill reservoir and enables the full volume of fluid to be utilized.
  • Lid designed for easy removal. Features a bail wire produced from high-tensile spring steel (unlike competitor's low-carbon steel), designed to provide consistent clamp force.
  • 1. 8" NPT outlet port, shrouded underneath reservoir to minimize the chance of fitting damage.
  • Front flange mount
  • Cylinder weight (varies by bore size): 1. 40 lbs

    Since 1972, Tilton Engineering has been committed to supplying innovative products backed by over 30 years of race winning heritage. Over the past 35 years, Tilton Engineering has advanced their reputation as a technological leader through constant innovation and product refinement. Tilton Engineering strives to produce the best racing parts and service for drivers and racing teams dedicated to their sport. Tilton's wide range of products spans across metallic, cerametallic and carbon/carbon racing clutches, hydraulic release bearings, racing clutch disc packs, racing flywheels, racing pedal assemblies and master cylinders, the renowned Super Starter series, and the accessories that make them all work together.

    Product Descripton:

  • Master Cylinder
  • 73-Series
  • 0.75 in Bore
  • 1.100 in Stroke
  • Integral Reservoir
  • Aluminum
  • Natural
  • 2-1/4 in Flange Mount
  • Sold Individually
    •
