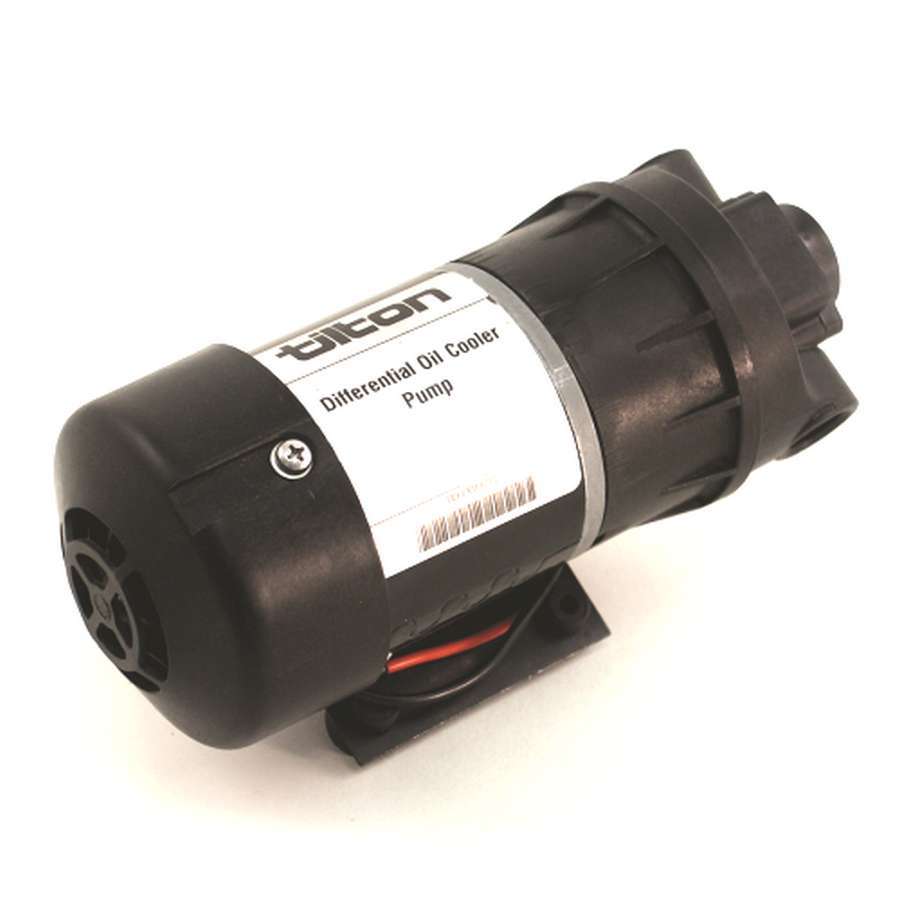

Tilton Fluid Cooler Pump - 1-2 gpm - 3/8 in NPT Inlet - 3/8 in NPT Outlet - Continuous Duty - Buna Diaphragm

Tilton cooler pumps are ideal for pumping oil through transmission and differential coolers. They can also be used for many other applications, such as emptying fuel tanks or circulating coolant. Cooler pumps feature an internal bypass valve and are self-priming up to eight feet above the source from which it draws. Tilton cooler pumps are a positive displacement type of pump, so its output is directly proportional to the motor speed. For example, if a lighter load increases the motor speed by 25%, then the flow rate increases by 25% as well. The Buna cooler pump is designed for use with standard oils and coolants, while the Viton model is designed for use with corrosive fluids such as alcohol. The intermittent duty pump is designed for applications where the pump does not need to be used continuously, such as being turned on/off by the driver or a relay at established temperatures.

Continuous duty pumps are designed for applications where the pumps needs to operate continuously for longer than two hours at a time without cool down.

Since 1972, Tilton Engineering has been committed to supplying innovative products backed by over 30 years of race winning heritage. Over the past 35 years, Tilton Engineering has advanced their reputation as a technological leader through constant innovation and product refinement. Tilton Engineering strives to produce the best racing parts and service for drivers and racing teams dedicated to their sport. Tilton's wide range of products spans across metallic, cerametallic and carbon/carbon racing clutches, hydraulic release bearings, racing clutch disc packs, racing flywheels, racing pedal assemblies and master cylinders, the renowned Super Starter series, and the accessories that make them all work together.

Product Descripton:
