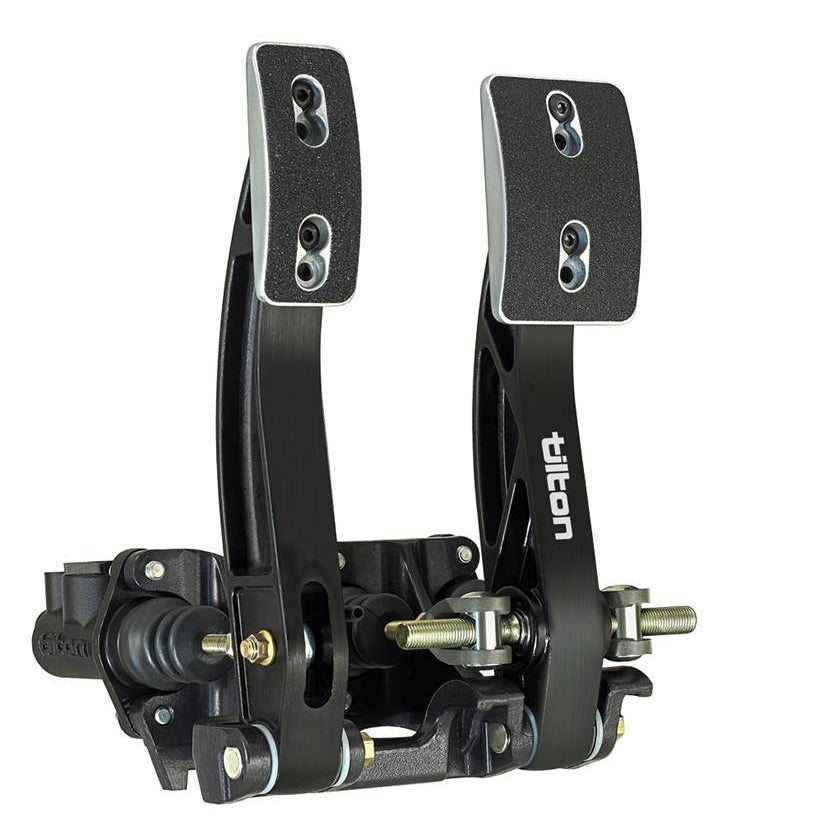

Tilton Floor Mount Aluminum Dual Pedal Assembly - Triple Master Cylinder (Not Included)
Tilton Floor Mount Aluminum Dual Pedal Assembly - Triple Master Cylinder (Not Included)
Tilton Engineering

Tilton Floor Mount Aluminum Dual Pedal Assembly - Triple Master Cylinder (Not Included)

Out of stock
SKU: TIL72-604
Pedal Assembly, 600-Series, Brake / Clutch, 5.29-5.75:1 Ratio, 10.64 in Long, Forward Swinging Floor Mount, Aluminum, Black Anodized, Each

Earn [points_amount] when you buy this item.

$327.25
Sale $385.00 $327.25
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Chromium-hexalent, which is/are known to the State of California to cause cancer

Forged aluminum pedal assembly has brake and clutch pedals, large 7/16"-20 balance bar and accepts up to three master cylinders. Pedals include adjustable foot pads and anti-slip surfaces, and can be set to four different ratios. Master cylinders not included.

Features:

  • Pedal assembly is fully optimized for strength, stiffness and weight using Finite Element Analysis (FEA).
  • Adjustable clutch pedal stop prevents clutch over-stroking.
  • Forged aluminum pedals with adjustable (vertical & horizontal) foot pads and anti-slip surfaces. Ratios achievable: 5. 29: 1, 5. 44: 1, 5. 61: 1, 5. 75: 1.
  • Lightweight aluminum frame features guide "ramps" to reduce balance bar tipping. By decreasing balance bar tipping, friction is decreased and brake repeatability is improved.
  • Large diameter 7/16"-20 balance bar, allowing front/ rear brake bias adjustments, minimizes flex to provide a solid pedal feel/response. Teflon(R) coated aluminum clevises for increased durability and reduced friction.
  • Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction.

    Since 1972, Tilton Engineering has been committed to supplying innovative products backed by over 30 years of race winning heritage. Over the past 35 years, Tilton Engineering has advanced their reputation as a technological leader through constant innovation and product refinement. Tilton Engineering strives to produce the best racing parts and service for drivers and racing teams dedicated to their sport. Tilton's wide range of products spans across metallic, cerametallic and carbon/carbon racing clutches, hydraulic release bearings, racing clutch disc packs, racing flywheels, racing pedal assemblies and master cylinders, the renowned Super Starter series, and the accessories that make them all work together.

    Product Descripton:

  • Pedal Assembly
  • 600-Series
  • Brake / Clutch
  • 5.29-5.75:1 Ratio
  • 10.64 in Long
  • Forward Swinging Floor Mount
  • Aluminum
  • Black Anodized
  • Sold Individually
    •
