QuickCar Power Distribution Post - 8 Location - Red
WARNING: This product can expose you to chemicals including Lead, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

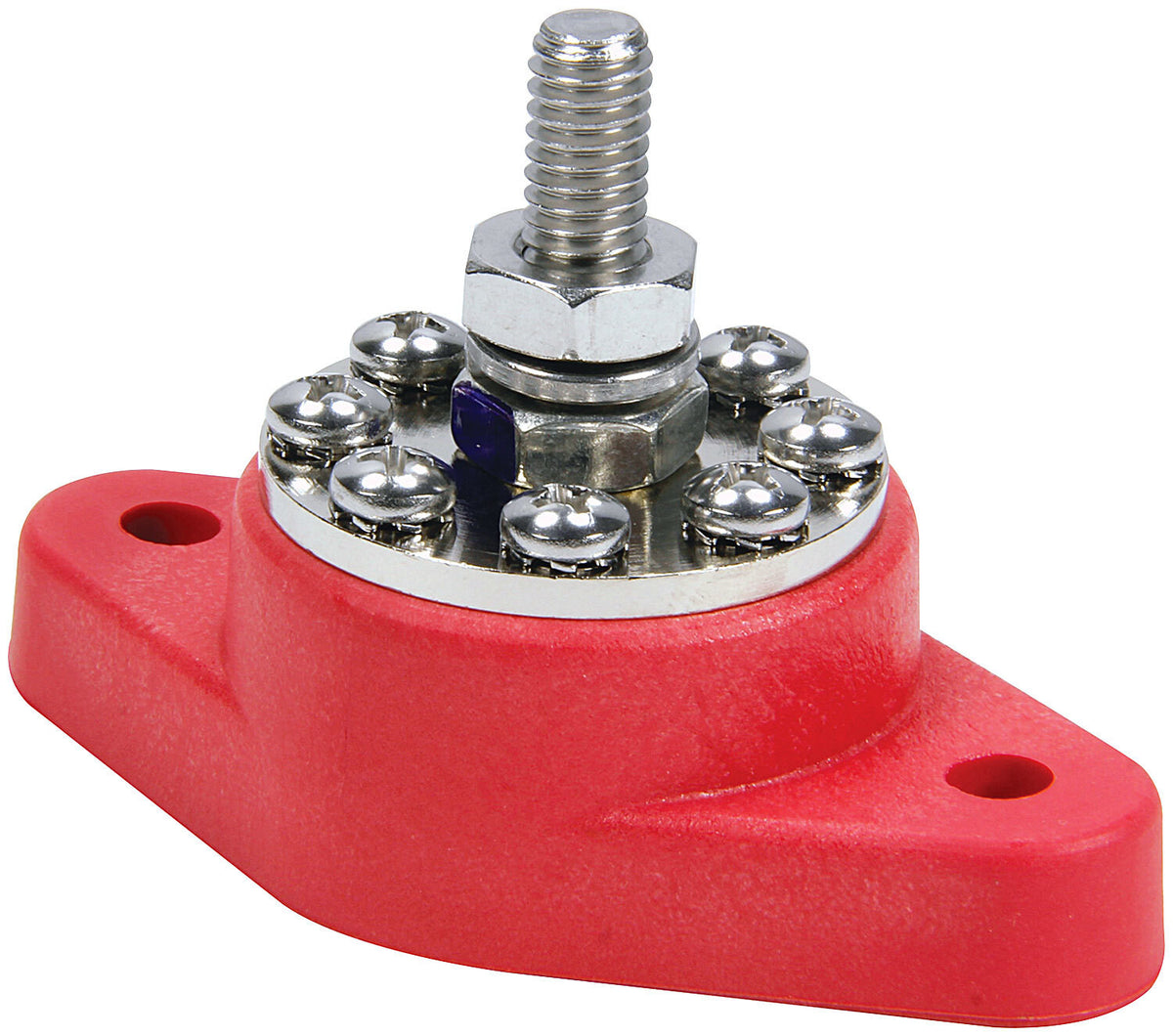

Running every accessory back to the battery makes a wiring mess that nobody can trace six months later. A distribution post gathers those feeds in one place, on a glass-filled nylon base that insulates the current from whatever it is bolted to. A red 8 terminal post with one large inlet accepting 5/16 Inch ring terminals and eight outlets accepting #8 rings, supplied with eight #8-32 stainless screws and locking washers throughout.
Features and Benefits:
- Distribution Post - 8 Terminal Busbar, Red, each 57-805
- Contains 8 points to distribute electrical current.
- One large inlet post accepts 5/16 Inch ring terminals as the additional 8 posts accept #8 ring terminals.
- Includes eight (8) #8-32 stainless steel screws.
- All posts include locking washers.
- Each small posts is capable of continuously withstanding 15 amps.
- This Distribution Post has two (2) 1/4 Inch holes used for mounting it on a flat surface, mounting bolts not included.
- Maximum rating: 180 amps, with 20 amps per connection max.
- Glass-filled nylon base.
- Nickel-plated copper connection plate.
- Available in black (57-806) or red (57-805)
Product Details:
- Color: Red
- Material: Plastic
- Location: Panel Mount
- Sold As: Each
Product Description:
- Junction Box
- Panel Mount
- 8 Posts
- Insulated
- Plastic
- Red
- Sold Individually
When the hallmark of a business is the quality and dependability of its products, there is no time to rest on past accomplishments. QuickCar Racing Products have seen our products and our company grow by leaps and bounds. In order to continue our success, we remain dedicated to listening to customers' ideas for new products, saving them money, and improving the performance and life expectancy of their race cars.
