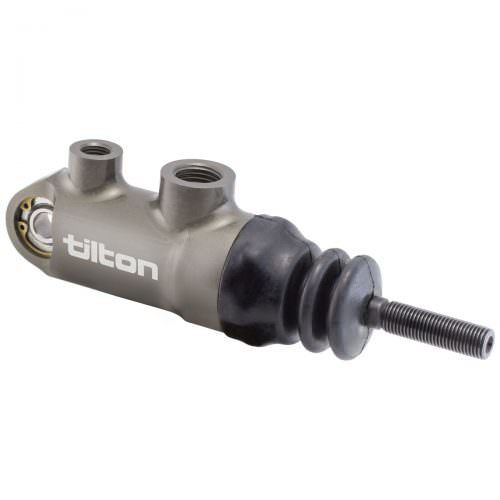

Tilton 78 Series Master Cylinders

Tilton 78-Series master cylinders offer the latest in racing master cylinder technology in a very lightweight and compact design. The rear spherical bearing mount and one-piece piston/pushrod eliminate side thrust into the master cylinder bore, providing consistent and repeatable braking.

Features:

  • 78-Series Master Cylinder Features
  • 40% lower price than 77?Series master cylinders they replace ($235 vs $395 Retail)
  • Directly interchangeable with 77?Series master cylinders
  • Billet aluminum body with proprietary low?friction coatings minimize wear and provides smooth operation
  • Rear spherical bearing mount and one?piece piston/pushrod eliminates side thrust into the master cylinder bore, providing consistent and repeatable braking
  • Hand?built and blueprinted for cut?off port travel
  • External dust boot included
  • O?ring seal at the main rod guide and body interface
  • 1.1” of stroke
  • outlet port and AN6 inlet port
  • 7 bore sizes available
  • Fits Tilton 800-Series and 900-Series pedal assemblies


    • Note: Flexible lines must be used for inlet and outlet port plumbing.
