UMI Performance 1982-2002 GM F-Body Lower Control Arm Relocation Brackets - Bolt-In - Red

Only 1 left
SKU: UMI2012-R

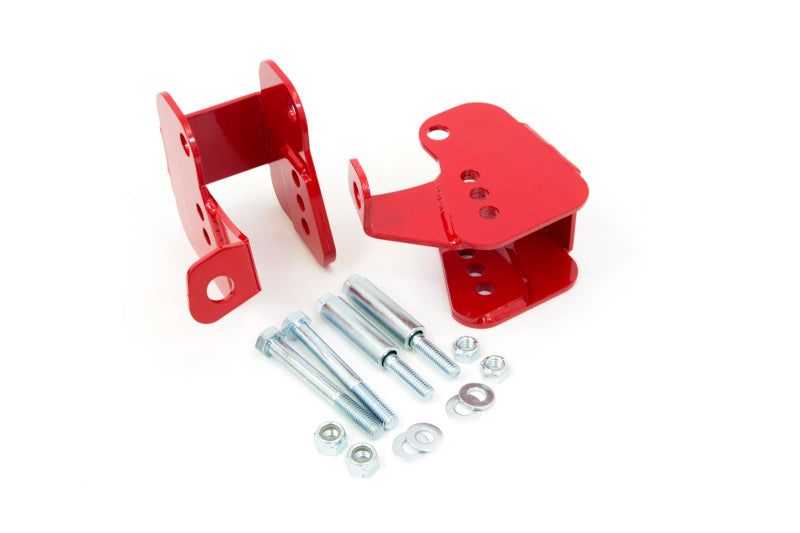

Control Arm Bracket, Relocation, Lower, Bolt-On, Steel, Red Powder Coat, GM F-Body 1982-2002, Kit

Earn [points_amount] when you buy this item.

$109.99
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: These products may contain a chemical known to the state of California to cause cancer and birth defects or other reproductive harm

Wheel hop or traction issues? We have the solution! Optimize your vehicle's instant center and improve forward traction by lowering the rear of the lower control arm 2", 2-3/4", or 3-1/4". These bolt-in brackets are CAD designed to accommodate factory lower control arms as well as all popular aftermarket styles. Robust flanges inside the brackets add reinforcement and ensure factory bushings bolt right in. Brackets installed can provide an average 0.10 second (or better) 60-foot reduction and an overall improvement in launch consistency. Brackets are constructed of 3/16" mild steel and CNC laser cut for precision tolerances. Relocation brackets are designed to work on both lowered and non-lowered vehicles and feature multiple settings to optimize vehicle handling and traction

  • Wheel hop or traction issues? We have the solution! Optimize your vehicle's instant center and improve forward traction by lowering the rear of the lower control arm 2", 2-3/4", or 3-1/4". These bolt-in brackets are CAD designed to accommodate factory lower control arms as well as all popular aftermarket styles. Robust flanges inside the brackets add reinforcement and ensure factory bushings bolt right in. Brackets installed can provide an average 0.10 second (or better) 60-foot reduction and an overall improvement in launch consistency. Brackets are constructed of 3/16" mild steel and CNC laser cut for precision tolerances.  Relocation brackets are designed to work on both lowered and non-lowered vehicles and feature multiple settings to optimize vehicle handling and traction.

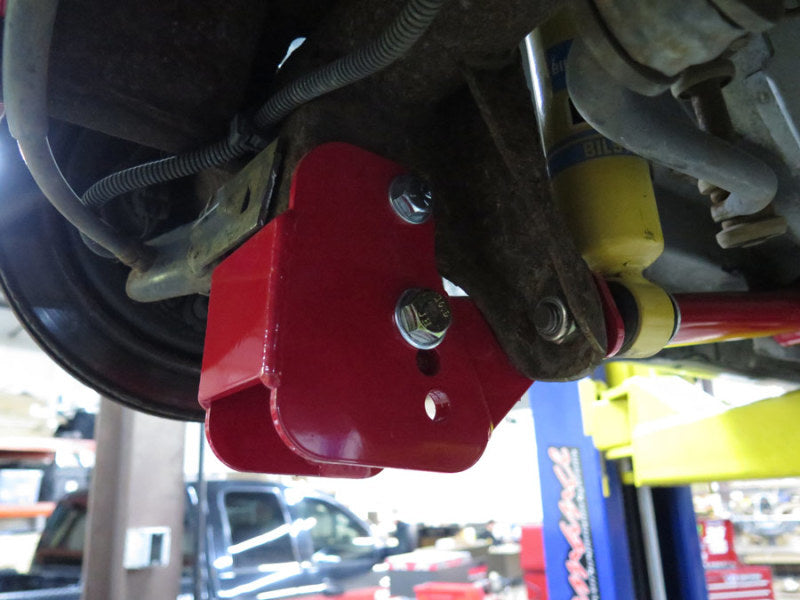

  • Installation: P/N 2012 bolt in relocation brackets are designed for the factory rear end housings and also fit Strange Engineering brand rear ends. They will not correctly fit Moser Engineering brand rear ends, please see P/N 2011 for a Moser Engineering weld in specific bracket. Installation takes approximately 1-2 hours and does not require drilling or welding.
  • Features:
  • Works with factory height or lowered vehicles. Simply bolt-in & launch using your existing factory control arms.
  • Multiple adjustment holes ideal to correct control arm angle on lowered vehicles while improving traction.
  • Choose 2", 2-3/4", or 3-1/4" drop to optimize vehicle handling and traction.
  • Track testing shows an average of 0.10 second reduction in 60-foot times.
  • CAD designed, CNC laser cut 3/16" mild steel.
  • Adjustment holes follow natural arc of lower control arm for direct bolt-in.
  • New grade 10.9 hardware included.
  • Manufactured with pride in Philipsburg, PA - USA.Vehicle Applications: 1982-2002 GM F-Body Lower Control Arm Relocation Brackets - Bolt-In

    Vehicle Applications: 1982-2002 GM F-Body Lower Control Arm Relocation Brackets - Bolt-In

    Before we built suspension parts, Utmost Machine manufactured precision components for major brands such as Bell+Howell, Corning Asahi, and Sony. Our product line has changed over the years but our dedication to quality remains the same. In-House Manufacturing...If we can make it in our shop, we do. This means we control almost every aspect of the product, resulting in suspension components suitable for attacking the high banks of Daytona or more importantly, hauling your family. Engineered to Race... UMI Performance was founded in 2002 as a father/son business developing performance parts for GM and Ford products. They quickly began to focus on suspension upgrades for both older and late model muscle cars, and have become a leader in replacement and high-performance suspension components, from individual parts to entire kits. Our product engineers and sales team are racers. We race what we sell and use that experience to design and develop our products. 100% Made in USA... Our dedicated craftsmen and craftswomen use only the highest quality USA sourced raw materials to build components worthy of your dream car. UMI Performance was founded in 2002 as a father/son business developing performance parts for GM and Ford products. They quickly began to focus on suspension upgrades for both older and late model muscle cars, and have become a leader in replacement and high-performance suspension components, from individual parts to entire kits.

    Product Descripton:

  • Control Arm Bracket
  • Relocation
  • Lower
  • Bolt-On
  • Steel
  • Red Powder Coat
  • GM F-Body 1982-2002
    •
