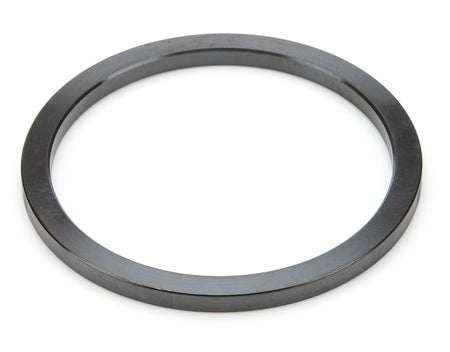

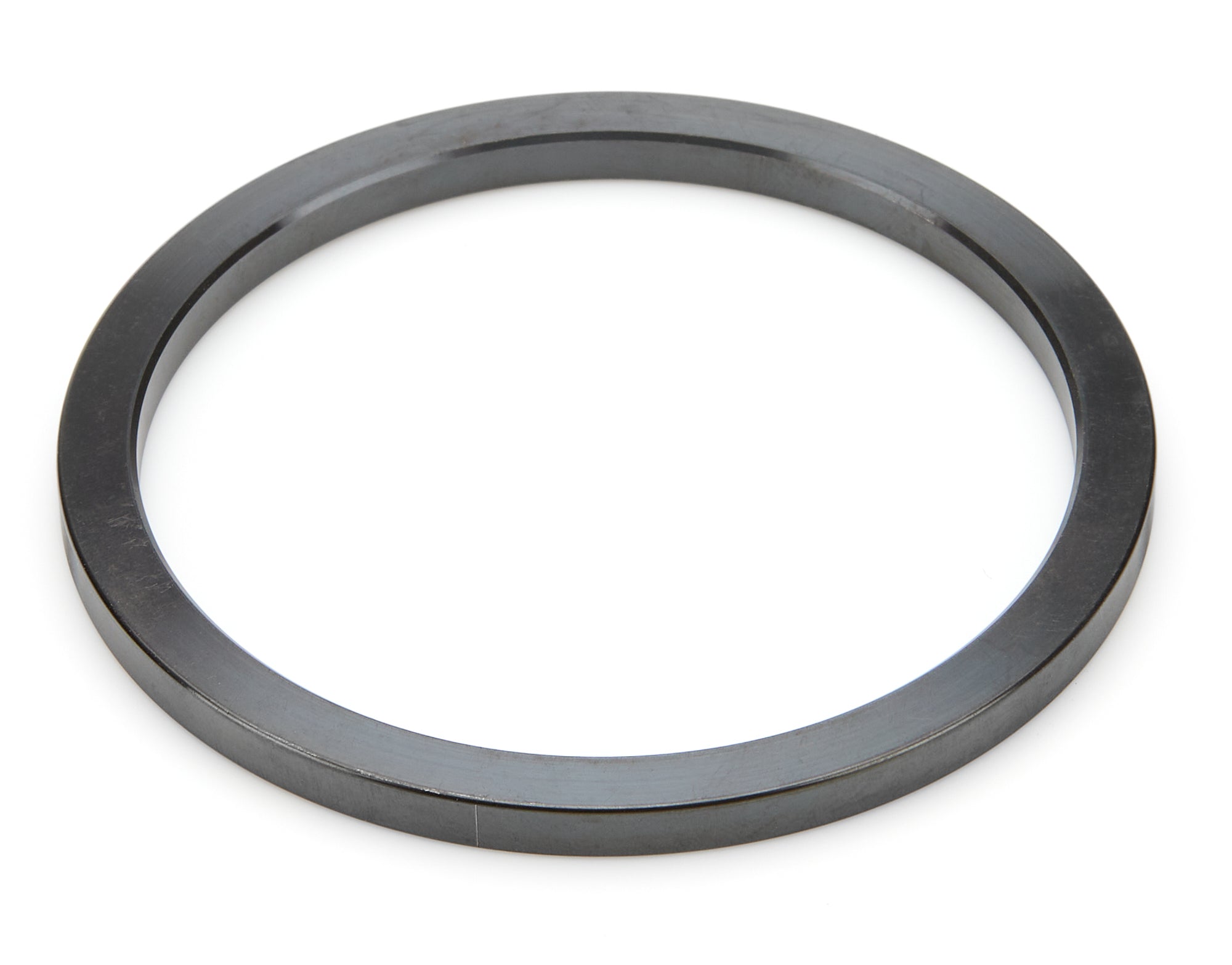

Ti22 Passenger Side Birdcage Spacer
WARNING: These products may contain a chemical known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Birdcage spacers set the cage position on the axle and protect the axle surface where the rotor or hub slides over. Correct spacing keeps the cage aligned with the torsion arm and radius rods. Splined versions protect the axle splines from wear during assembly.
These are inexpensive parts that prevent expensive axle damage.
TIP2132 features internal splines to protect the axle where the rotor slides over and space the bird cage out. TIP2130 is used to prevent wear on the bearing shoulder. Standard sprint car birdcages are made from tough billet 6061-T6 aluminum then black anodized for corrosion resistance.
Designed for maximum performance, these birdcages include an angular contact bearing, and come complete with a torsion arm bolt and a radius rod bolt.
Product Details:
- Material: Chromoly
- Finish: Black Oxide
- Thickness: 0.185 Inch
- Outside Diameter: 3.236 Inch
- Inside Diameter: 2.763 Inch
- Location: Passenger Side
- Sold As: Each
Product Description:
- Birdcage Spacer
- Passenger Side
- 2.763 in ID
- 3.236 in OD
- 0.185 in Thick
- Chromoly
- Black Oxide
- Sold Individually
Ti22 specializes in titanium components. Titanium is a lightweight, strong, lustrous, and corrosion-resistant metal with a silvery color, and is prized in the aerospace and marine industries for its strength and durability. Its resistance to the elements, combined with the highest strength-to-weight ratio of any metal, also make it the preferred choice for high-performance racing applications.
