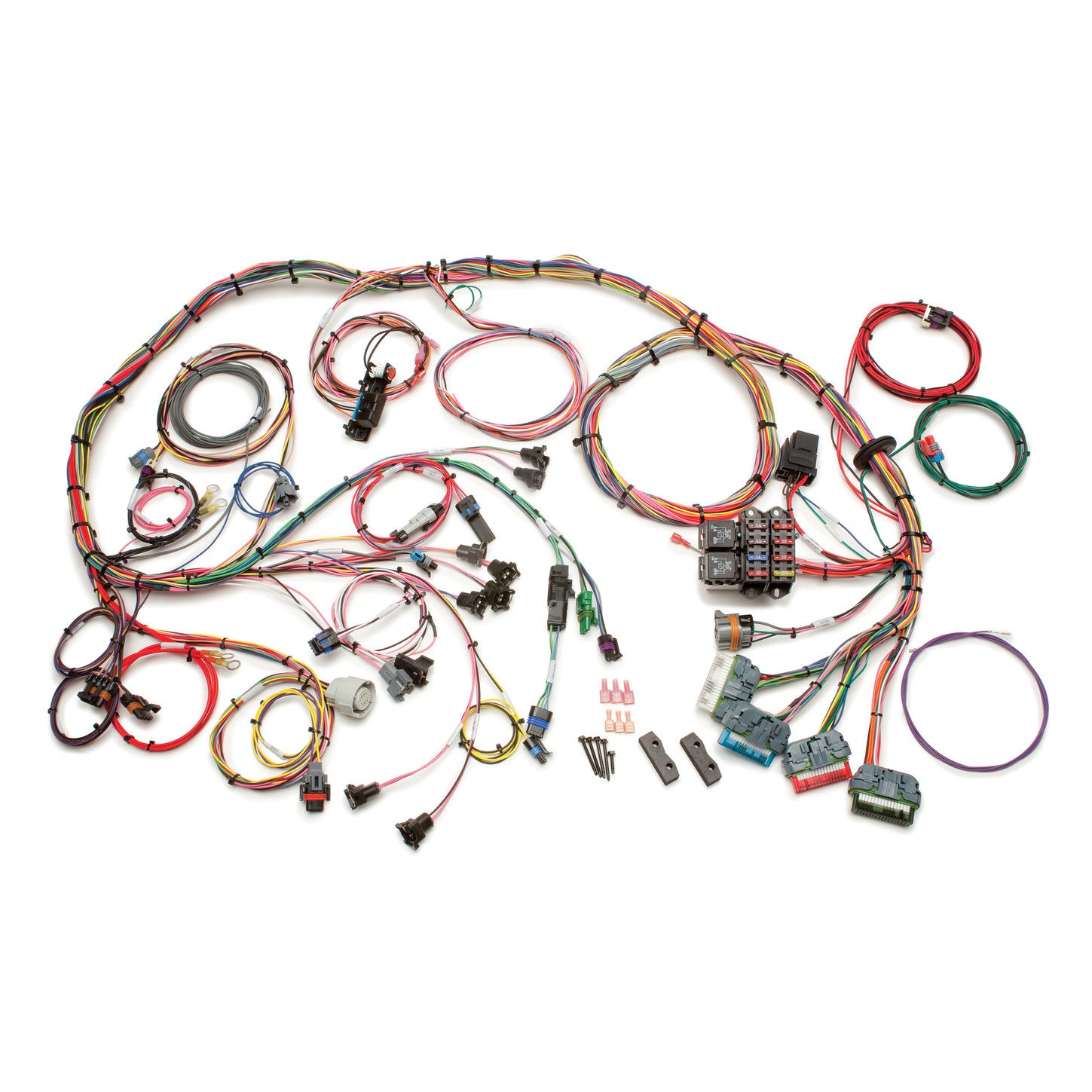

1992-1997 GM LT1 Harness Extra Length
This harness is designed for 1992-1997 5.7L LT1/LT4 and 4.3L (V8) L99 engines with a 4L60E transmission, using a '94-'97 ECM. This harness will not work with G??92-G??93 ECMs . These engines and transmissions were factory equipped in Camaro, Firebird, Corvette, Roadmaster, Impala and Caprice. These harnesses also include a VATS bypass module, painless part #64024. The 4L60E transmission used must be a 1994+ which utilizes a 13th pin on the transmission connector. When using either of these harnesses on a '96 or '97 engine you must replace the coil, coil output wire and knock sensor with the parts from a '92 -'95 engine. Included with this harness is an 8 circuit modular fuse block and GM color coded wires with labels for easy installation. This kit includes: All new fuel injection harness with OEM fitment connectors and harness breakouts. OBDII connector, mounting bracket and check engine light. Vehicle Anti Theft System (VATS) bypass module Rubber grommet. Mounting hardware. Installation manual. The Fuse Block Protects The Following Circuits: Air Pump Driver Side Injectors Dual 40 amp Ignition Relays ECM and Data Link Connector Fuel Pump, ECM, and Mass Airflow Sensor Heated O2 Sensors, EGR, and Canister Purge Solenoid Malfunction Indicator Lamp and Brake Switch Pass Side Injectors Transmission This harness includes connections for the following components: Air Pump Air Pump Relay Alternator Brake Switch Canister Purge Solenoid Data Link Connector Distributor Driver/Pass Front O2 Sensors ECM EGR Valve Engine Coolant Temperature Fan #1 Relay Ground ECM Activation Fan #2 Relay Ground ECM Activation Fuel Pump Fuel Pump Relay Fuel Pump Test Gear Indicator Switch Grounds Idle Air Control Ignition Coil Ignition Module Ignition Switch Signal Injectors Intake Air Temperature Sensor Knock Sensors Malfunction Indicator Lamp MAP Sensor Mass Airflow Sensor Starter Tachometer Throttle Position Sensor Transmission VATS Vehicle Speed Sensor VSS Output For
