Using technology gained from building distributors for off-road and NASCAR racers, MSD offers this Billet Distributor for the popular Type 1 engine. A maintenance-free magnetic pickup is responsible for triggering the MSD Ignition. This pickup is accurate to within 1 at any rpm so you wont have to worry about points float or burbles at top end speeds. The pickup is triggered by a precision reluctor that is attached to a hardened steel shaft. For increased stability, a sealed ball bearing is used to guide the shaft. Since every engine application is different, the MSD Billet distributor features an easy-toadjust mechanical advance assembly. By simply changing the advance springs and stop bushing you can tune in 24 different advance curves.

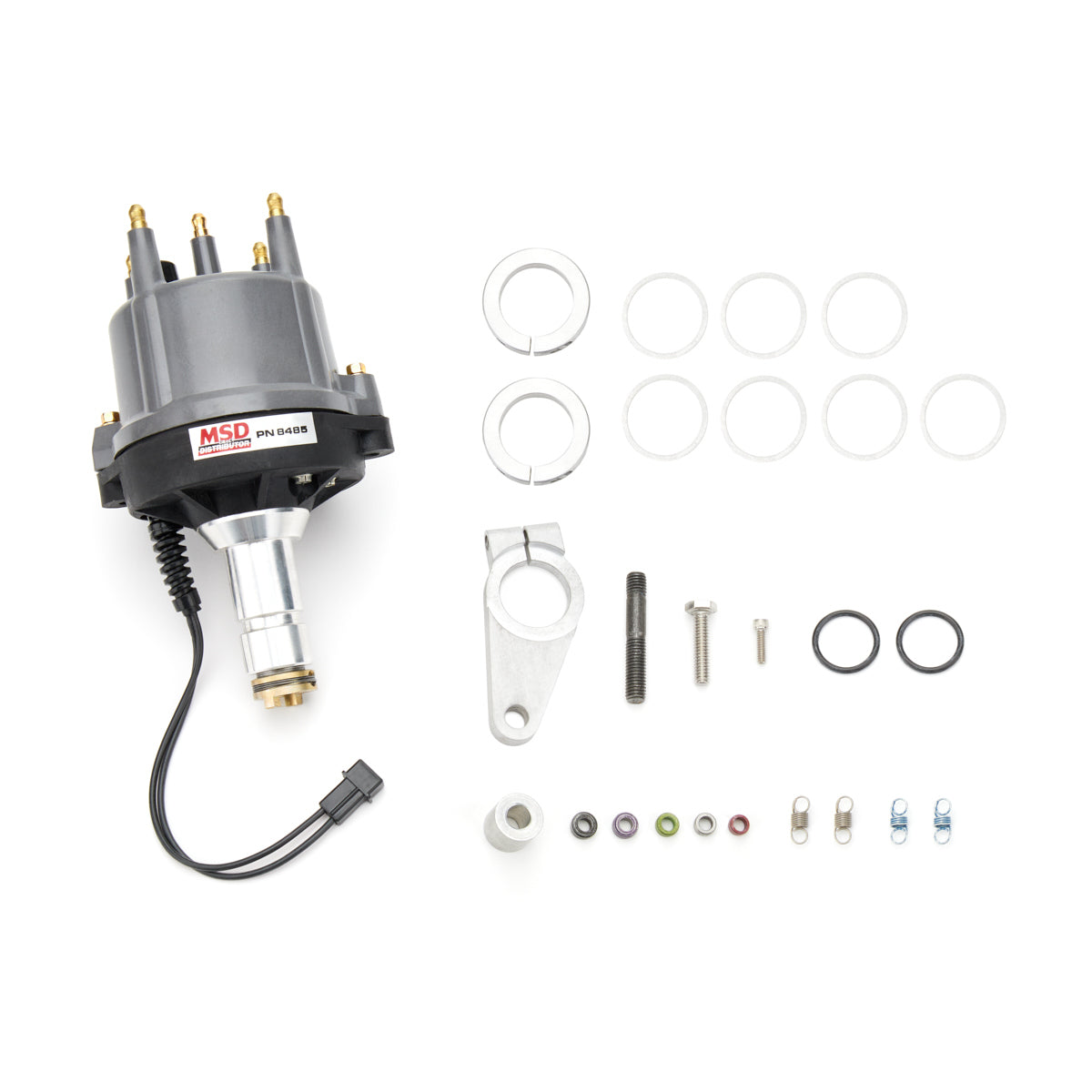

MSD VW Type 1 Billet Distributor 8485 Includes Cap/Race Rotor - Use w/MSD 6/7/8/10 Series Ignition - w/o Vacuum Advance - Air Cooled
Accurate Within 1deg. At Any RPM Maintenance Free Magnetic Pick Up Billet Aluminum Housing Easy To Adjust Mechanical Advance Assembly 24 Different Advance Curves Must Be Used With MSD 6/7 Series Ignitions Use MSD PN 31939 For Spark Plug Terminals/BootsUsing technology gained from building distributors for off-road and NASCAR racers, MSD offers this Billet Distributor for the popular Type 1 engine. A maintenance-free magnetic pickup is responsible for triggering the MSD Ignition. This pickup is accurate to within 1° at any rpm so you won't have to worry about points float or "burbles" at top end speeds. The pickup is triggered by a precision reluctor that is attached to a hardened steel shaft. For increased stability, a sealed ball bearing is used to guide the shaft. Since every engine application is different, the MSD Billet distributor features an easy-to-adjust mechanical advance assembly. By simply changing the advance springs and stop bushing you can tune in 24 different advance curves.Features:Designed as a performance upgrade for VW Type I air cooled enginesSupplied with bolt down distributor cap and rotorMust be used with an MSD Ignition ControlAdvance weight pins are staked and tig welded to the plateΓÇÜ├ä┬ó┬ ¼Î“Çá┬ ¼Î“ÇáNylon pads ensure smooth operation of the advance weights┬ ¼Î“ÇáMechanical advance assembly can be locked out for crank trigger systemsAdvance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reductionPolished steel shaft is QPQ coated and guided by a sealed ball bearingCNC machined billet aluminum housing and Dupont Rynite baseEasy-to-adjust mechanical advance with supplied springs and stop bushingsMaintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm rangeNo CARB Exemption Order Number
Supplied with bolt down distributor cap and rotor Must be used with an MSD Ignition Control Advance weight pins are staked and tig welded to the plate•  Nylon pads ensure smooth operation of the advance weights Mechanical advance assembly can be locked out for crank trigger systems Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction Polished steel shaft is QPQ coated and guided by a sealed ball bearing CNC machined billet aluminum housing and Dupont Rynite base Easy-to-adjust mechanical advance with supplied springs and stop bushings Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range No CARB Exemption Order NumberProduct Description:
Distributor Pro-Billet Magnetic Pickup Mechanical Advance HEI Style Terminal Gray Type 1 Air Cooled Volkswagen Sold IndividuallyRacers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you need to meet your performance goals. We continue to innovate and invent components and technology that deliver performance and reliability with products that are easy to use and install. Over the course of 40-plus years, MSD Performance has been driving the development of innovative components that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in motorsports. MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street! Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power and endurance. Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.
