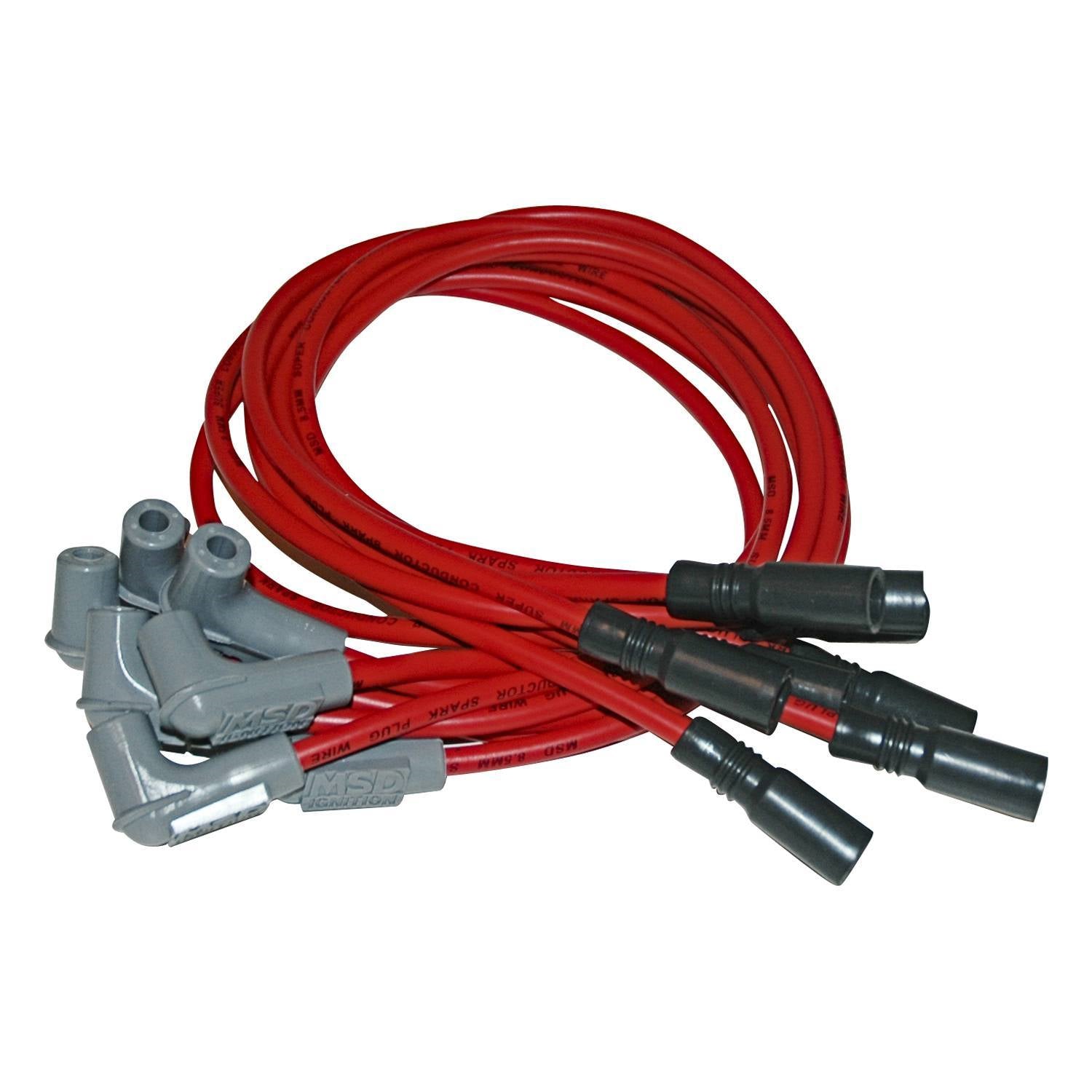

MSD Super Conductor Spiral Core 8.5 mm Spark Plug Wire Set - Red - 90 Degree Plug Boots - Socket Style - Small Block Chevy

The MSD 8.5mm Super Conductor Wire is "the" performance wire.Engineered from the inside out, the 8.5 offers everything you have everwanted in a wire; incredibly low resistance without electronic interference! In a single 12 inch length of Super Conductor Wire there is only 40 - 50 ohms of resistance! That is the lowest resistance of any helically wound wire. To accomplish this, we use a copper alloy conductor due to it's great voltage carrying capabilities. The low resistance results in less loss in spark energy so more reaches the spark plug. The conductor is wound extremely tight around a special center core. So tight in fact, that there is over 40 feet of conductor wrapped into a single foot of plug wire. This winding procedure, combined with a ferro-magnetic impregnated center core, produces an extremely effective Electro Magnetic Interference (EMI) "choke". This choke, or suppression capability, keeps the EMI inside the wire where it cannot interfere with other electronics on your vehicle. The outer sleeve that surrounds the conductor assembly is just as impressive. A proprietary blend of silicone and synthetic material produce a sleeve that is highly resistant to high heat as well as abrasion and tears.

MSD Custom Spark Plug Wire Set 32169 Red Super Conductor 8.5mm

Resistance Less Than 50 Ohms/ft. For Superior Spark

Extra Hvy Glass Braid; Strong Dielectric Insulator

Helically Wound Copper Alloy Conductor

40 Feet Of Conductor Wound In One Foot Of Wire

8.5mm Jacket Protects From High Heat Or Abrasion

Silicone And Synthetic Heat Resistant Boot

Ferro-Magnetic Impregnated Core Creates EMI Choke

Core Made w/DuPont Kevlar To Add Tensile Strength

Applications include:

C1500 Pickup, C1500 Suburban, C2500 Pickup, C2500 Suburban, C3500 Pickup, Express 1500, Express 2500, Express 3500, G3500 Van, K1500 Pickup, K1500 Suburban, K2500 Pickup, K2500 Suburban, K3500 Pickup, P30 Van, P35/P3500 Van, Savana 1500, Savana 2500, Savana 3500, Tahoe

Engineered from the inside out, the 8.5 offers everything you have ever wanted in a wire; incredibly low resistance without electronic interference! In a single 12 inch length of Super Conductor Wire there is only 40 - 50 ohms of resistance! That is the lowest resistance of any helically wound wire. To accomplish this, we use a copper alloy conductor due to it's great voltage carrying capabilities. The low resistance results in less loss in spark energy so more reaches the spark plug. The conductor is wound extremely tight around a special center core. So tight in fact, that there is over 40 feet of conductor wrapped into a single foot of plug wire. This winding procedure, combined with a ferro-magnetic impregnated center core, produces an extremely effective Electro Magnetic Interference (EMI) "choke". This choke, or suppression capability, keeps the EMI inside the wire where it cannot interfere with other electronics on your vehicle. The outer sleeve that surrounds the conductor assembly is just as impressive. A proprietary blend of silicone and synthetic material produce a sleeve that is highly resistant to high heat as well as abrasion and tears. The MSD's 8.5mm spark plug terminals feature Dual Crimp terminals. As the name implies, the terminals feature two crimps; one for the sleeve of the wire and another separate crimp to grasp the conductor. The MSD's 8.5mm spark plug terminals feature Dual Crimp terminals. As the name implies, the terminals feature two crimps; one for the sleeve of the wire and another separate crimp to grasp the conductor.Features:Custom fit for make and model listed.Wires are precut to exact specificationsBolt-on performance

Wires are precut to exact specifications

Bolt-on performance

Product Description:

Spark Plug Wire Set

Super Conductor

Spiral Core

8.5 mm

Red

90 Degree Plug Boots

Socket Style

Small Block Chevy

Kit

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you need to meet your performance goals. We continue to innovate and invent components and technology that deliver performance and reliability with products that are easy to use and install. Over the course of 40-plus years, MSD Performance has been driving the development of innovative components that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in motorsports. MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street! Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power and endurance. Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.
