MSD RPM Three Step Module Selector

The MSD Module Selectors allow you to choose two or three different rpm limits that can be activated at different times. With this ability, the possibilities are endless.As an example, well use a drag car with a Three Step Module Selector plugged into the rpm socket of a 7AL-2 Ignition. The different rpm modules are activated when 12 volts are applied to a corresponding wire. By connecting one wire to the line-lock circuit, one module will be activated during the burnout. This helps keep tire temperatures consistent. When the line-lock button is released, the limit turns off. When youre on the starting line, you can activate the second limit through the clutch or trans switch. This provides a steady and consistent rpm for firm holeshots every time. When no modules are selected, the remaining high limit is active to protect the engine in the event of driveline failure. The Two Step works the same, but only with two different limits.The Module Selectors can also be used with an MSD Timing Control. By plugging the Selector into a retard module socket, you can activate different retard amounts at select times. This is a great feature for engines being upgraded to a multi-stage nitrous system. With the addition of an RPM Activated Switch, you can use the Two Step to activate a shift light at different rpm.The Module Selectors must be used with an MSD Soft Touch Rev Control or a Timing Controller with a high-speed retard module. No rpm or retard modules are supplied.

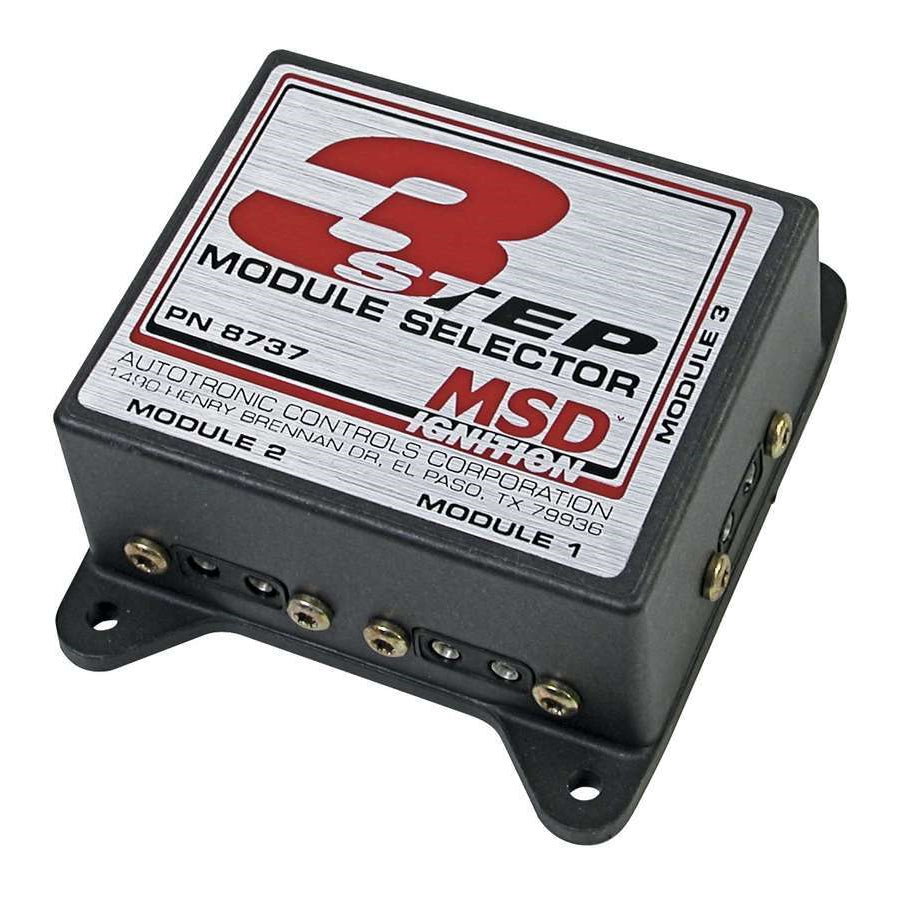

MSD RPM Controls Three Step Module Selector 8737

Allows User To Switch Between 3 RPM/Timing Modules

Set Different RPM Limit For Burnout/Launch/Overrev

Can Be Used w/Timing Controls For Retard Changes

Must Be Used w/MSD Soft Touch Rev Limiter

Must Be Used w/MSD Timing Control

No RPM Or Retard Modules Are Supplied

As an example, we'll use a drag car with a Three Step Module Selec┬ ¼Î“ëátor plugged into the rpm socket of a 7AL-2 Ignition. The different rpm modules are activated when 12 volts are applied to a corresponding wire. By connecting one wire to the line-lock circuit, one module will be activated during the burnout. This helps keep tire temperatures consistent. When the line-lock button is released, the limit turns off. When you're on the starting line, you can activate the second limit through the clutch or trans switch. This provides a steady and consis┬ ¼Î“ëátent rpm for firm holeshots every time. When no modules are selected, the remaining high limit is active to protect the engine in the event of driveline failure. The Module Selectors can also be used with an MSD Timing Control. By plugging the Selector into a retard module socket, you can acti┬ ¼Î“ëávate different retard amounts at select times. This is a great feature for engines being upgraded to a multi-stage nitrous system. With the addition of an RPM Activated Switch, you can use the Two Step to activate a shift light at different rpm.The Module Selectors must be used with an MSD Soft Touch Rev Control or a Timing Controller with a high-speed retard module. No rpm or retard modules are supplied.Features:Set 3 RPM limits:Burnout rev limiterLaunch┬ ¼Î“Çárev limiterTop End┬ ¼Î“Çárev Limiter

Burnout rev limiter

Launch rev limiter

Top End rev Limiter

Product Description:

Module Selector

3-Step

RPM Limiter / Retard Selector

MSD Rev Controller / Timing Controller

Sold Individually
