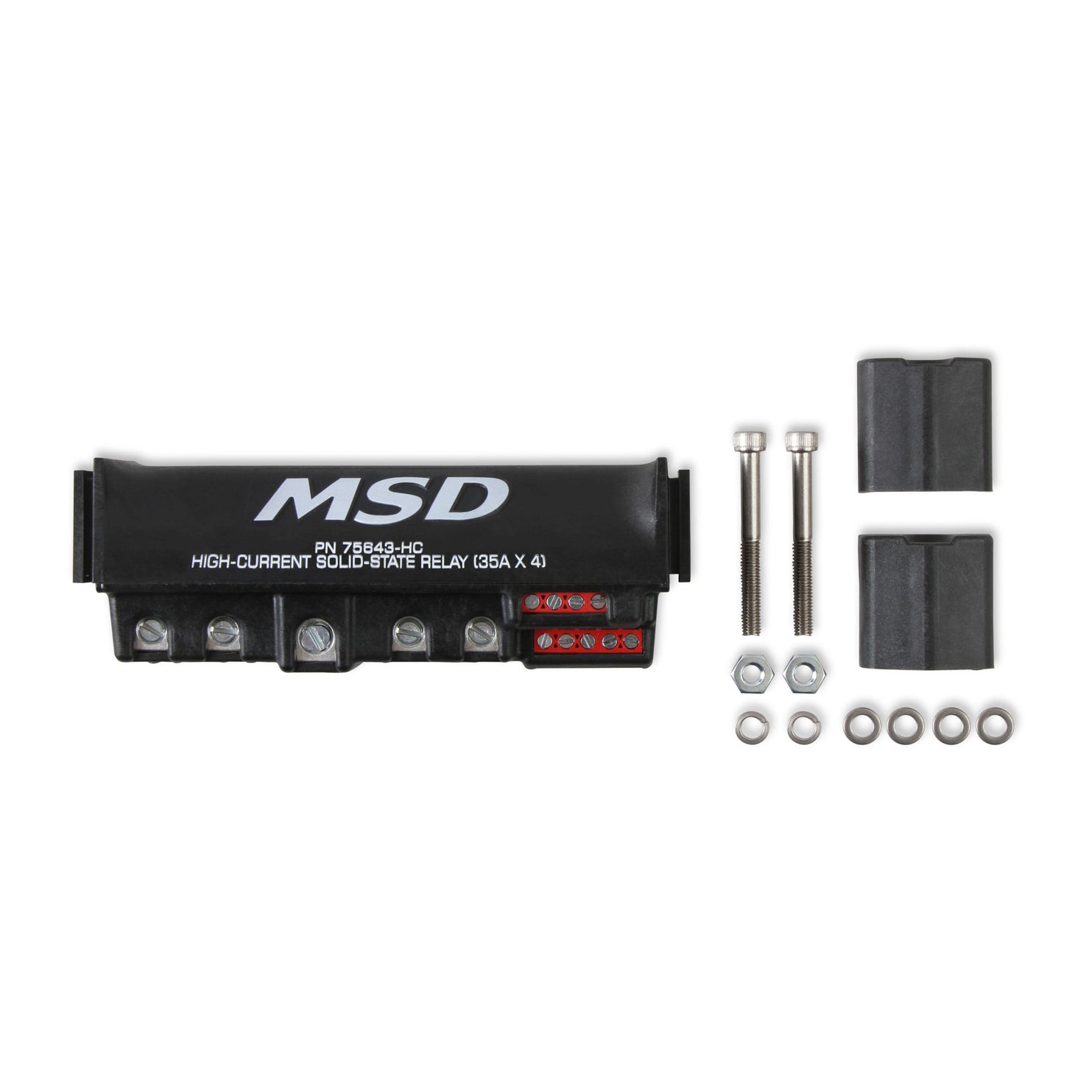

MSD Relay Switch - 35 amp - 20V - Hardware Included
MSD Relay Switch - 35 amp - 20V - Hardware Included
MSD

MSD Relay Switch - 35 amp - 20V - Hardware Included

In stock
SKU: MSD75643-HC
Relay Switch, High-Current, 35 amps / Channel, 4 Channels, Hardware Included, Kit
$229.95
Sale $258.95 $229.95
Free Shipping on orders over $149! Exclusions may apply.
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to www.P65Warnings.ca.gov

* Amperage rating is per channel *Recommended Wire Gauge: Main Input BATT + - 2 AWG Channel 1-4 Outputs - 8 AWG 12 Volt and Ground Activation Wires - 18-22 AWG

  • 4 Independent Channels, 35 Amps each continuous or 100 Amps for 8 seconds
  • Combined total continuous current rating of 140 amps
  • Channels can be run in parallel for devices requiring more than 35 Amp single-channel rating
  • Clean, easy install with minimum wiring
  • Over-temp, short circuit and overload protection
  • Diagnostic LED's and status indicators
  • Multiple mounting options
  • Single wire activation by switching power or ground
  • Available in Red or Black
  • A PWM signal can be used in the Solid-State Relay Module with a maximum frequency of 150 hertz and a duty cycle range from 50% to 90%.

    • Product Description:

  • Relay Switch
  • High-Current
  • 35 amps / Channel
  • 4 Channels
  • Hardware Included
  • Kit
    • Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you need to meet your performance goals. We continue to innovate and invent components and technology that deliver performance and reliability with products that are easy to use and install. Over the course of 40-plus years, MSD Performance has been driving the development of innovative components that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in motorsports. MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street! Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power and endurance. Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.
