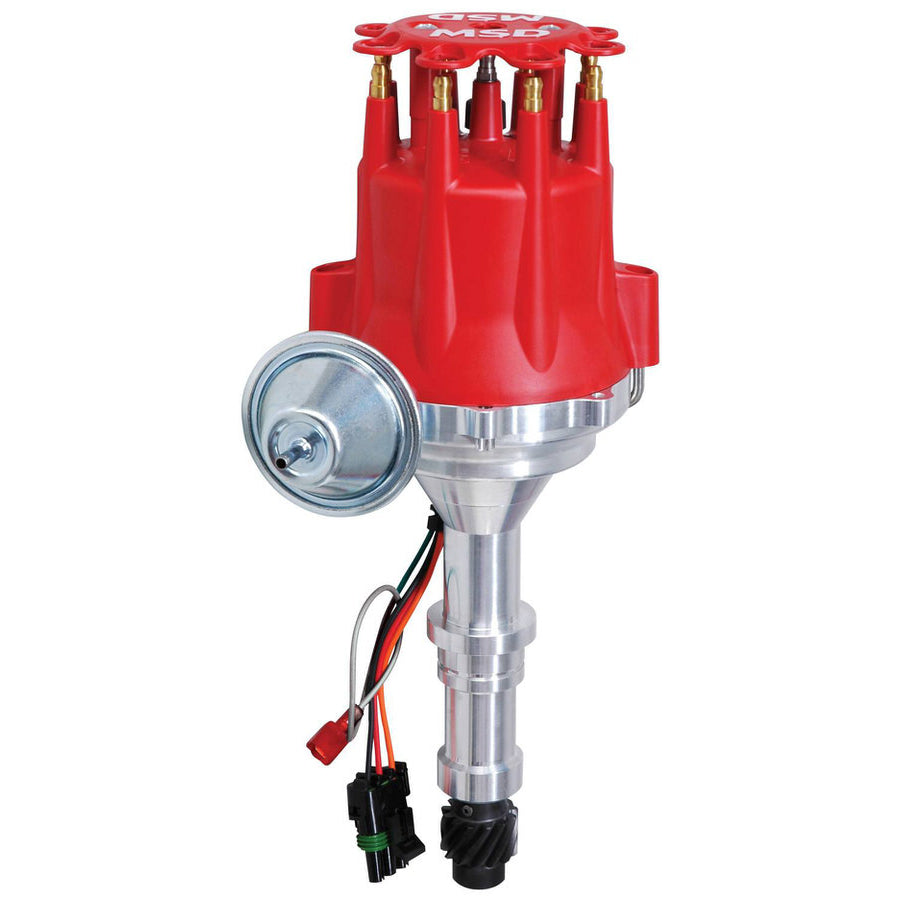

MSD Ready-To-Run Distributor - Buick Nailhead

MSDs Nailhead Distributor is a Ready-to-Run design which means that it doesnt require an external ignition box. This is because inside the billet aluminum housing there is a powerful ignition module capable of producing a high-output spark. This design also makes installation an easy affair with only three wires to connect! Just under the custom MSD cap and retainer is an accurate mechanical advance assembly. MSD supplies different advance springs and stop bushings so you can tune a timing curve to match your Nailheads needs! A sealed ball bearing supports a polished steel shaft to provide endurance and stability. To top it off there is a vacuum advance canister which can help economy on long drives.The Ready-to-Run Distributor is supplied with everything you need to drop it in and fire!

MSD Ready-To-Run Distributor 8524 Buick Nailhead

Maintenance Free Magnetic Pickup

Simple And Clean 3 Wire Installation

Built-In Ignition Module Delivers A Hot Spark

Easy To Adjust Mechanical Advance Assembly

Vacuum Advance To Help Improve Economy

For Use With 322/364/401/425 cu. in. Engines

Come Complete And Ready-To-Run

CARB Approved Legal For Use In All States

If you're looking for a performance distributor for your Nailhead your search is over! MSD's Ready-to-Run Distributor incorporates a magnetic pickup that never wears out! Plus, the distributor has a built-in ignition module so there is no need to mount an external MSD Ignition Control and no MSD Ignition control is required. Not only do you get the benefits of electronic triggering, but your engine will awaken with the powerful sparks from the ignition module. This module delivers up to 7.5 amps to the coil creating a stout inductive spark. This improves combustion of the fuel mixture resulting in quick starts, a smooth idle, and great performance! Another advantage of an MSD Distributor is the accurate and adjustable mechanical advance assembly. The advance curve is easy to adjust with different advance springs and stop bushings which are included. To top it off there is a vacuum advance canister and MSD's strong cap and wire retainer. The Ready-to-Run Distributor comes with a matching 3-pin harness making installation simple. All that it takes is routing two wires to the coil and one to ground!Features:Simple and clean installation with only three wires to connectIncludes built-in Rev Limiter!Does not require an MSD Ignition ControlSupplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)Mechanical advance assembly can be locked out for crank trigger systemsAdvance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reductionPolished steel shaft is QPQ coated and guided by a sealed ball bearingMaintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm rangeCNC machined billet aluminum housing and billet aluminum baseVacuum advance canister for improved economy (can be locked out)Easy-to-adjust mechanical advance with supplied springs and stop bushingsPowerful built-in module produces a 7.5 amp single spark through high rpm

Includes built-in Rev Limiter!

Does not require an MSD Ignition Control

Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)

Mechanical advance assembly can be locked out for crank trigger systems

Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction

Polished steel shaft is QPQ coated and guided by a sealed ball bearing

Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range

CNC machined billet aluminum housing and billet aluminum base

Vacuum advance canister for improved economy (can be locked out)

Easy-to-adjust mechanical advance with supplied springs and stop bushings

Powerful built-in module produces a 7.5 amp single spark through high rpm

Product Description:

Distributor

Pro-Billet

Ready-To-Run

Magnetic Pickup

Vacuum Advance

HEI Style Terminal

Red

Buick Nailhead

Sold Individually
