Coils have always had to compromise voltage output against current output. More voltage increases the initial ionization of the spark plug gap, but lowers the amount of current, or heat, that follows across the plug gap. When a coil is designed to produce more current, the voltage output generally suffers which taxes the ease of ionizing the gap. The MSD HVC Coils are designed to produce maximum voltage and energy! To accomplish this combination of high voltage and current MSD uses an E-core winding design. This is a very efficient design where less loss occurs during the transfer of electricity due to the closed core of the coil. Another benefit is that the coils run extremely cool, even at high racing rpm, thanks to the efficient design and huge laminations.
Features:
Designed for racing applications with an MSD 7 Series Ignition Control Efficient E-core winding design produces more voltage and current 85: 1 turns ratio and lower primary resistance produce high voltage output Windings are encased in red epoxy and secured with extruded brackets Spark plug style terminal and threaded brass primary studs Supplied with rubber shock mounts No CARB Exemption Order NumberCoils have always had to compromise voltage output against current output. More voltage increases the initial ionization of the spark plug gap, but lowers the amount of current, or heat, that follows across the plug gap. When a coil is designed to produce more current, the voltage output generally suffers which taxes the ease of ionizing the gap. The MSD HVC Coils are designed to produce maximum voltage and energy!Features:Designed for racing applications with an MSD 7 Series Ignition ControlEfficient E-core winding design produces more voltage and current85:1 turns ratio and lower primary resistance produce high voltage outputWindings are encased in red epoxy and secured with extruded bracketsSpark plug style terminal and threaded brass primary studsSupplied with rubber shock mountsNo CARB Exemption Order Number
Efficient E-core winding design produces more voltage and current 85:1 turns ratio and lower primary resistance produce high voltage output Windings are encased in red epoxy and secured with extruded brackets Spark plug style terminal and threaded brass primary studs Supplied with rubber shock mounts No CARB Exemption Order NumberProduct Description:

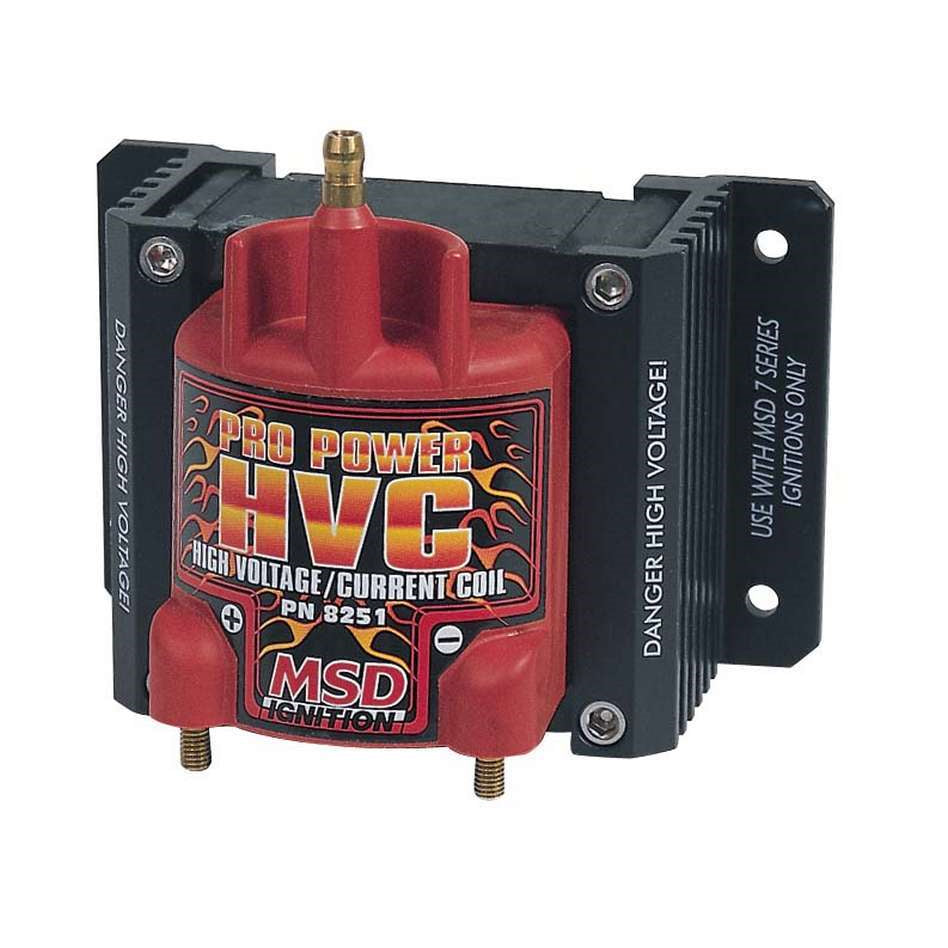

Ignition Coil Blaster Pro Power HVC E-Core 0.040 ohm Male HEI 45000V Red Sold IndividuallyRacers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you need to meet your performance goals. We continue to innovate and invent components and technology that deliver performance and reliability with products that are easy to use and install. Over the course of 40-plus years, MSD Performance has been driving the development of innovative components that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in motorsports. MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street! Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power and endurance. Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.
