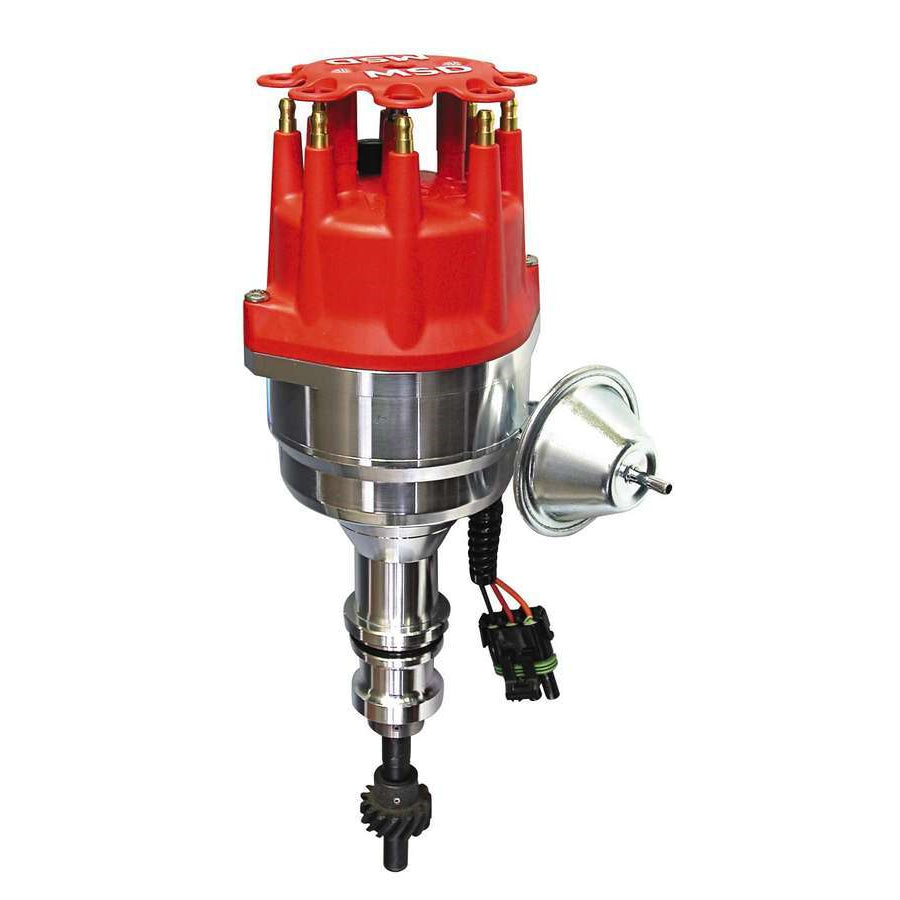

MSD's Ready-to-Run Ford Distributors are the perfect upgrade for bulky DuraSpark systems or ancient breaker point models. These distributors come complete and ready-to-run. All you need to do is drop it in the engine, connect three wires and fire the engine. Each distributor features an ignition module that produces a powerful inductive spark to improve combustion of the fuel mixture resulting in quick starts, smooth idle and increased performance. The billet aluminum housings of these distributors are 5/8" smaller in diameter to accommodate induction setups and tight engine compartments. a maintenance-free magnetic pick-up is responsible for triggering the high voltage sparks while a sealed ball bearing guides an oversized shaft. Beneath the bolt down cap and MSD Race Rotor you'll find MSD's accurate mechanical advance assembly. Different advance springs and stop bushings are supplied so you can easily tune a curve to match your needs. Plus, there is a vacuum advance canister to increase economy on long drives. Features
Simple and clean installation with only three wires to connect Powerful built-in module produces a 7. 5 amp single spark through high rpm Easy-to-adjust mechanical advance with supplied springs and stop bushings Vacuum advance canister for improved economy (can be locked out) CNC machined billet aluminum housing and billet aluminum base Housing is 5/8" smaller in diameter than stock Ford distributors Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range Polished steel shaft is QPQ coated and guided by a sealed ball bearing Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction Mechanical advance assembly can be locked out for crank trigger systems Advance weight pins are staked and tig welded to the plate Nylon pads ensure smooth operation of the advance weights Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt) Does not require an MSD Ignition Control CARB E. O. ApprovedMSD's Ready-to-Run Ford Distributors are the perfect upgrade for bulky DuraSpark systems or ancient breaker point models. These distributors come complete and ready-to-run. All you need to do is drop it in the engine, connect three wires and fire the engine. Each distributor features an ignition module that produces a powerful inductive spark to improve combustion of the fuel mixture resulting in quick starts, smooth idle and increased performance. The billet aluminum housings of these distributors are 5/8" smaller in diameter to accommodate induction setups and tight engine compartments. A maintenance-free magnetic pickup is responsible for triggering the high voltage sparks while a sealed ball bearing guides an oversized shaft.Beneath the bolt down cap and MSD race rotor you'll find MSD's accurate mechanical advance assembly. Different advance springs and stop bushings are supplied so you can easily tune a curve to match your needs. Plus, there is a vacuum advance canister to increase economy on long drives. For protection, there is also an easy-to-set rev limiter!Features:Now includes built-in Rev Limiter!┬ ¼Î“ÇáPowerful built-in module produces a 7.5 amp single spark through high rpm┬ ¼Î“ÇáEasy-to-adjust mechanical advance with supplied springs and stop bushings┬ ¼Î“ÇáVacuum advance canister for improved economy (can be locked out)┬ ¼Î“ÇáCNC machined billet aluminum housing and billet aluminum base┬ ¼Î“ÇáHousing is 5/8” smaller in diameter than stock Ford distributors┬ ¼Î“ÇáMaintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm rangePolished steel shaft is QPQ coated and guided by a sealed ball bearing┬ ¼Î“ÇáAdvance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction┬ ¼Î“ÇáMechanical advance assembly can be locked out for crank trigger systemsAdvance weight pins are staked and tig welded to the plate┬ ¼Î“ÇáNylon pads ensure smooth operation of the advance weights┬ ¼Î“ÇáSupplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt)Does not require an MSD Ignition ControlCARB E.O. ApprovedSimple and clean installation with only three wires to connect
Powerful built-in module produces a 7.5 amp single spark through high rpm Easy-to-adjust mechanical advance with supplied springs and stop bushings Vacuum advance canister for improved economy (can be locked out) CNC machined billet aluminum housing and billet aluminum base Housing is 5/8" smaller in diameter than stock Ford distributors Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range Polished steel shaft is QPQ coated and guided by a sealed ball bearing Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction Mechanical advance assembly can be locked out for crank trigger systems Advance weight pins are staked and tig welded to the plate Nylon pads ensure smooth operation of the advance weights Supplied with small diameter cap with HEI style terminals and race rotor (will accept 8441 Cap-A-Dapt) Does not require an MSD Ignition Control CARB E.O. Approved Simple and clean installation with only three wires to connectProduct Description:
Distributor Pro-Billet Ready-To-Run Magnetic Pickup Vacuum Advance HEI Style Terminal Red Rev Limiter Small Block Ford Sold IndividuallyRacers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you need to meet your performance goals. We continue to innovate and invent components and technology that deliver performance and reliability with products that are easy to use and install. Over the course of 40-plus years, MSD Performance has been driving the development of innovative components that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in motorsports. MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street! Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power and endurance. Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.
