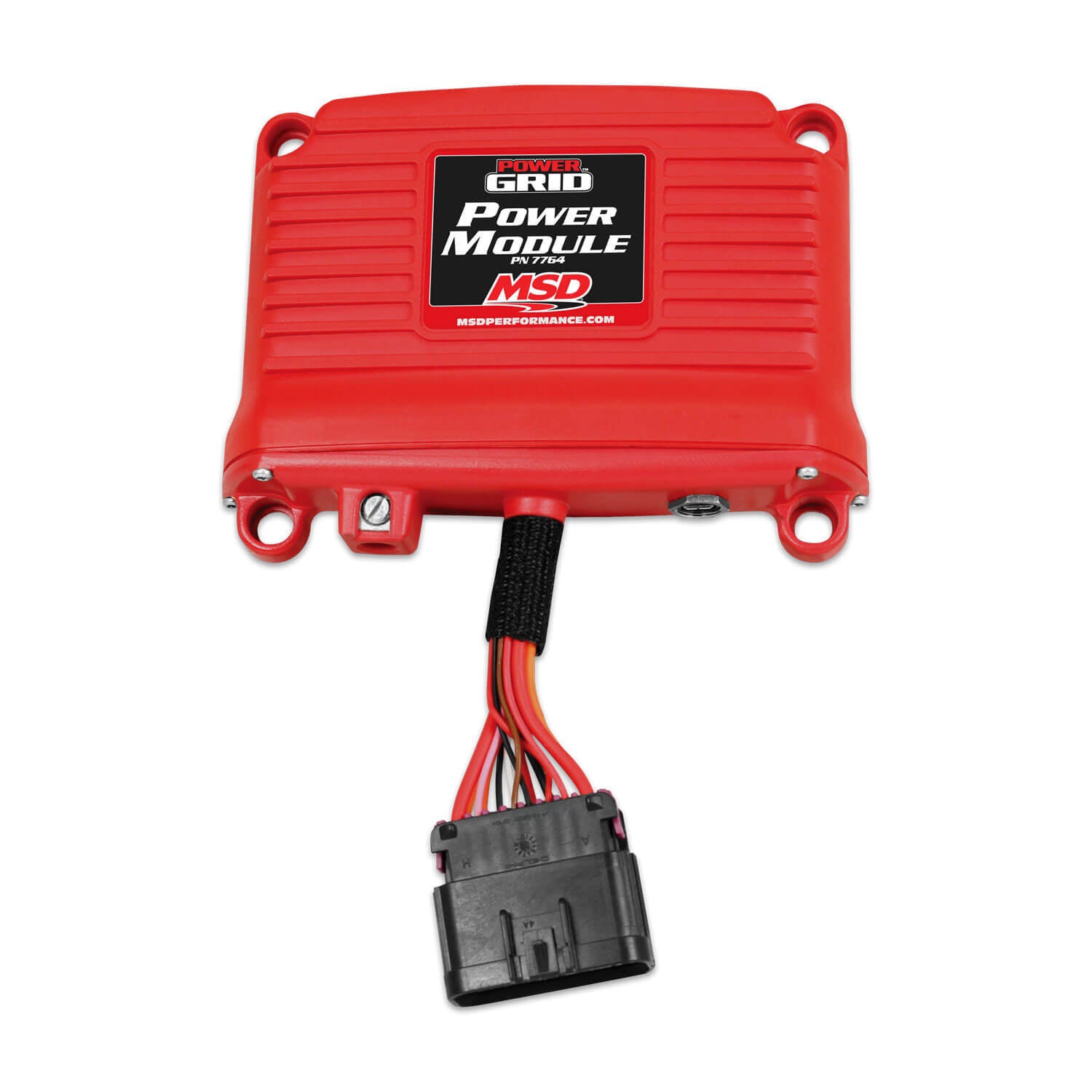

MSD Power Grid Power Module 4-Stage Relay

In stock
SKU: MSD7764
Power Module, Power Grid, Four 20 amps Channels, Wiring Included, Data Acquisition Available, Plastic, Red, Universal, Each
Earn 1 Point on this purchase. Learn more
Regular price $573.95
Regular price Sale $638.00 Sale price $573.95
Free Shipping on orders over $149! Exclusions may apply.
PROP 65: These products may contain a chemical known to the state of California to cause cancer and birth defects or other reproductive harm

MSD Power Grid Power Module 4-Stage Relay

Features:

  • Power Module
  • Power Grid
  • Four 20 Amp Channels
  • Wiring Included
  • Data Acquisition Available
  • Plastic
  • Red
  • Universal
  • Sold Individually
  • The MSD Power Module is a fully programmable, four stage solid state relay that can handle up to 20 Amps of current per channel. The Power Module eliminates the need for electromechanical relays, fuses and timers.Outputs can be controlled independently or simultaneously, giving great flexibility. It can be configured as a digital output (i.e. ON/OFF) or as a Pulse Width Modulated output (i.e. PWM) with user-programmable frequencies up to 10 Kilohertz. Outputs can use Time, RPM or temperature to control fans, pumps, nitrous systems and much more. A High Speed Data Logger can be used to record all functions when paired with the MSD PN 7730 Power Grid.Features:Takes the place of 4 electromechanical relaysBuilt-in overcurrent protection, no fuses needed80 Amp capacity, 4 channels rated up to 20 Amps eachEach channel is controlled via input wires or as programmed in the MSDView softwareCan be used stand alone or with MSD Power Grid PN 7730Trigger signals can include power, ground, temperature, or timeData Acquisition available when used with MSD Power GridAvailable in Red (P/N 7764) or Black (P/N 77643)

  • Built-in overcurrent protection, no fuses needed
  • 80 Amp capacity, 4 channels rated up to 20 Amps each
  • Each channel is controlled via input wires or as programmed in the MSDView software
  • Can be used stand alone or with MSD Power Grid PN 7730
  • Trigger signals can include power, ground, temperature, or time
  • Data Acquisition available when used with MSD Power Grid
  • Available in Red (P/N 7764) or Black (P/N 77643)
  • Product Description:

  • Power Module
  • Power Grid
  • Four 20 amps Channels
  • Wiring Included
  • Data Acquisition Available
  • Plastic
  • Red
  • Universal
  • Sold Individually
  • Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you need to meet your performance goals. We continue to innovate and invent components and technology that deliver performance and reliability with products that are easy to use and install. Over the course of 40-plus years, MSD Performance has been driving the development of innovative components that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in motorsports. MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street! Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power and endurance. Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.
