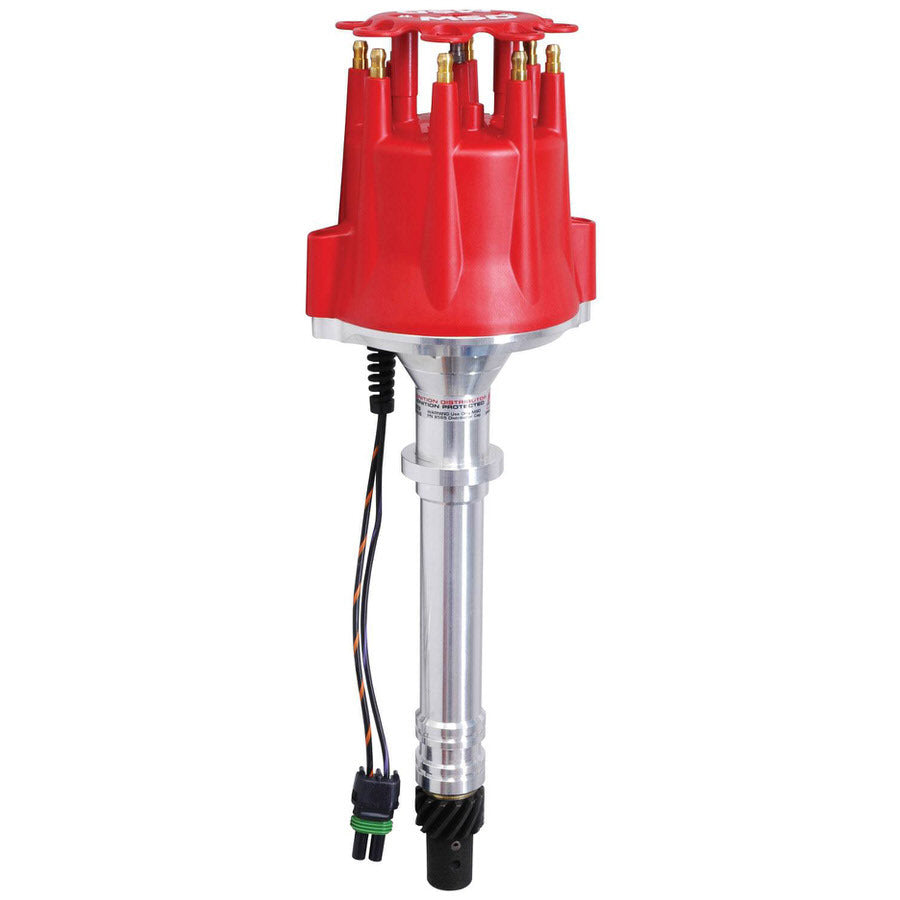

MSD Marine Distributor - Chevy V8 Marine Certified
Earn [points_amount] when you buy this item.
Marine environments place rigorous demands on every component of the ignition system, especially the distributor. The combination of water spray, salt exposure, full throttle acceleration and harsh vibrations all take their toll. The MSD Pro-Billet Distributor is the strongest and most accurate distributor you can put in your boat. The housing is CNC-machined from a billet of 6061-T6 aluminum creating a housing with no porosity. Internally, a QPQ coated shaft is guided by a sealed ball bearing and an extra long sintered bushing for highspeed stability. Each distributor uses MSDs race-proven magnetic pickup to trigger the ignition control. Mounted just above the pickup is a mechanical advance assembly that is easy to adjust so you can dial-in an ignition curve to match your boats application (except PN 8366). For marine use, the distributor cap is bolted to the aluminum base. There are two flame arrestor holes with brass screens machined into the base of the distributor to prevent ignition of gas fumes that may build up in the engine compartment. A special Weathertight Connector is supplied to provide a positive-lock and water resistant connection. The Marine Pro-Billet Distributors have been tested by Underwriters Laboratory and are certified to meet or exceed safety standards for marine ignition systems as set by the U.S. Coast Guard.
MSD Marine Distributor 8560 Chevy V8 Marine Certified
Marine environments place rigorous demands on every component of the ignition system, especially the distributor. The combination of water spray, salt exposure, full throttle acceleration and harsh vibrations all take their toll.The MSD Pro-Billet Distributor is the strongest and most accurate distributor you can put in your boat. The housing is CNC-machined from a billet of 6061-T6 aluminum creating a housing with no porosity. Internally, a QPQ coated shaft is guided by a sealed ball bearing and an extra long sintered bushing for highspeed stability. Each distributor uses MSD's race-proven magnetic pickup to trigger the ignition control. Mounted just above the pickup is a mechanical advance assembly that is easy to adjust so you can dial-in an ignition curve to match your boat's application (except PN 8366). For marine use, the distributor cap is bolted to the aluminum base. There are two flame arrestor holes with brass screens machined into the base of the distributor to prevent ignition of gas fumes that may build up in the engine compartment. A special Weathertight Connector is supplied to provide a positive-lock and water resistant connection.The Marine Pro-Billet Distributors have been tested by Underwriter's Laboratory and are certified to meet or exceed safety standards for marine ignition systems as set by the U.S. Coast Guard.Features:Designed for use in marine applications with Chevy V8 automotive enginesWill not accept a vacuum advance canisterSupplied with a bolt down HEI style distributor cap and rotorWeathertight connectors are used for locked and sealed connectionsMust be used with an MSD Ignition ControlO-ring seals can be added to modified blocks to improve oil pressure controlSpecial oil tract improves lubrication to the distributor and cam gearNylon pads ensure smooth operation of the advance weightsAdvance weight pins are staked and tig welded to the plateMechanical advance assembly can be locked out for crank trigger systemsAdvance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reductionPolished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushingMaintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm rangeEasy-to-adjust mechanical advance with supplied springs and stop bushingsCNC machined billet aluminum housing and billet aluminum base with two flame arrestor holes with brass screensUL Approved
Product Description:
