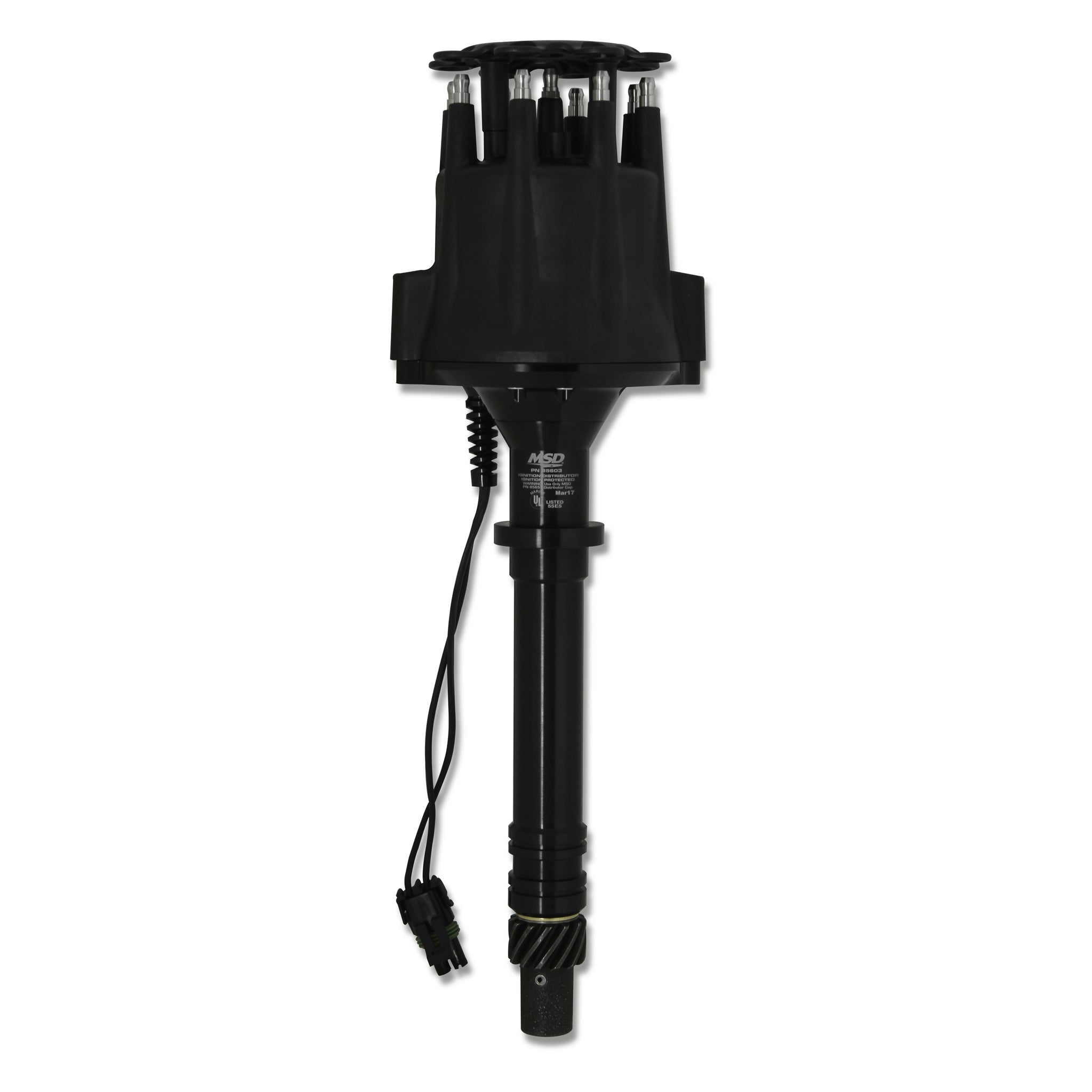

Boat enthusiast will be glad to see the addition of the new MSD Black Marine distributor line. Built off our tried and true billet marine distributors, the 6061-T6 aluminum housing is now hard anodized with a sleek black finish for great looks.Under the black cap you'll find a quality rotor, pickup, reluctor and adjustable weight plate assembly (where applicable). Chevy applications use a .500" QPQ coated distributor shaft joined by a melonized distributor gear while Ford models run a .531" QPQ coated shaft and cast gear. Both ensure smooth operation, superior strength and long life even when challenged by harsh marine applications.The Marine Pro-Billet Distributors have been tested by Underwriter's Laboratory and are certified to meet or exceed safety standards for marine ignition systems as set by the U.S. Coast Guard.Features:Designed for use in marine applications with Chevy V8 automotive enginesBlack anodized for great looks and corrosion resistanceWill not accept a vacuum advance canisterSupplied with a bolt down HEI style distributor cap and rotorWeathertight connectors are used for locked and sealed connectionsMust be used with an MSD Ignition ControlO-ring seals can be added to modified blocks to improve oil pressure controlSpecial oil tract improves lubrication to the distributor and cam gearNylon pads ensure smooth operation of the advance weightsAdvance weight pins are staked and tig welded to the plateMechanical advance assembly can be locked out for crank trigger systemsAdvance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reductionPolished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushingMaintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm rangeEasy-to-adjust mechanical advance with supplied springs and stop bushingsCNC machined billet aluminum housing and billet aluminum base with two flame arrestor holes with brass screensUL Approved
Black anodized for great looks and corrosion resistance Will not accept a vacuum advance canister Supplied with a bolt down HEI style distributor cap and rotor Weathertight connectors are used for locked and sealed connections Must be used with an MSD Ignition Control O-ring seals can be added to modified blocks to improve oil pressure control Special oil tract improves lubrication to the distributor and cam gear Nylon pads ensure smooth operation of the advance weights Advance weight pins are staked and tig welded to the plate Mechanical advance assembly can be locked out for crank trigger systems Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range Easy-to-adjust mechanical advance with supplied springs and stop bushings CNC machined billet aluminum housing and billet aluminum base with two flame arrestor holes with brass screens UL ApprovedProduct Description:
Distributor Pro-Billet Marine Magnetic Pickup Mechanical Advance HEI Style Terminal Black Chevy V8 Sold IndividuallyRacers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you need to meet your performance goals. We continue to innovate and invent components and technology that deliver performance and reliability with products that are easy to use and install. Over the course of 40-plus years, MSD Performance has been driving the development of innovative components that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in motorsports. MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street! Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power and endurance. Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.
