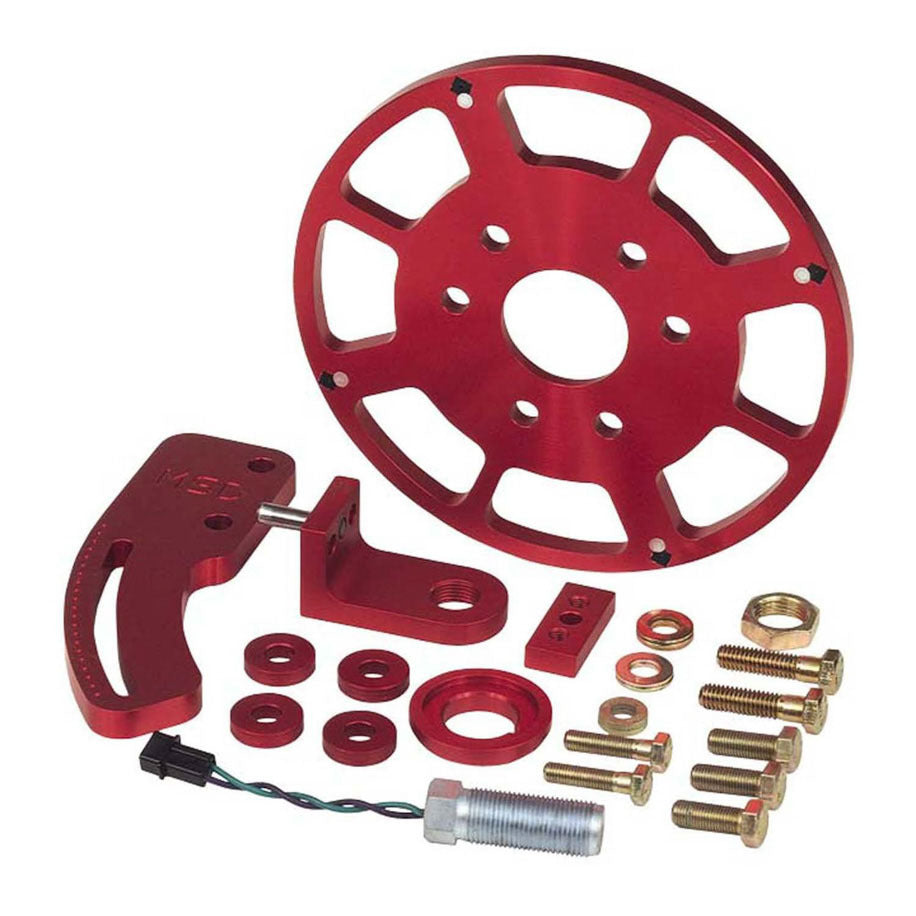

MSD Ford Big Block Crank Trigger Kit - 7.25 in. Balancer

The MSD Flying Magnet Crank Trigger system does exactly that by using four magnets embedded in an aluminum wheel. Although similar in appearance to other crank triggers, the MSD Flying Magnet design works on a different principle.Most crank triggers have a wheel, with steel studs sticking out, bolted to the harmonic balancer. As the crankshaft turns, the studs pass by a stationary magnetic pick-up, triggering the ignition. This pick-up can be triggered by other bolts, debris or even vibrations which will cause a loss of power or engine damage. The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This flying magnet design produces accurate trigger signals and the non-magnetic pick-up cannot be false triggered.Each Flying Magnet Crank Trigger includes a two-piece mounting bracket for the non-magnetic pick-up that in most cases will work on either the passenger side or drivers side of the engine (the SB Chrysler and SB Ford brackets mount on only one side). The CNC-machined aluminum bracket securely holds the pick-up in place and is slotted to provide a wide range of timing adjustment. Spacers are included so you can mount the bracket on engines with standard motor mounts or engines with a .25 motor plate. These systems will trigger MSD 6, 7, 8 and 10 Series Ignitions and all MSD Timing Accessories.

MSD Crank Trigger Kit 8644 7.25 in. Balancer

Accurate Trigger Signals

Non-Magnetic Pickup Cannot Be False Triggered

Parts CNC Machined Aluminum In Red Anodized Finish

Wide Range Of Timing Adjustment

Works On Either Side Of Engine

Bracket Holds Pickup In Place

Easy Plug And Play Wire To Ignition

Will Trigger MSD 6/7/8 Ignitions/Accessories

Most crank triggers have a wheel, with steel studs sticking out, bolted to the harmonic balancer. As the crankshaft turns, the studs pass by a stationary magnetic pick-up, triggering the ignition. This pick-up can be triggered by other bolts, debris, or even vibrations which will cause a loss of power or engine damage. The MSD Flying Magnet Crank Trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This "flying magnet" design produces accurate trigger signals and the non-magnetic pick-up cannot be falsely triggered.Features:Absolutely the most accurate way to trigger the ignition.The non-magnetic pickup cannot be false triggered.Powerful magnets are embedded in a billet aluminum trigger wheel.Kits feature special brackets and mounting hardware for a variety of engines.Fits 429/460 Big Block Ford.Does not fit Cleveland blocks.

The non-magnetic pickup cannot be false triggered.

Powerful magnets are embedded in a billet aluminum trigger wheel.

Kits feature special brackets and mounting hardware for a variety of engines.

Fits 429/460 Big Block Ford.

Does not fit Cleveland blocks.

Product Description:

Crank Trigger Kit

Flying Magnet

Trigger Wheel / Pickup

7.250 in Balancer

Big Block Ford

Kit
