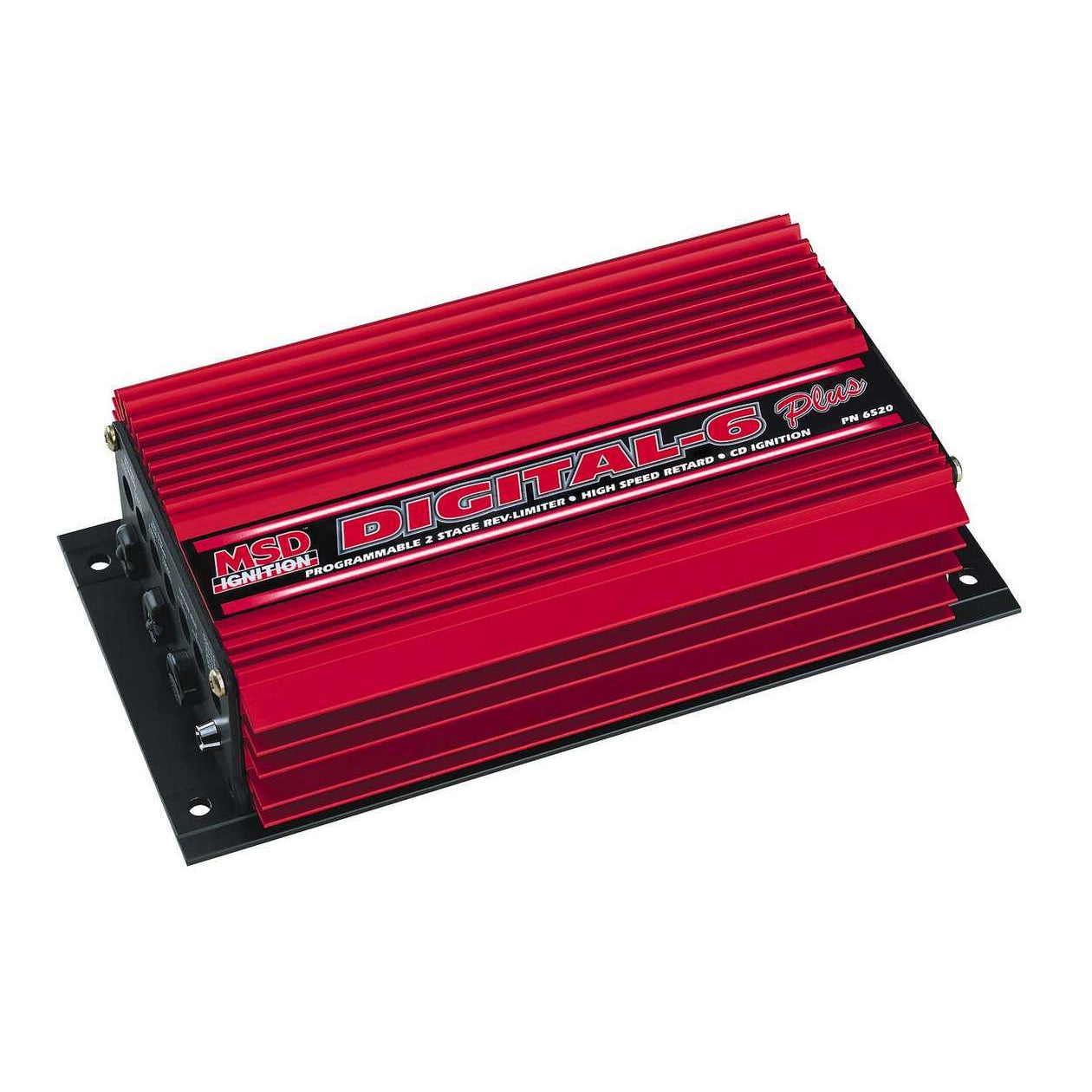

The MSD Digital-6 Plus Ignition Control combines terrific power, digital accuracy and great accessories making it ideal for street/strip applications. Every spark of the Digital-6 Plus Ignition is packed with 135 millijoules of spark energy and 535 primary volts. When used with the MSD Blaster HVC Coil, PN 8252, a spark with over 300 milliamps burns across the plug gap for 400 microseconds. Below 3, 300 rpm the Digital-6 Plus produces a series of sparks that burns in the cylinder for up to 20 degrees of crankshaft rotation. This incredible heat ensures combustion to produce great power, quick throttle response, smooth idle and quick starts.
Features:
Switch between two rev limits that adjust with rotary switches in 100 rpm increments. Single stage retard for nitrous and top end performance. Start retard eases pressure on the starter, flywheel and engine. Adjustable magnetic pickup compensation produces accurate trigger signals. LED display warns of trigger signal problems or faulty charging system. Fully potted with polyurethane for vibration and water protection.CARB EO # D-722-2
Single stage retard for nitrous and top end performance. Start retard eases pressure on the starter, flywheel and engine. Adjustable magnetic pickup compensation produces accurate trigger signals. LED display warns of trigger signal problems or faulty charging system. The Digital-6 Plus accepts points, amplifier, and mag pickup inputs and will run on 4, 6, or 8 cylinder engines. The MSD Digital 6 Plus uses a high-speed RISC microcontroller to control the ignition's output while constantly analyzing the various inputs such as supply voltage, trigger signals, and rpm. The high-speed controller can make extremely quick compensations to the output voltage, multiple spark series, timing, and rpm limits while maintaining accurate timing signals to within 1 degrees and 1% of the rpm limits. The circuits and controller of the Digital 6 Plus have been thoroughly debounced and isolated to create protection against Electro-Magnetic Interference (EMI).Product Description:
Ignition Box Digital-6 Plus Digital CD Ignition Multi-Spark 45000V 2-Step Rev Limiter Step Retard Sold IndividuallyRacers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you need to meet your performance goals. We continue to innovate and invent components and technology that deliver performance and reliability with products that are easy to use and install. Over the course of 40-plus years, MSD Performance has been driving the development of innovative components that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in motorsports. MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street! Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power and endurance. Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.
