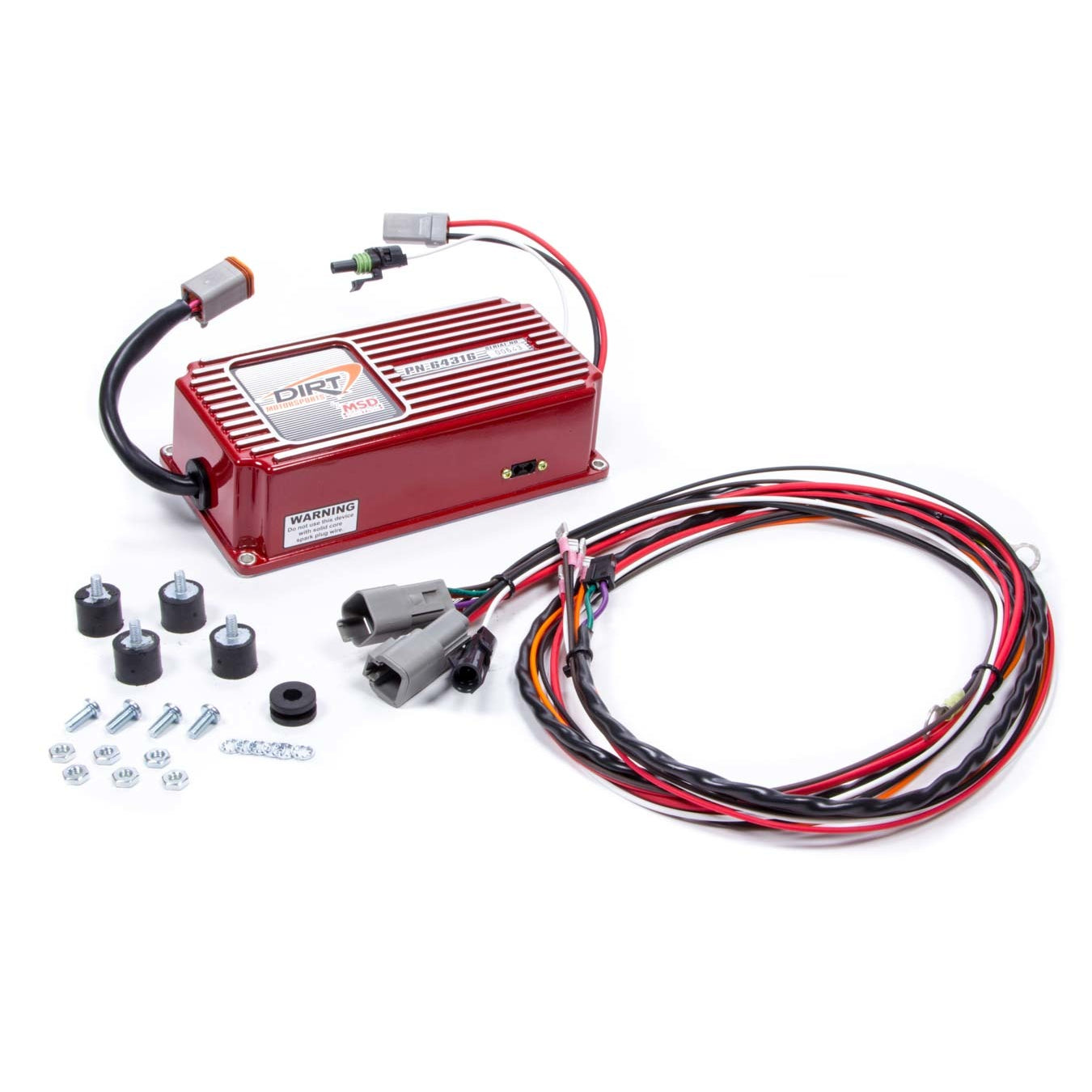

D. I. R. T. Spec Ignition Control designed specifically for the D. I. R. T. series racing in mind. The "N" Series Ignitions feature 6-Pin Weathertight connector to meet D. I. R. T. wiring rules. This special connector provides a tight, positive locking connection with individual seals to keep dirt and moisture away from each connection. All of the MSD's primary wiring meets MIL-86A specifications with special tinned conductors for superior crimps. Inside the strong cast aluminum housing, the multiple sparking CD circuits are encased in a clear two part silicone elastomer for the ultimate in vibration protection. a special clear base plate is also installed for easy tech inspection.
Features:
Multiple spark, capacitive discharge ignition control Designed for circle track racing with NASCAR mandated connectors and clear epoxy potting compound for vibration protection 6-pin Weathertight connector, mandatory for NASCAR use Circuit board is encased in a clear two part silicone elastomer Clear plastic base plate for easy tech inspection Built-in Soft Touch Rev Control is adjustable with RPM Modules Multiple sparks for 20 degrees of crankshaft rotation Works on 12 - 18 volt electrical system Accepts breaker points, amplifier and magnetic pickup trigger inputs 470 primary voltage output to coil 110 millijoules per spark up to 15, 000 RPM Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops Supplied with rubber shock mounts No CARB Exemption Order NumberFIXED 7,600 RPM REV LIMITER
Supplied with rubber shock mounts Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops 110 millijoules per spark up to 15,000 RPM 470 primary voltage output to coil Accepts breaker points, amplifier and magnetic pickup trigger inputs Works on 12 - 18 volt electrical system Multiple sparks for 20 degrees of crankshaft rotation Built-in Soft Touch Rev Control is fixed to 7,600 RPM Clear plastic base plate for easy tech inspection Circuit board is encased in a clear two part silicone elastomer 6-pin Weathertight connector, mandatory for NASCAR use Designed for circle track racing with NASCAR mandated connectors and clear epoxy potting compound for vibration protectionProduct Description:
Ignition Box Dirt Motorsports 6ALN Analog CD Ignition Multi-Spark 45000V Rev Limiter Weathertight Connectors Sold IndividuallyRacers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you need to meet your performance goals. We continue to innovate and invent components and technology that deliver performance and reliability with products that are easy to use and install. Over the course of 40-plus years, MSD Performance has been driving the development of innovative components that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in motorsports. MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street! Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power and endurance. Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.
