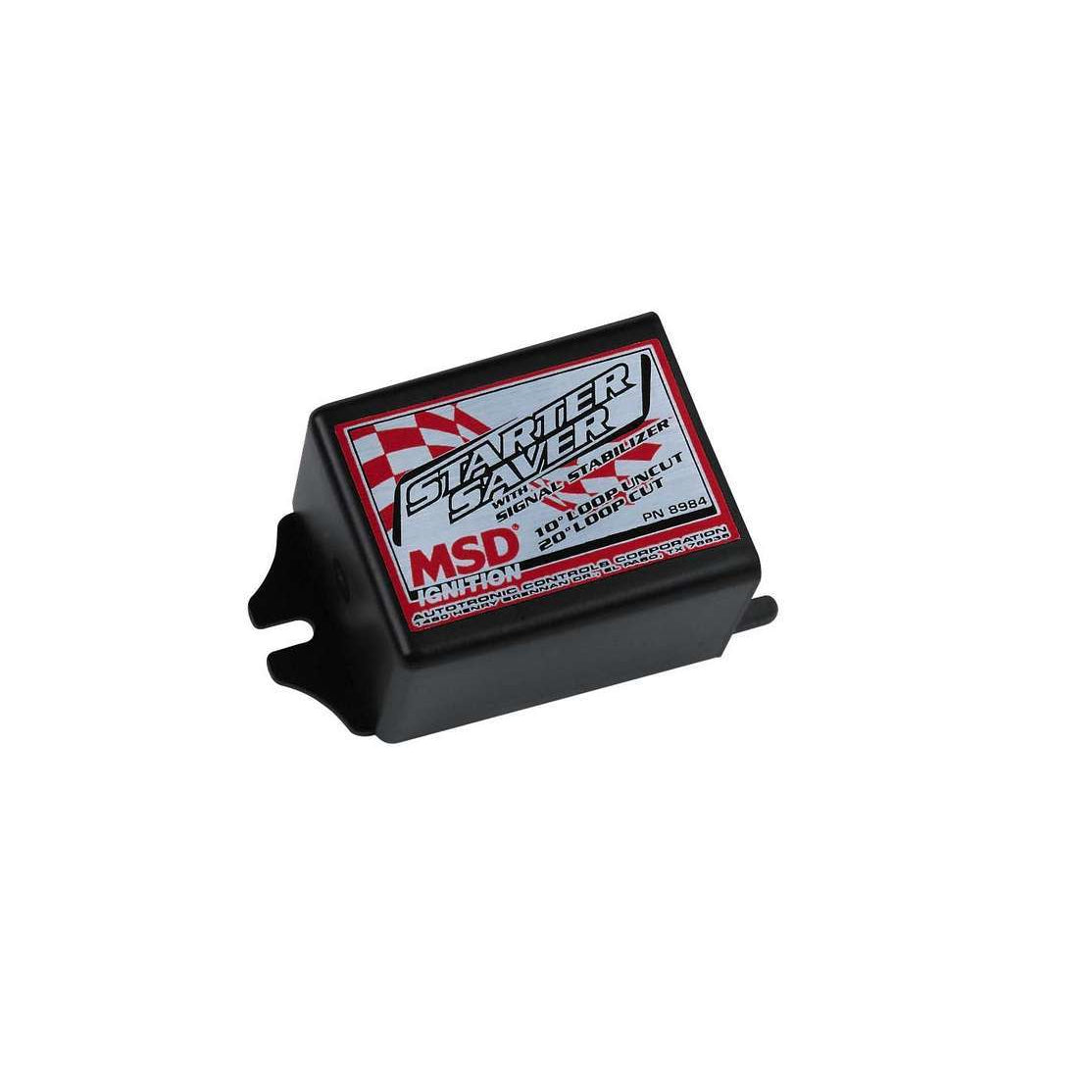

MSD Crank Triggers Starter Saver w/ Signal Stabilizer

This compact controller provides a retard that automatically retards the timing during cranking to ease the pressure. The MSD Starter Saver measures only 1.5 X 3.5 X 2 and wires into your ignition system with only four wires. It can be programmed to retard the timing 10 or 20 during cranking only. The retard is activated when the engine begins cranking and is deactivated once the engine reaches over 800 rpm. (If the engine rpm drops below 500 rpm it will activate again.)The Starter Saver receives the trigger signal through an MSD Crank Trigger Pick-Up or the Distributors magnetic pick-up. This Control has a very accurate pick-up compensation circuit resulting in rock steady timing throughout the entire rpm range of your engine. There is also an LED that illuminates with each trigger signal to confirm operation and the circuitry is completely potted in a polyurethane compound for extreme vibration resistance.

MSD Crank Triggers Starter Saver 8984 w/Signal Stabilizer

Starter Saver

With Signal Stabilizer

Choose 10 Or 20 Deg. Retard During Cranking Only

LED Illuminates During Each Trigger

When you install a crank trigger system, having locked out timing may put a strain on the starter and flywheel. This compact controller provides a retard that automatically retards the timing during cranking to ease the pressure. The MSD Starter Saver measures only 1.5" X 3.5" X 2" and wires into your ignition system with only four wires. It can be programmed to retard the tim┬ ¼Î“ëáing 10┬ ¼Î“ê₧ or 20┬ ¼Î“ê₧ during cranking only. The retard is activated when the engine begins cranking and is deactivated once the engine reaches over 800 rpm. (If the engine rpm drops below 500 rpm it will activate again.)The Starter Saver receives the trigger signal through an MSD Crank Trigger Pick-Up or the Distributor's magnetic pick-up. This Control has a very accurate pick-up compensation circuit resulting in rock steady timing throughout the entire rpm range of your engine. There is also an LED that illuminates with each trigger signal to confirm operation and the circuitry is completely potted in a polyurethane compound for extreme vibration resistance.Note: The Starter Saver can only be used on V8 applications using an MSD magnetic pickup distributor or crank trigger.Features:Compact unit provides 10┬ ¼Î“ê₧ or 20┬ ¼Î“ê₧ of start retard to ease pressure on the starter and flywheel during crankingPlugs into an MSD Distributor or Crank Trigger pickupBuilt-in LED monitors trigger input signalsBuilt-in signal stabilizer produces steady timing at all rpmMust be used with an MSD Ignition Control, magnetic pickup trigger and only on V-8 applications

Plugs into an MSD Distributor or Crank Trigger pickup

Built-in LED monitors trigger input signals

Built-in signal stabilizer produces steady timing at all rpm

Must be used with an MSD Ignition Control, magnetic pickup trigger and only on V-8 applications

Product Description:

Timing Controller

Starter Saver / Signal Stabilizer

10 / 20 Degree Start Retard

Sold Individually
