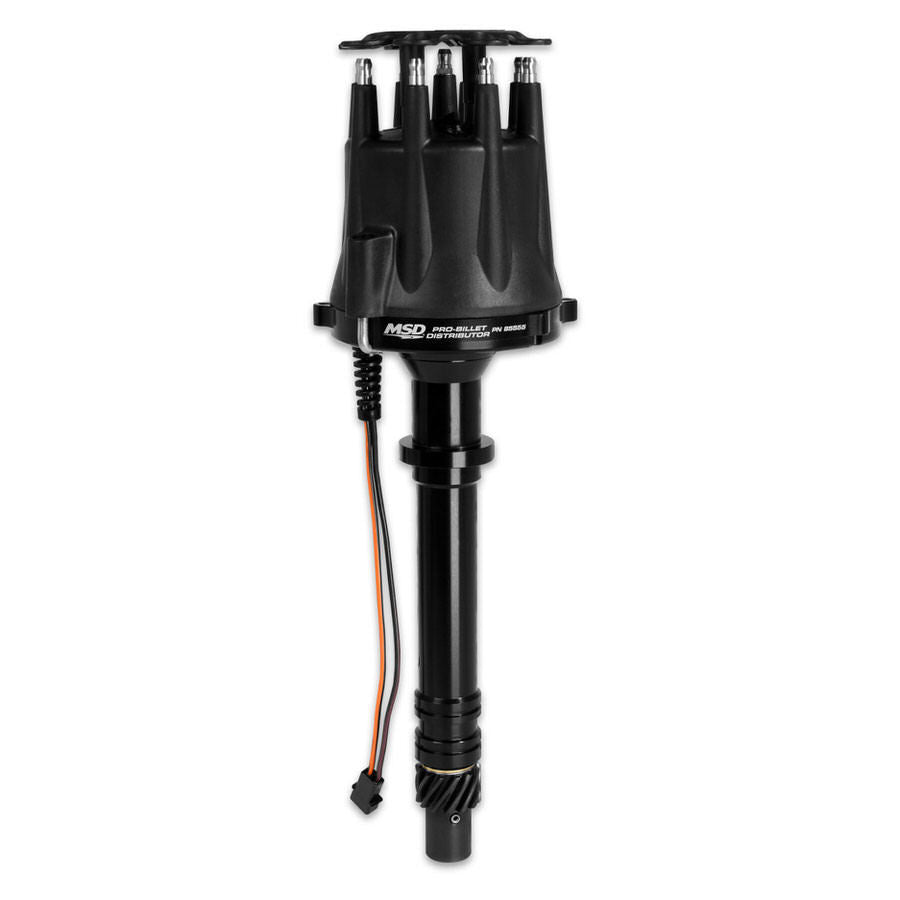

MSD Chevy V8 Pro-Billet Distributor - Black

The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD's adjustable mechanical advance assembly. Different springs and stop bushings are supplied so you can tune an advance curve to match your application. Must be used with an MSD 6, 7 or 8-series ignition.

The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD's adjustable mechanical advance assembly.Different springs and stop bushings are supplied so you can tune an advance curve to match your application. Must be used with an MSD 6, 7 or 8-series ignition.Features:CNC machined billet aluminum housing and billet aluminum baseWill not accept a vacuum advance canisterMust be used with an MSD Ignition ControlSupplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)O-ring seals can be added to modified blocks to improve oil pressure controlSpecial oil tract improves lubrication to the distributor and cam gearNylon pads ensure smooth operation of the advance weightsAdvance weight pins are staked and tig welded to the plateMechanical advance assembly can be locked out for crank trigger systemsAdvance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reductionPolished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushingMaintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm rangeEasy-to-adjust mechanical advance with supplied springs and stop bushingsNo CARB Exemption Order Number

Will not accept a vacuum advance canister

Must be used with an MSD Ignition Control

Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)

O-ring seals can be added to modified blocks to improve oil pressure control

Special oil tract improves lubrication to the distributor and cam gear

Nylon pads ensure smooth operation of the advance weights

Advance weight pins are staked and tig welded to the plate

Mechanical advance assembly can be locked out for crank trigger systems

Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction

Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing

Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range

Easy-to-adjust mechanical advance with supplied springs and stop bushings

No CARB Exemption Order Number

Product Description:

Distributor

Pro-Billet

Magnetic Pickup

Mechanical Advance

HEI Style Terminal

Black

Chevy V8

Sold Individually
