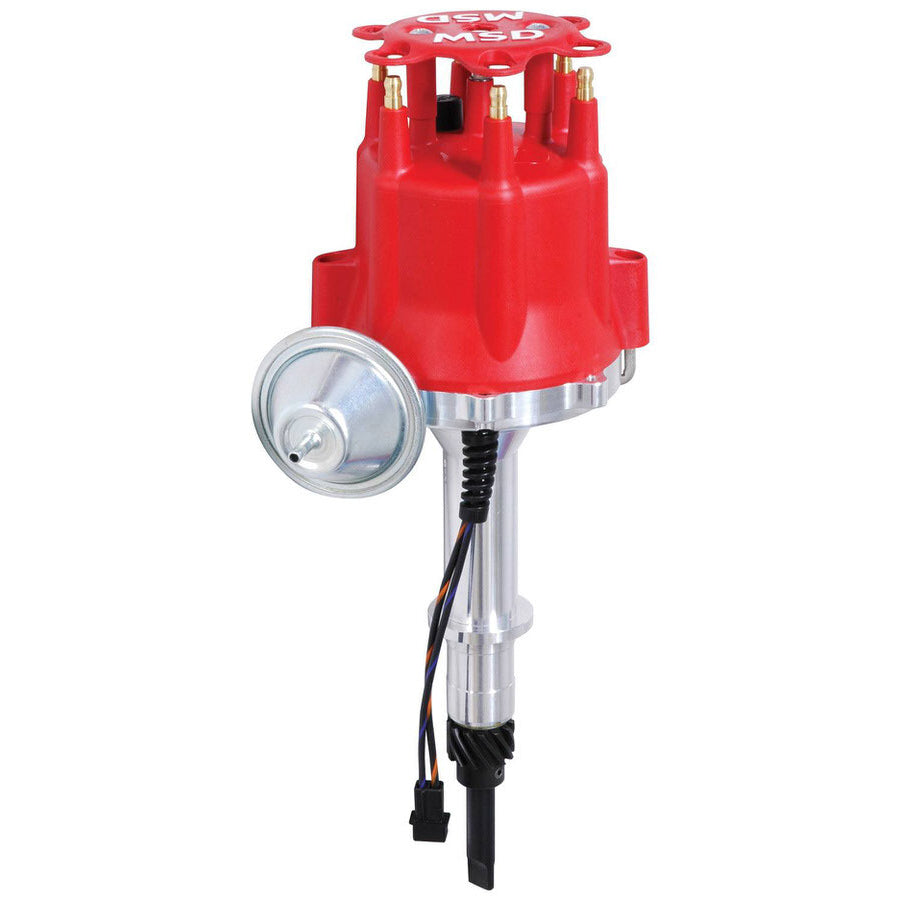

MSD Pro-Billet Distributor 8515 Includes Cap/Race Rotor - Use w/MSD 6/7/8/10 Series Ignition
Easy Installation And Provide Powerful Spark Billet Aluminum CNC Machined For Closer Tolerances Provides Accurate Spark Delivery Adjustable Mechanical Advance Vacuum Advance To Help Improve Economy Use With 194/230/250/292 cu in. Engines CARB Approved Legal For Use In All States Must Be Used With MSD 6/7/8-Series IgnitionsStarting on the inside, a 0.500" oversized steel shaft spins in a sealed ball bearing and sintered bushing for long endurance and accurate spark delivery throughout the entire rpm range. Mounted on top of the shaft is an easy-to-adjust chromoly mechanical advance assembly. Different advance springs and stop bushings are supplied so you can choose from a variety of curves.A maintenance-free magnetic pick-up provides accurate trigger signals to your MSD Ignition Control. A precision-manufactured reluctor that is connected to the shaft is responsible for triggering the pick-up. The distributor is topped off with a high quality MSD red cap and Race Rotor.Features:Designed for street/performance use with a mechanical and vacuum advanceWill not fit 235 and 261 enginesMust be used with an MSD Ignition ControlSupplied with a socket style distributor cap and rotorO-ring seals can be added to modified blocks to improve oil pressure controlSpecial oil tract improves lubrication to the distributor and cam gearNylon pads ensure smooth operation of the advance weightsAdvance weight pins are staked and tig welded to the plateMechanical advance assembly can be locked out for crank trigger systemsAdvance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reductionPolished steel shaft is QPQ coated and guided by a sealed ball bearingMaintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm rangeCNC machined billet aluminum housing and billet aluminum baseVacuum advance canister for improved economy (can be locked out)Easy-to-adjust mechanical advance with supplied springs and stop bushingsCARB E.O. Approved
Will not fit 235 and 261 engines Must be used with an MSD Ignition Control Supplied with a socket style distributor cap and rotor O-ring seals can be added to modified blocks to improve oil pressure control Special oil tract improves lubrication to the distributor and cam gear Nylon pads ensure smooth operation of the advance weights Advance weight pins are staked and tig welded to the plate Mechanical advance assembly can be locked out for crank trigger systems Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction Polished steel shaft is QPQ coated and guided by a sealed ball bearing Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range CNC machined billet aluminum housing and billet aluminum base Vacuum advance canister for improved economy (can be locked out) Easy-to-adjust mechanical advance with supplied springs and stop bushings CARB E.O. ApprovedProduct Description:
Distributor Pro-Billet Magnetic Pickup Vacuum Advance HEI Style Terminal Red Chevy Inline-6 Sold IndividuallyRacers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you need to meet your performance goals. We continue to innovate and invent components and technology that deliver performance and reliability with products that are easy to use and install. Over the course of 40-plus years, MSD Performance has been driving the development of innovative components that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in motorsports. MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street! Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power and endurance. Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.
