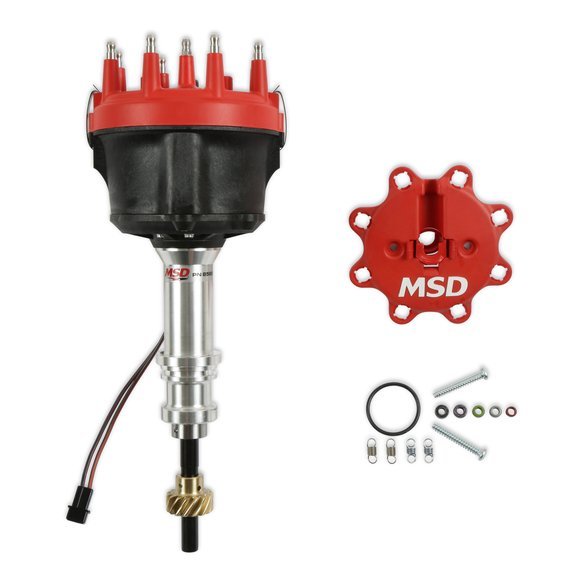

For Ford enthusiasts that are serious about performance! Just under the brass terminals of the MSD cap and rotor is an easy-to-adjust mechanical advance assembly. The assembly is fine blanked from Chromoly Steel, TIG-welded for strength plus receives a QPQ coating. The precision weights glide on nylon bushings for smooth advancement and different springs and stop bushings are supplied so a variety of advance curves can be tuned. The adjustable mechanical advance assembly allows you to accurately and easily modify the advance curve to match your specific application. The steel shaft that spins the advance and reluctor receives a friction-reducing coating and is guided by a sealed ball bearing and long sintered bushing. This combination provides stable timing signals and spark delivery at any rpm. Triggering chores are handled by MSD's race-proven, maintenance-free magnetic pick-up. MSD premium distributors come complete with a race rotor and alkyd cap.The 85827 Distributor comes with Bronze Gear 8583 already installed and is designed for camshafts requiring a bronze distributor gear:- Made of a bronze/aluminum/nickel alloy (AMPCO 45)- Softer material will not damage the camshaft- Used with billet steel cams- Should be changed more frequently than other gear materialsMust be used with MSD ignition.Features:Pre-installed Bronze Gear for aftermarket billet roller camshaftsGear machined from AMPCO 45 aluminum bronze containing 5% NickelCNC machined billet 6061-T6 aluminum housingMaintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm rangeEasy-to-adjust mechanical advance with supplied springs and stop bushingsNylon pads ensure smooth operation of the advance weightsAdvance weight pins are staked and TIG welded to the plateAdvance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reductionPolished steel shaft is QPQ coated and guided by a sealed ball bearingMechanical advance assembly can be locked out for crank trigger systemsSupplied with Cap-A-Dapt and rotor (accepts MSD socket style caps)Must be used with an MSD Ignition Control
Gear machined from AMPCO 45 aluminum bronze containing 5% Nickel CNC machined billet 6061-T6 aluminum housing Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range Easy-to-adjust mechanical advance with supplied springs and stop bushings Nylon pads ensure smooth operation of the advance weights Advance weight pins are staked and TIG welded to the plate Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction Polished steel shaft is QPQ coated and guided by a sealed ball bearing Mechanical advance assembly can be locked out for crank trigger systems Supplied with Cap-A-Dapt and rotor (accepts MSD socket style caps) Must be used with an MSD Ignition ControlProduct Description:
Distributor Billet Magnetic Pickup Mechanical Advance HEI Style Terminal Red Bronze Gear Small Block Ford Sold IndividuallyRacers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you need to meet your performance goals. We continue to innovate and invent components and technology that deliver performance and reliability with products that are easy to use and install. Over the course of 40-plus years, MSD Performance has been driving the development of innovative components that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in motorsports. MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street! Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power and endurance. Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.
