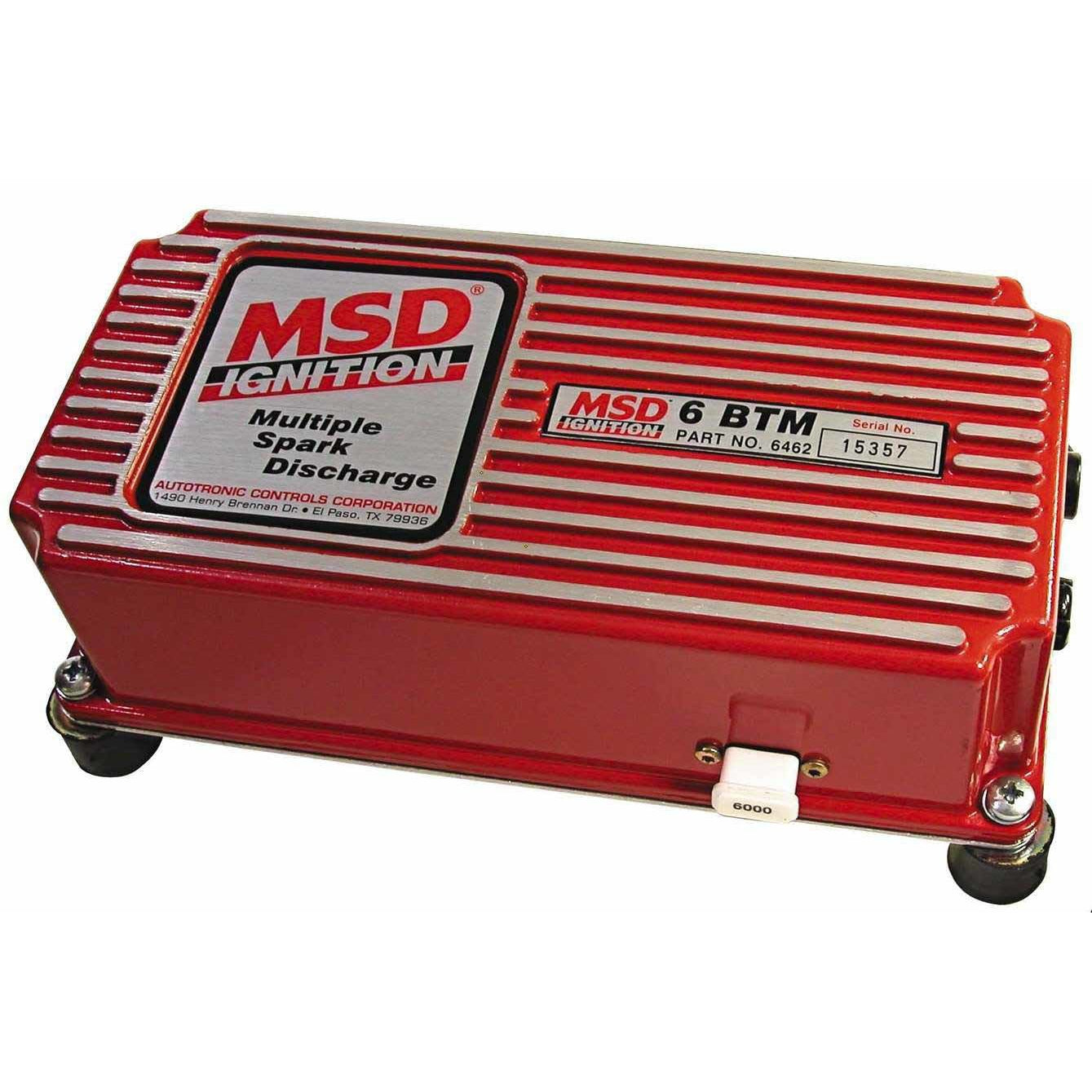

MSD 6BTM Series Multiple Spark Ignition Controller w/ Boost Timing Master

The 6 BTM is ideal for engines with a turbo or supercharger. Not only will the engine benefit from MSD's full power CD sparks, but there is also an adjustable boost/timing retard circuit to prevent detonation.When your turbo or blower forces the air/fuel mixture into the engine, the cylinder pressure inside the combustion chamber increases. The result is a great increase in power but this can also lead to detonation that can result in severe engine damage. The 6 BTM lets you dial away detonation by retarding the timing in relation to the boost pressure.A dash mounted control knob lets you adjust the amount of timing retard. It can be adjusted from 0 degrees per pound of boost to 3 degrees per pound (up to 15 degrees).The 6 BTM also shares the Soft Touch Rev Control of the 6AL Ignition for overrev protection. The BTM is supplied with rubber shock mounts and rpm modules for 3,000, 6,000, 7,000 and 8,000 rpm.

MSD 6BTM Series Multiple Spark Ignition Controller 6462 w/Boost Timing Master - 4/Even Fire V6/8 Cylinder

Boost Timing Master

Adjust 0-3 Degrees Timing Retard Per lb. Of Boost

4; 6 Even-Fire; 8-Cylinder

10-18VDC; Negative Ground

15000 RPM With 14.4 Volts

20 deg. Crankshaft Rotation

105-115 Millijoules Per Spark

Legal In All 50 States

The 6 BTM is ideal for engines with a turbo or supercharger. Not only will the engine benefit from MSD's full power CD sparks, but there is also an adjustable boost/timing retard circuit to prevent detonation. When your turbo or blower forces the air/fuel mixture into the engine, the cylinder pressure inside the combustion chamber increases. The result is a great increase in power but this can also lead to detonation that can result in severe engine damage. The 6 BTM lets you dial away detonation by retarding the timing in relation to the boost pressure.A dash-mounted control knob lets you adjust the amount of timing retard. It can be adjusted from 0 degrees per pound of boost to 3 degrees per pound (up to 15 degrees). The 6 BTM also shares the Soft Touch Rev Control of the 6AL Ignition for overrev protection. The BTM is supplied with rubber shock mounts and rpm modules for 3,000, 6,000, 7,000, and 8,000 rpm.Features:Multiple spark, capacitive discharge ignition controlSupplied with 3,000, 6,000, 7,000 & 8,000 RPM ModuleSupplied with rubber shock mountsProgrammable for 4, 6, or 8-cylinders by cutting red/blue wire loopsBuilt-in Soft Touch Rev Control is adjustable with RPM Modules110 millijoules per spark up to 15,000 RPM470 primary voltage output to coilAccepts breaker points, amplifier and magnetic pickup trigger inputsWorks on 12 - 18 volt electrical systemMultiple sparks for 20┬ ¼Î“ê₧┬ ¼Î“Çáof crankshaft rotationRetard the ignition timing 1 degrees-3 degrees per pound of boost, maximum of 15 degrees, with dash mounted adjustable control knobCARB E.O. Approved

Supplied with 3,000, 6,000, 7,000 & 8,000 RPM Module

Supplied with rubber shock mounts

Programmable for 4, 6, or 8-cylinders by cutting red/blue wire loops

Built-in Soft Touch Rev Control is adjustable with RPM Modules

110 millijoules per spark up to 15,000 RPM

470 primary voltage output to coil

Accepts breaker points, amplifier and magnetic pickup trigger inputs

Works on 12 - 18 volt electrical system

Multiple sparks for 20 degrees of crankshaft rotation

Retard the ignition timing 1 degrees-3 degrees per pound of boost, maximum of 15 degrees, with dash mounted adjustable control knob

CARB E.O. Approved

Product Description:

Ignition Box

6 BTM

Analog

CD Ignition

Multi-Spark

45000V

Boost Retard Dial

Soft Touch Rev Limiter

Sold Individually
