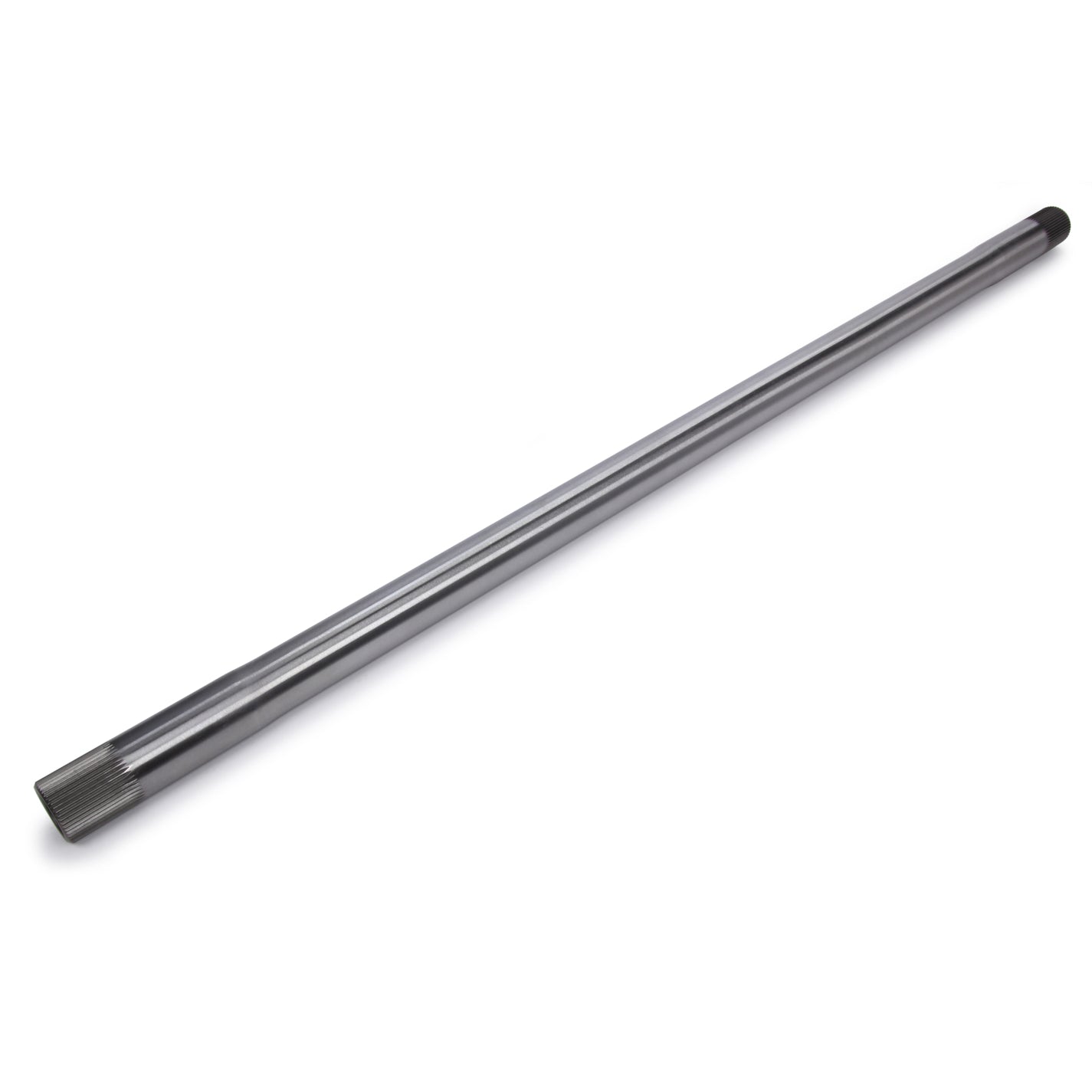

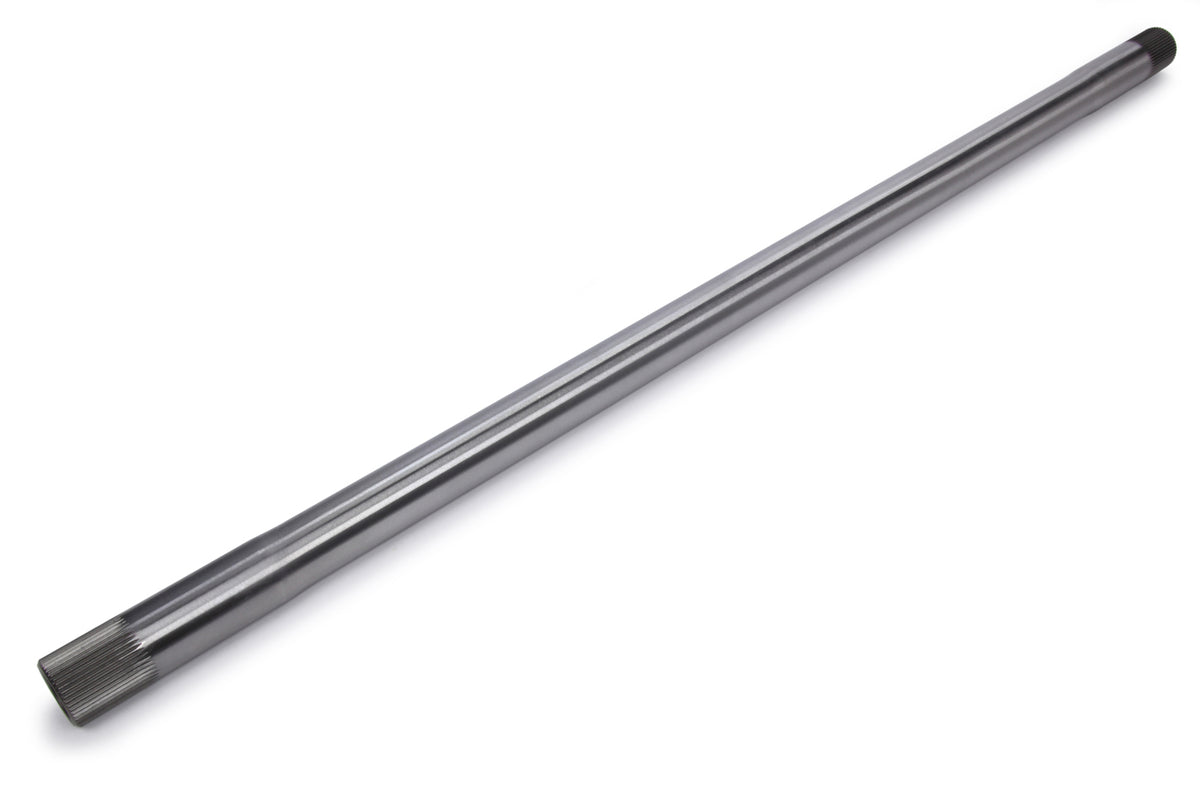

MPD Torsion Bar - Tubular - 925 lb./in Spring Rate - 1-1/8" Spline - 30" Long - Steel
WARNING: This product can expose you to chemicals including Nickel, which is/are known to the State of California to cause cancer For more information go to www.P65Warnings.ca.gov
Tubular torsion bar, 30 Inch long with a 0.925 Inch outside diameter and 1-1/8 by 48 spline ends. At 0.925 Inch diameter this is one of the softer bars in the 30 Inch range, letting the chassis roll and transfer more weight, which generally helps a car find bite on a slick track. Torsion bar diameter is the primary spring rate adjustment on a sprint car, and small diameter changes make a real difference.
Made from 4340 alloy steel, heat treated. Sold individually.
Made of a high-quality 4340 steel alloy and heat treated to our exacting specifications, our torsion bars have won more Sprint Car championships than all other brands combined. Torsion bars feature 1-1/8 Inch diameter x 48-spline ends. This is the 30 Inch bar with 23 Inch effective length measuring 0.925 Inch diameter.
Manufactured in the USA with all-American materials. Sold individually.
Product Details:
- Material: Chromoly
- Color: Natural
- Finish: Natural
- Length: 30 Inch
- Outside Diameter: 0.925 Inch
- Spline Diameter: 1-1/8 Inch
- Spline Count: 48
- Effective Length: 23 Inch
Product Description:
- Torsion Bar
- Tubular
- 0.925 in OD
- 1-1/8-48 in Spline
- 30 in Long
- Chromoly
- Natural
- Sprint Car
- Sold Individually
For more than 30 years we at MPD have taken great pride in establishing our products as second to none in the industry. When John Bickford started this business, it was because he wanted his son (Jeff Gordon) to have the best. From those early track-side days, MPD Racing Inc. was born. Our goal was to build the best component manufacturing company in the US. We source our materials right here in America and pride ourselves on superior customer service. We put our name and reputation on everything we do.
