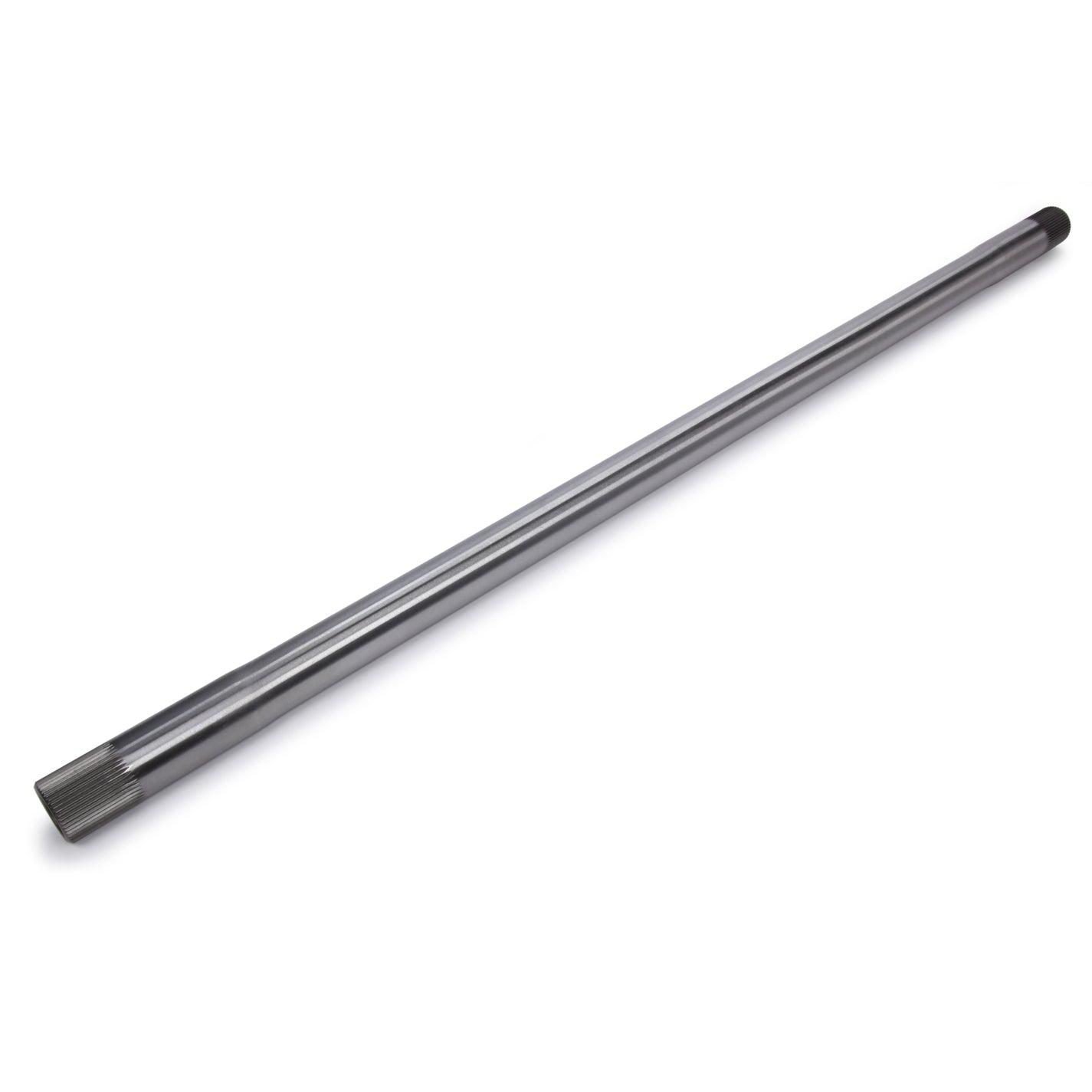

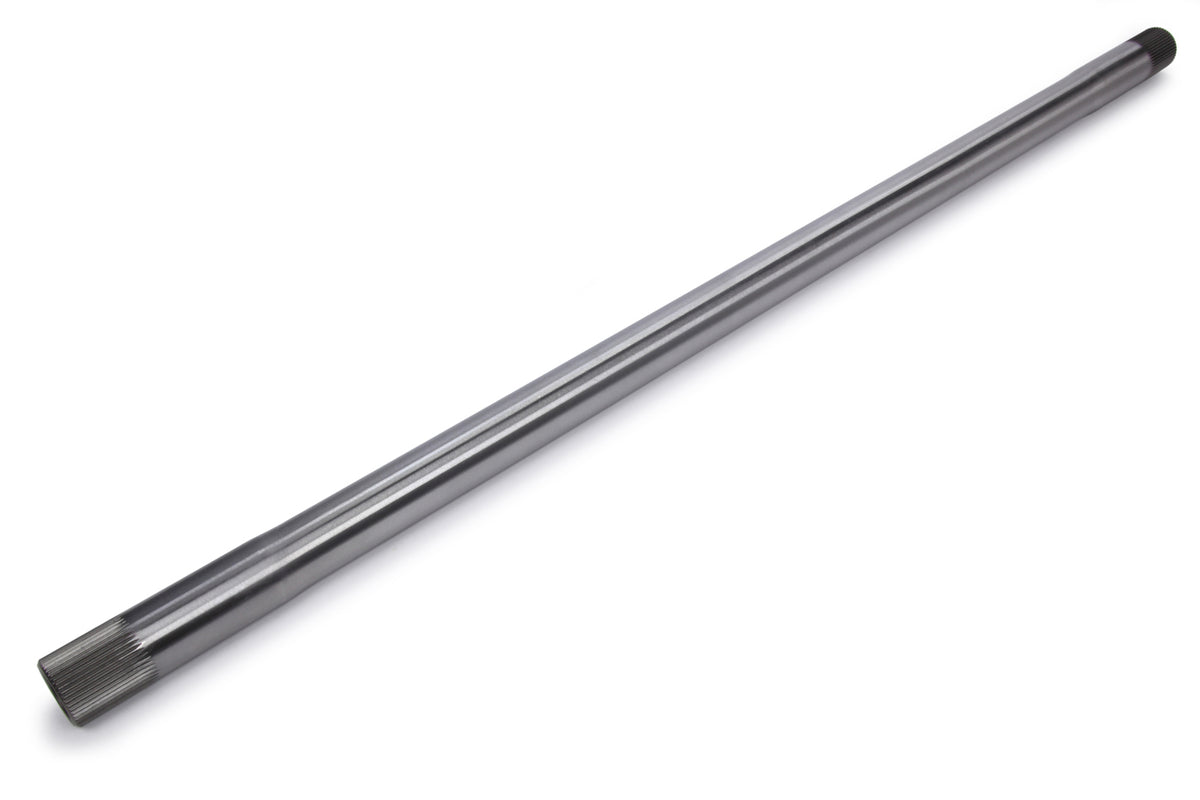

MPD Torsion Bar - Tubular - 1025 lb./in Spring Rate - 1-1/8" Spline - 30" Long - Steel
Tubular torsion bar, 30 Inch long with a 1.025 Inch outside diameter and 1-1/8 by 48 spline ends. The 1.025 Inch diameter puts this in the middle of the 30 Inch range, a common starting point before going softer or stiffer based on how the track comes in. Torsion bar diameter is the primary spring rate adjustment on a sprint car, and small diameter changes make a real difference.
Effective length is 23 Inch. Made from 4340 alloy steel, heat treated. Sold individually.
Made of a high-quality 4340 steel alloy and heat treated to our exacting specifications, our torsion bars have won more Sprint Car championships than all other brands combined. Torsion bars feature 1-1/8 Inch diameter x 48-spline ends. This is the 30 Inch bar with 23 Inch effective length measuring 1.025 Inch diameter.
Manufactured in the USA with all-American materials. Sold individually.
Product Details:
- Material: Chromoly
- Color: Natural
- Finish: Natural
- Length: 30 Inch
- Outside Diameter: 1.025 Inch
- Spline Diameter: 1-1/8 Inch
- Spline Count: 48
- Effective Length: 23 Inch
Product Description:
- Torsion Bar
- Tubular
- 1.025 in OD
- 1-1/8-48 in Spline
- 30 in Long
- Chromoly
- Natural
- Sprint Car
- Sold Individually
