Lakewood Aluminum Bellhousing - T-56 / T-56 Magnum - Small Block Ford
Lakewood Aluminum Bellhousing - T-56 / T-56 Magnum - Small Block Ford
Lakewood

Lakewood Aluminum Bellhousing - T-56 / T-56 Magnum - Small Block Ford

Only 1 left
SKU: LWILK9100K
Bellhousing, Hardware Included, Aluminum, Natural, T-56 / T-56 Magnum, Small Block Ford, Kit
$391.95
Sale $490.95 $391.95
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: These products may contain a chemical known to the state of California to cause cancer and birth defects or other reproductive harm

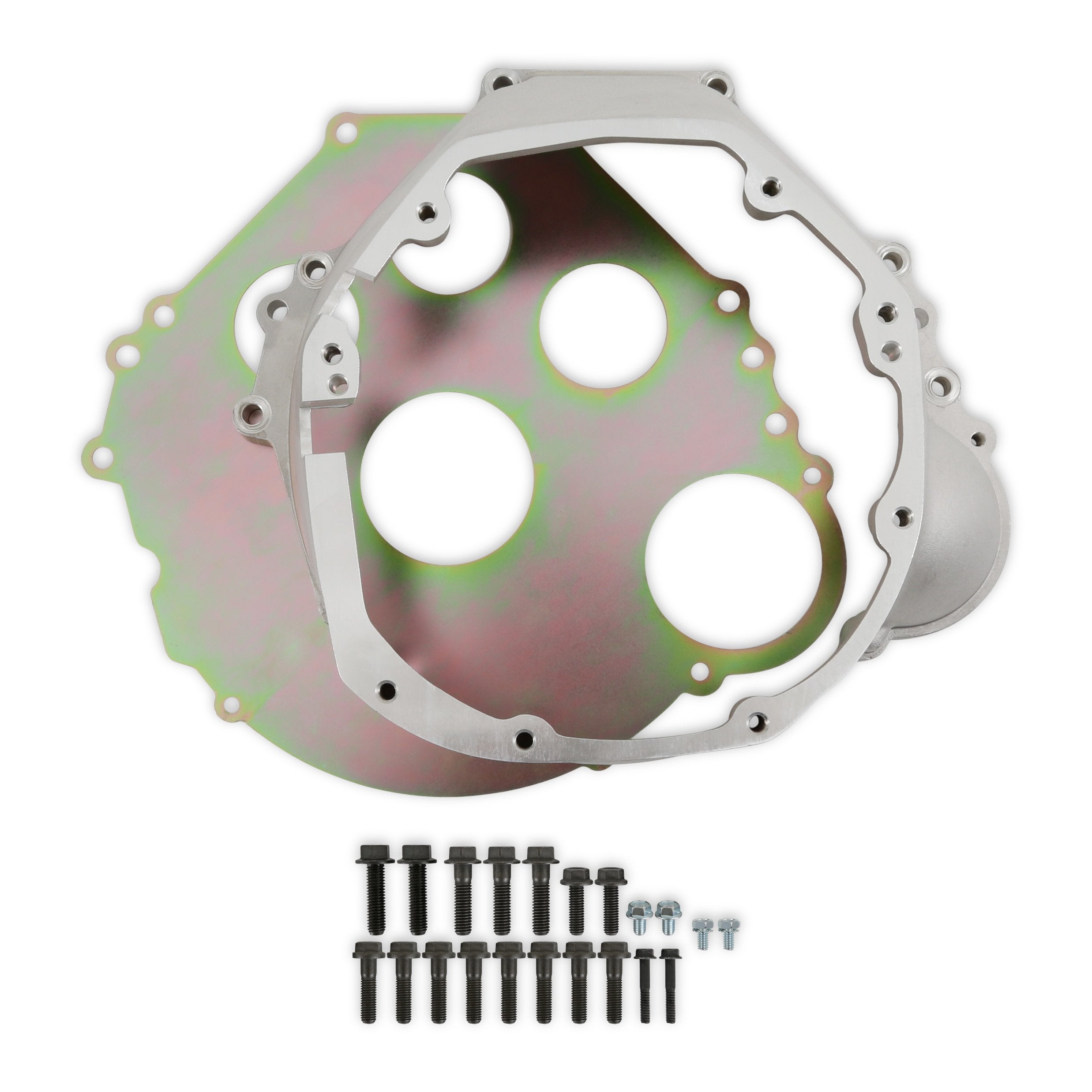

This Lakewood cast aluminum bellhousing connects most Small Block Ford engines to GM pattern T-56 and T-56 Magnum Transmissions. Designed as a compact, lightweight, and inexpensive option for transmission swaps not needing SFI certification, the LK9100K attaches in a factory-like manner to stock or Holley oil pans and includes a block plate for starter alignment and a dust shield. The starter register size is 4.084 inches and we recommend MSD Dynaforce starters 5090 or 50903 (black). Rounding out the kit is a Grade 8/10.9 hardware kit (Lakewood #50395) for both engine and transmission so all you need to do is pick out your clutch, flywheel, and release bearing.Suggest Lakewood Roller Pilot Bearing 50376 (For SBF using GM Transmissions - .594 ID).

Product Description:

  • Bellhousing
  • Hardware Included
  • Aluminum
  • Natural
  • T-56 / T-56 Magnum
  • Small Block Ford

    • Lakewood Industries manufactures safety and suspension products including Lakewood bellhousings, Lakewood traction bars, Lakewood drag shocks and Lakewood lowering springs. Lakewood Safety Bellhousings are made for just one purposeato minimize the destructive effects of a clutch or flywheel explosion! Lakewood Engine to Transmission Adapters is an excellent choice where the use of an SFI approved bellhousing is not required. Lakewood Bellhousing Locating Kit is used to dial in a misaligned register bore. Lakewood EZ-Adjustable Dowel Pins are easy to use and install! Lakewood Heavy-Duty Clutch Forks are constructed of heavy gauge steel for additional strength to prevent. Be sure to install a Lakewood Roller Pilot Bearing when changing your clutch. Lakewood Adjustable Clutch Fork Pivot Ball is designed to allow additional adjustment of the clutch fork height to eliminate clutch release problems. Lakewood Traction Bars work with axle torque to lift and load the chassis. Lakewood Traction...ActionA Lift Bars for Mustangs, Lakewood Traction...ActionA Lift Bars for Camaro / Firebird and Lakewood Traction...ActionA Lift Bars for GM A-Body are available. Lakewood Traction Bars for Mustang fit all 1979-95 Ford Mustangs. Lakewood Heavy-Duty Suspension Control Arms for Mustangs eliminate flex. Lakewood Traction Bars for Leaf Springs are designed for leaf-spring suspensions. Lakewood Heavya"Duty Lakewood Upper Control Arms for Racing are 100% bolt-on upper control-arms. Lakewood Rear Lower Control Bars will greatly increase traction by eliminating wheel hop. Lakewood Adjustable Rear Panhard Rod is engineered to keep the rear-end centered and aligned. Lakewood No-Hop Traction Bars excellent for muscle cars and stock racing classes. Lakewood Universal Drive Shaft Safety Loop is required and approved by all major racing sanctioning bodies. We feature Lakewood Industries products at low everyday prices!
