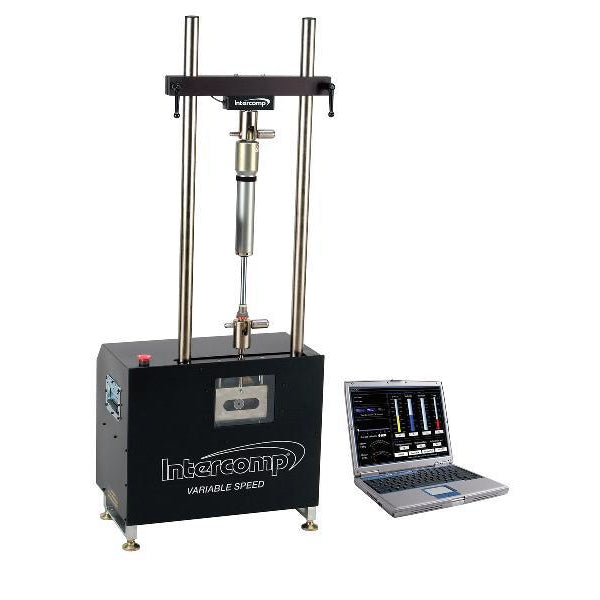

Intercomp High Speed Shock Dynamometer W/ 40" Masts

Features

• Adjustable Stroke: 1.0", 1.5", 2.0" or 2.25"
• Type K Thermocouple Sensor
• Runs on 220V Power
• 3HP High Speed: 0.5 to 55 in/sec
• Scotch Yoke System
• Includes Dedicated Laptop

Dynamometer Specs:

• 3HP Motor
• 3HP High Speed: 0.5 to 55 in/sec
• Adjustable Stroke: 1.0", 1.5", 2.0" or 2.25"
• Type K Thermocouple Sensor
• Runs on 220V Power
• Scotch Yoke System
• 2,000lb Load Cell
• USB Connection
• Compression/Tension Load Cell

Software Features:

• User Friendly, Easy-to-Operate
• Load & View Previous Shock Tests
• Overlay 20 graphs
• Display all measurement units independently
  • Force:lb/kg
  • Distance: in/cm
  • Temp: °F/°C
• Warm Up for Time or Temp
• Test by Time or Temp
• Live Data Display/Live Graphing Option
• Real-Time PVP Graphing with CVP Graphs for Each Velocity Interval
• Peak Velocity Pick Off Testing/Graphing (PVP)
• Constant Velocity Testing/Graphing (CVP)
• View Data Points in 0.1", 0.5", 1.0" Or 2.0" Intervals
• Export Data to Excel
• Customized Logo on Printouts
• Seal Drag Test
• Gas Test
• Compatible with Windows® 2000, Windows® XP, Vista™, Windows® 7, Windows® 8, Windows® 10

Pit Stop USA offers Intercomp High Speed Shock Dynamometer W/ 40" Masts 102092-40 at low everyday prices. Check out all our products from Intercomp including Shock Dynamometers.

For over 45 years, Intercomp Company has been serving the weighing and measuring industry. We are the world’s largest manufacturer of portable weighing and measurement products, producing the highest quality products at competitive prices. Beyond the racing industry, customers in aerospace, transportation, law enforcement and numerous other industries know that Intercomp’s products provide reliable solutions for the most exacting applications.

Product Descripton:
