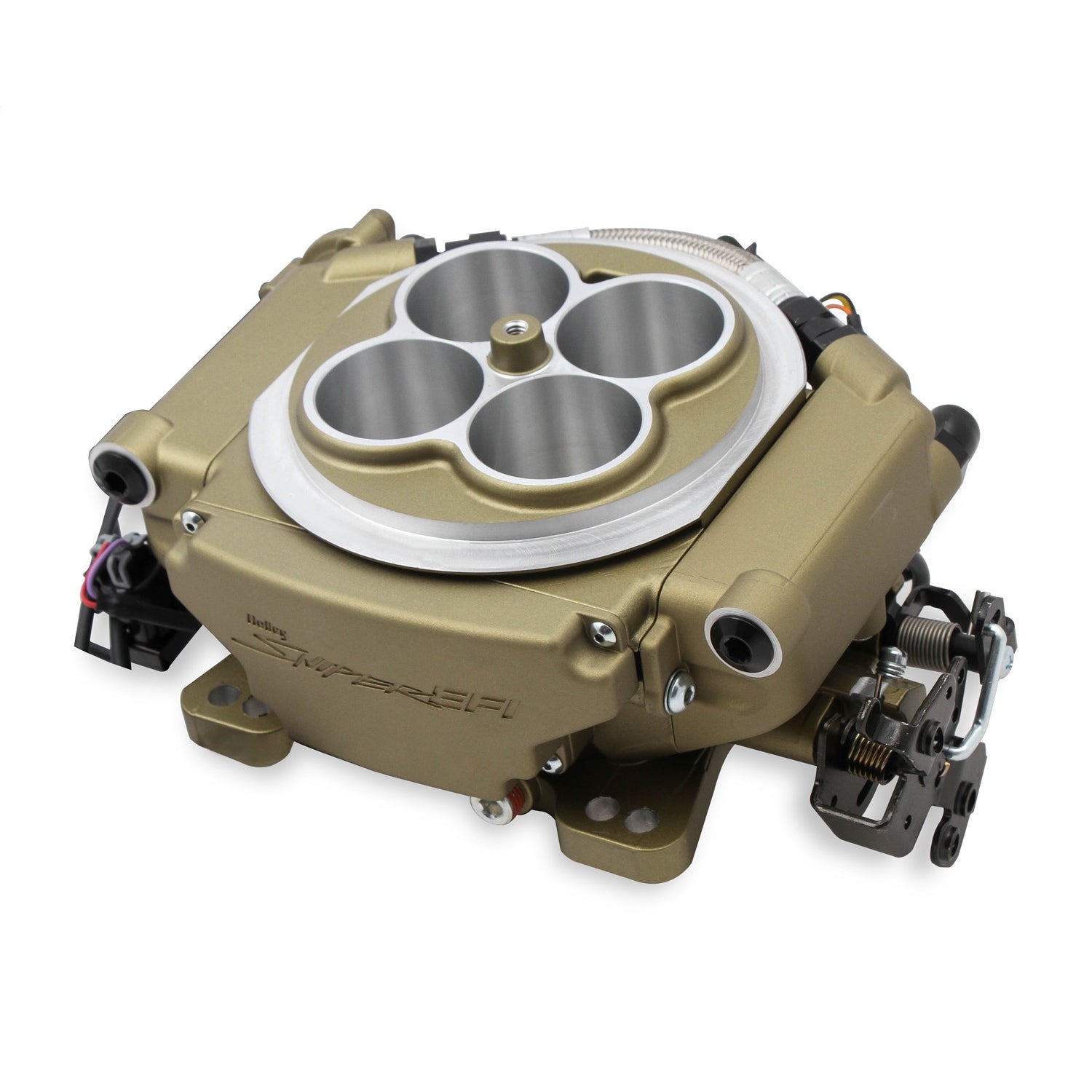

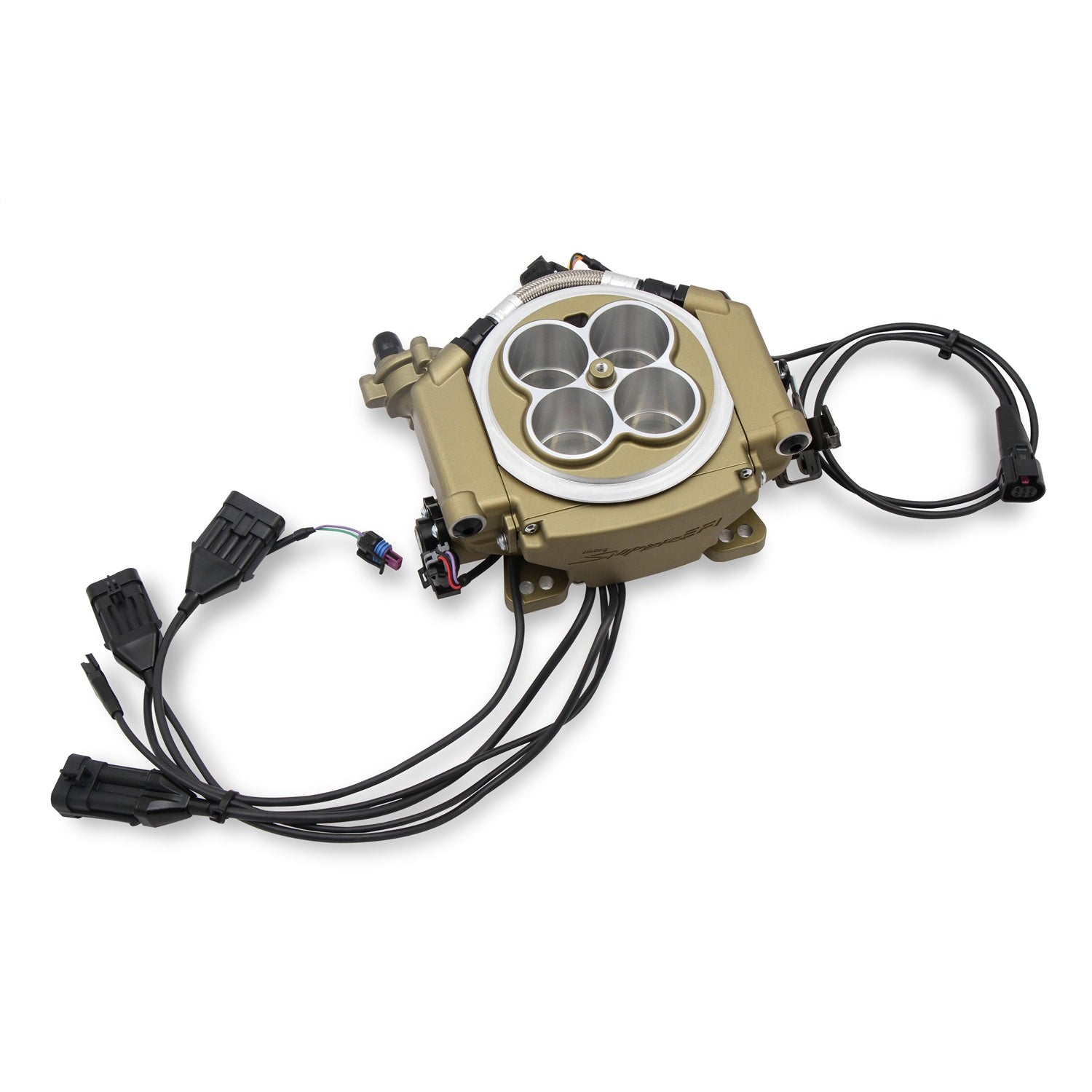

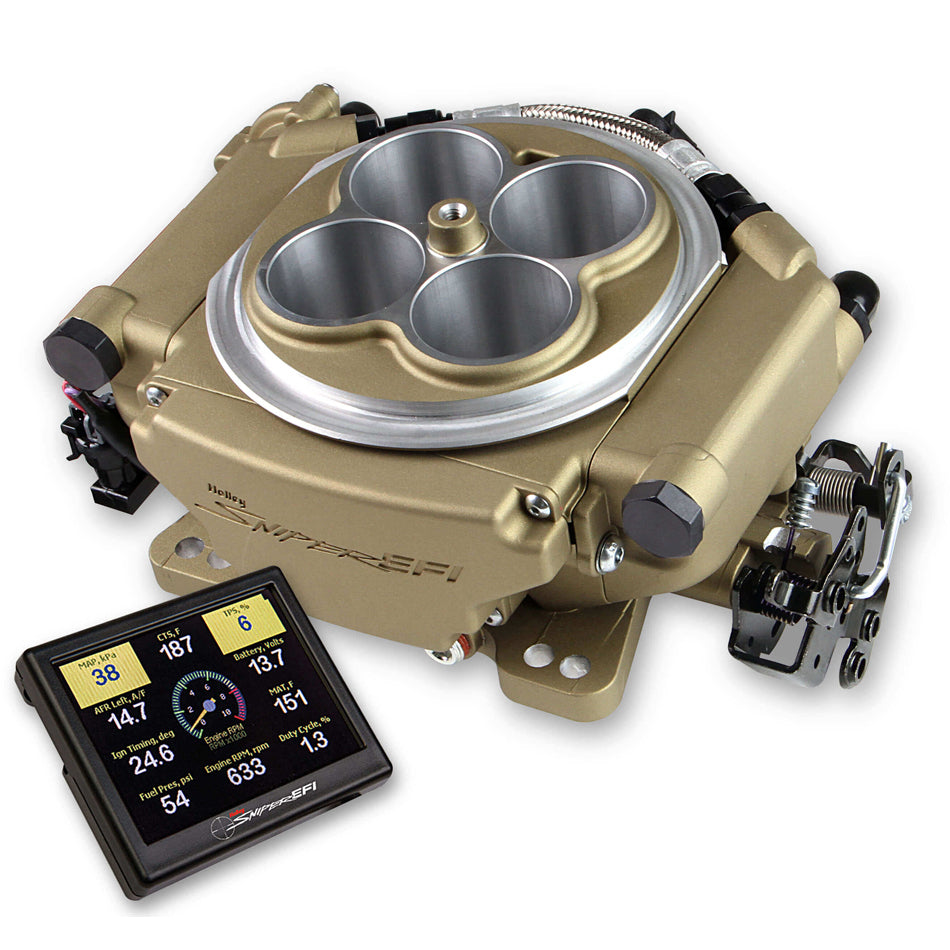

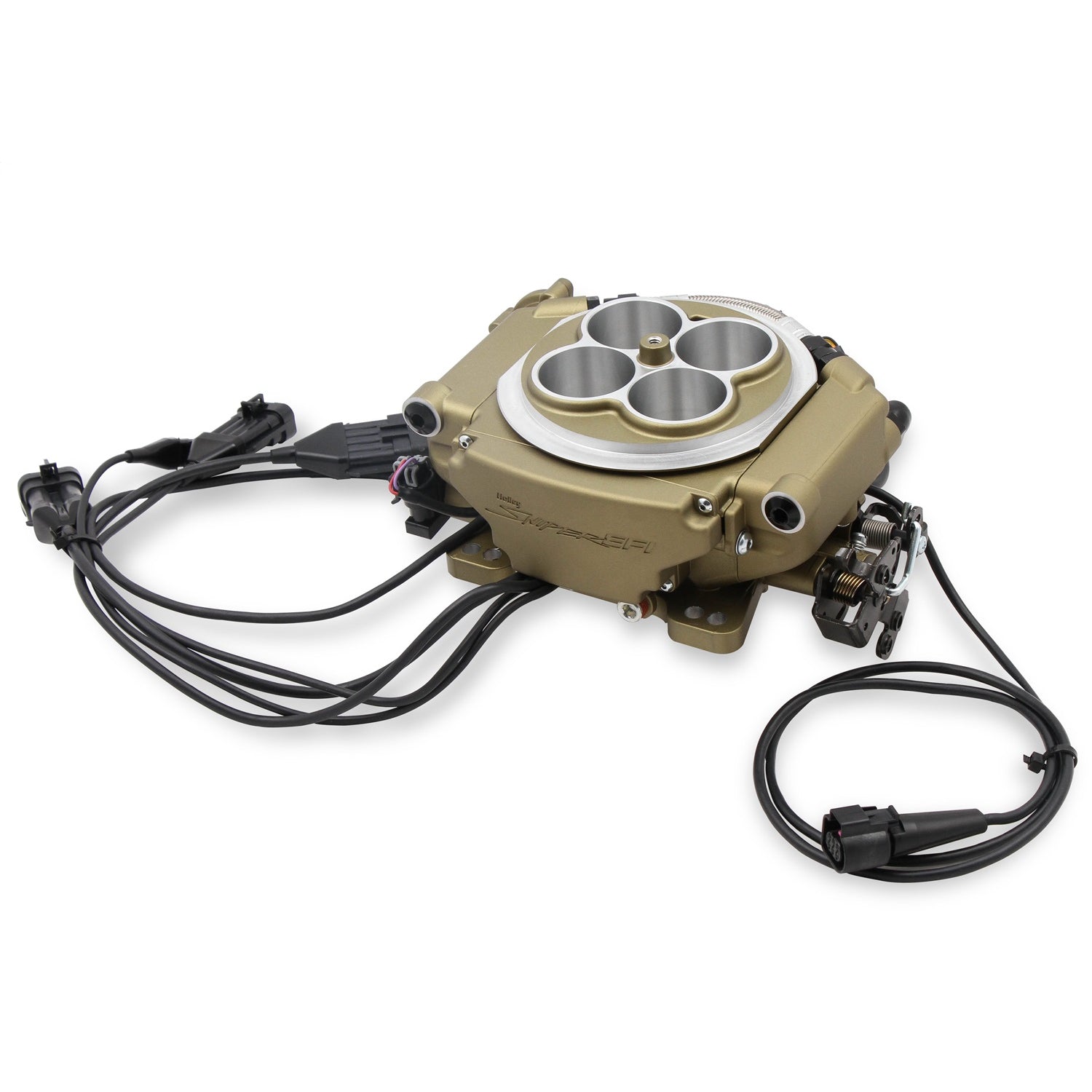

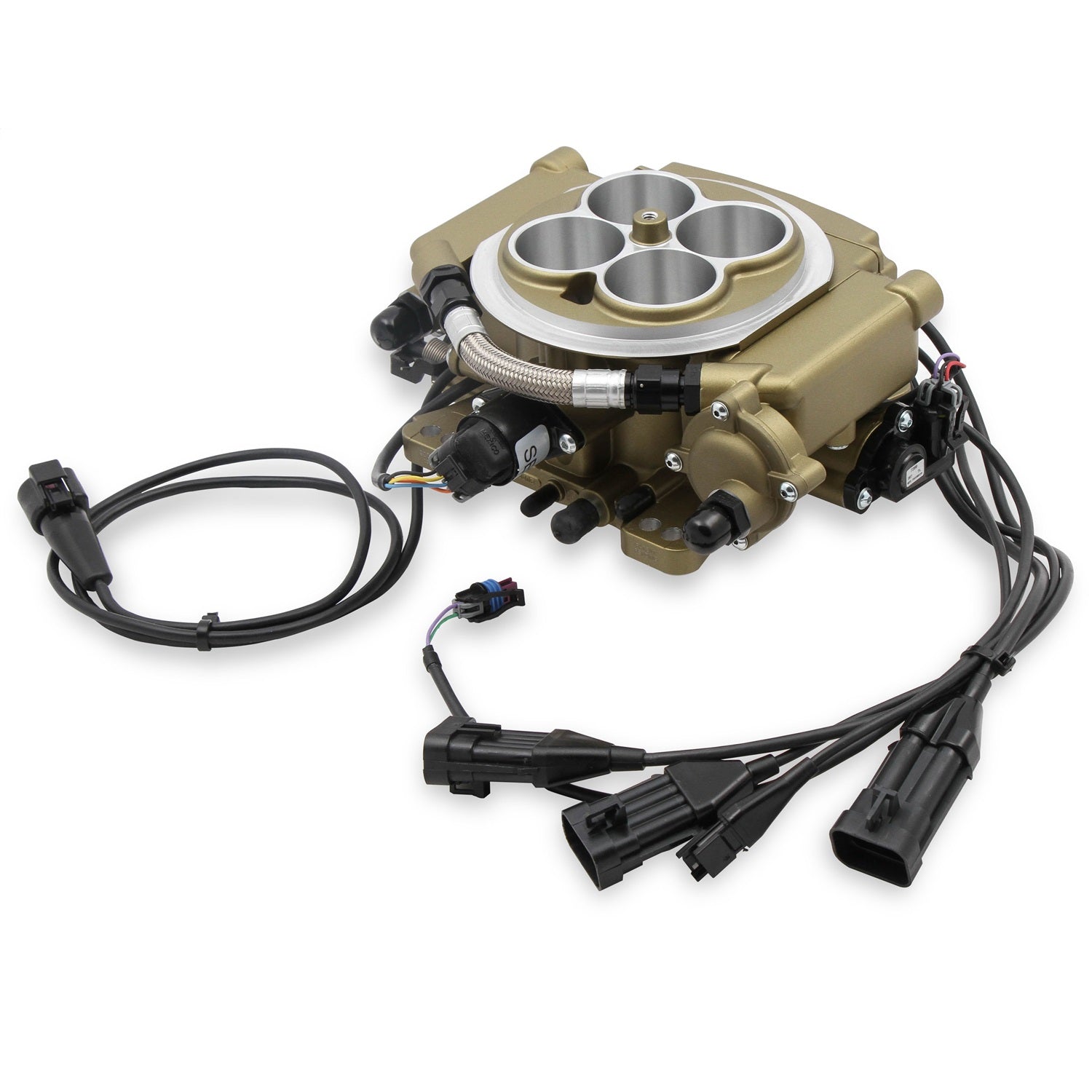

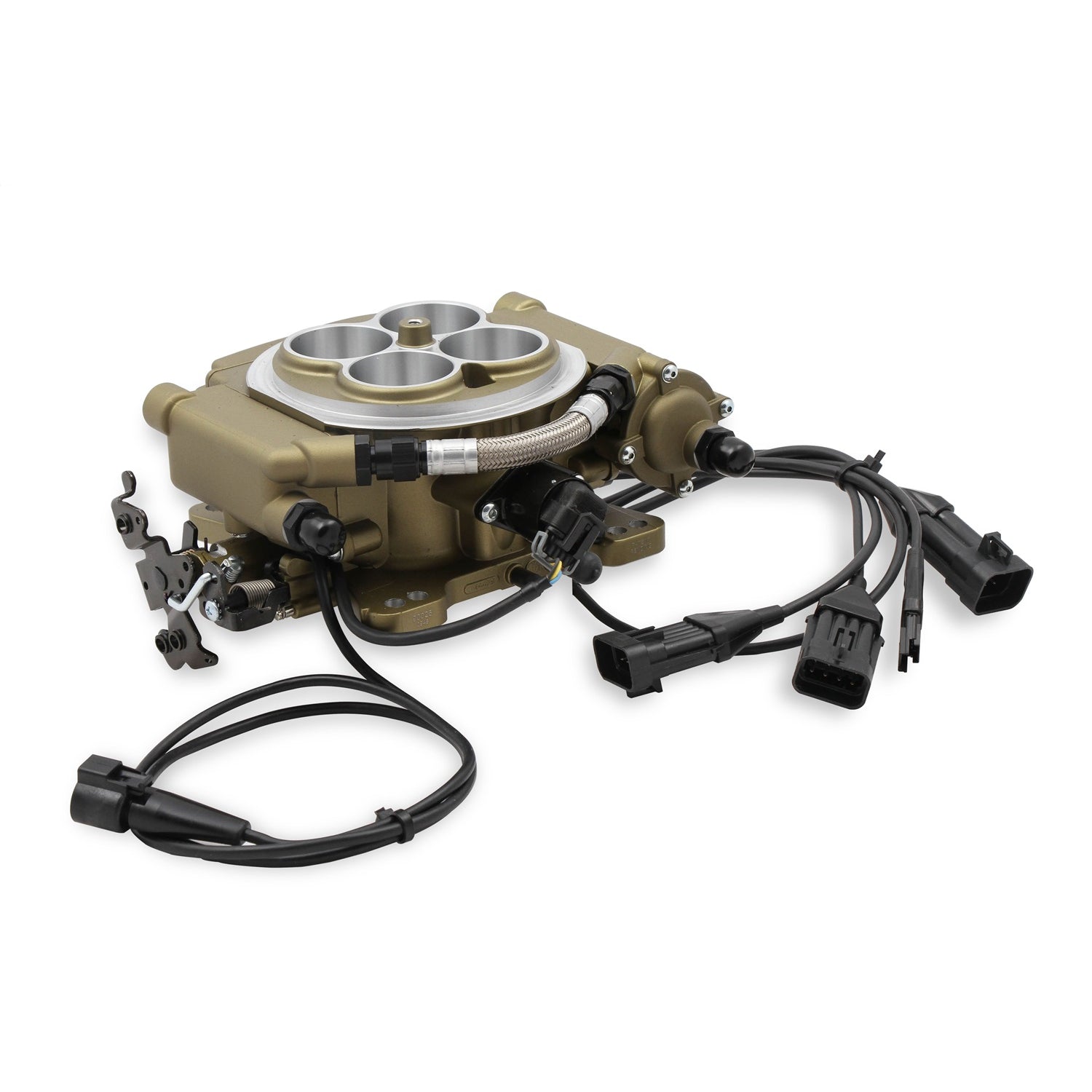

Introducing Sniper Super Sniper EFI! Looking to convert your blow thru carbureted turbo engine to EFI? Look no further. Sniper offers a 650 HP four injector version for lower horsepower applications with a power adder or someone just needing additional sensor inputs. Did we mention the Super Sniper also has full nitrous control built-in? Thats right, no need for a separate nitrous controller! Every Super Sniper EFI system also comes with a USB to CAN tuning cable, as well as free downloadable Sniper EFI Software to give you unlimited control of your engine.
Features:650 HP version features four 100 Lb/Hr Injectors Compatible with Draw-Thru or Blow-Thru forced induction applications User-friendly Boost Control with handheld adjustability Programmable Target Air Fuel Ratios per Boost level Advanced boost control is available via free Sniper EFI tuning software, including Boost vs RPM and Boost vs Time “ Same popular boost control offered in Sniper HP and Dominator EFI systems! 2.5 Bar MAP sensor included which safely works on applications up to 21.5 PSI Built-in Single stage progressive nitrous control Dry or Wet Nitrous Support Progressive or Non-Progressive control strategies Lean/Rich AFR Cutoff Time or RPM based Timing Retard and much more! Integrated ignition timing control for precise timing curves Programmable inputs and outputs Three Programmable 0-5V Sensor Inputs for Oil/Fuel/Dome or Nitrous Pressure Sensors Six Programmable Ground Outputs One +5v Reference Output - +5V Power Supply for 0-5v Sensors One Sensor Ground “ Ground supply for 0-5v Sensors Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (Preset to 58.5 PSI) for N/A or Nitrous applications Self-tuning ECU means you dont have to be a computer/tuning wiz to have EFI! Only 4 Wiring Connections Required! (Battery +, Battery-, Switched Ignition & RPM) High-Resolution Full Color Touchscreen for initial Setup, Tuning, and Gauge Displays Simple Calibration Wizard (Answer a few questions about your engine, and it creates the base map, then starts tuning on its own!) - NO laptop required! The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn! OEM Style TPS/IAC and fuel pressure regulator, for years of dependable service Included clamp-on oxygen sensor kit ensures a leak-free oxygen sensor installation, with Stainless Steel T-Bolt clamps and a Stainless Steel (Weldable) oxygen sensor flange Throttle body mounted ECU “ no extra boxes to mount USB to CAN Communication cable included for easy laptop tuning of advanced controls Dual Pattern bolt on carburetor replacement, designed to fit 4150 Flange & Spread Bore manifolds - (Spread Bore Sealing Plate Part #9006 recommended) Compatible with Sniper EFI analog gauges and electronic dashes Patent Pending SPECS: Brand: Sniper EFI
CFM: 800 Emission Code: 3 Finish: Classic Gold Height: 3.28" Injector Size: 100 lb/hr @ 58.5 PSI Inlet / Outlet Size: 9/16-18 Female O-Ring (AN 6) MAP Sensor: 2.5Bar Max Horsepower Rating: 650 Forced Induction Product Type: Sniper 4BBL TBI Kits Throttle Bore: 1.6875 (1 11/16ths) Transmission: 700R4/200R4 TH350 Part Number: 550-520 Product Description:
Fuel Injection Super Sniper EFI Throttle Body Square Bore Aluminum Gold Anodized KitSniper brings high-quality fueling products to the masses. Featuring everything from fabricated intake manifolds, high-performance plumbing parts, fuel tanks, pumps and regulators, and the Sniper EFI line of self-tuning fuel injection systems, with Sniper, you can count on high-quality performance without the high-end price!
