Holley

Holley LS Mid-Rise EFI 92 mm Throttle Body Flange Multi Port Intake Manifold - LS1 / LS2 / LS6 - GM LS-Series

In stock
SKU: HLY300-126
Intake Manifold, LS Mid-Rise EFI, 92 mm Throttle Body Flange, Multi Port, Aluminum, Natural, LS1 / LS2 / LS6, GM LS-Series, Kit

Earn [points_amount] when you buy this item.

$885.95
Sale $1,106.95 $885.95
Free Shipping on orders over $149! Exclusions may apply.

Holley Mid-Rise Intake - GM LS1/LS2/LS6

The Modular Mid-Rise intake utilizes the popular Holley LS1/LS2/LS6 cathedral port Mid-Rise 2 x 4 intake manifold along with a purpose built plenum base adapter and a Holley 92MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44, the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500-6,500 RPM and limited hood clearance. Its perfect for a blow-thru or turbocharged application.

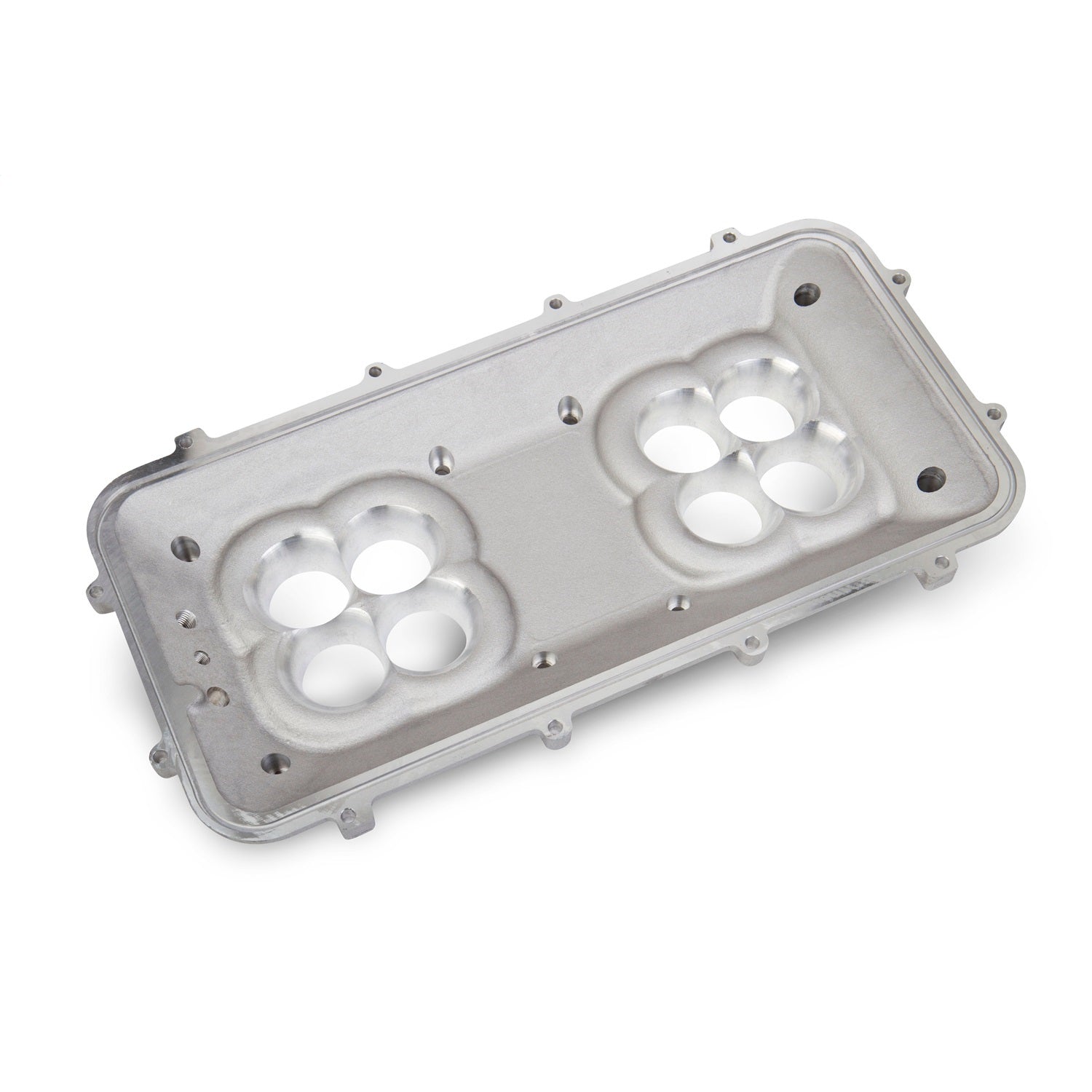

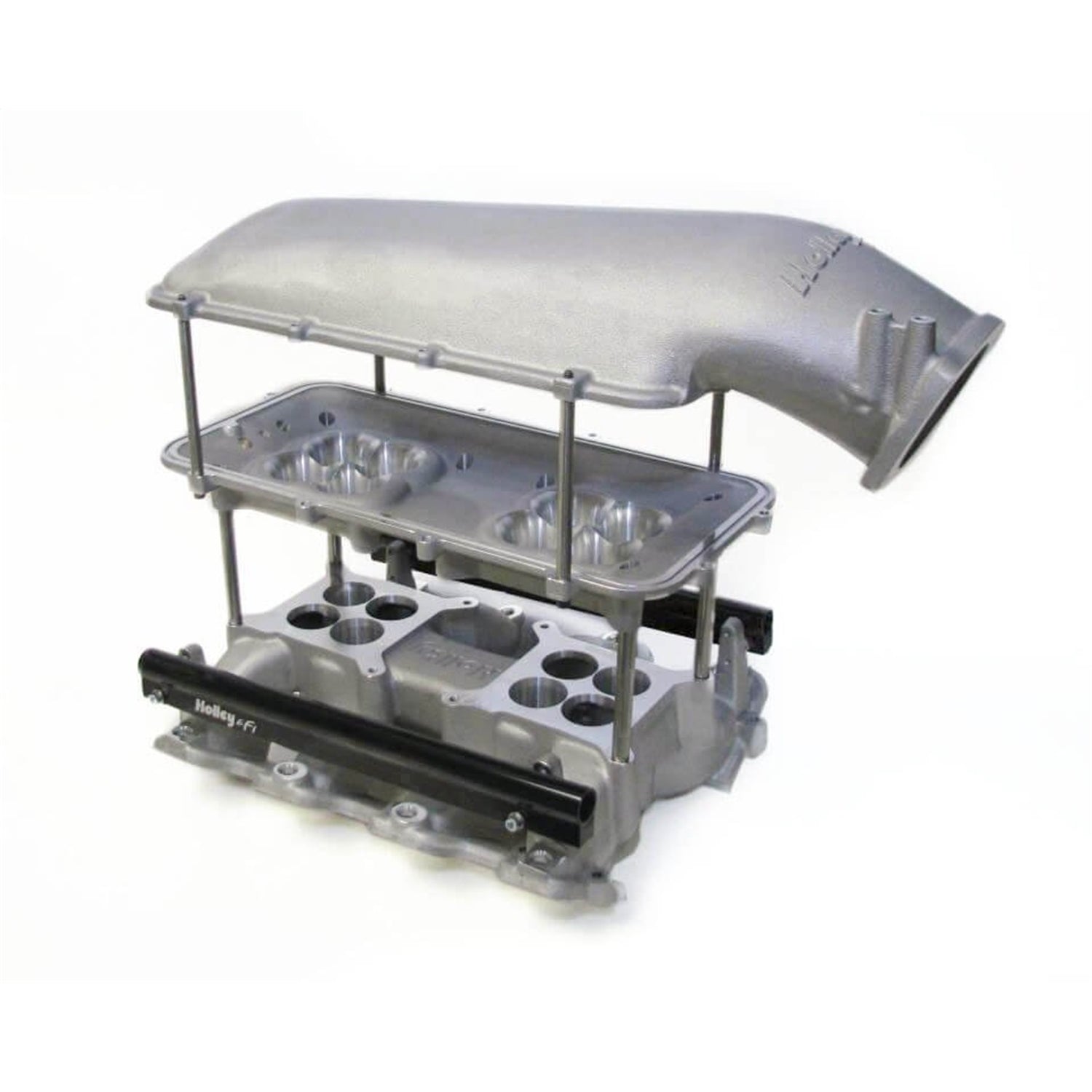

Being part of the Holley modular intake line means that this intake is not only available as a complete kit with intake, adapter, 92MM top and fuel rails, but all parts can also be purchased separately for a custom intake build. The plenum adapter (PN 300-231) will accept all of the popular Holley Hi-Ram plenum tops as a foundation for custom induction systems.

Holley EFI LS main harnesses have a map sensor connecter designed for use with an LS1/2 style map sensor. The 558-416 is an adapter harness that can be used to adapt any LS harness that uses a LS1/2 MAP sensor connection to a LS3 MAP, which is recommended for this manifold.

Features:

  • Provides great performance to 6500 rpm for street/strip performance applications while providing the look of a racing EFI intake manifold

    • Vehicle Applications:

  • 1998-2002 Chevrolet Camaro
  • 1997-2007 Chevrolet Corvette
  • 2004-2005 Cadillac CTS

    • Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

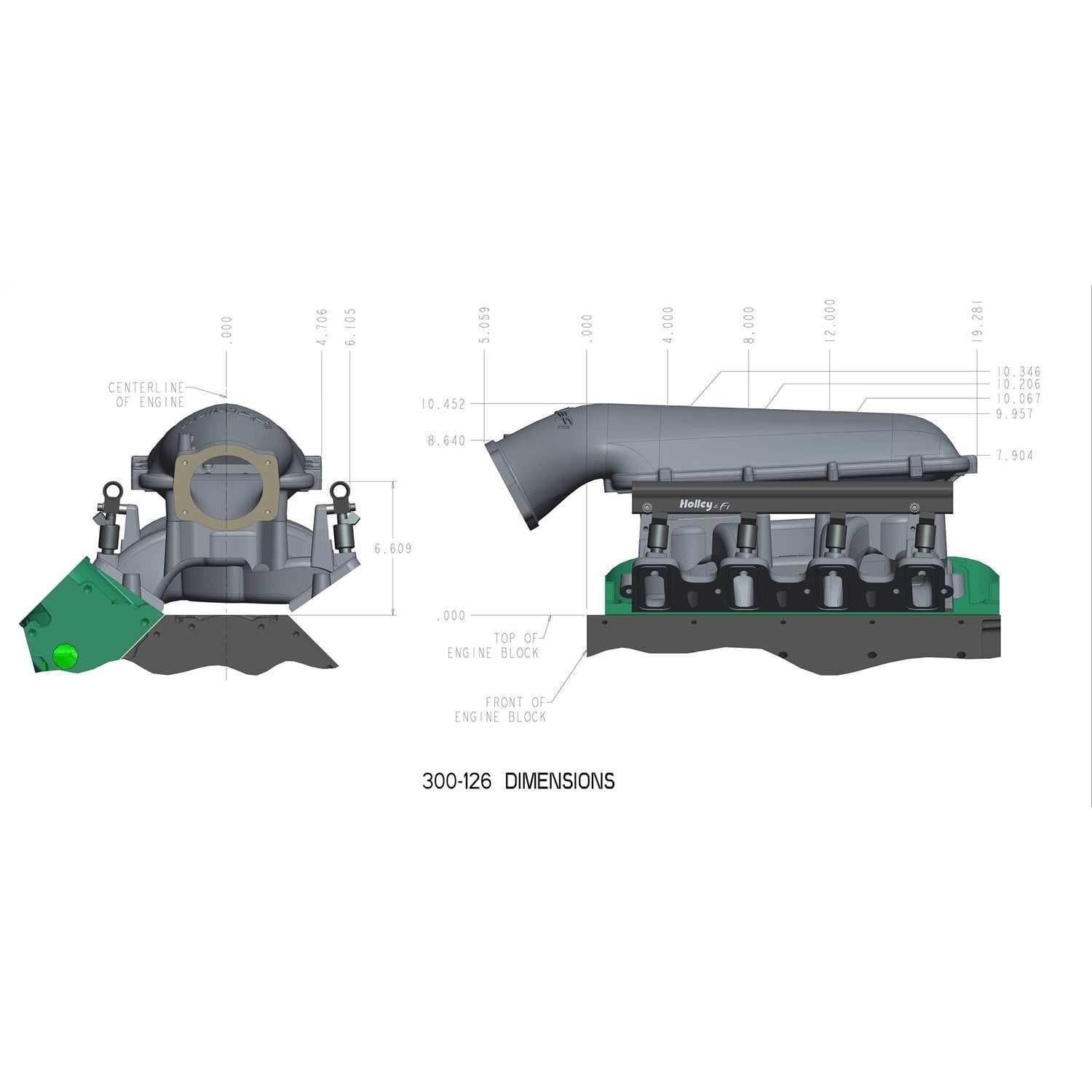

    Recalibration of the ECU may be required when using this intake manifold design with OE ECU. Holley EFI LS main harnesses have a map sensor connecter designed for use with an LS1/2 style map sensor. The 558-416 is an adapter harness that can be used to adapt any LS harness that uses a LS1/2 MAP sensor connection to a LS3 MAP, which is recommended for this manifold. NOTE: these manifolds & fuel rails are designed to accept Bosch Style EV-1 or Magneti Marelli Pico fuel injectors (OE LS fuel injectors may not fit properly in the intake manifold & fuel rail assembly). *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.

  • Unique modular design allows the combination of a traditional dual-plane layout with an EFI manifold plenum to produce great mid-range torque without compromising top end power
  • Great for supercharged or turbocharged engines
  • Power band from 1500-6500 rpm
  • May require an aftermarket hood for some vehicle applications.
  • Cast aluminum construction
  • Intended for use on all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads (recalibration of the ECU may be required when using this intake manifold design with OE ECU).
  • 92MM EFI plenum top

    • Product Description:

  • Intake Manifold
  • LS Mid-Rise EFI
  • 92 mm Throttle Body Flange
  • Multi Port
  • Aluminum
  • Natural
  • LS1 / LS2 / LS6
  • GM LS-Series
  • Kit
    • For over a century Holley has driven the cutting edge of fuel-system design. That work continues today through Holley’s market-leading EFI products as well as through Holley’s family of best-in-industry brands. Top brands like MSD, Flowmaster, Hurst, Accel, and many more make up the industry’s leading offering of enthusiast-driven products to deliver robust, complete performance solutions for builders, racers, and drivers. From propelling the LS-, Coyote-, and Gen 3 Hemi-swap trends, to continuously innovating late-model and vintage vehicle performance, Holley’s commitment to its customers and their cars is at the core of everything we do.
