Holley LS Hi-Ram EFI manifold-LS7 EFI with 105mm Throttle Body

Holley LS Hi-Ram EFI Manifold- LS7 EFI with 105MM Throttle Body

The Holley GM LS7 Modular HiRam Intake Manifold is introduced as a cost effective alternative to fabricated sheetmetal for high-performance applications where induction system height is not limited. Coupling this HiRam intake with the high flowing LS7 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget minded cost. Aggressive, bold, racebred styling will make bad intentions clear for drag race, muscle car, marine, offroad, sandrails, pulling trucks, track, street rod applications and more!

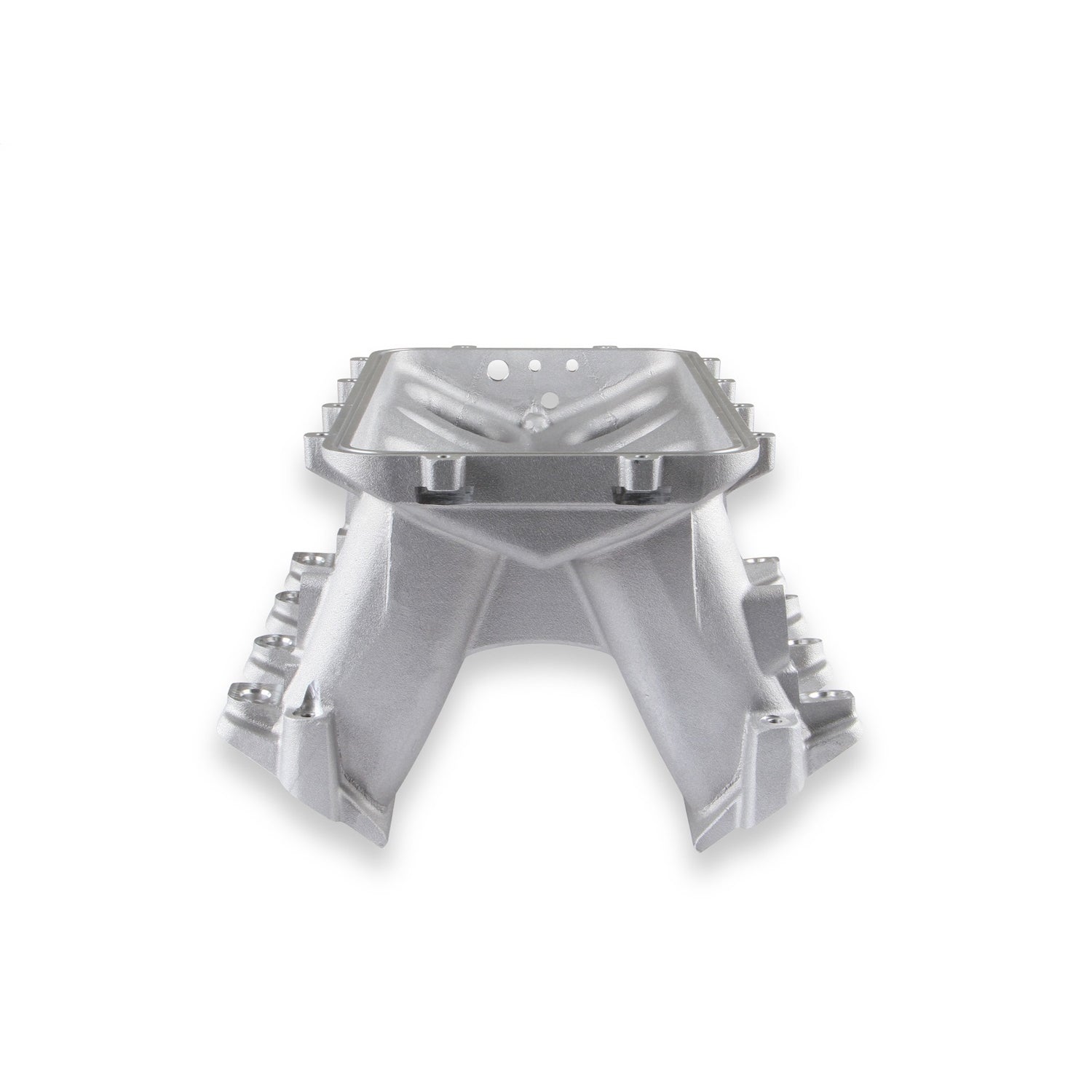

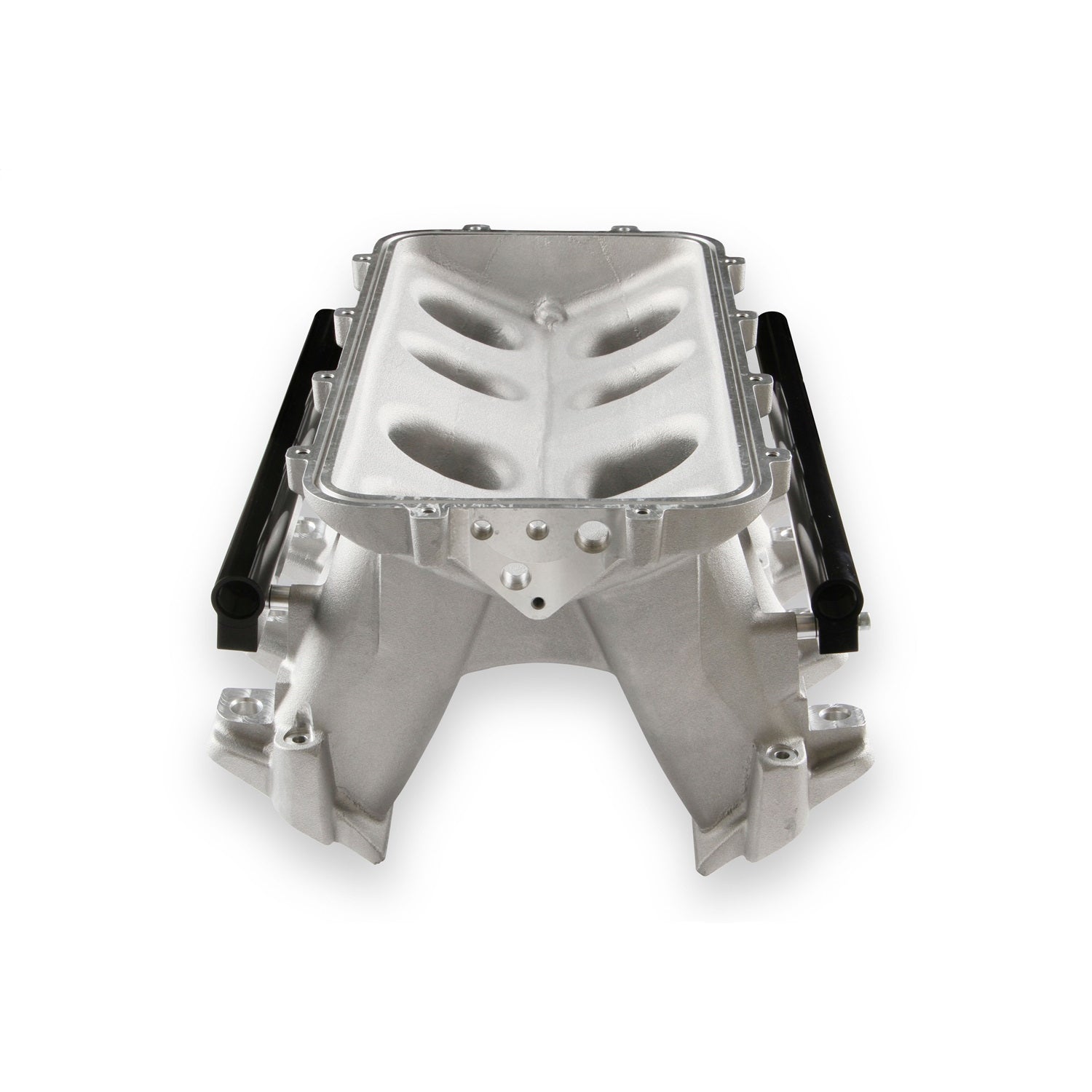

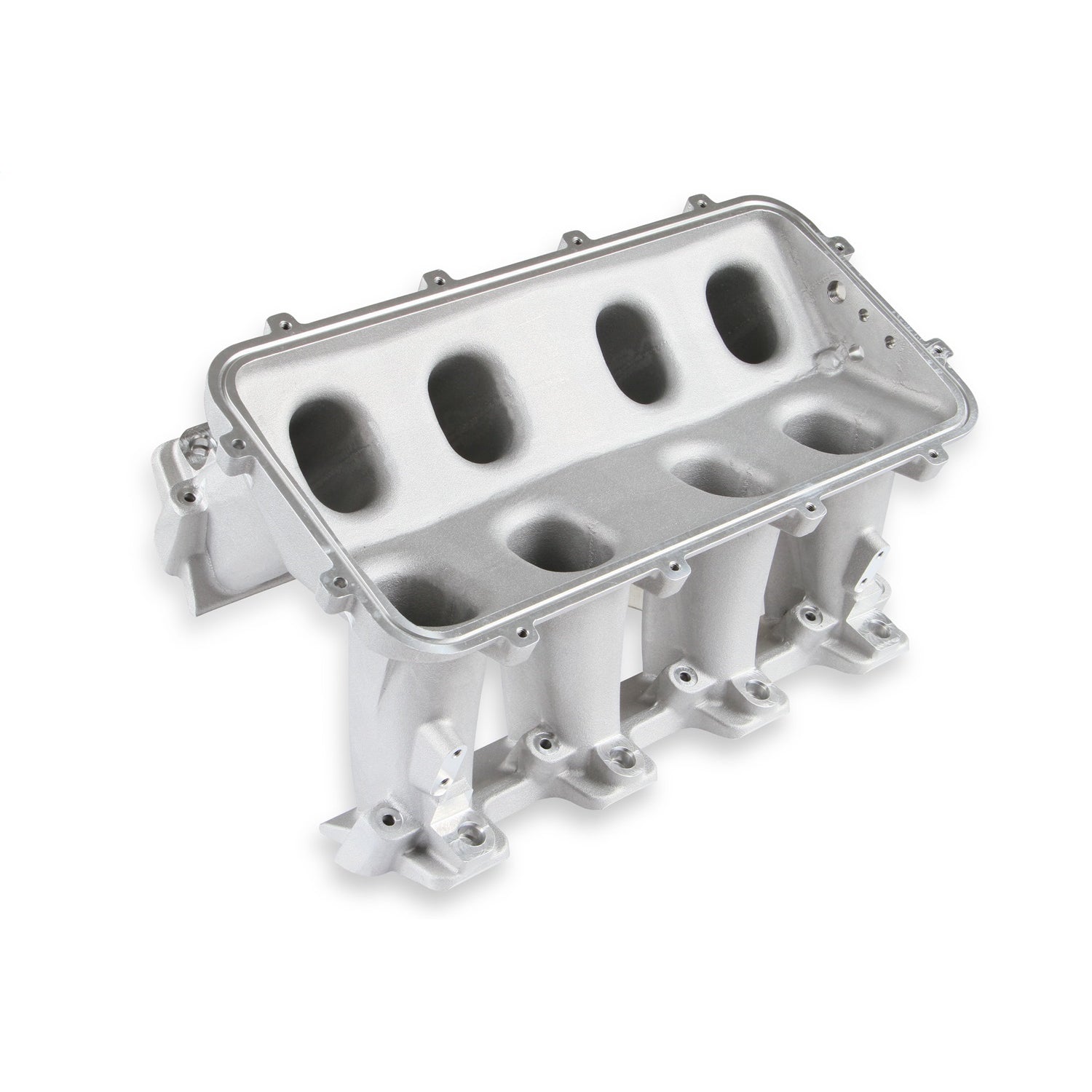

The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.

Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

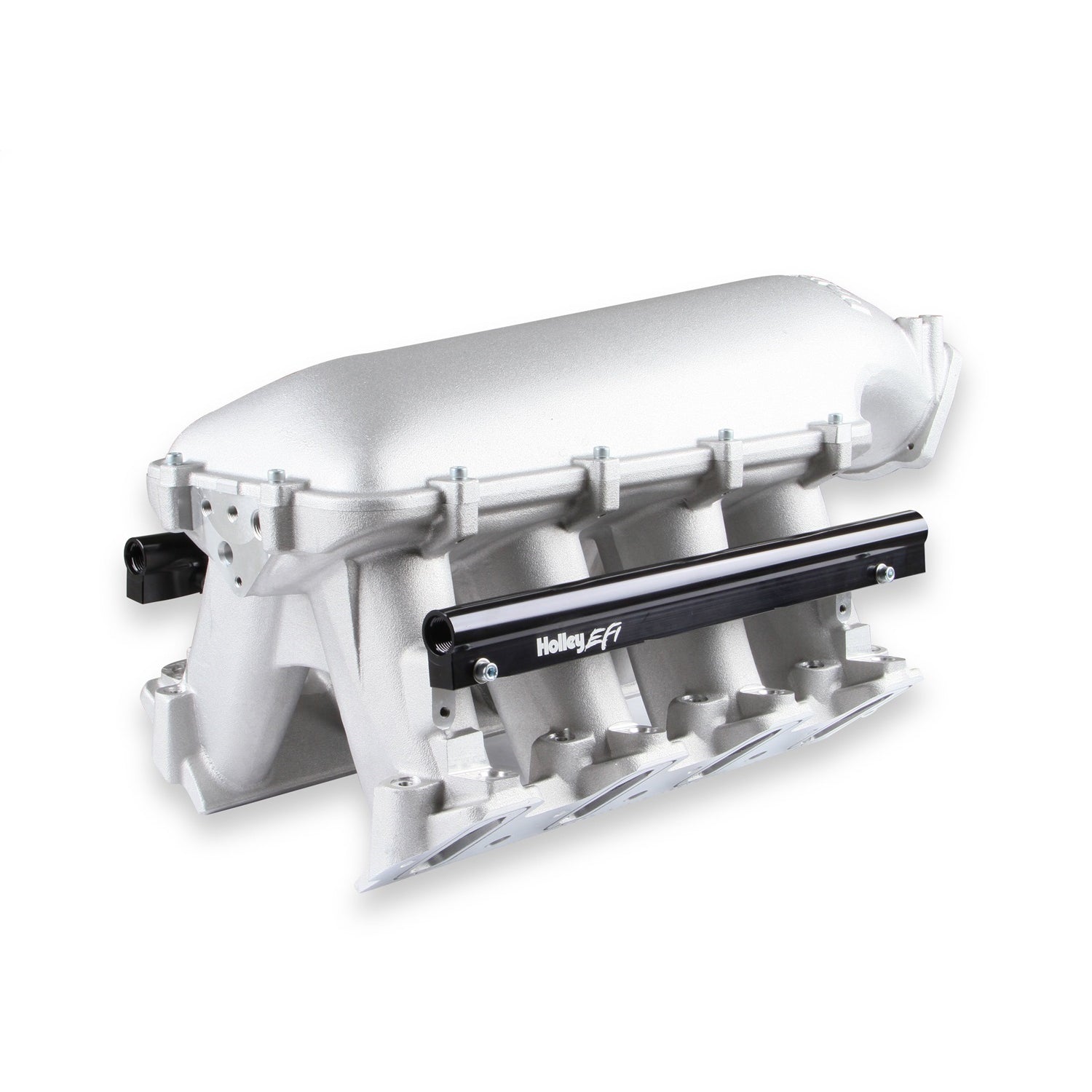

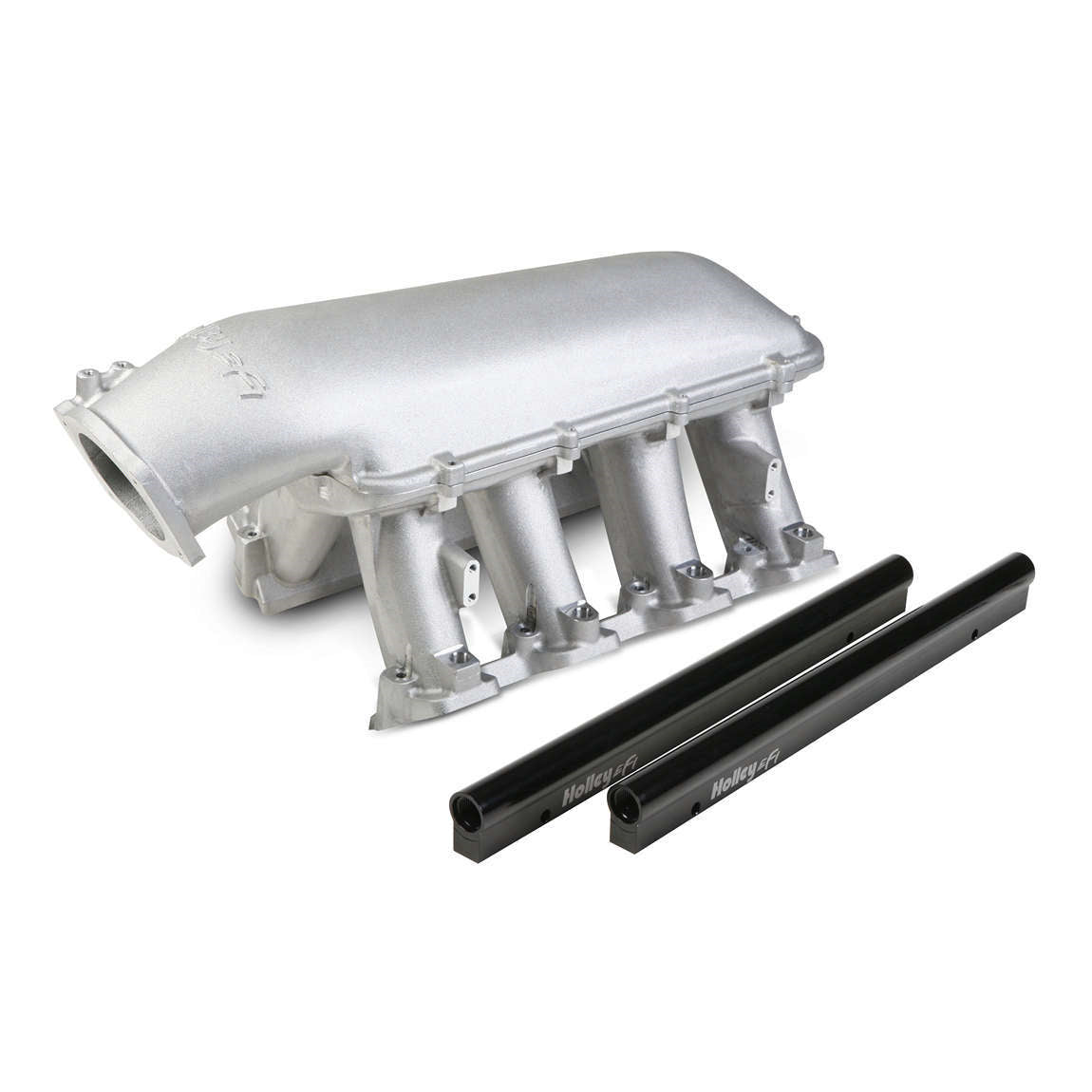

EFI fuel rails are machined for 8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI HiRam kits.

Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 70008000+RPM.

These parts should be used for the following applications: Racing/Performance/Street Rodder where hood restrictions are NOT a consideration. Top can be mounted forward or backward.

Holley EFI LS main harnesses have a map sensor connecter designed for use with an LS1/2 style map sensor. The 558-416 is an adapter harness that can be used to adapt any LS harness that uses a LS1/2 MAP sensor connection to a LS3 MAP, which is recommended for this manifold.

Features:

Base Plenum Top Mounting Flange Height 8.42 to the lifter valley cover flange on engine block.

Vehicle Applications:

2006-2013 Chevrolet Corvette

2014-2015 Chevrolet Camaro

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

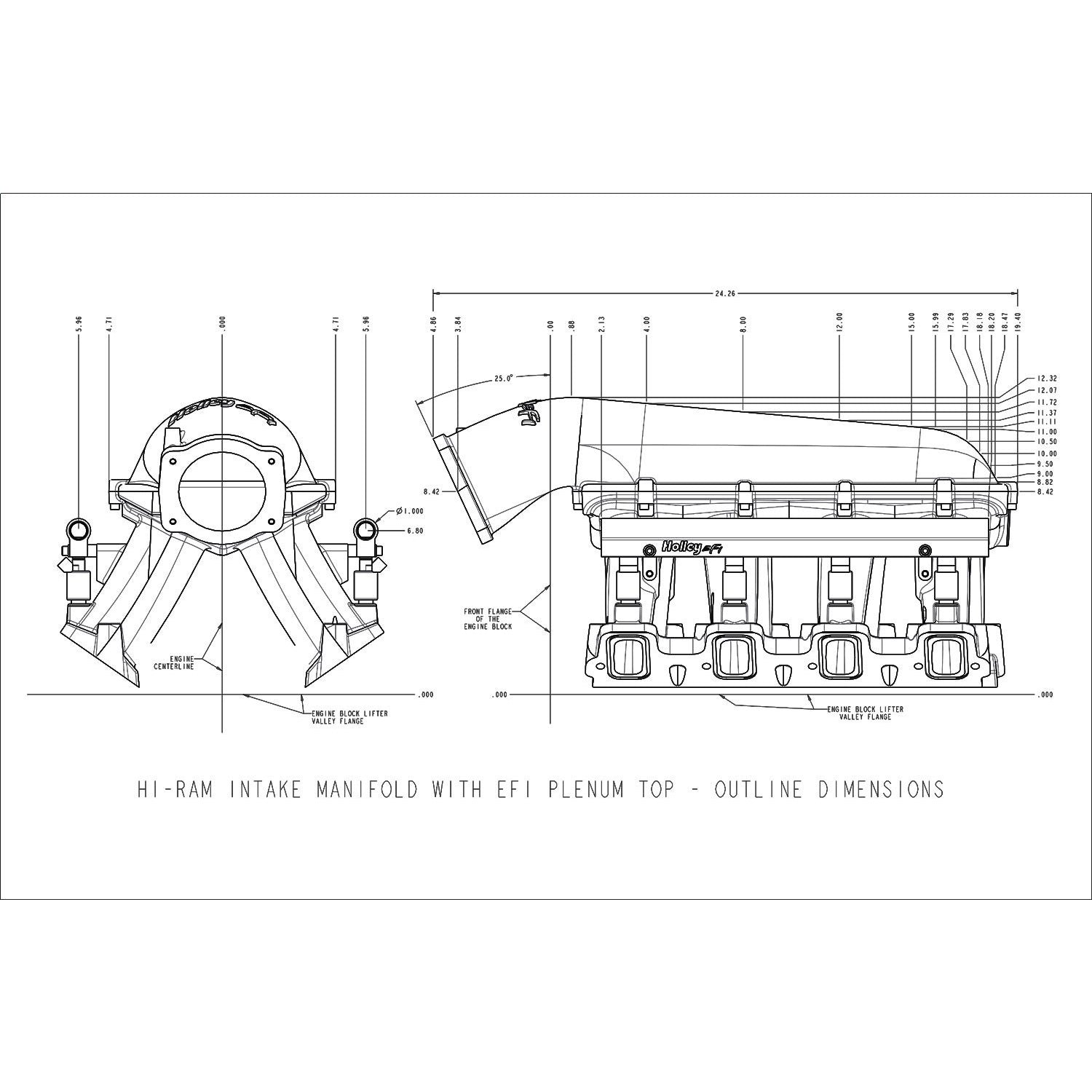

*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.

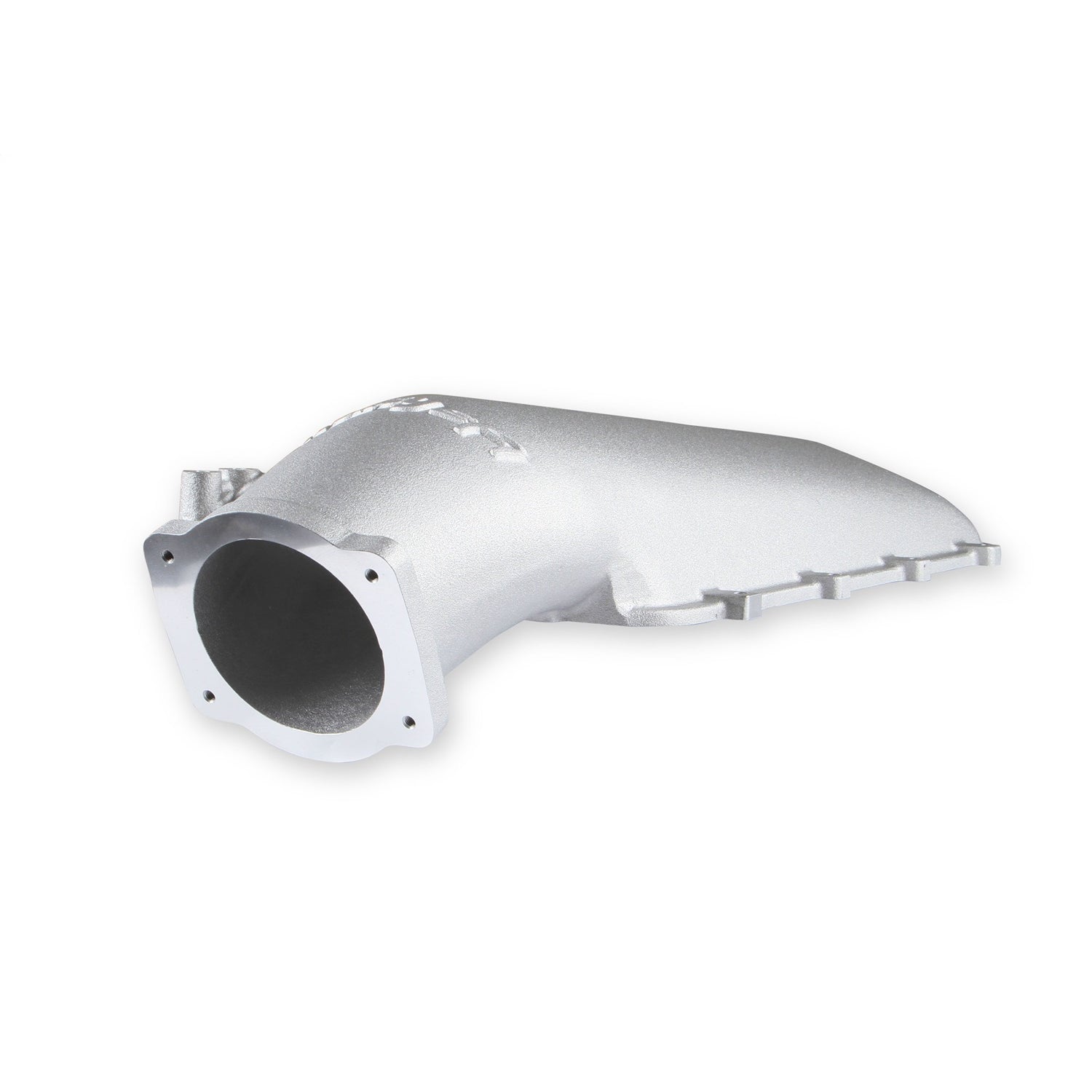

Total Height with 92/105mm EFI Plenum Top - 12.32" to the lifter valley cover flange on engine block.

Port Size - 2.49" Height x 1.21" Wide

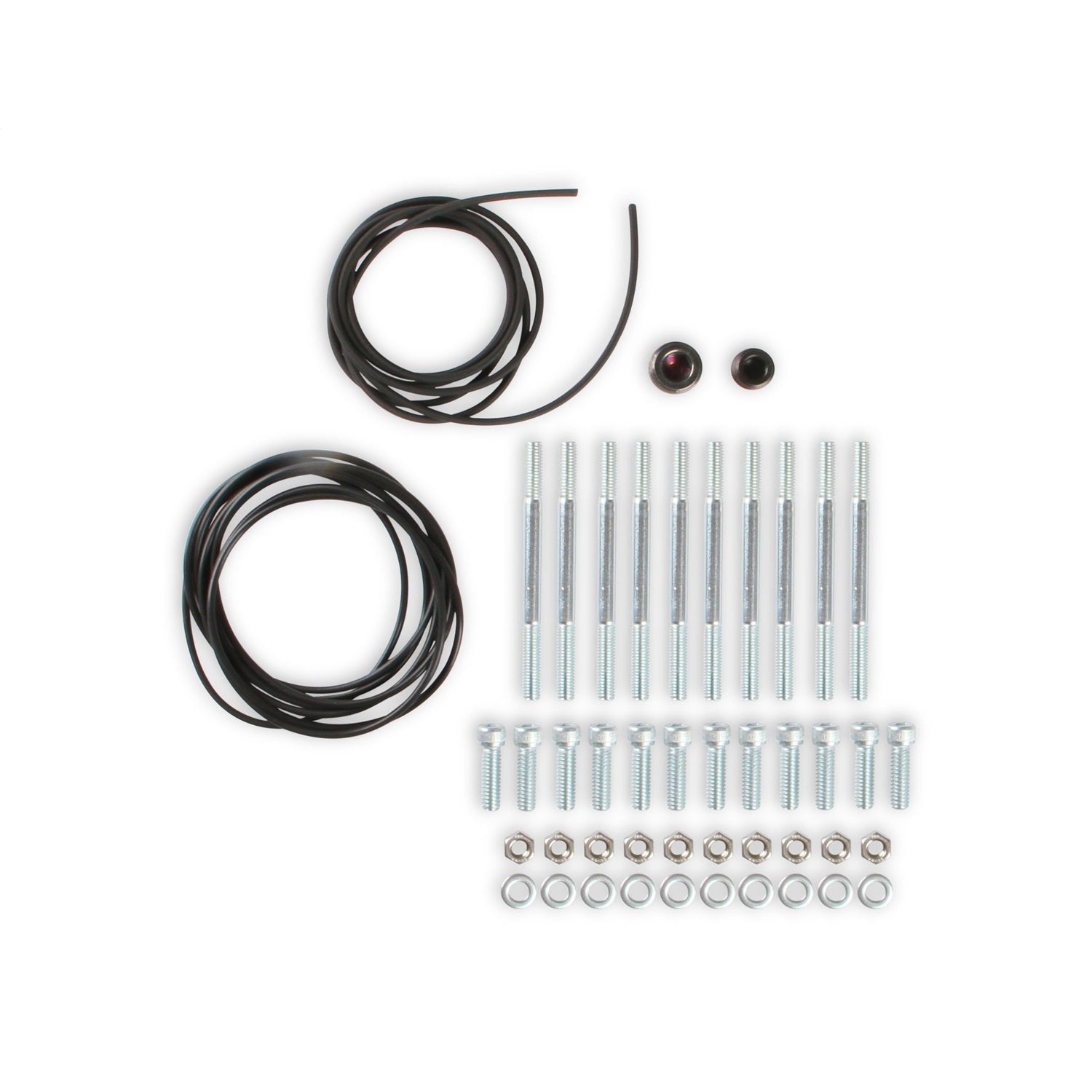

Mounting Flange Gasket Type - Standard LS3 Molded O-Ring

Plenum Top Gasket Type - 3/32" Round O-ring Cord

Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height - 8.42" (from engine block lifter valley cover flange), Longitudinal Location - 3.84" (forward from engine block front flange), Angle - 25 deg. (down from vertical)

Runner Length - 6.29", As-Cast Runner Cross-Sectional Area - Tapered 4.67 in┬▓ to 2.84 in┬▓

ΓÇó Cast aluminum construction.

ΓÇó Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

Product Description:

Intake Manifold

Hi-Ram EFI

105 mm Throttle Body Flange

Multi Port

Fuel Rails Included

Aluminum

Natural

LS7

GM LS-Series

Kit
