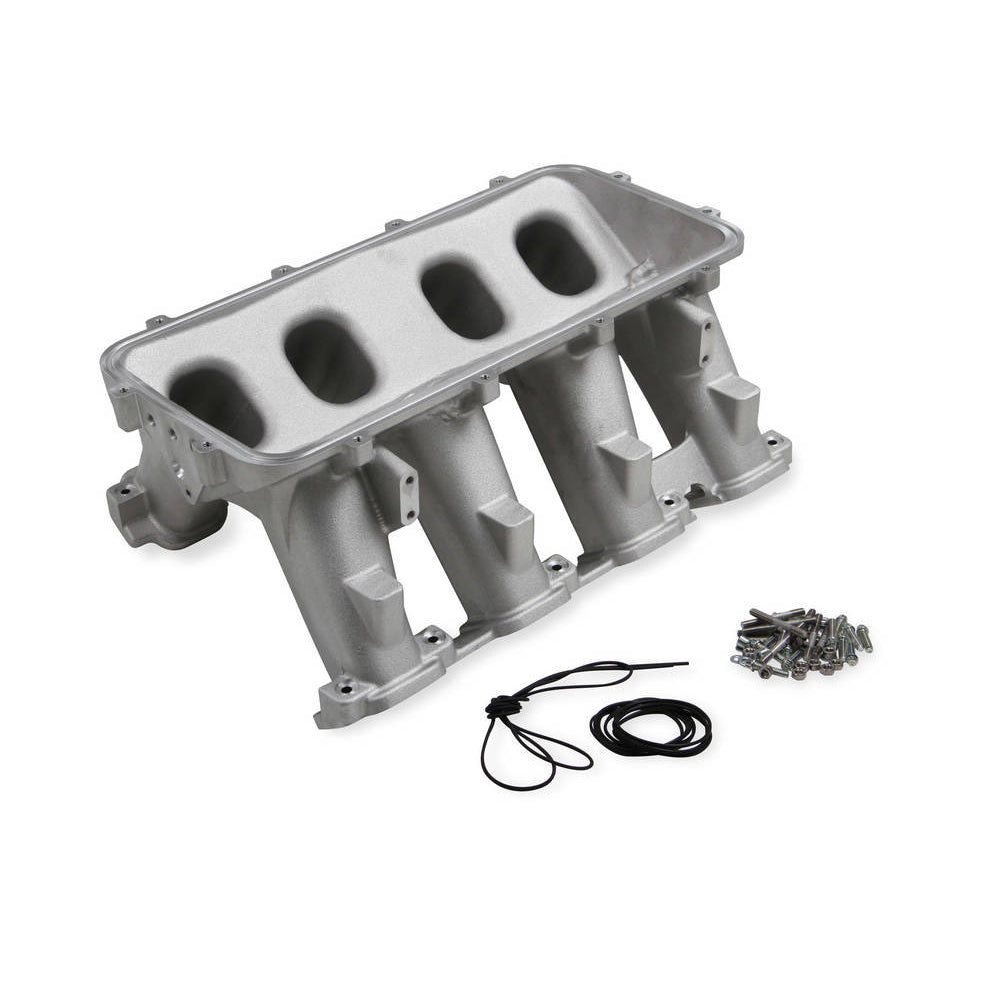

The new Holley EFI Hi-Ram intake provides the ultimate performance with the new GM direct injected Gen V 6.2L LT1 engine. The modular design of this manifold allows easy disassembly for custom porting, multiple tops, or custom induction systems. Each runner has a large radius where it meets the plenum, and optimized taper & cross-sectional area to perform in a wide variety of engine configurations. The optional injector bosses on the intake runners allow increased performance potential by using additional injectors along with the factory direct injection. When you look for the pinnacle of performance, price, and quality, look to Holley EFI.
Vehicle Applications:
2016-2017 Chevrolet Camaro 2014-2017 Chevrolet CorvetteHolley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!
The versions of the LT1 Hi-Ram intake manifold with port EFI provisions and fuel rails are designed to accept Bosch Style EV-1 or GM LS7 fuel injectors

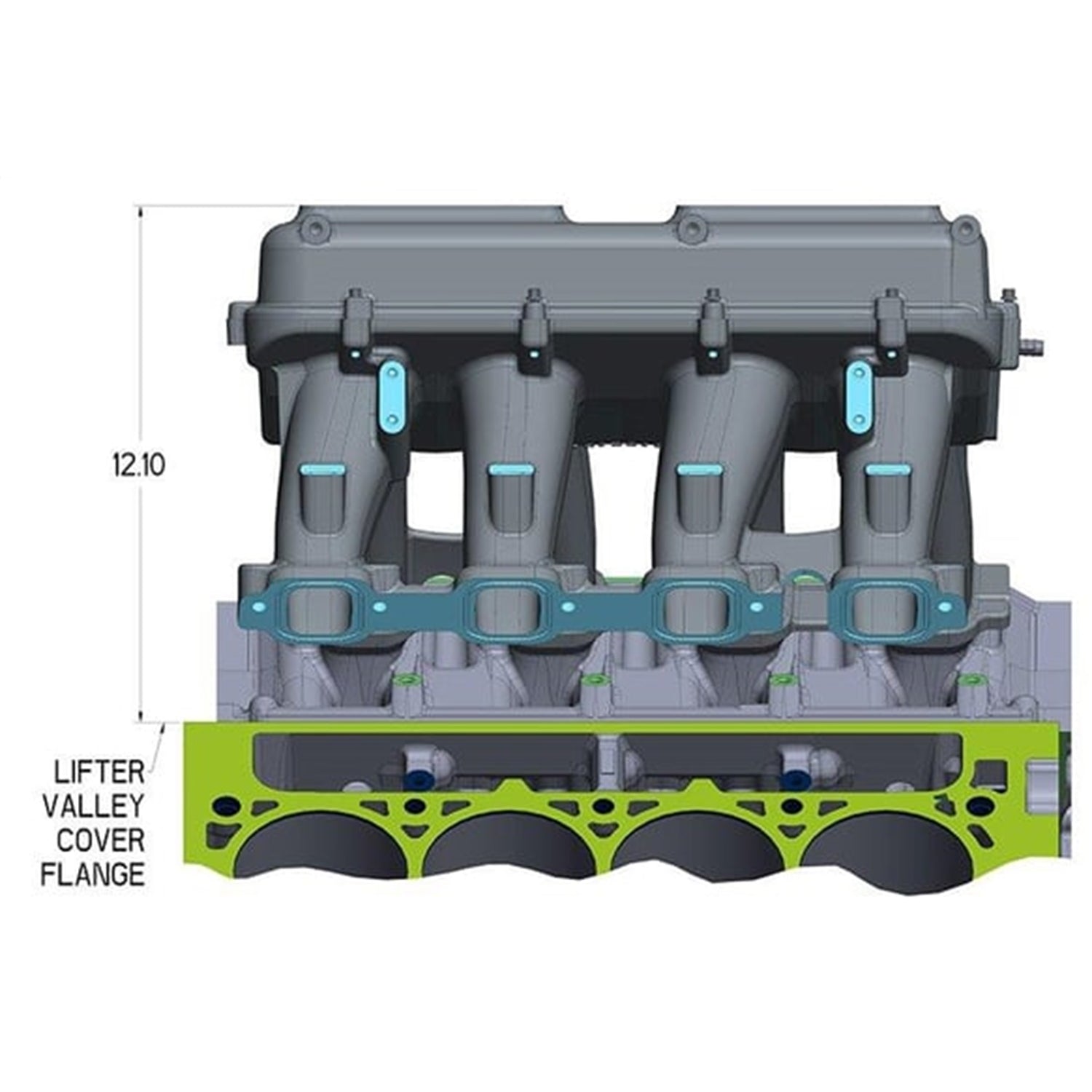

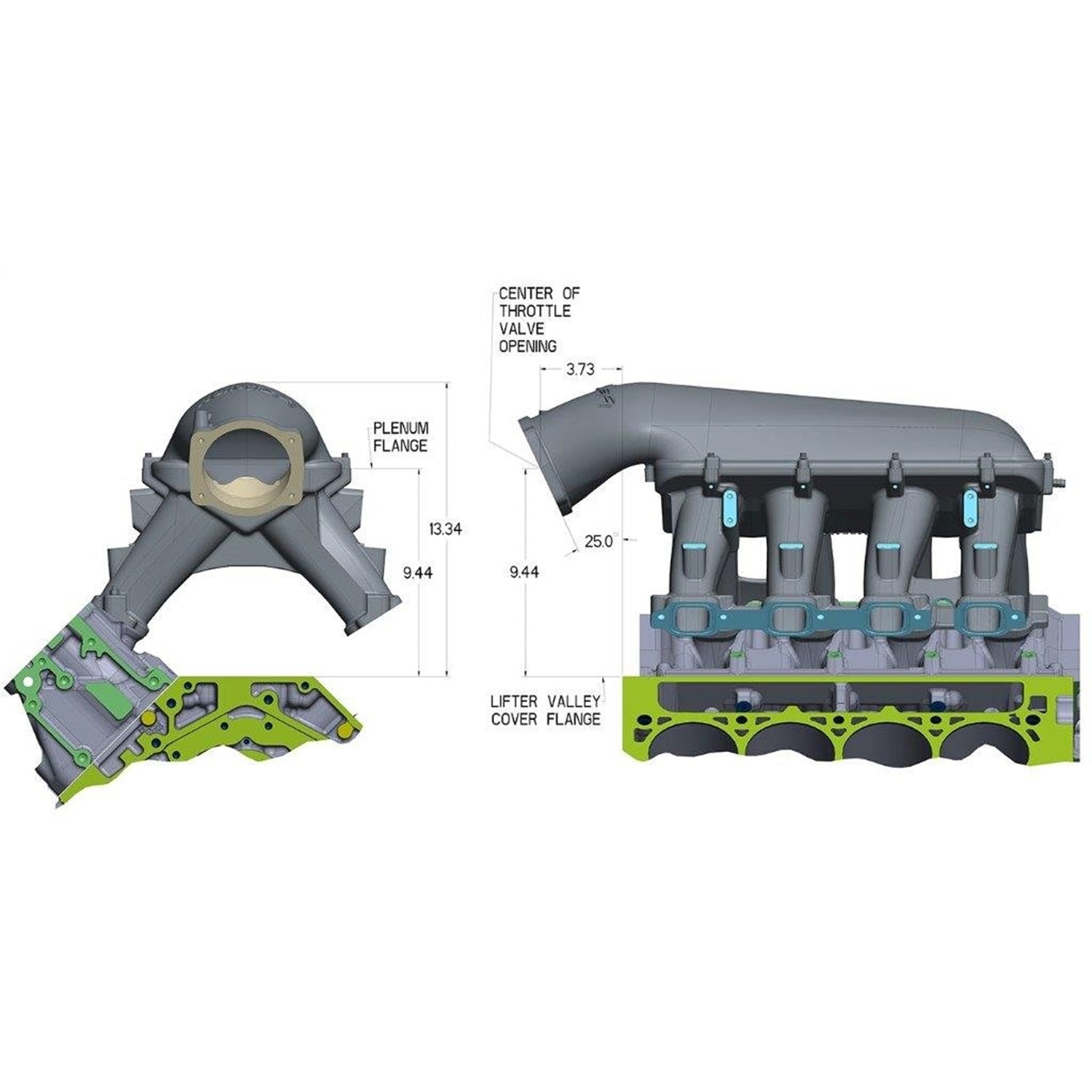

Overall Height: 13.34" (w/ EFI Top - 95mm or 105mm) - See Drawing A-B Height: 12.10" (w/ Carb Style Top - 2 x 4150 or 2 x 4500) - See Drawing Height at Plenum Flange: 9.44" Port Size: 2.06" High x 1.53" Wide Runner Length: Approx. 6.5" Large Plenum Volume of 549 Cubic Inches (w/ 1 x 95mm or 1 x 105mm Throttle Body Top) Available With or Without Injector Ports in the Runners Intakes w/ Injector Ports Include Fuel Rails w/ Dual Mounting (1.48" or 2.56" O-ring to O-ring injector length) Fuel Rails are Anodized, Laser Etched, and Machined for 8AN O-Ring Fittings at Each End Rear of Plenum Machined for MAP & 3 Vacuum Ports Head Flange has Clearance for Fuel Supply to High Pressure Pump Increased Runner Wall Thickness for Custom Porting at the Plenum to Runner Entry on Each Runner O-Ring Seals at Cylinder Heads & Plenum Top Easy Assembly w/ Top Mounted Screws on Plenum Top (all except front 2 screws) Several Top Options: 1 x 95mm, 1 x 105mm, 2 x 4150, 2 x 4500, or Blank Flange for Custom Throttle Bodies 3500-8000+ RPM Power BandProduct Description:
Intake Manifold LT1 Modular Hi-Ram Base Only Tunnel Ram Fuel Rails Included Aluminum Natural GM GenV LT-Series KitFor over a century Holley has driven the cutting edge of fuel-system design. That work continues today through Holley’s market-leading EFI products as well as through Holley’s family of best-in-industry brands. Top brands like MSD, Flowmaster, Hurst, Accel, and many more make up the industry’s leading offering of enthusiast-driven products to deliver robust, complete performance solutions for builders, racers, and drivers. From propelling the LS-, Coyote-, and Gen 3 Hemi-swap trends, to continuously innovating late-model and vintage vehicle performance, Holley’s commitment to its customers and their cars is at the core of everything we do.
