Holley GM LS Retro-fit Oil Pan
Holley GM LS Retro-fit Oil Pan
Holley GM LS Retro-fit Oil Pan
Holley GM LS Retro-fit Oil Pan
Holley GM LS Retro-fit Oil Pan
Holley GM LS Retro-fit Oil Pan
Holley GM LS Retro-fit Oil Pan
Holley GM LS Retro-fit Oil Pan
Holley

Holley GM LS Retro-fit Oil Pan

In stock
SKU: HLY302-2
Engine Oil Pan, Retrofit, Rear Sump, 6 qt, 5.5 in Deep, Tray / Pickup Included, Aluminum, GM LS-Series, Each

Earn [points_amount] when you buy this item.

$427.89
Sale $524.95 $427.89
Free Shipping on orders over $149! Exclusions may apply.

GM LS Retro-fit Oil Pan - ' 55-' 87 GM/Muscle Car/Classic Car/Trucks Cars requiring more clearance at the front half of the oil pan

Great for ' 67-' 69 Camaro/Firebird, ' 68-' 74 Nova/Apollo/Ventura/Omega

GMs popular LS engines are finding their way into a large variety of vehicles. They make great power, plus they're very durable and reliable. Unfortunately, the factory LS pans don't always fit or they hang too low for todays hot rods. Holley's new LS Retro-fit Engine Oil Pan is designed to help! It provides maximum clearance to the chassis and ground, plus provides an OEM fitment for durability and proper sealing.

Sump Oil Capacity 5.7 Quarts Total Oil Capacity with stock oil filter 6.2 Quarts Requires use of LS3 dipstick (GM P/N 12634547) and tube (GM P/N 12625031) *Engine location may need to be adjusted (up / down or fore / aft) for cross member or steering linkage clearance depending on the vehicle, steering configuration and chassis type. 302-2 is designed to use a GM F-body windage tray, GM P/N 12558253. A modification to the windage tray is required to provide clearance to the pick-up tube. A full-length windage tray may be used if the front quarter of the tray is removed. See the instruction sheets showing the windage tray modifications required. Additional Parts Needed (Oil Pan Gasket GM(R) 12612350 or equivalent, High Quality RTV sealer, Oil Filter -AC Delco(R) PF48 or equivalent)

Features:

  • Designed for LS engine retrofit installations in GM muscle/classic car and truck chassis requiring more oil pan to chassis clearance around the front half of the oil pan. Perfect for: : 67-69 Camaro/Firebird, 68-74 Nova/Apollo/Ventura/Omega

    Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

    Maximum crankshaft stroke = 3.62" Sump Oil Capacity - 5.7 Quarts Total Oil Capacity with stock oil filter - 6.2 Quarts Oil Filter (AC Delco® PF48 or PF48E, Mobile M1-113, Wix 57060, K&N HP-1017, or equivalent) Requires use of Holley 302-15 Dipstick and Tube Kit or dipstick (GM P/N 12669528) and tube (GM P/N 12625031) *Engine location may need to be adjusted (up / down or fore / aft) for cross member or steering linkage clearance depending on the vehicle, steering configuration and chassis type. ATTENTION! 302-2 is designed to use a GM "F-body" windage tray, GM P/N 12558253. A modification to the windage tray is required to provide clearance to the pick-up tube. A full-length windage tray may be used if the front quarter of the tray is removed. See the instruction sheets showing the windage tray modifications and overall length required. ATTENTION! Additional Parts Needed (Oil Pan Gasket 6665G or GM® 12612350, High Quality RTV sealer, Oil Filter -AC Delco® PF48 or equivalent)

  • Perfect for: 1967-1969 Camaro/Firebird, 1968-1974 Nova/Apollo/Ventura/Omega, 1982-1992 F-body, 1978-1987 G-body, and 1964-1972 A-body applications.
  • NOTE - Oil pan #302-2 may not be used with LS7 engines or ΓÇ £stroker" engines greater than 3.62".
  • Can be used anywhere a GM F-Body oil pan can be used
  • New applications will be added as testing confirms fitment
  • Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments
  • Traditional high-quality cast aluminum appearance with clean exterior styling.
  • Provides maximum clearance for vehicles where the steering linkage is behind the engine crossmember.
  • Cast and machined aluminum

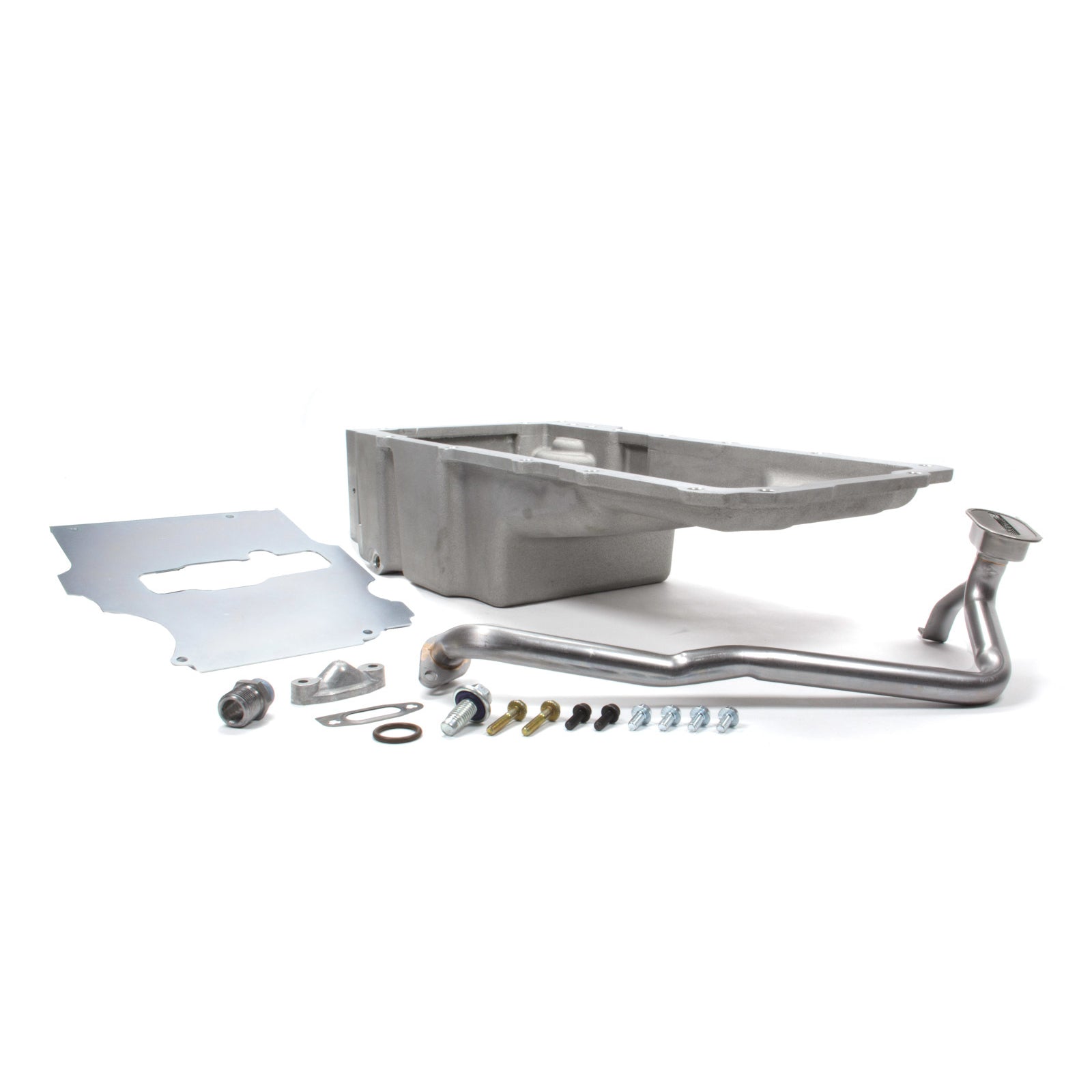

  • Complete kit includes sump baffle, OE style pick-up tube, sump plug, oil filter stud, oil passage cover, etc.

    • Product Description:

  • Engine Oil Pan
  • Retrofit
  • Rear Sump
  • 6 qt
  • 5.5 in Deep
  • Tray / Pickup Included
  • Aluminum
  • GM LS-Series
  • Sold Individually
    • For over a century Holley has driven the cutting edge of fuel-system design. That work continues today through Holley’s market-leading EFI products as well as through Holley’s family of best-in-industry brands. Top brands like MSD, Flowmaster, Hurst, Accel, and many more make up the industry’s leading offering of enthusiast-driven products to deliver robust, complete performance solutions for builders, racers, and drivers. From propelling the LS-, Coyote-, and Gen 3 Hemi-swap trends, to continuously innovating late-model and vintage vehicle performance, Holley’s commitment to its customers and their cars is at the core of everything we do.
