Holley Electric Fuel Pump Parts Kits

In stock
SKU: HLY12-802-1
Fuel Pump, Blue, Electric, In-Line, 88 gph at 9 psi, 3/8 in NPT Female Inlet / Outlet, Regulator, Silver, Gas, Each

Earn [points_amount] when you buy this item.

Regular price $205.23
Regular price Sale $245.95 Sale price $205.23
Free Shipping on orders over $149! Exclusions may apply.
PROP 65: These products may contain a chemical known to the state of California to cause cancer and birth defects or other reproductive harm

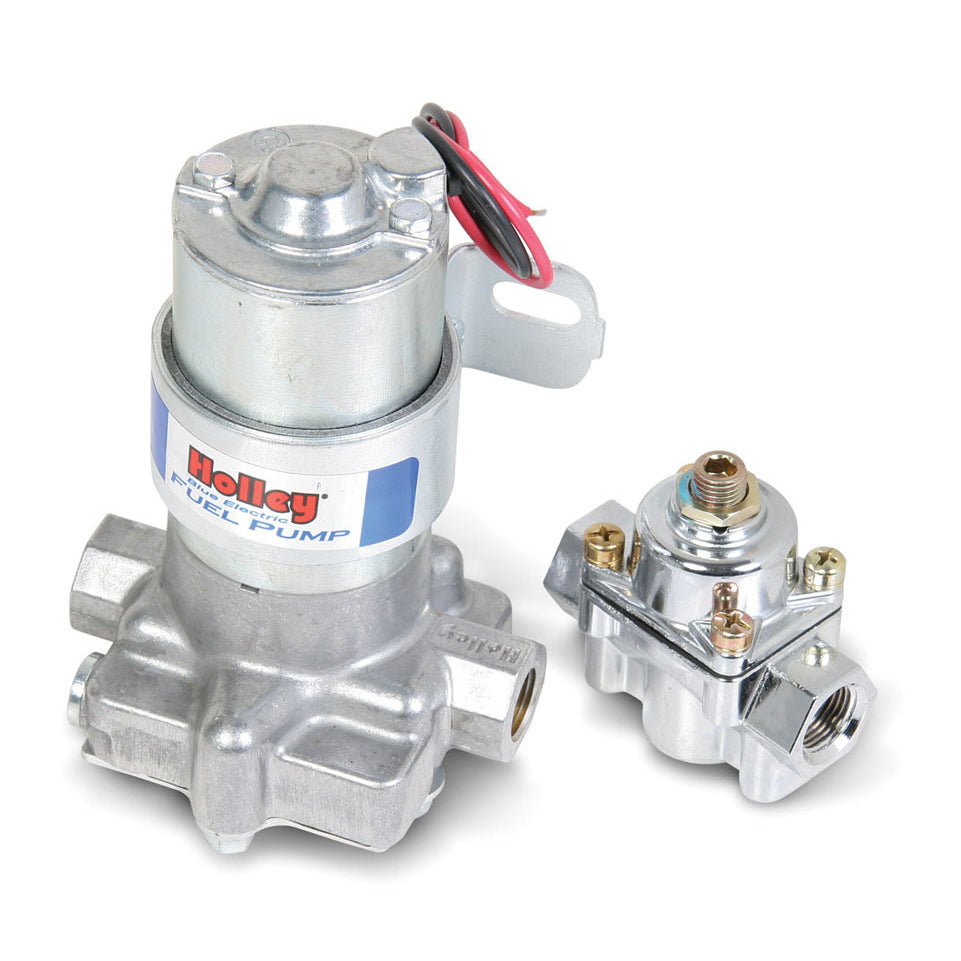

110 GPH Blue® Electric Fuel Pump With Regulator.

Features:

Tumble polished billet look

  • New lower housing casting for enhanced fuel flow
  • Motor draws only 3 amps current
  • 7 1/2 amp fuse recommended
  • Improved design for street/strip applications
  • Distinctive BLUE logo
  • Flows 110 GPH (free flow)

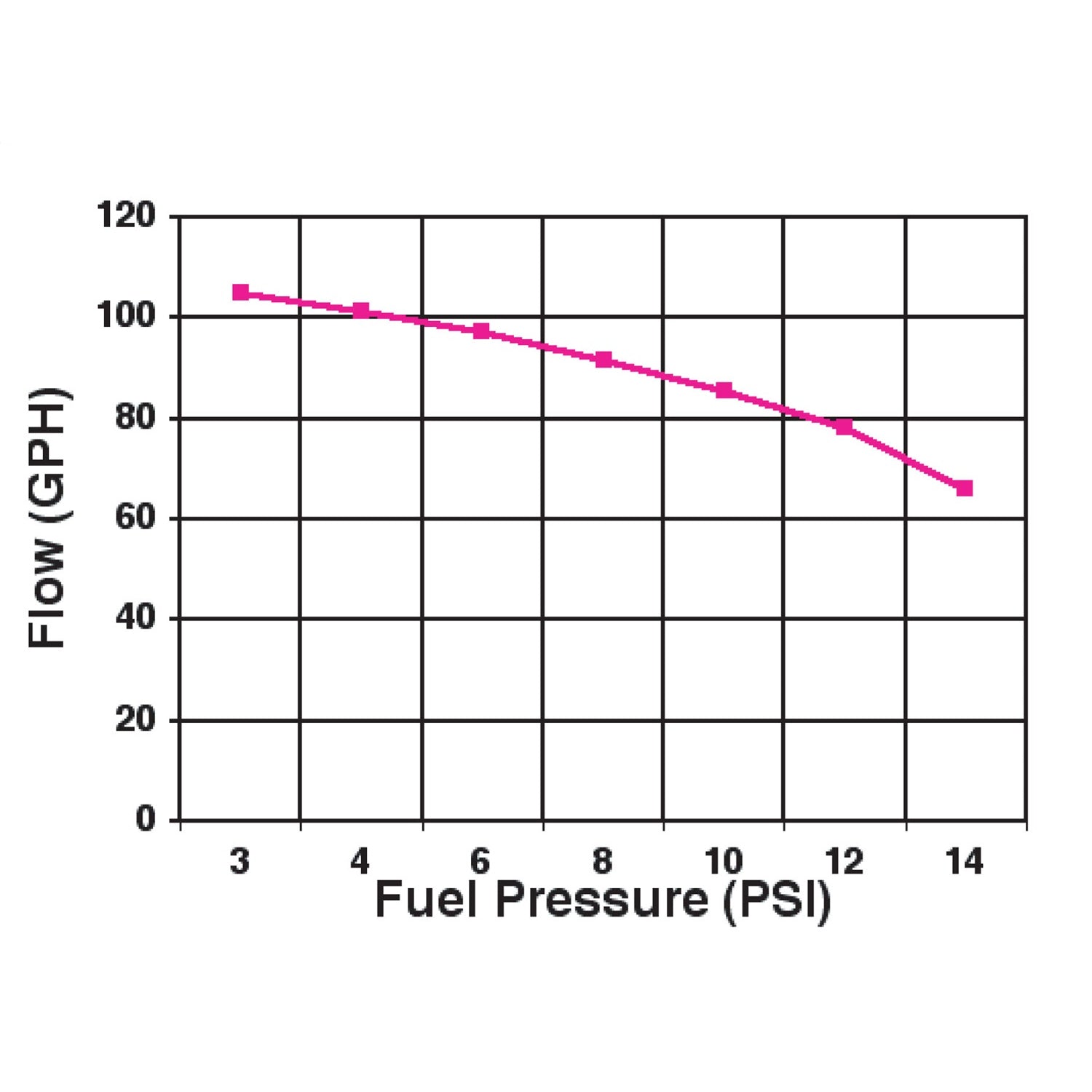

  • Flows 88 GPH at 9 PSI
  • Maximum pressure is 14 PSI
  • Includes P/N 12-803 fuel pressure regulator
  • Provides constant fuel flow with no pulsation
  • Has externally accessible pressure relief valve (max 14 PSI)
  • Rotor/Vane pump design is more tolerant of contaminated fuels
  • Weighs only 3 lbs.
  • Includes mounting bracket
  • Repair kits are readily available
  • Can be serviced from the pump end
  • NOT compatible with alcohol or methanol fuels
  • Use of safety shut-off switch, P/N 12-810, strongly recommended
  • Not designed or recommended for use with fuel injection systems

    Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

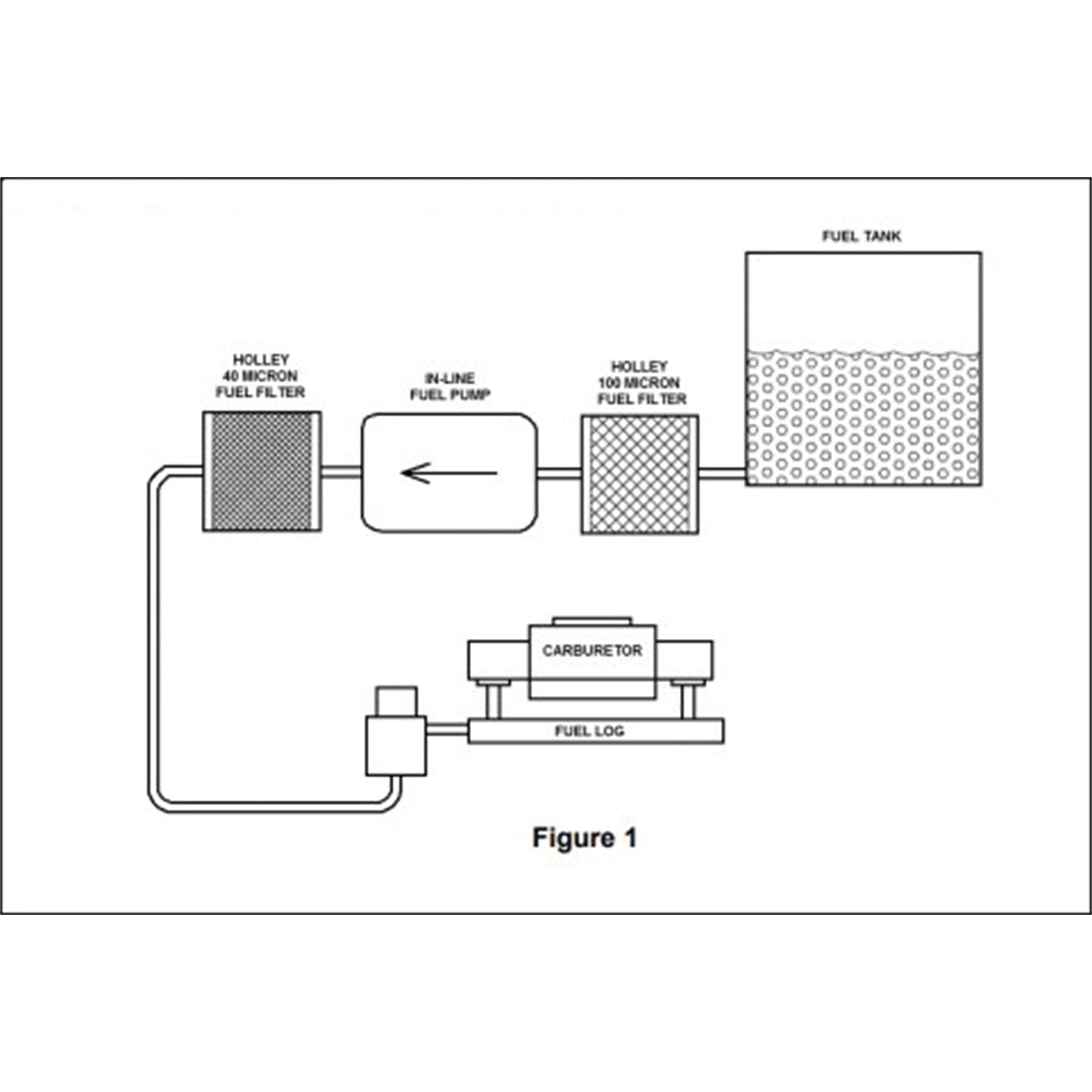

    Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit P/N 12-753 recommended. These are to be used with 12 volt systems only.

  • Lower housing casting designed for enhanced fuel flow
  • Motor draws only 3 amps current
  • Relay kit P/N 12-753 & 7 1/2 amp fuse recommended
  • Improved design for street/strip applications
  • Not designed for use on aircraft of any type.
  • Distinctive ΓÇ £Blue" logo
  • Flows 110 GPH (free flow)
  • Flows 88 GPH at 9 psi
  • maximum pressure is 14 psi
  • Includes P/N 12-803 fuel pressure regulator
  • Provides constant fuel flow with no pulsation
  • Has externally accessible pressure relief valve (max 14 psi)
  • Rotor/vane pump design is more tolerant of contaminated fuels
  • Weighs only 3 lbs
  • Includes mounting bracket
  • Repair kits are readily available
  • Can be serviced from the pump end
  • Not compatible with alcohol or methanol fuels
  • Use of safety shut-off switch, P/N 12-810, strongly recommended
  • Not designed or recommended for use with fuel injection systems
  • Product Description:

  • Fuel Pump
  • Blue
  • Electric
  • In-Line
  • 88 gph at 9 psi
  • 3/8 in NPT Female Inlet / Outlet
  • Regulator
  • Silver
  • Gas
  • Sold Individually
  • For over a century Holley has driven the cutting edge of fuel-system design. That work continues today through Holley’s market-leading EFI products as well as through Holley’s family of best-in-industry brands. Top brands like MSD, Flowmaster, Hurst, Accel, and many more make up the industry’s leading offering of enthusiast-driven products to deliver robust, complete performance solutions for builders, racers, and drivers. From propelling the LS-, Coyote-, and Gen 3 Hemi-swap trends, to continuously innovating late-model and vintage vehicle performance, Holley’s commitment to its customers and their cars is at the core of everything we do.
