Holley Electric Fuel Pump - 97 GPH "Red" Electric Fuel Pump

Out of stock
SKU: HLY712-801-1
Fuel Pump, Marine Red, Electric, In-Line, 71 gph at 4 psi, 3/8 in NPT Female Inlet / Outlet, Silver, Gas, Each
$265.95
Sale $1,328.13 $265.95
Free Shipping on orders over $149! Exclusions may apply.
WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information go to www.P65Warnings.ca.gov

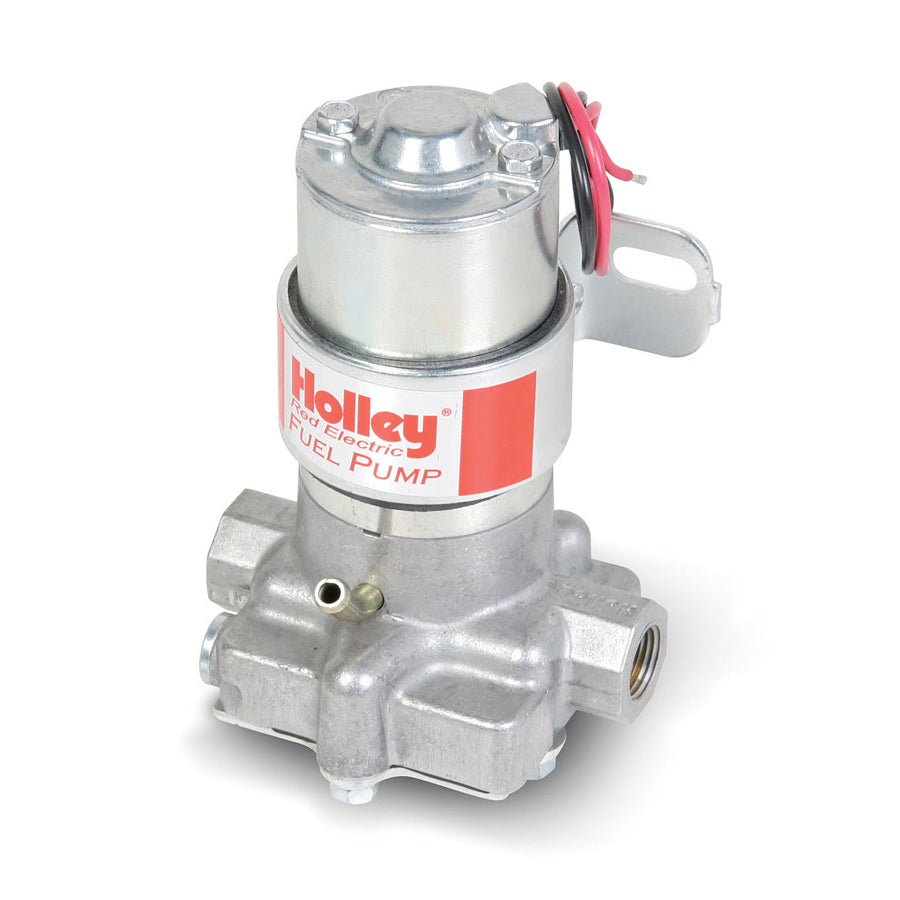

97 GPH RED® Electric Fuel Pump.

Features:

  • Low pressure pumps that are perfect for NOS wet system pump
  • New tumble polished billet look
  • New lower housing casting for enhanced fuel flow
  • Improved design for street/strip applications
  • Distinctive "RED" logo Flows 97 GPH (free flow)
  • Flows 67 GPH at 5 PSI
  • Pressure is pre-set at 7 PSI
  • Regulator is not required for most applications
  • Motor draws only 2 Amps current
  • 7-1/2 Amp fuse recommended
  • Provides constant fuel flow with no pulsation
  • Has externally accessible pressure relief valve
  • Rotor/Vane pump design is more tolerant of contaminated fuels
  • Weighs only 2. 88 lbs.
  • Includes mounting bracket
  • Repair kits are readily available
  • Can be serviced from either pump end or brush cap end
  • NOT compatible with alcohol or methanol fuels
  • Use of safety shut-off switch, P/N 12-810, strongly recommended
  • Not designed or recommended for use with fuel injection systems

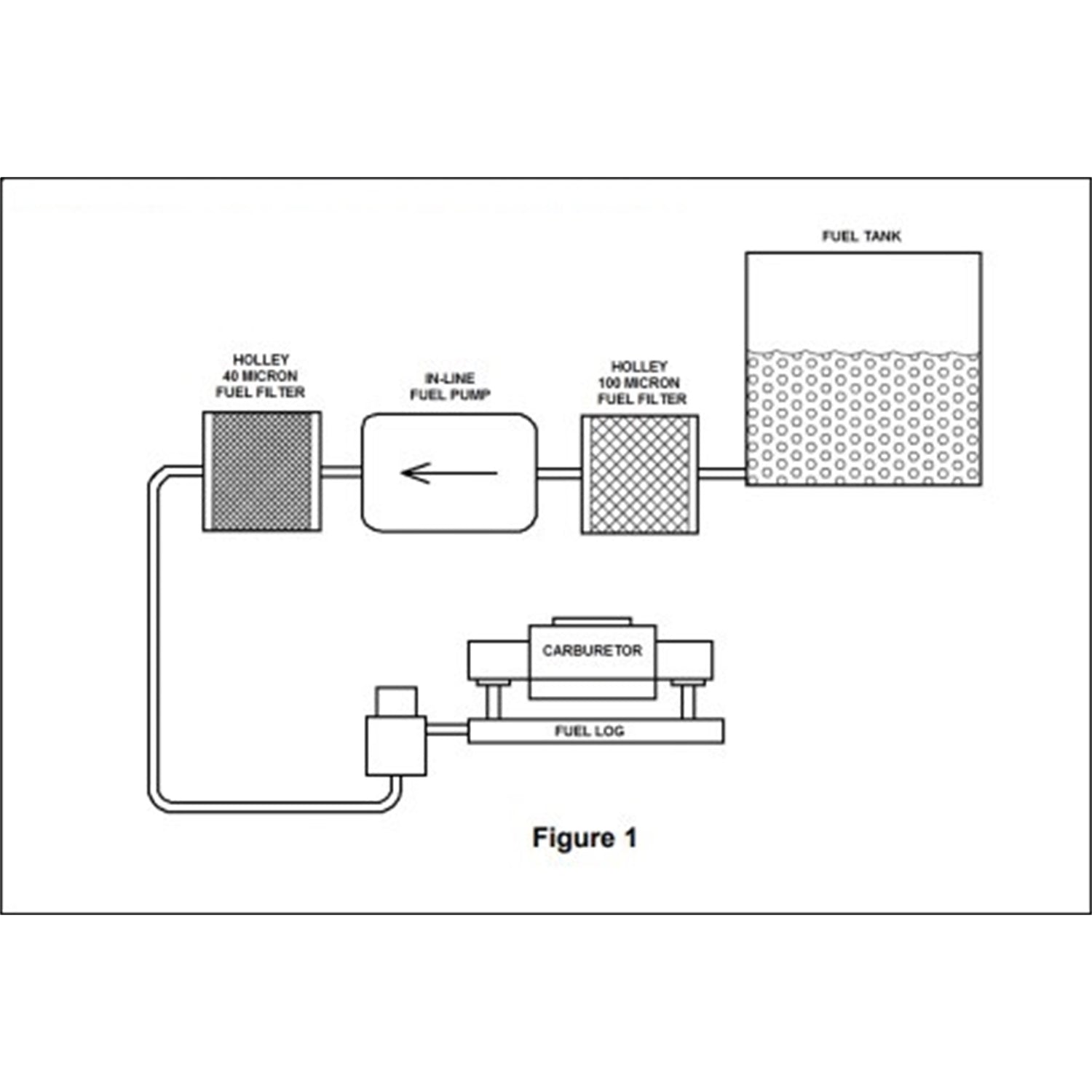

    Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. These are to be used with 12 volt systems only.

  • Lower housing casting designed for enhanced fuel flow and quiet operation
  • Maximum pressure is 7 psi
  • Motor draws 2 amps current
  • 7 1/2 amp fuse recommended
  • Constant fuel flow with no pulsation
  • Improved design for street/strip applications
  • Not designed to be used on aircraft of any type.
  • Distinctive ΓÇ £Red" logo
  • Flows 97 GPH (free flow)
  • Flows 71 GPH at 4 psi
  • regulator is not required
  • Has externally accessible pressure relief valve (max 7 psi)
  • Rotor/vane pump design is more tolerant of contaminated fuels
  • Weighs only 2.88 lbs
  • Includes mounting bracket
  • Repair kits are readily available
  • Can be serviced from the pump end
  • Not compatible with alcohol or methanol fuels
  • Use of safety shut-off switch, P/N 12-810, strongly recommended
  • Not designed or recommended for use with fuel injection systems
  • Meets U.S. Coast Guard regulations
  • Includes Fuel/vapor tube

    • Product Description:

  • Fuel Pump
  • Marine Red
  • Electric
  • In-Line
  • 71 gph at 4 psi
  • 3/8 in NPT Female Inlet / Outlet
  • Silver
  • Gas
  • Sold Individually
