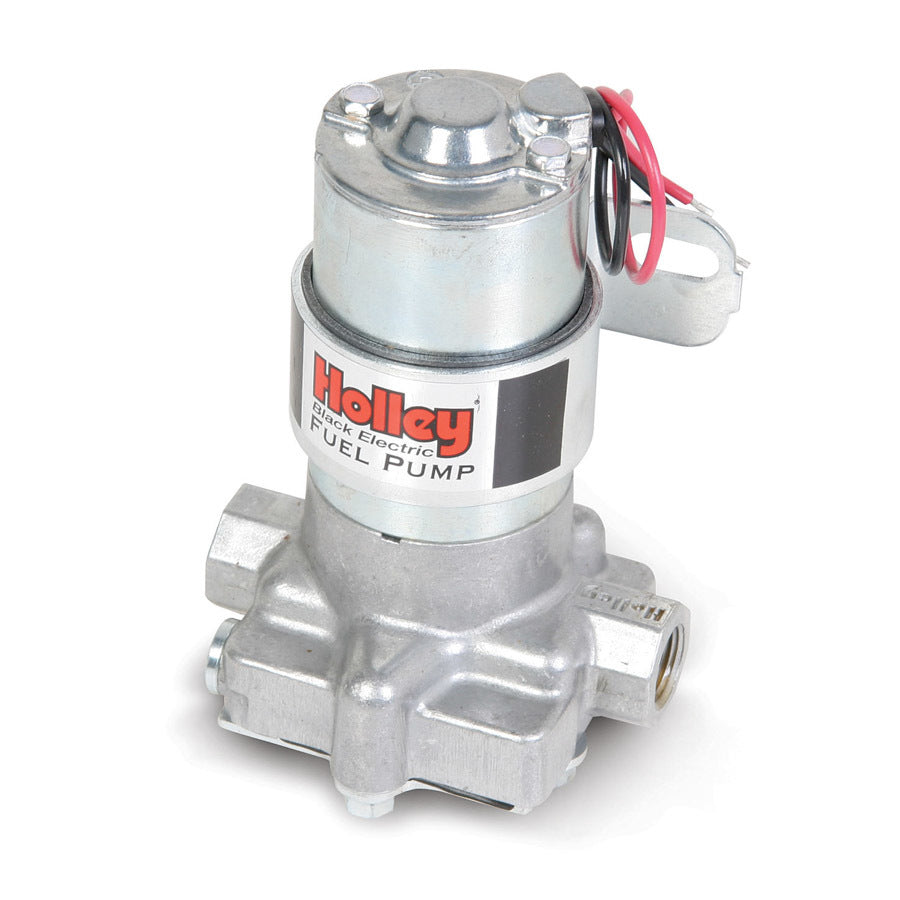

Holley Electric Fuel Pump 12-815-1 140 GPH - Black Logo - Not Legal For Sale/Use In California
Tumble Polished Billet Look Lower Housing Casting Enhanced Fuel Flow Pressure Is Pre-Set At 7 psi Motor Draws 2 Amps Current Constant Fuel Flow No PulsationHolley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

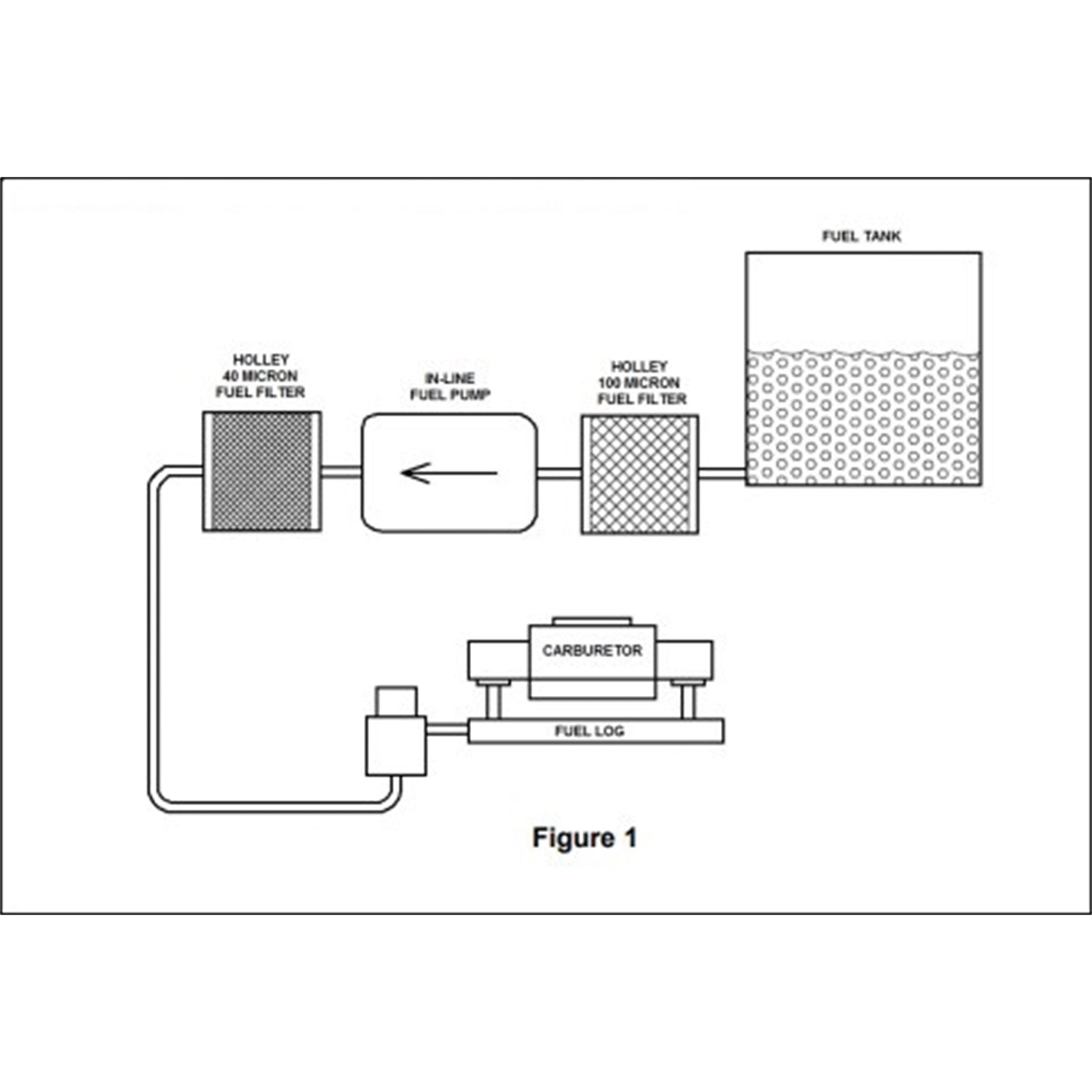

Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit P/N 12-753 recommended. These should be used with 12 volt systems only.

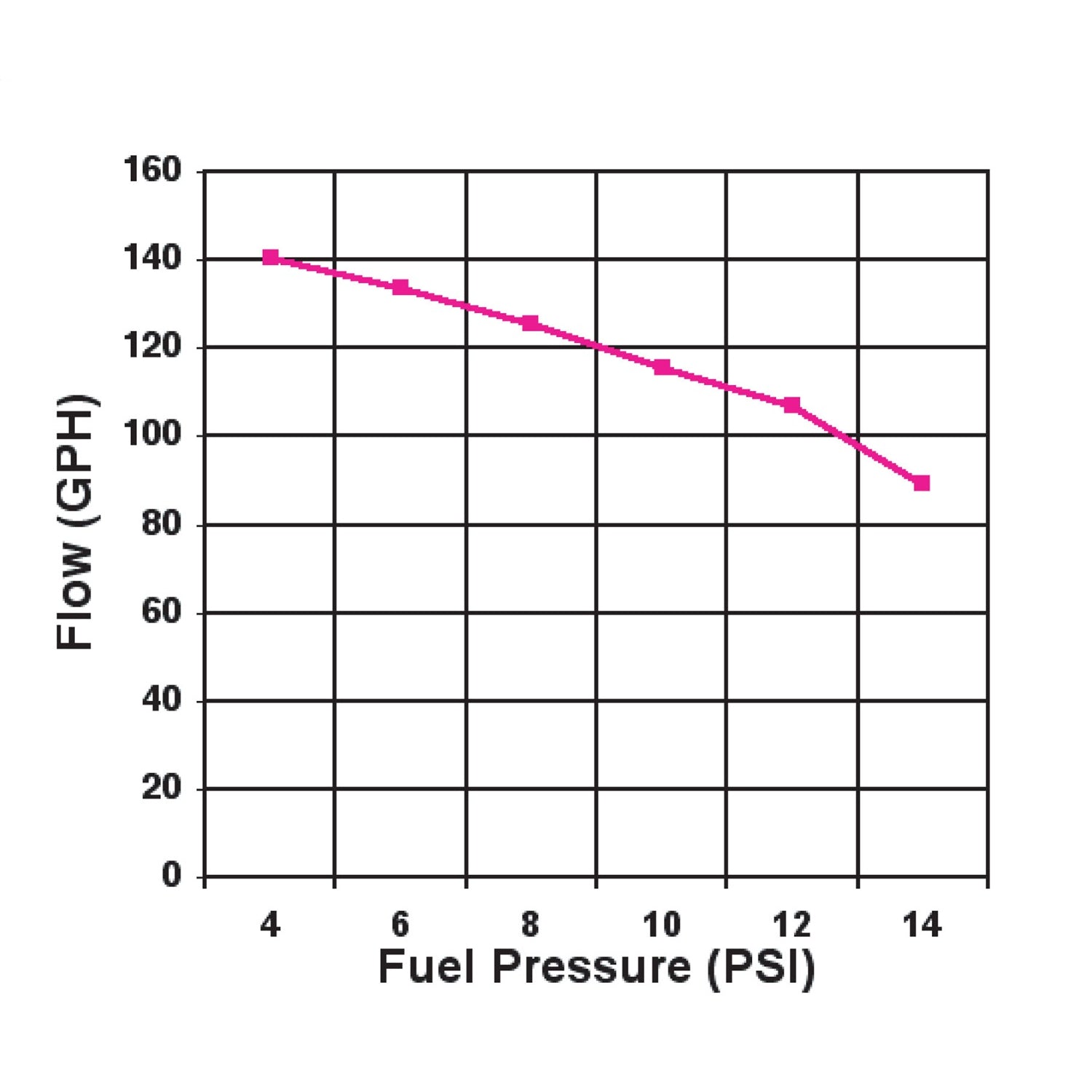

Lower housing casting designed for enhanced fuel flow Improved design for street/strip applications Distinctive ΓÇ £Black" logo Compatible with alcohol or methanol fuels Not designed for use on aircraft of any type. Flows 140 GPH (free flow) Flows 120 GPH at 9 psi Maximum pressure is 14 psi 3/8" NPT inlet and outlet ports Fuel pressure regulator is required (recommend Holley P/N 12-704 for gasoline & P/N 12-707 for alcohol) Motor draws only 4 amps current Relay kit P/N 12-753 & 7 1/2 amp fuse recommended Provides constant fuel flow with no pulsation Has externally accessible pressure relief valve (max 14 psi) Rotor/vane pump design is more tolerant of contaminated fuels Weighs only 3 lbs Includes mounting bracket Repair kits are readily available Can be serviced from the pump end Use of safety shut-off switch, P/N 12-810, strongly recommended Not designed or recommended for use with fuel injection systemsProduct Description:
Fuel Pump Black Electric In-Line 120 gph at 9 psi 3/8 in NPT Female Inlet / Outlet Silver Gas Sold IndividuallyFor over a century Holley has driven the cutting edge of fuel-system design. That work continues today through Holley’s market-leading EFI products as well as through Holley’s family of best-in-industry brands. Top brands like MSD, Flowmaster, Hurst, Accel, and many more make up the industry’s leading offering of enthusiast-driven products to deliver robust, complete performance solutions for builders, racers, and drivers. From propelling the LS-, Coyote-, and Gen 3 Hemi-swap trends, to continuously innovating late-model and vintage vehicle performance, Holley’s commitment to its customers and their cars is at the core of everything we do.
