Dashboard Panel
Two models available:

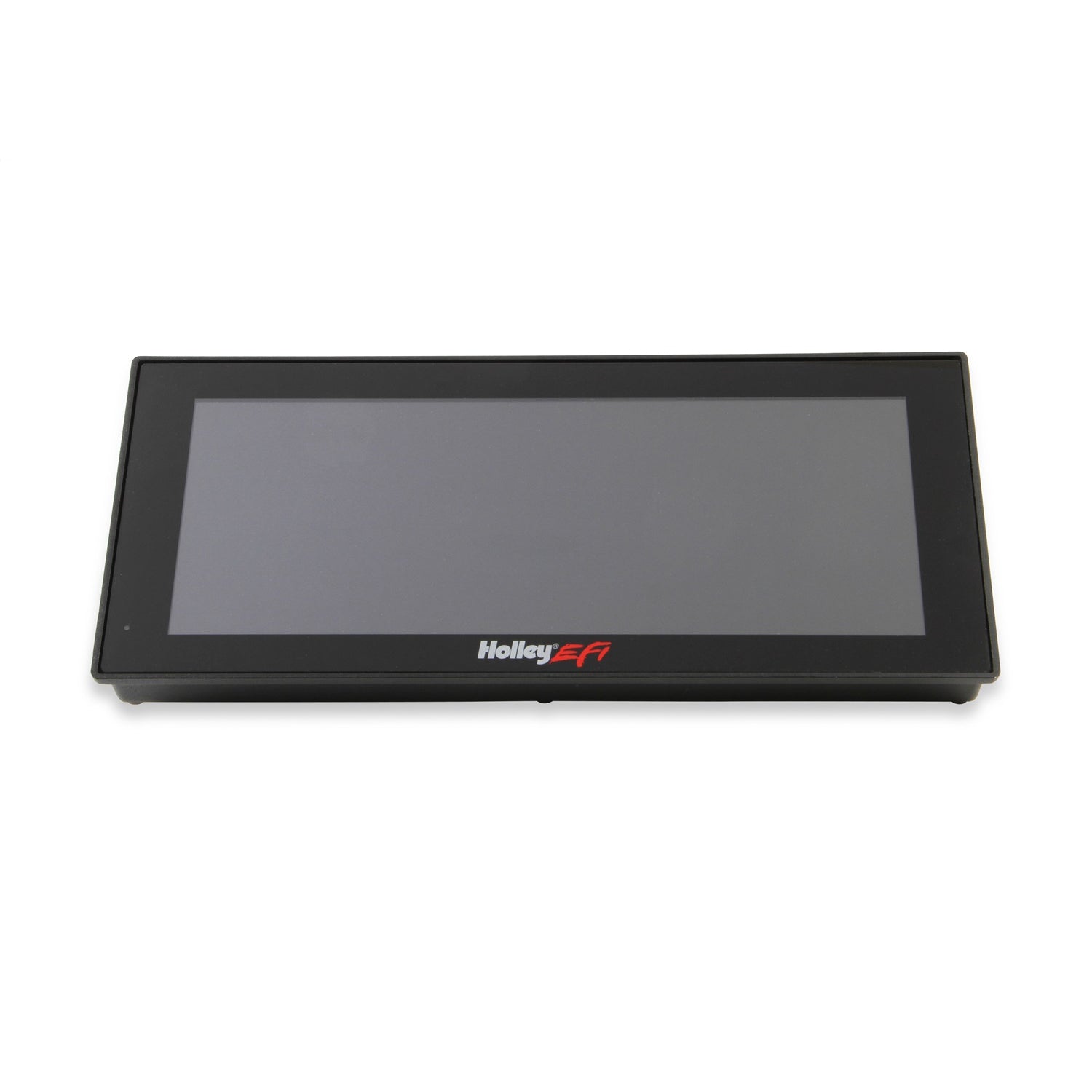

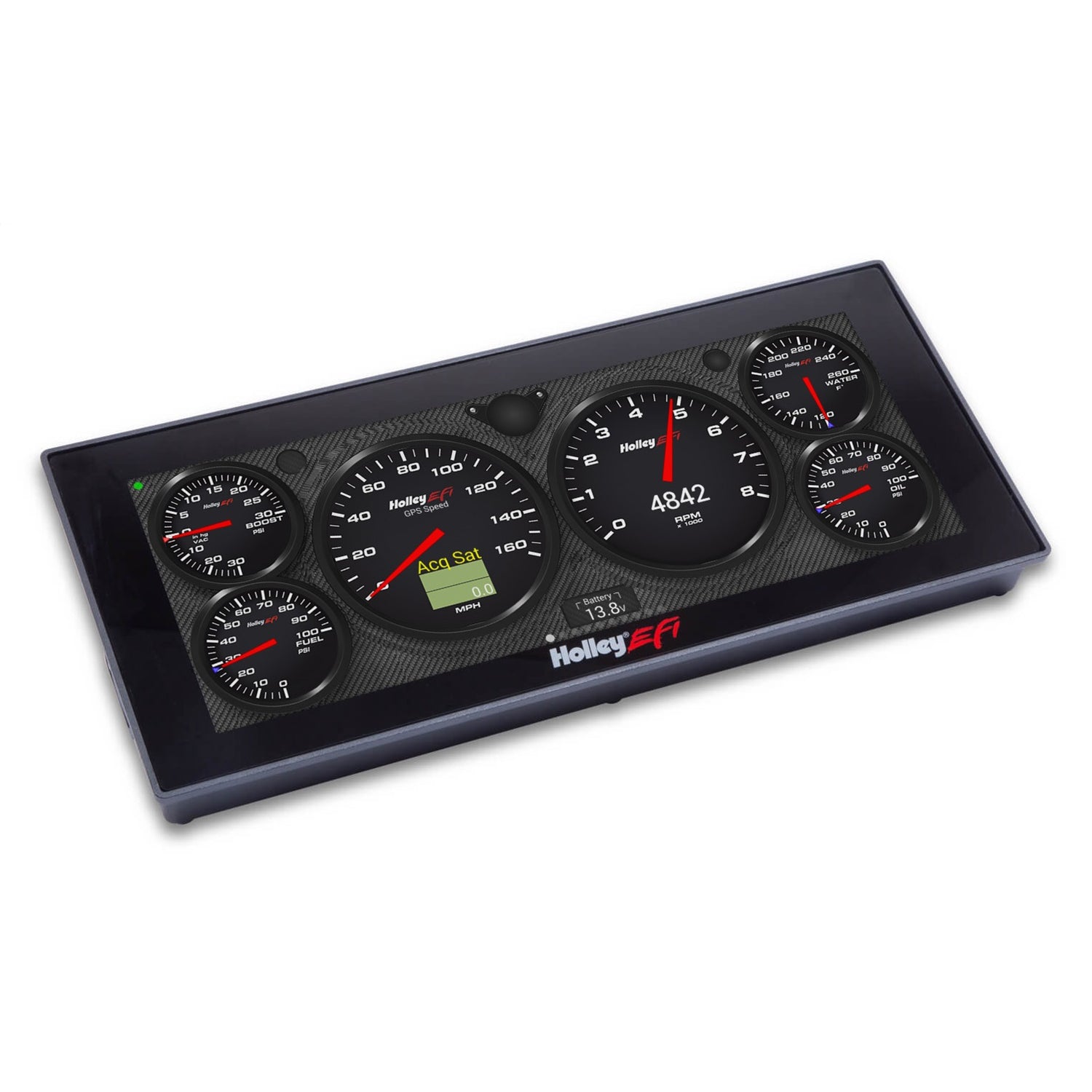

6.86" version is big on features, but small on size for installation almost anywhere! 12.3" version is for the hard-core enthusiast who wants the ultimate display device! High resolution, state-of-the-art, multi-gauge touch-screen display with fully configurable layouts:

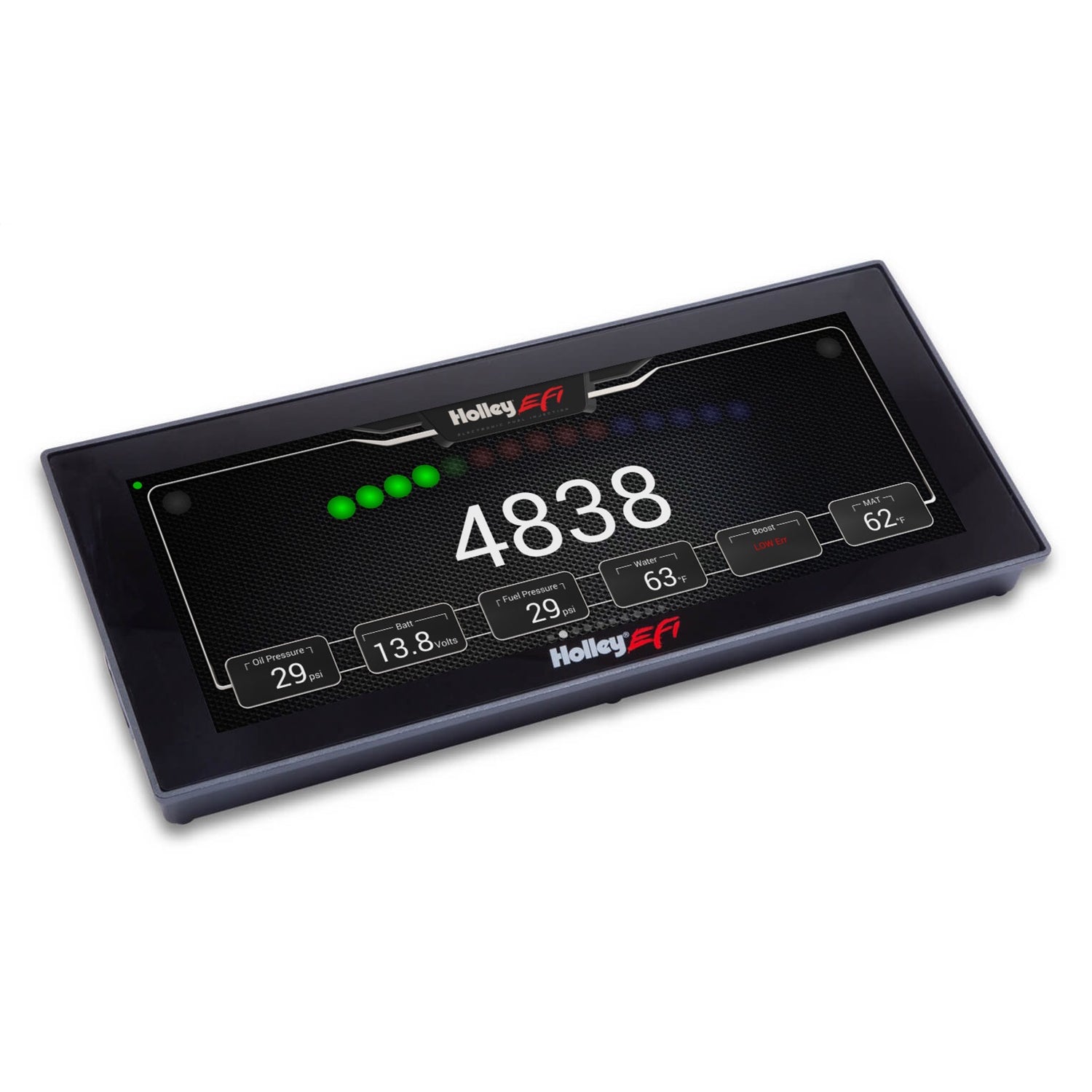

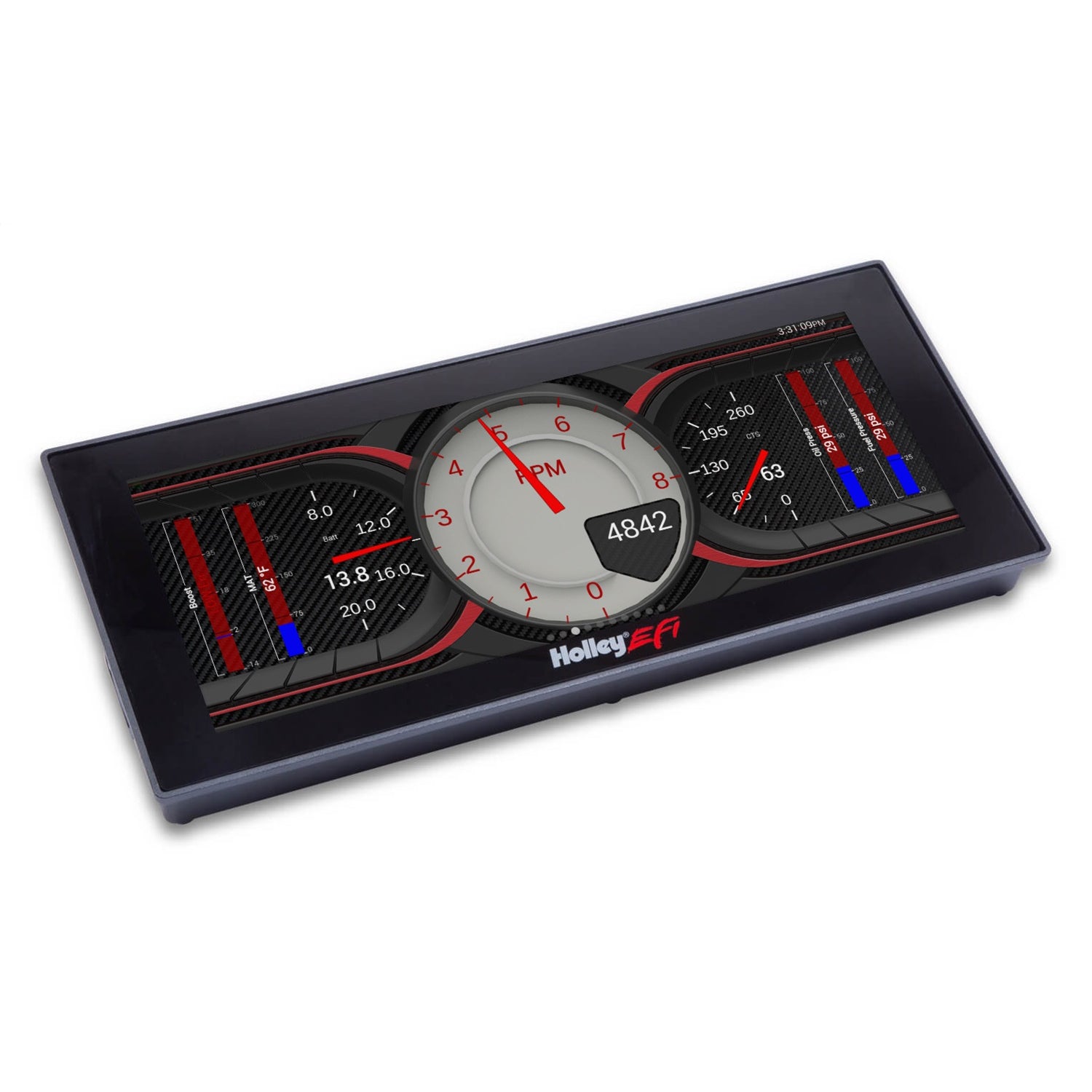

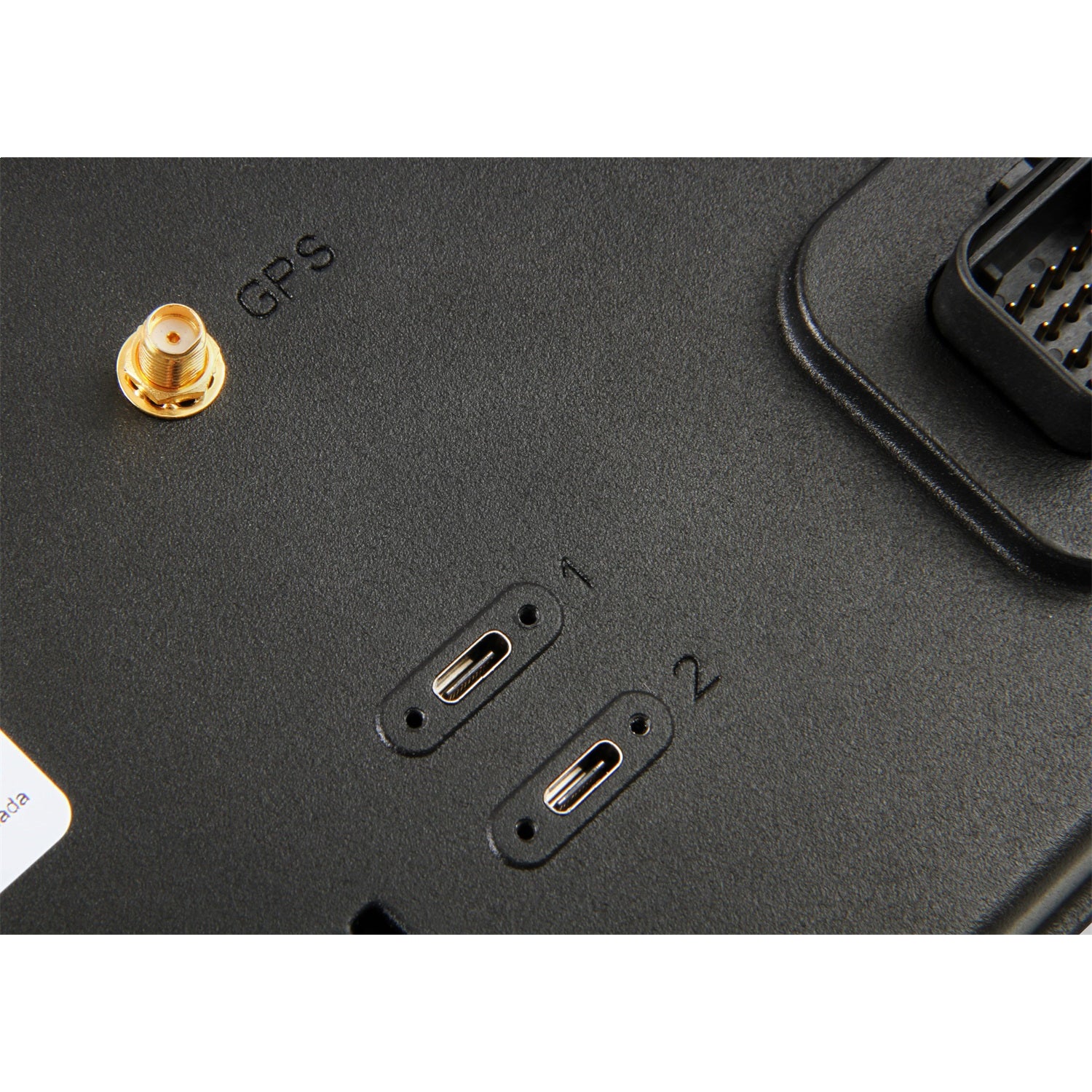

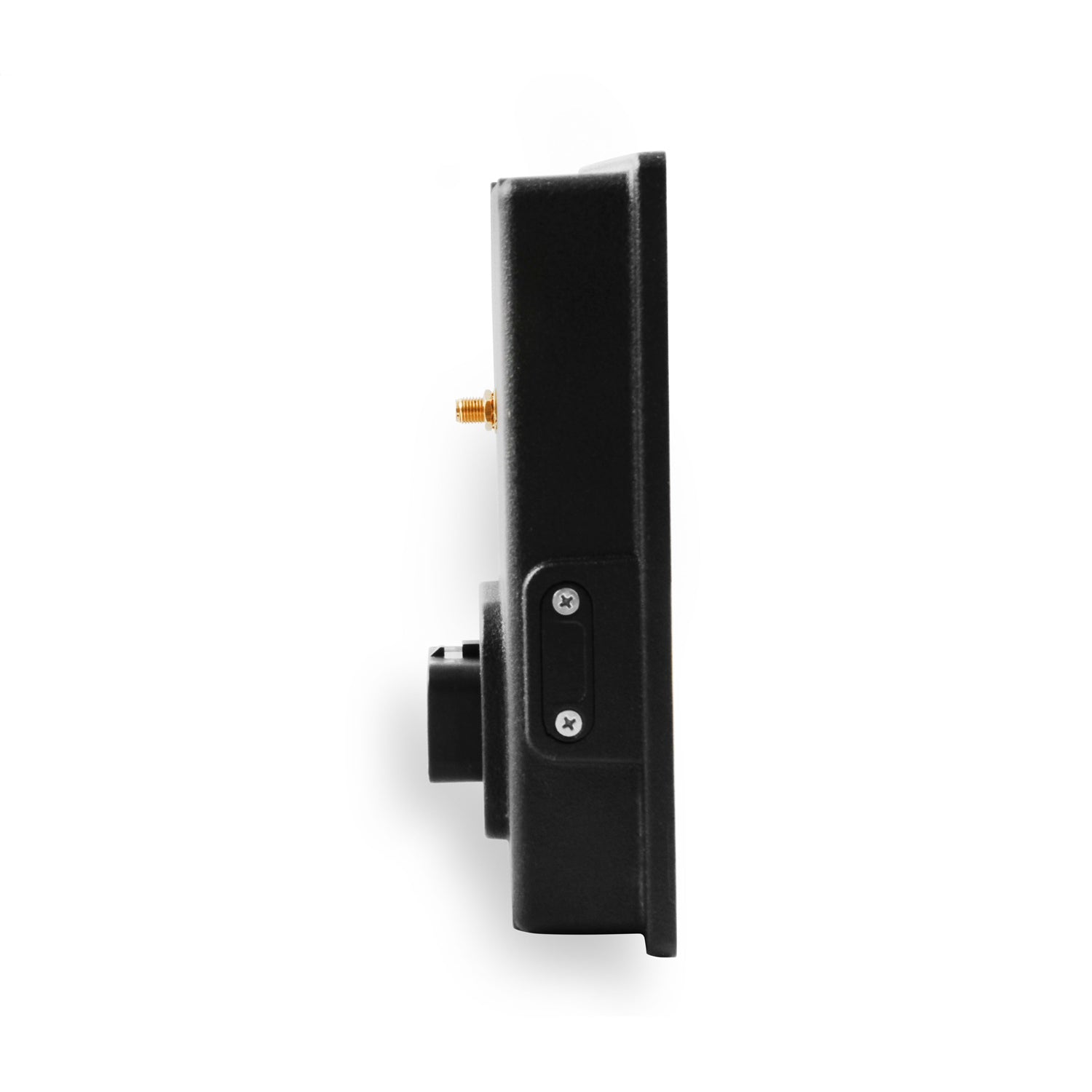

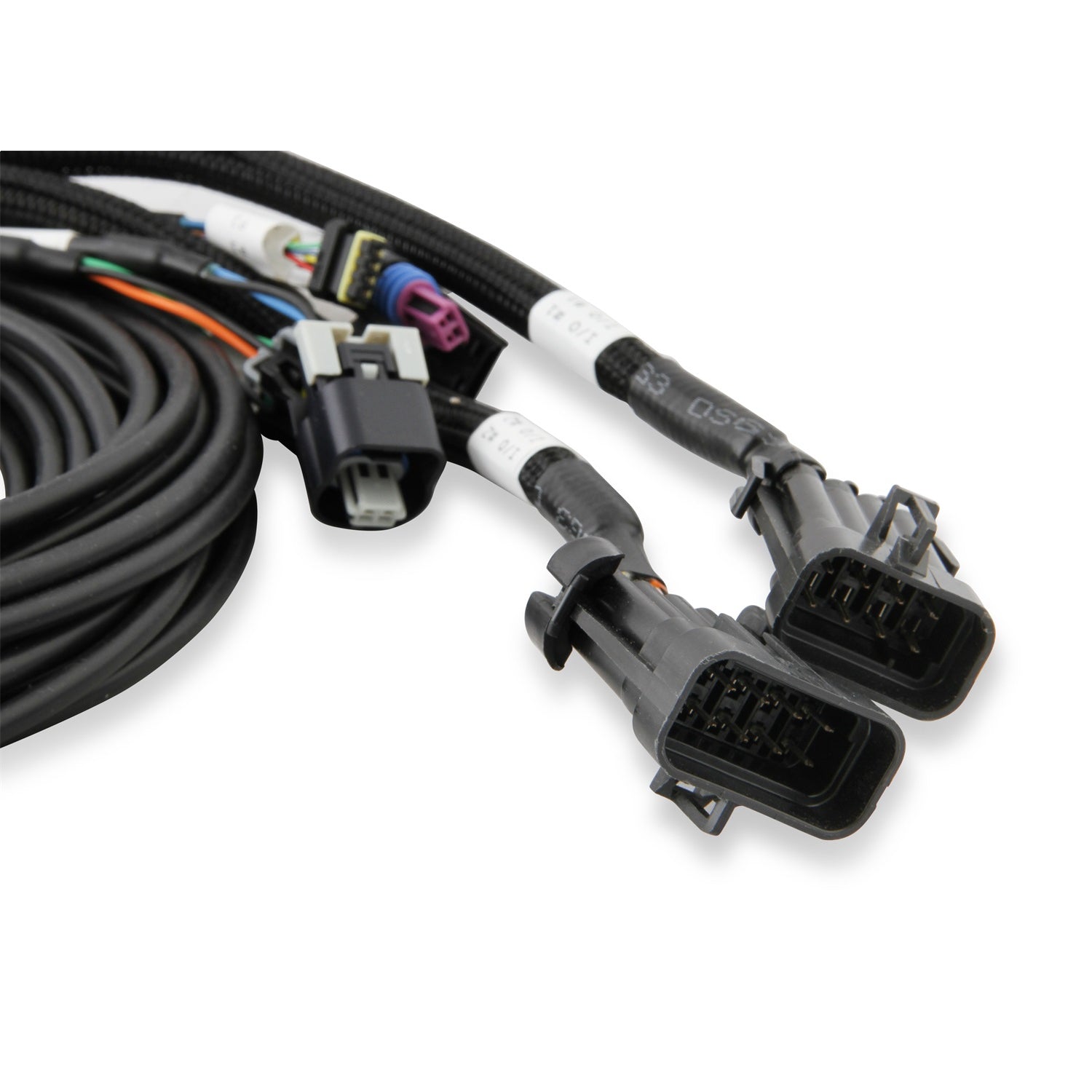

Full color, capacitive touch screen with auto dimming offers crystal clear data at your fingertips - day or night - no stylus needed Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.) Virtual switch panel eliminates the need for external toggle switches 16 default backgrounds skins pre-loaded with unlimited options for importing custom layouts Built-in GPS with speed, odometer and trip odometer function (external antenna included) Integrated 10-LED programmable shift light w/ 4-LED warning indicators for other sensor inputs. (6.86" dash only) Rendered analog (dials / needles) and digital gauge styles available Integrated datalogger Rugged, water resistant case is constructed of cast aluminum for long life and durability Plug and play features are pre-configured in the harness and include dash layouts / screens for::
Oil and fuel pressure, coolant and air temp (utilizes plug and play Holley sensors, not included) Turn signals High beam Fuel level Engine vacuum / boost Additional input and output functionality:
13 multi-configurable inputs 4 ground switched outputs Four speed channels (two dedicated) for RPM, driveshaft speed, or any other Hall effect speed input User definable channel alarms and warnings Communications / Harness:

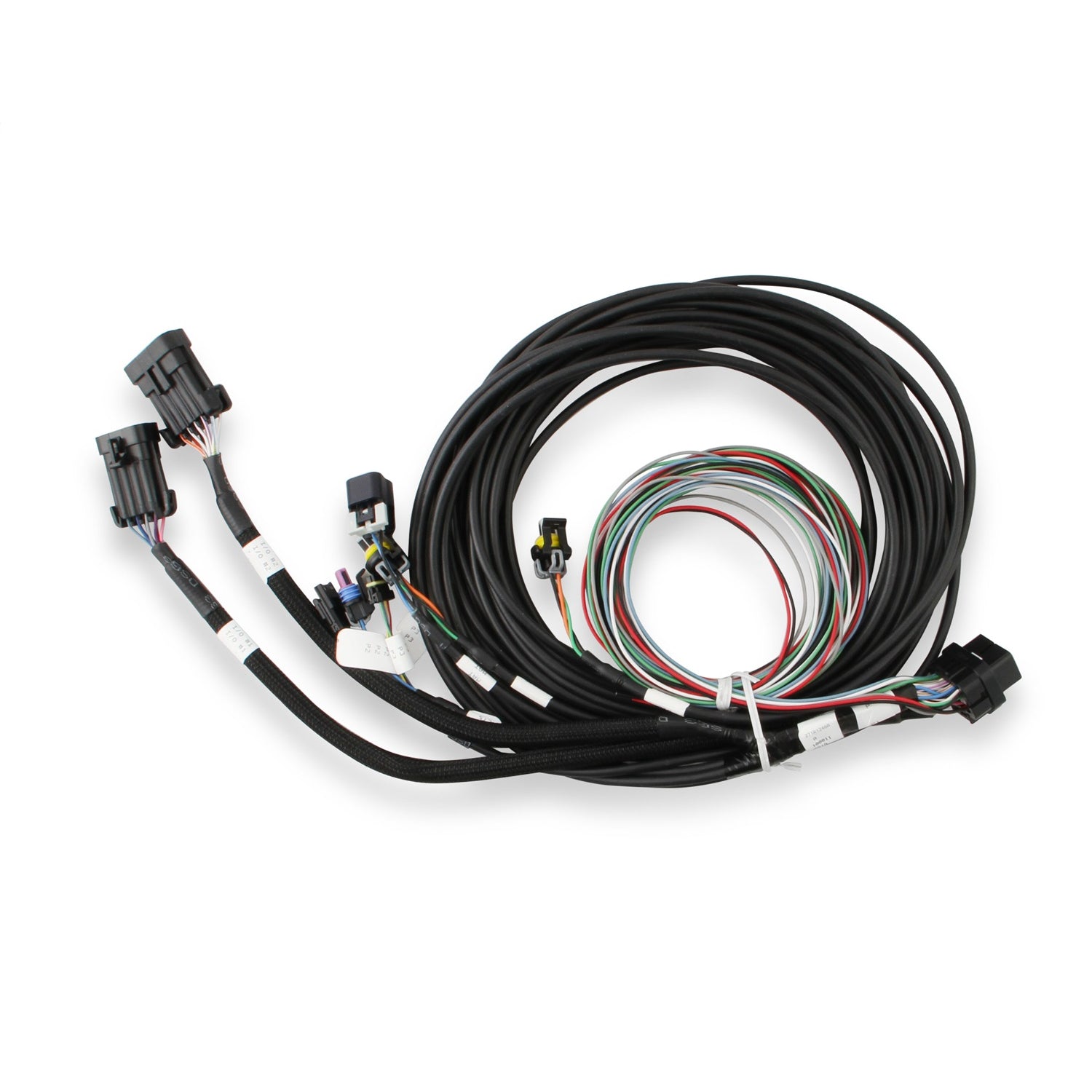

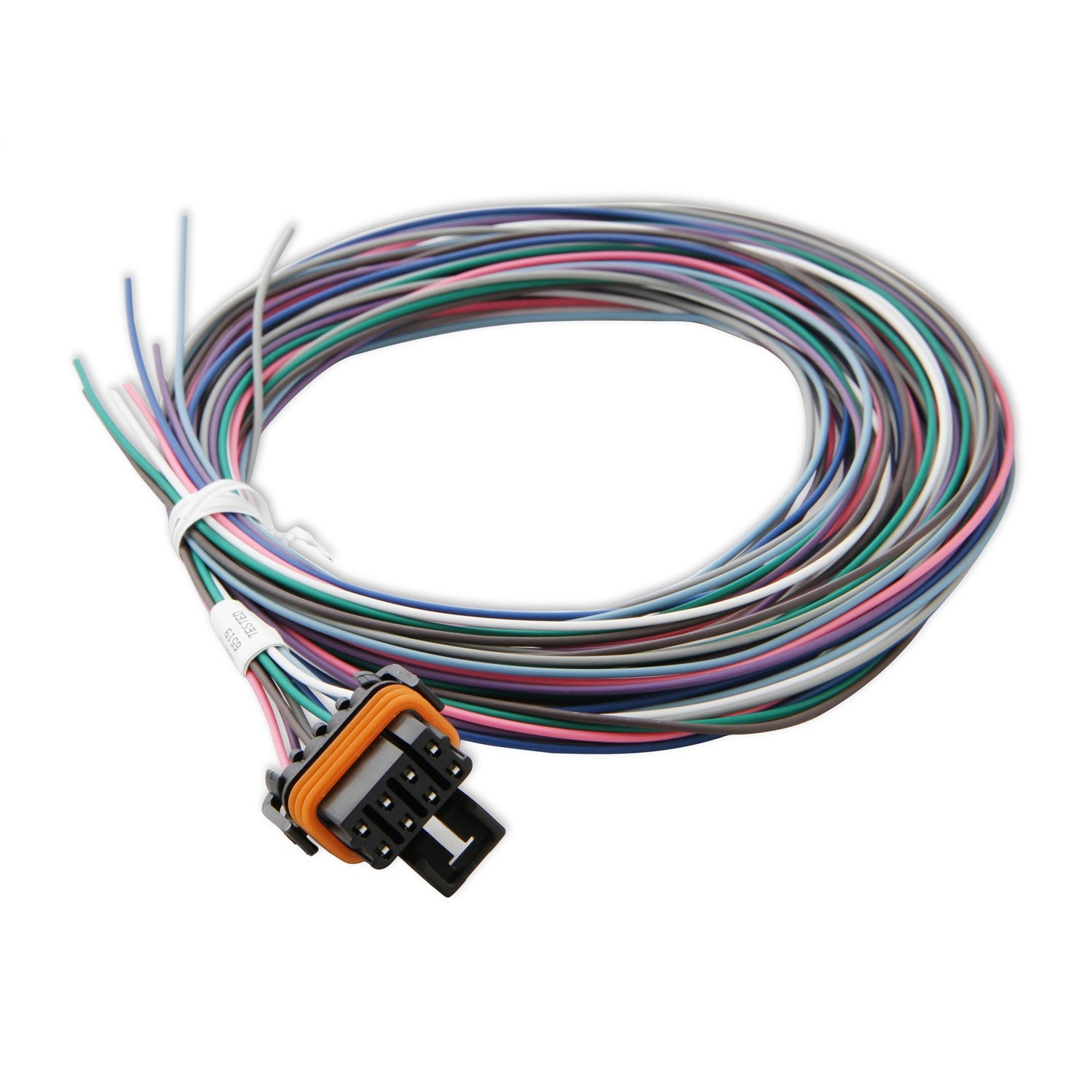

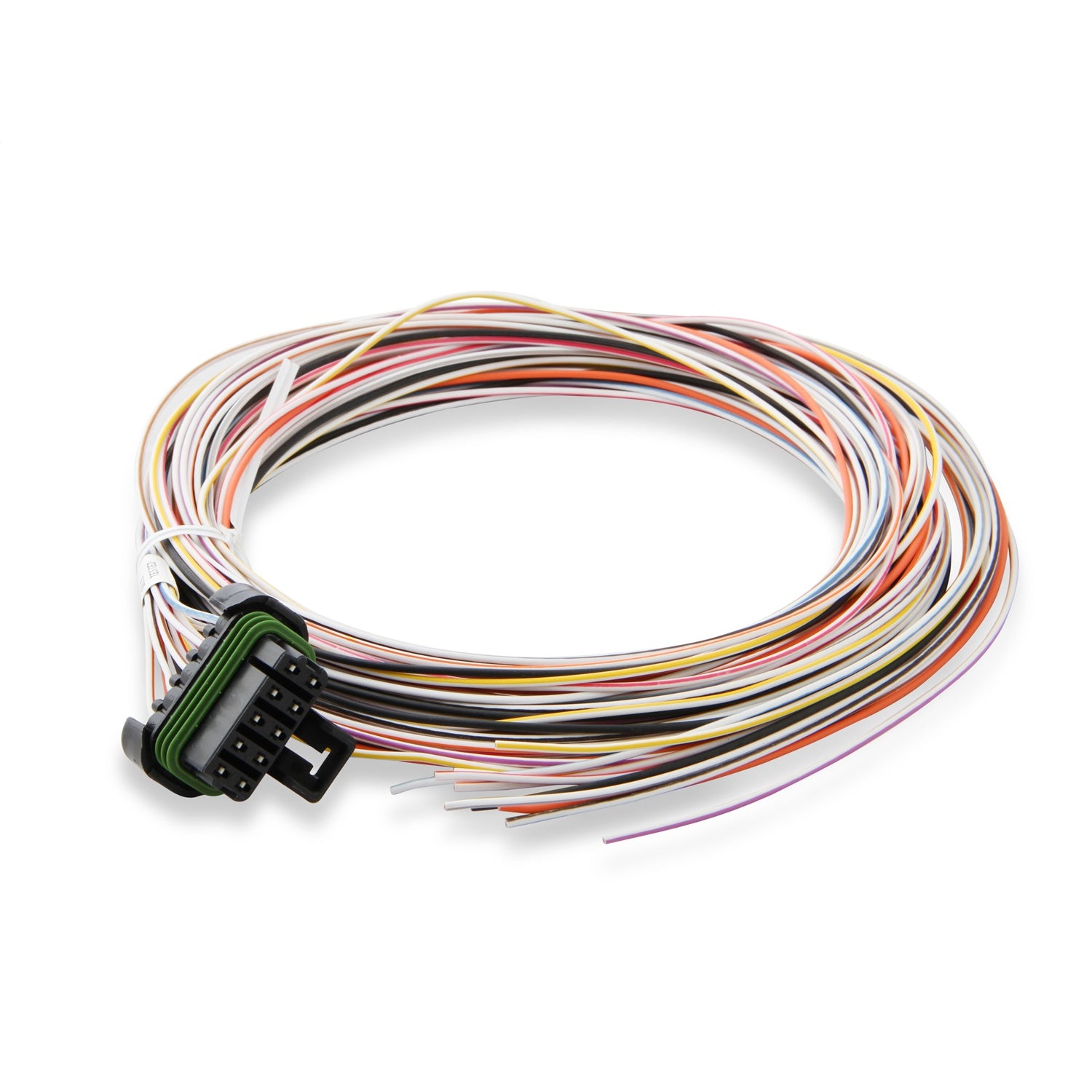

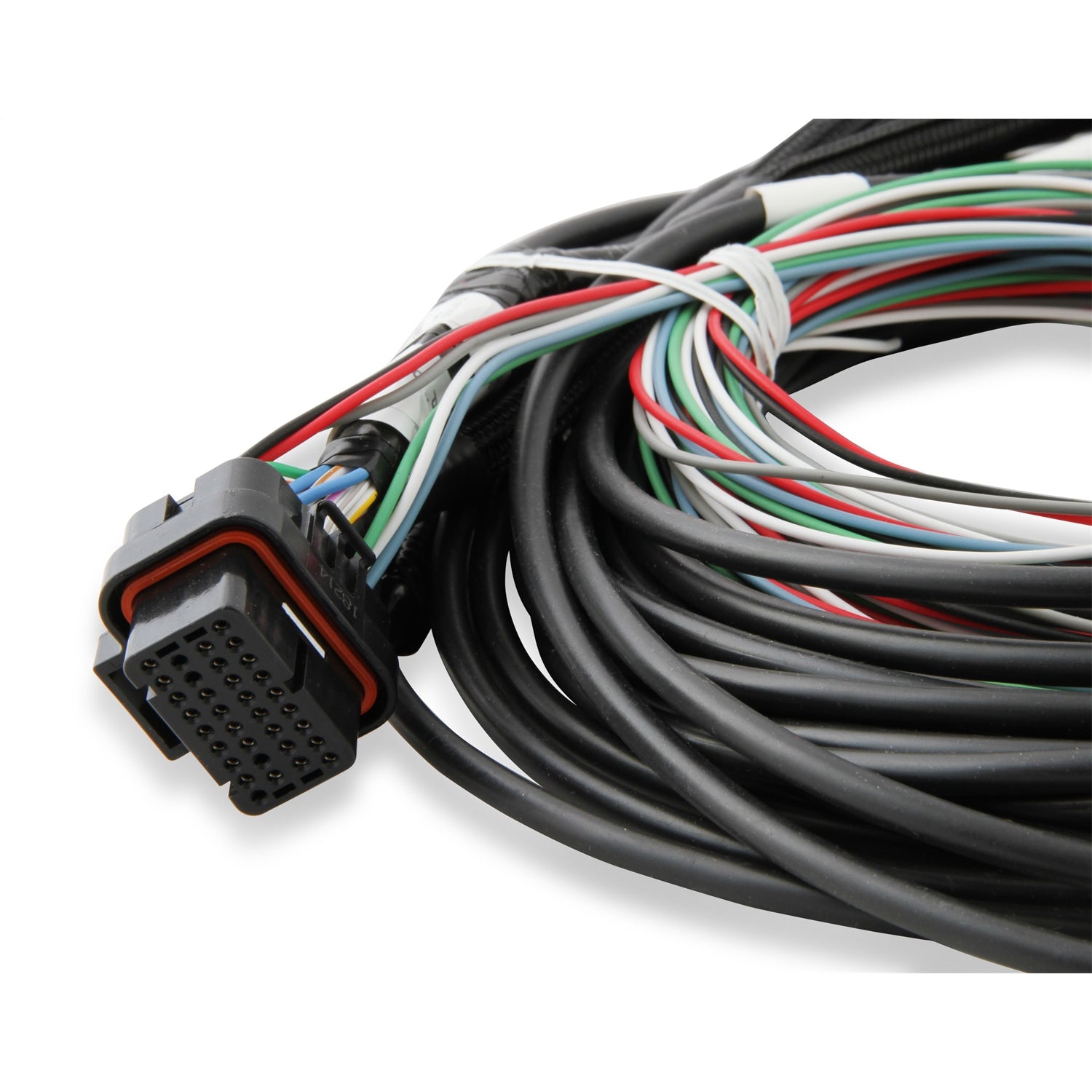

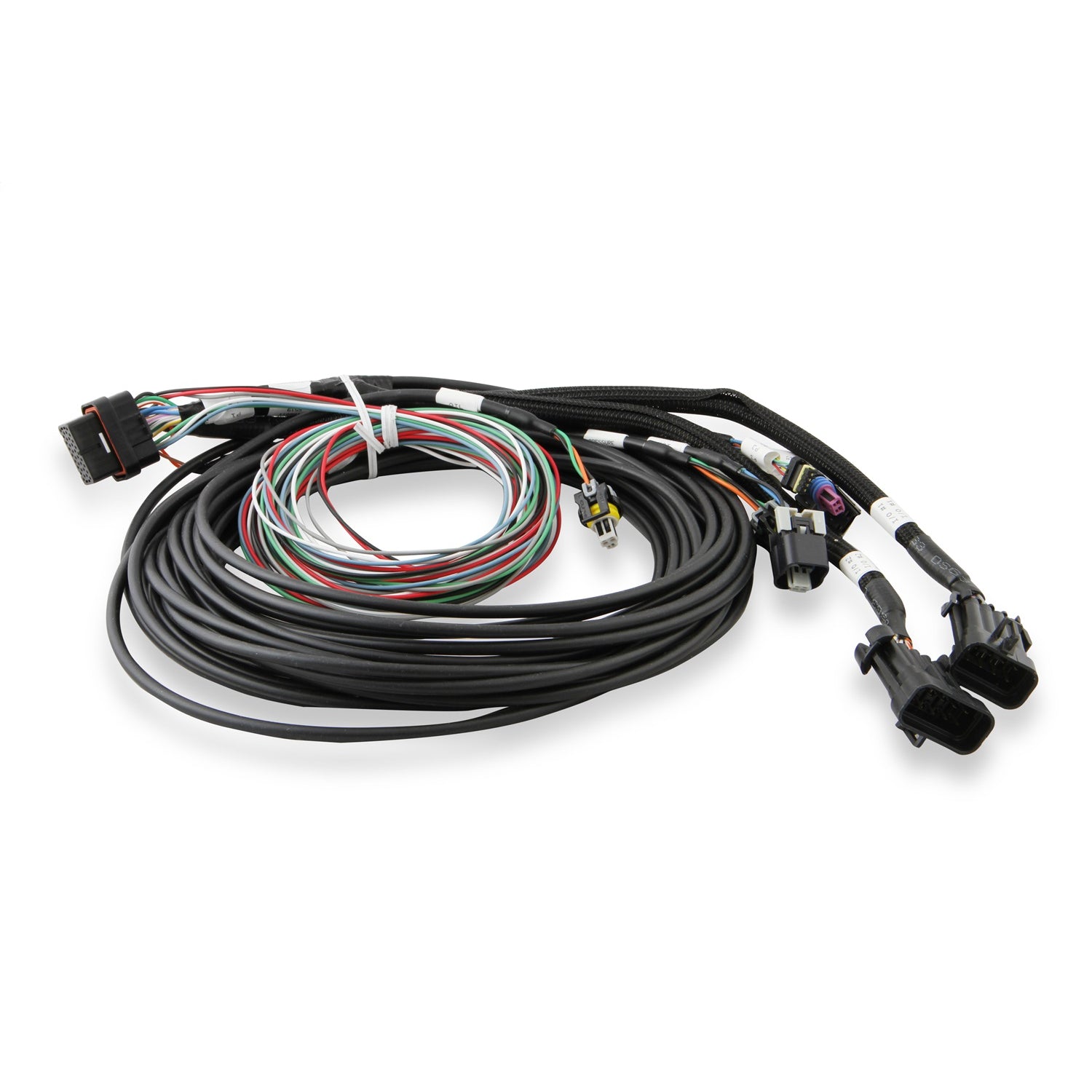

4 Pin Wiring Harness contains Power, Ground and CANbus connections Holley EFI CANbus connection for expanded capability with Holley EFI systems Expandable storage via USB Integrated Datalogger:

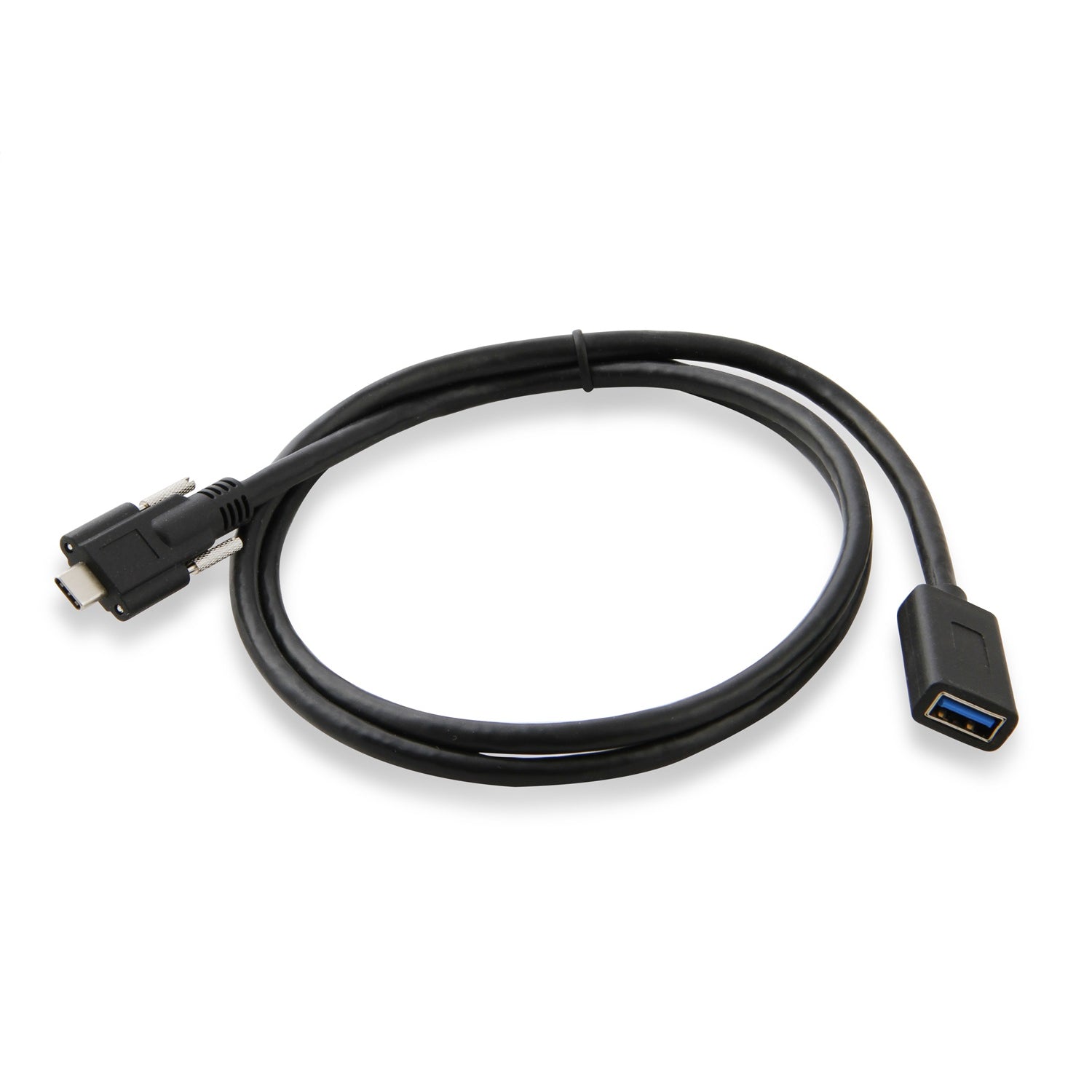

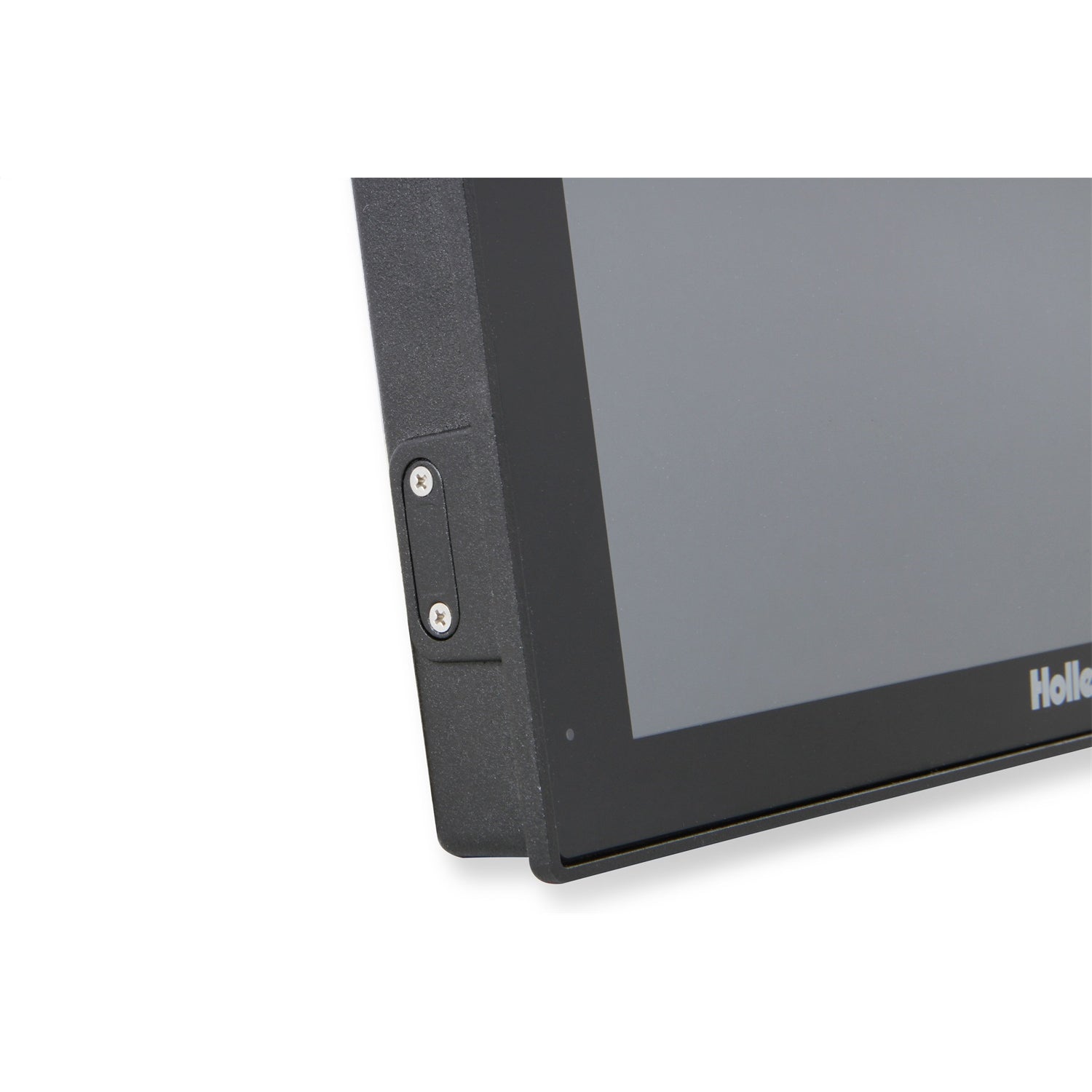

Internal Log Memory - 1 GB (expandable up to 32GB with addition of micro-SD card) On-screen datalog playback allows you to review vital run information right on the dash Flexible mounting options: Surface or flush mounting, with high quality hardware included Simple setup and programming: USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts Fully Upgradeable:
Upgradable with future software enhancements Can easily be converted for use with Holley EFI to monitor up to 238 real-time values such as RPM/TPS/Boost Compatible with Holley EFI Plug and Play Programmable Shift Light - Part Number 553-107 What's Included:

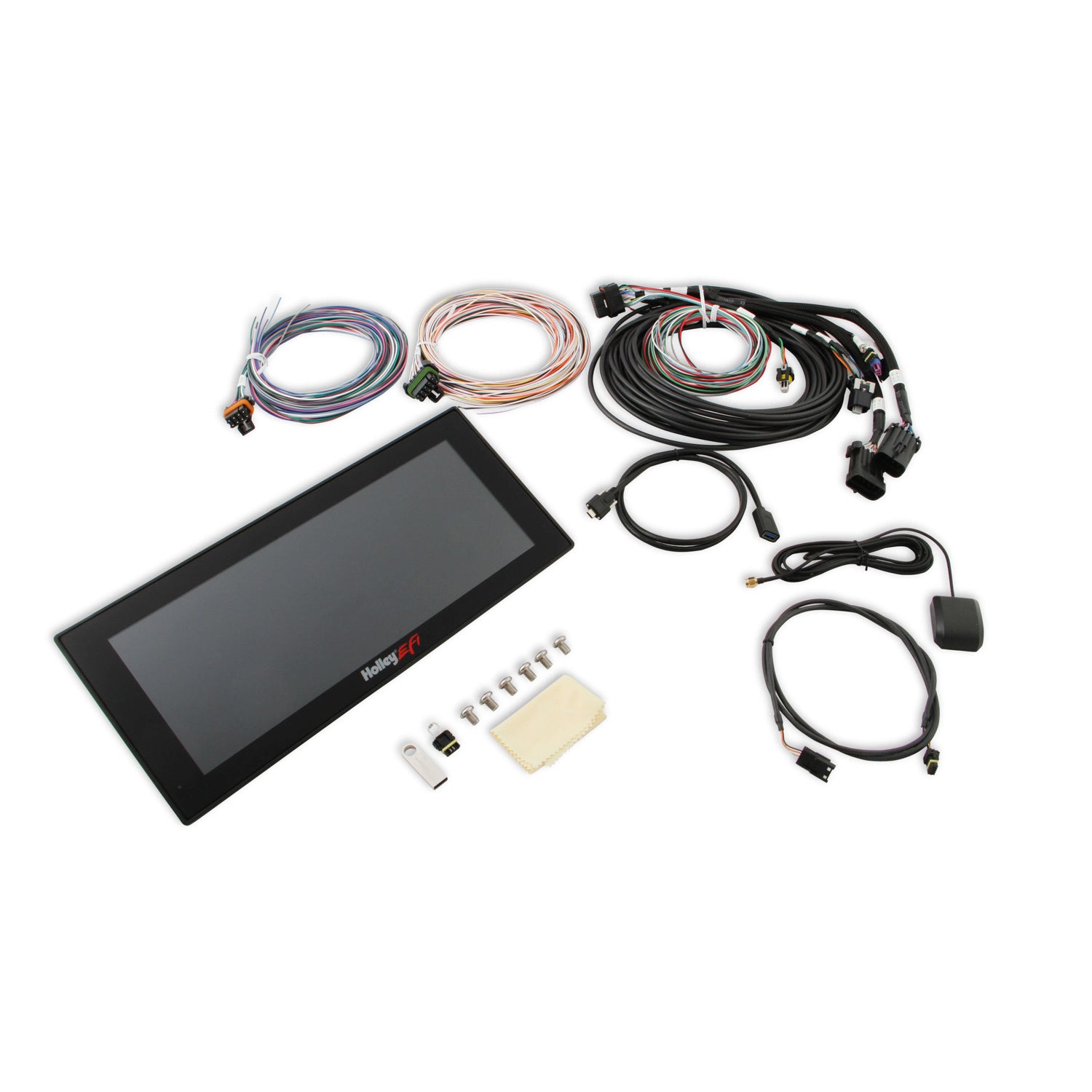

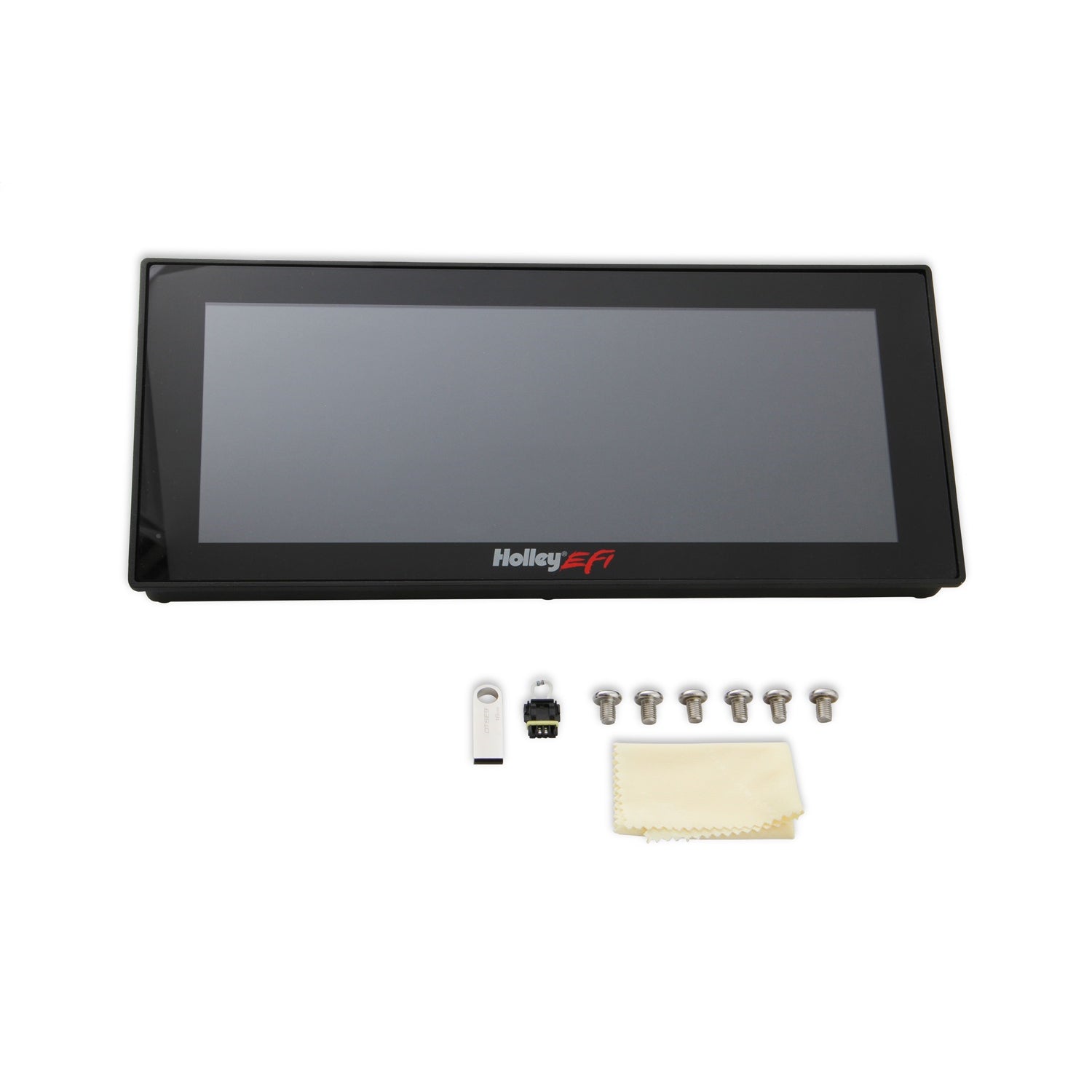

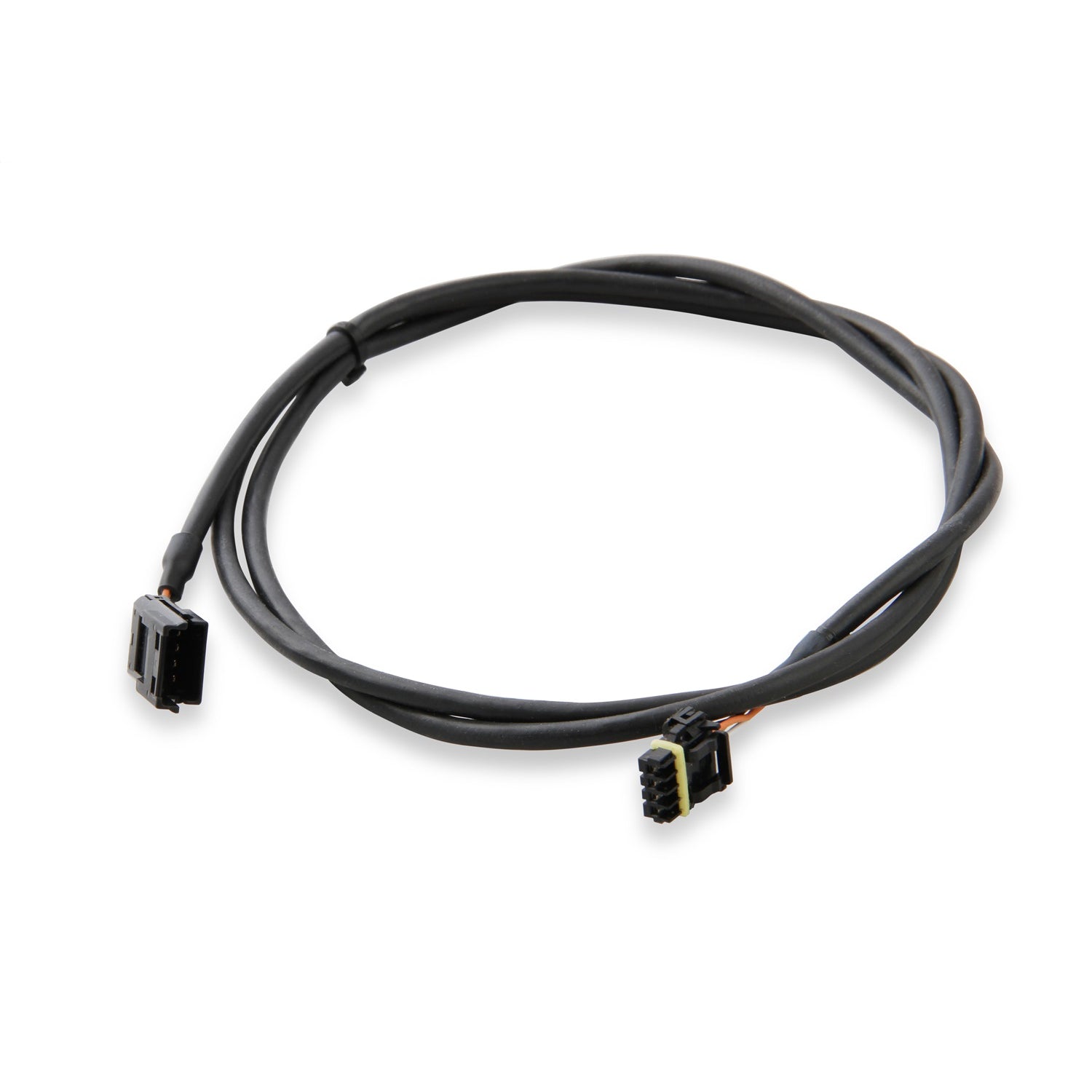

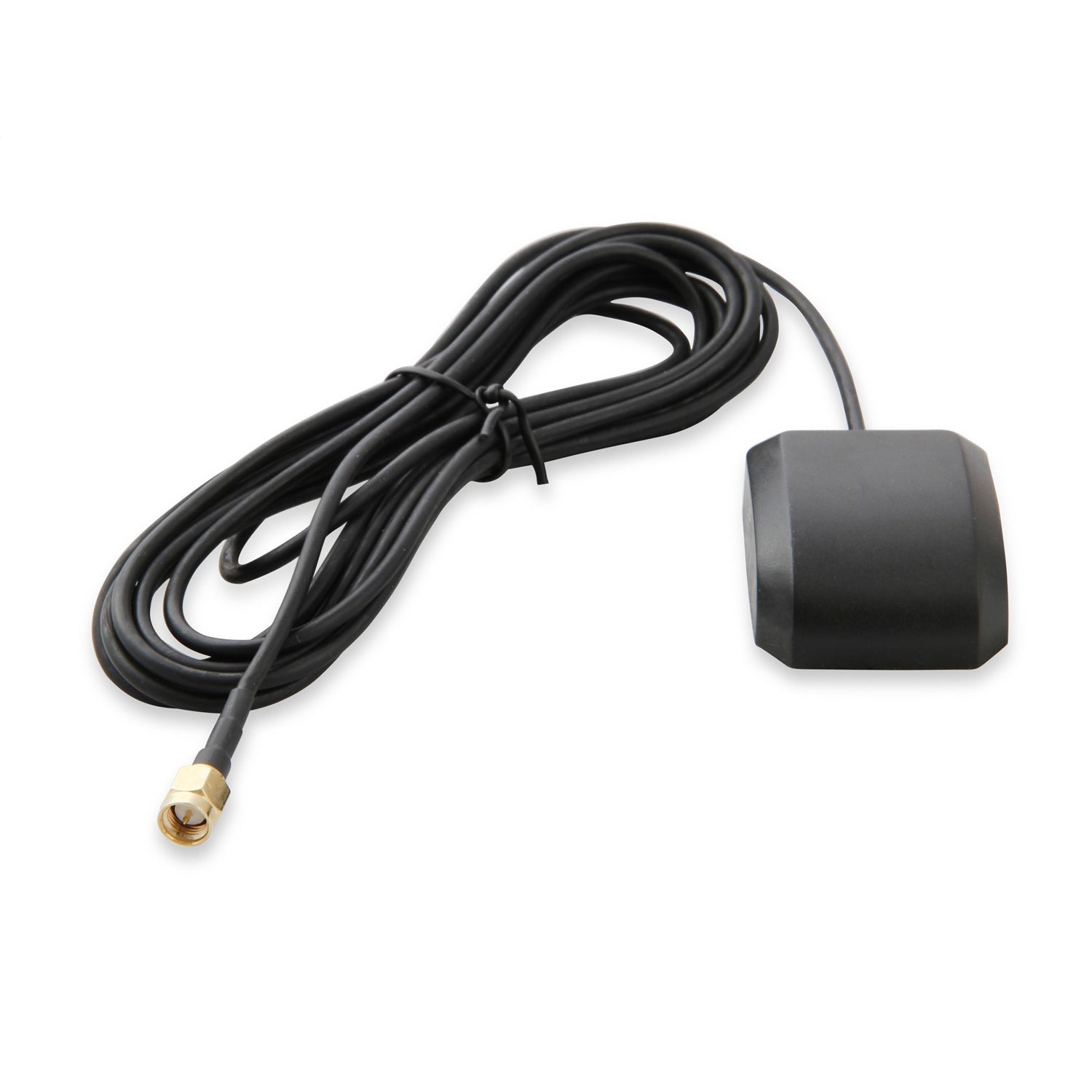

Both dash versions include harness / cables, mounting hardware, USB memory stick and CAN terminator GPS Antenna Sensors not includedProduct Description:

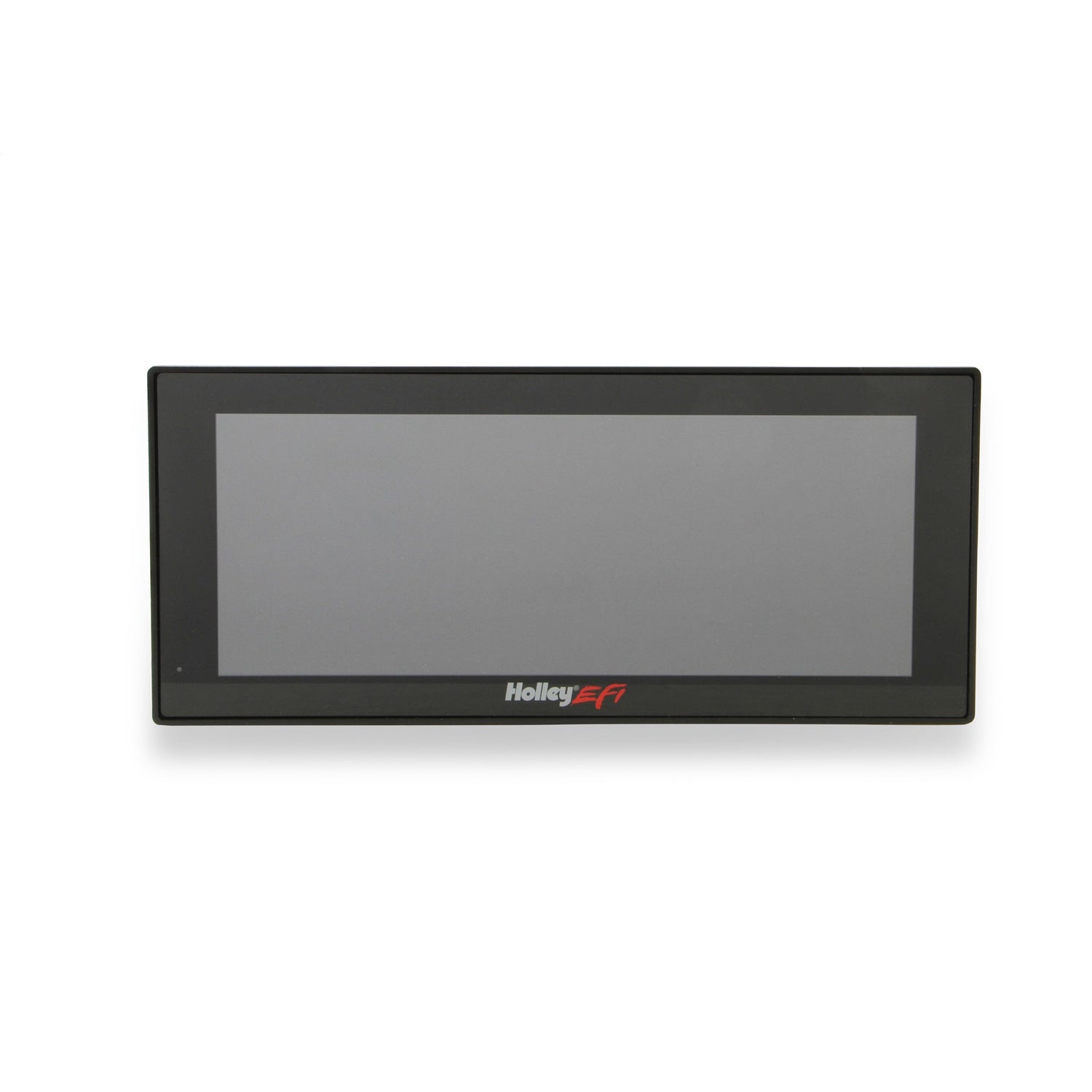

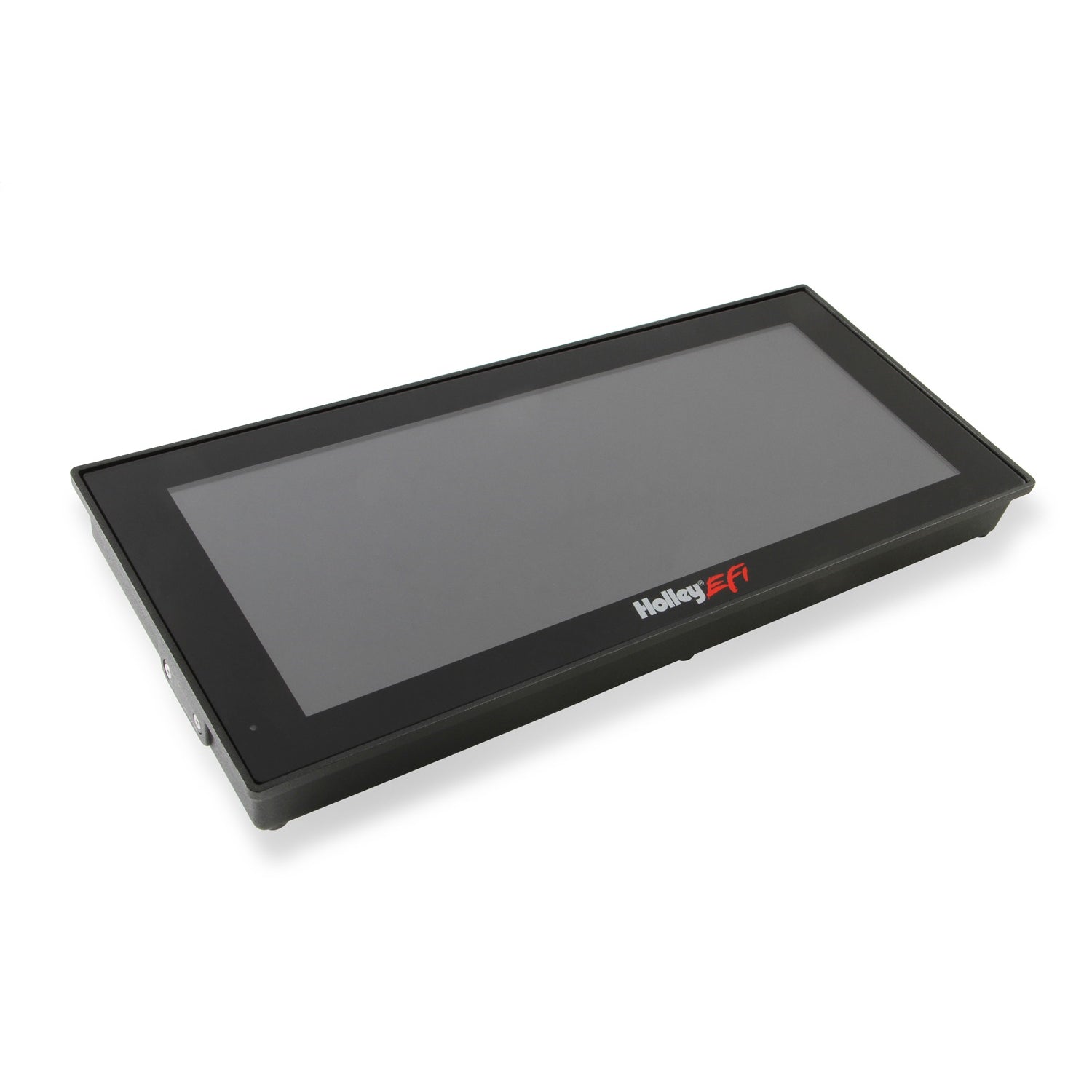

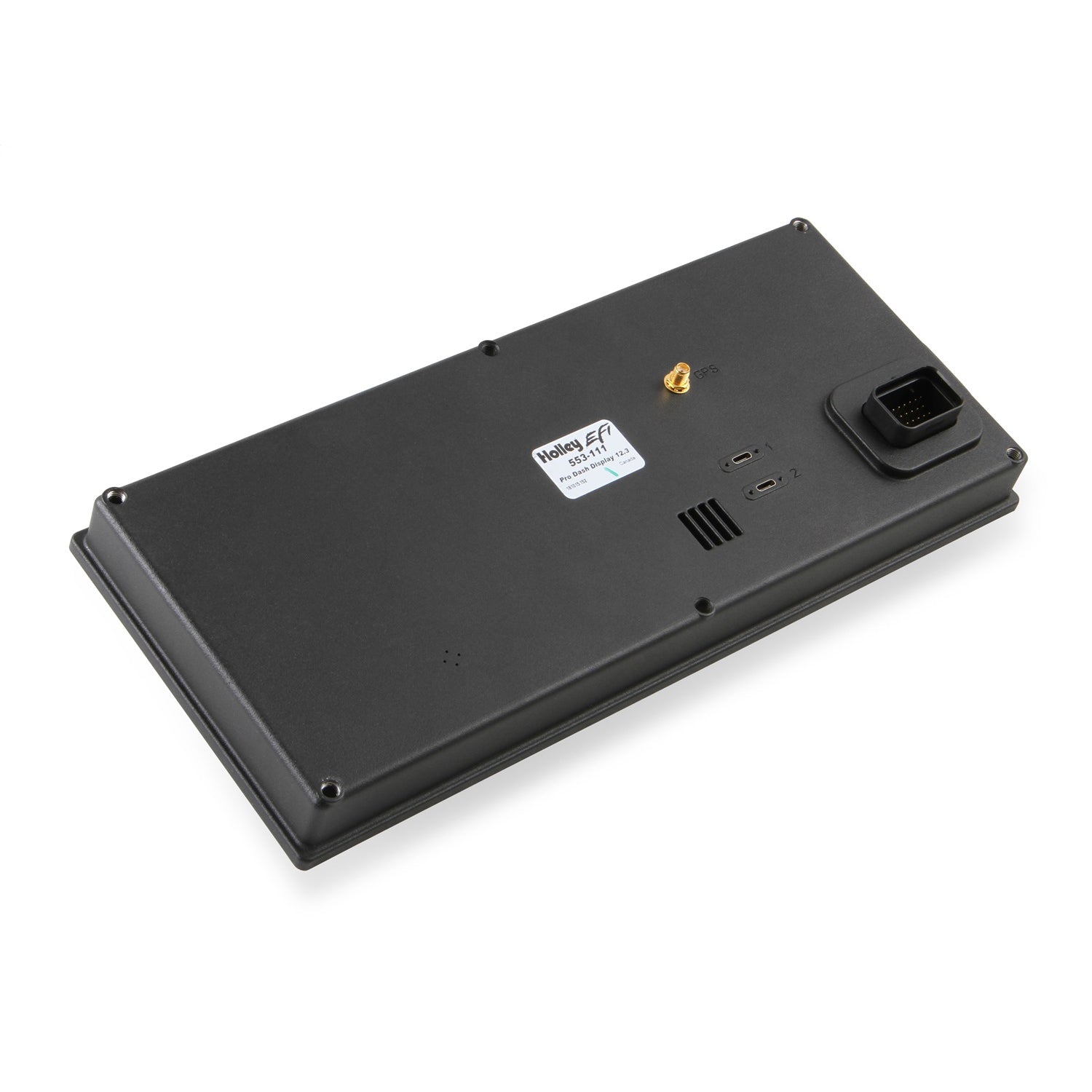

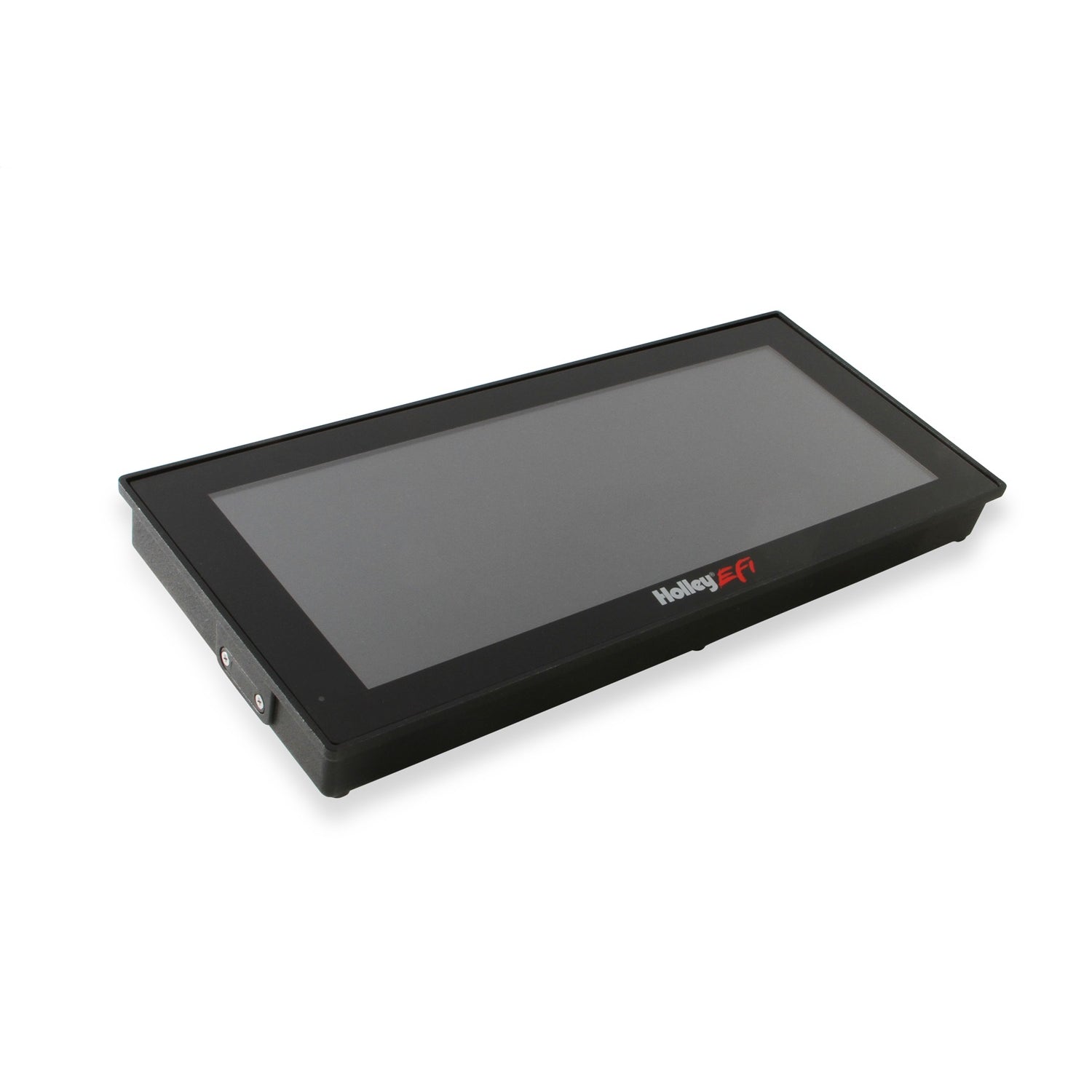

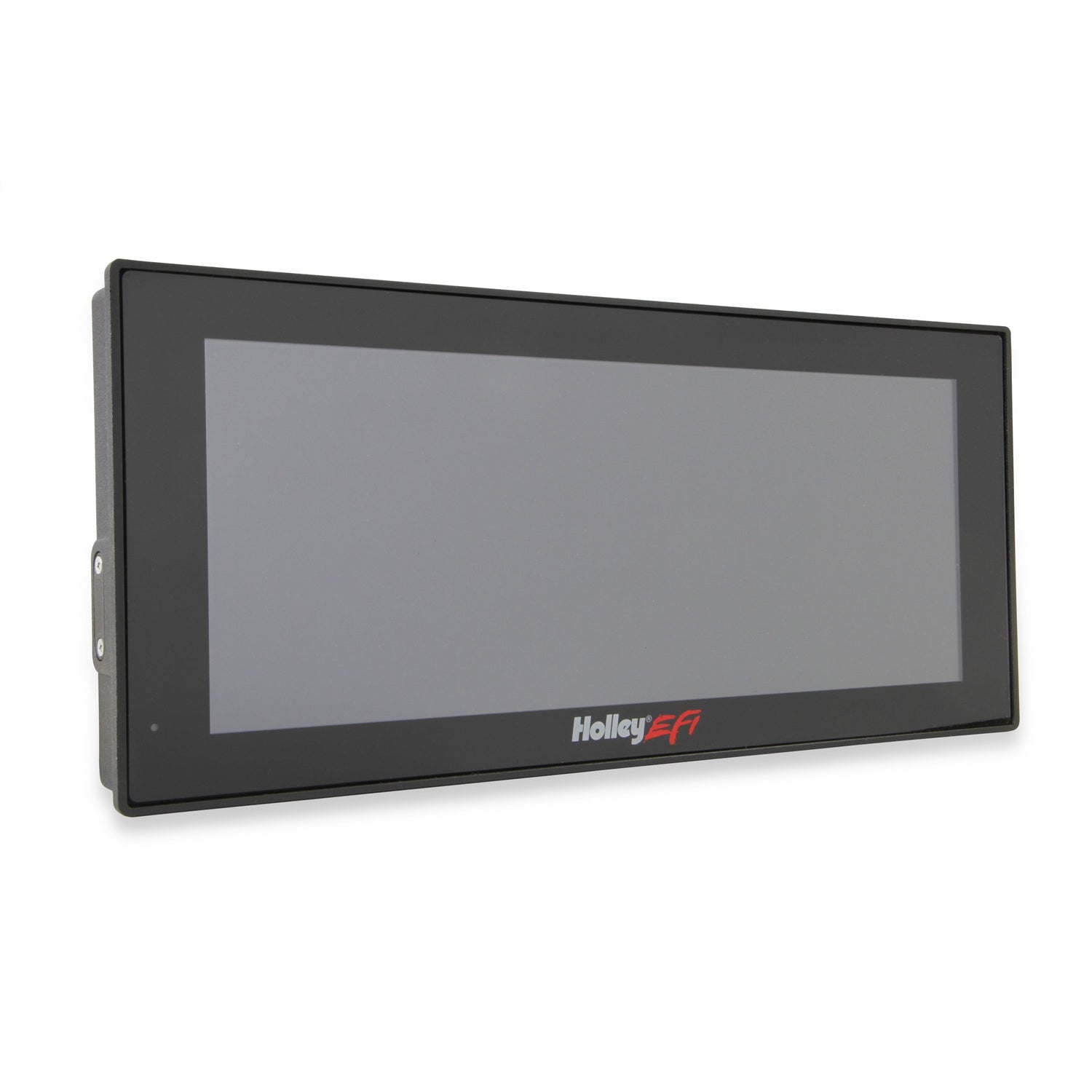

Gauge Panel Assembly EFI Pro Dash Digital 13.44 x 5.81 x 1.25 in Rectangular Touch Screen Multiple Gauges Programmable Black Face KitHolley is quickly becoming The New Standard In EFI! Holley’s HP ECU is standard equipment on the 2013/2014 Chevrolet COPO Camaro and Holley’s EFI throttle body powers every NASCAR Sprint Cup Series™ team. Top racers are making the switch to Holley EFI every day. Racers like Tom Bailey who set three new records and took the overall event win on the 2013 Hot Rod Magazine Drag Week and John Scali who used it to win the 2013 JEGS All-Star race. But that’s not all. The world’s best hot rod builders and tuners are making the switch to Holley EFI. Builders like Dave Lane who used Holley EFI to power the 2013 Goodguys Hot Rod of the Year and tuners like Steve Morris who use it to build some of the baddest forced induction beasts on the planet. It’s the easiest, most refined, feature-rich system that money can buy. But, don’t take our word for it, see what the best are saying about Holley EFI!
