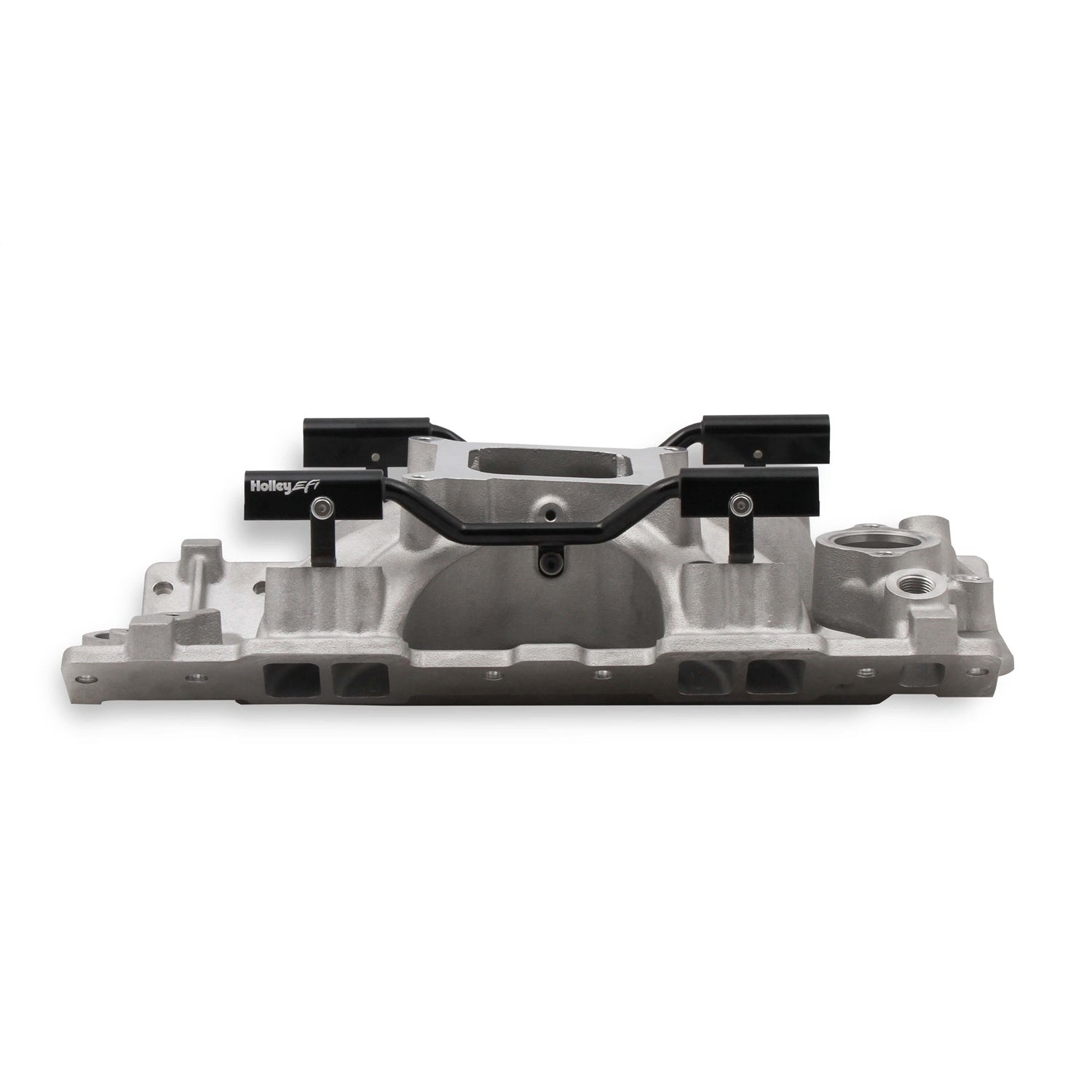

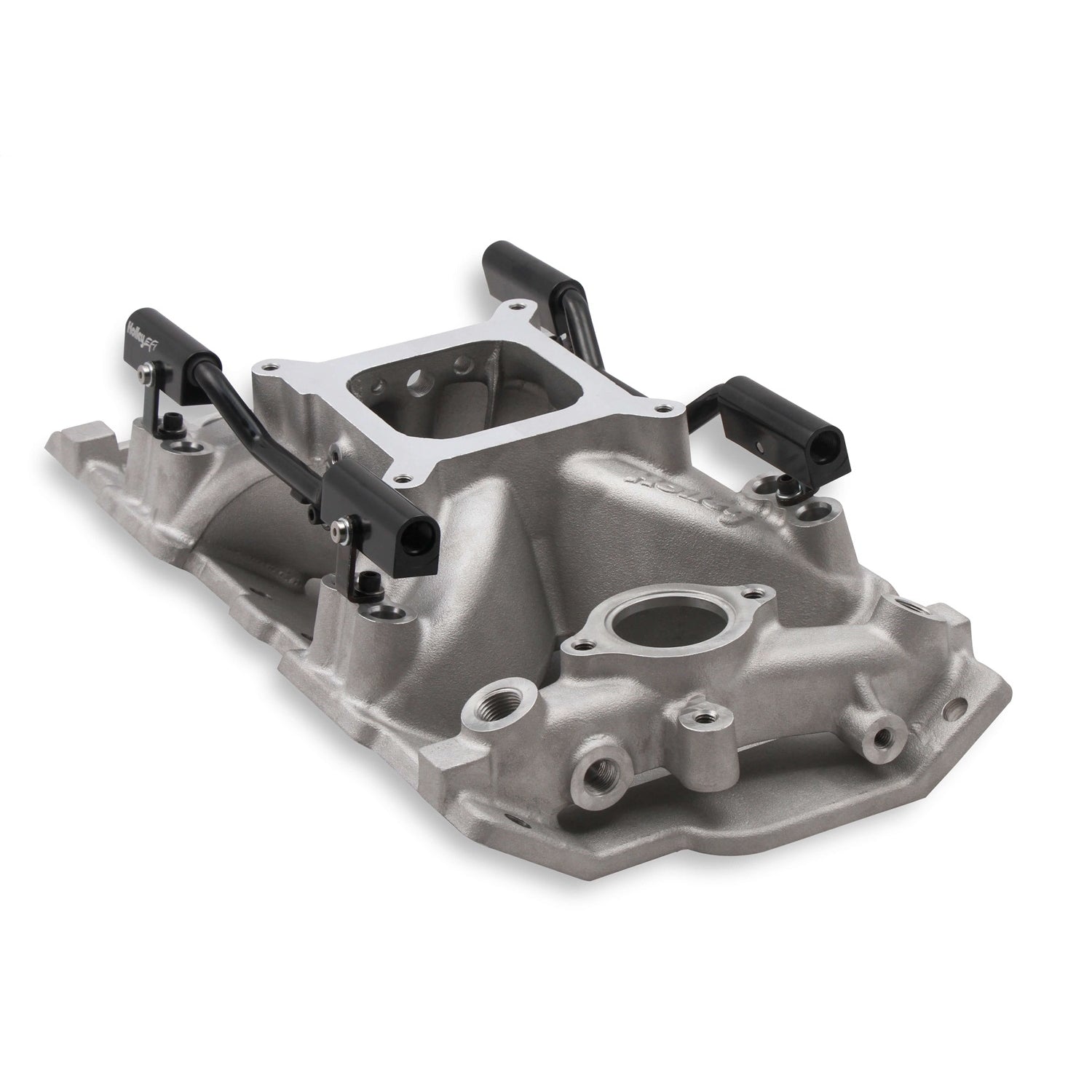

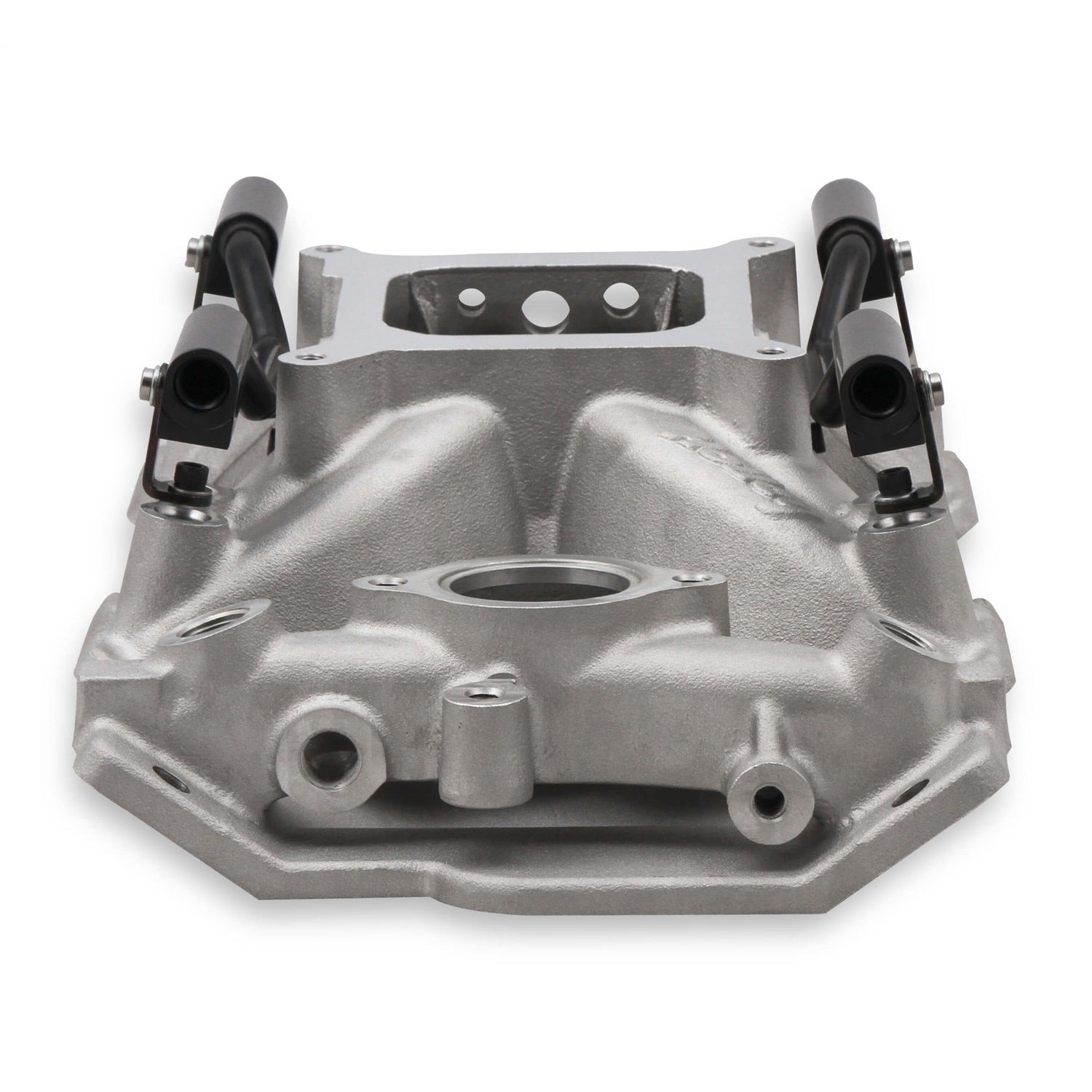

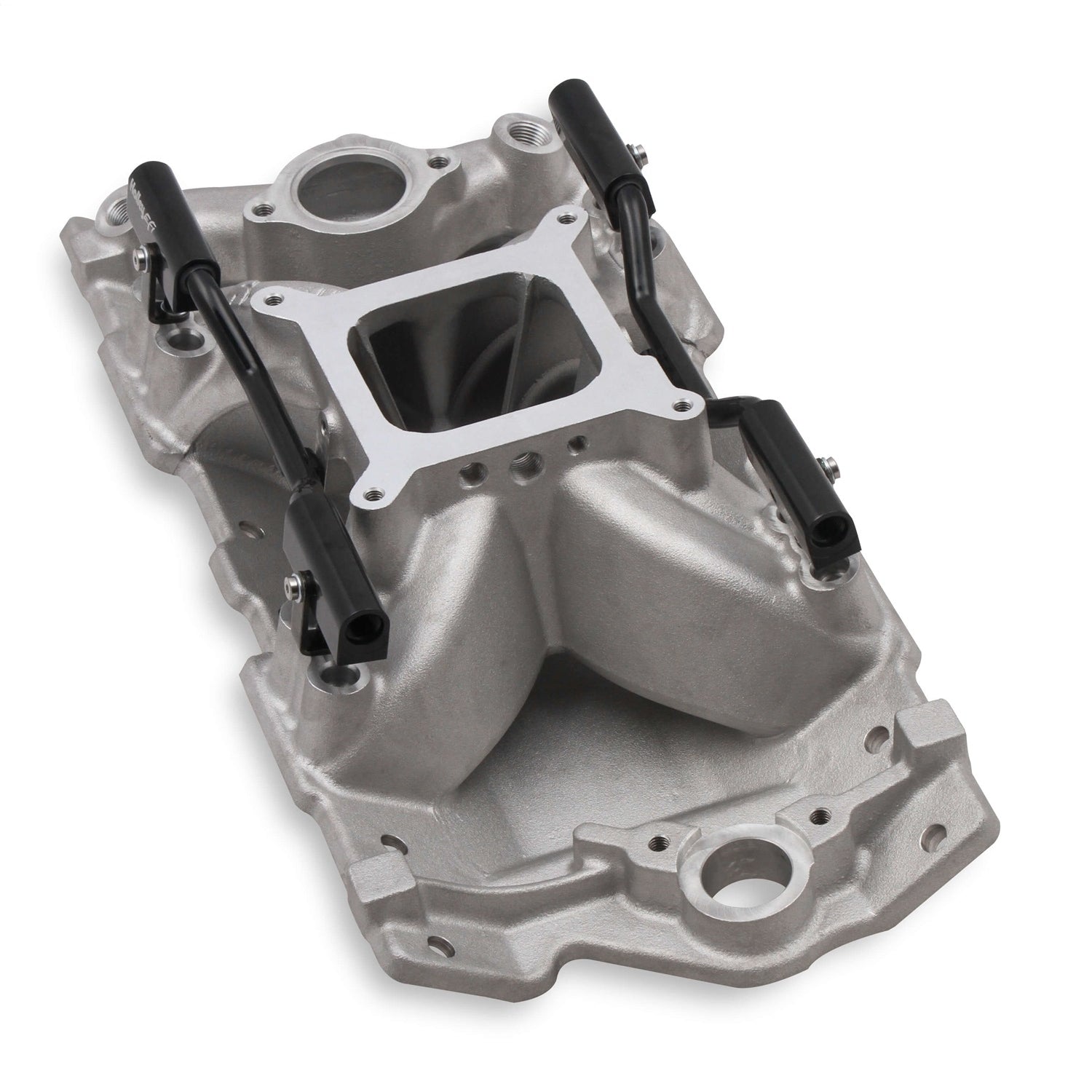

Holley EFI Intake Manifold - Square Bore - Single Plane - Rectangle Port - Aluminum - Small Block Chevy

Modification to the valve covers may be required when this manifold is used with some types of cylinder heads. The fuel rail inlet threads are 9/16-18 for a -6 port.

4150 Square Bore Mounting Flange

Power band: 2500-7500 RPM

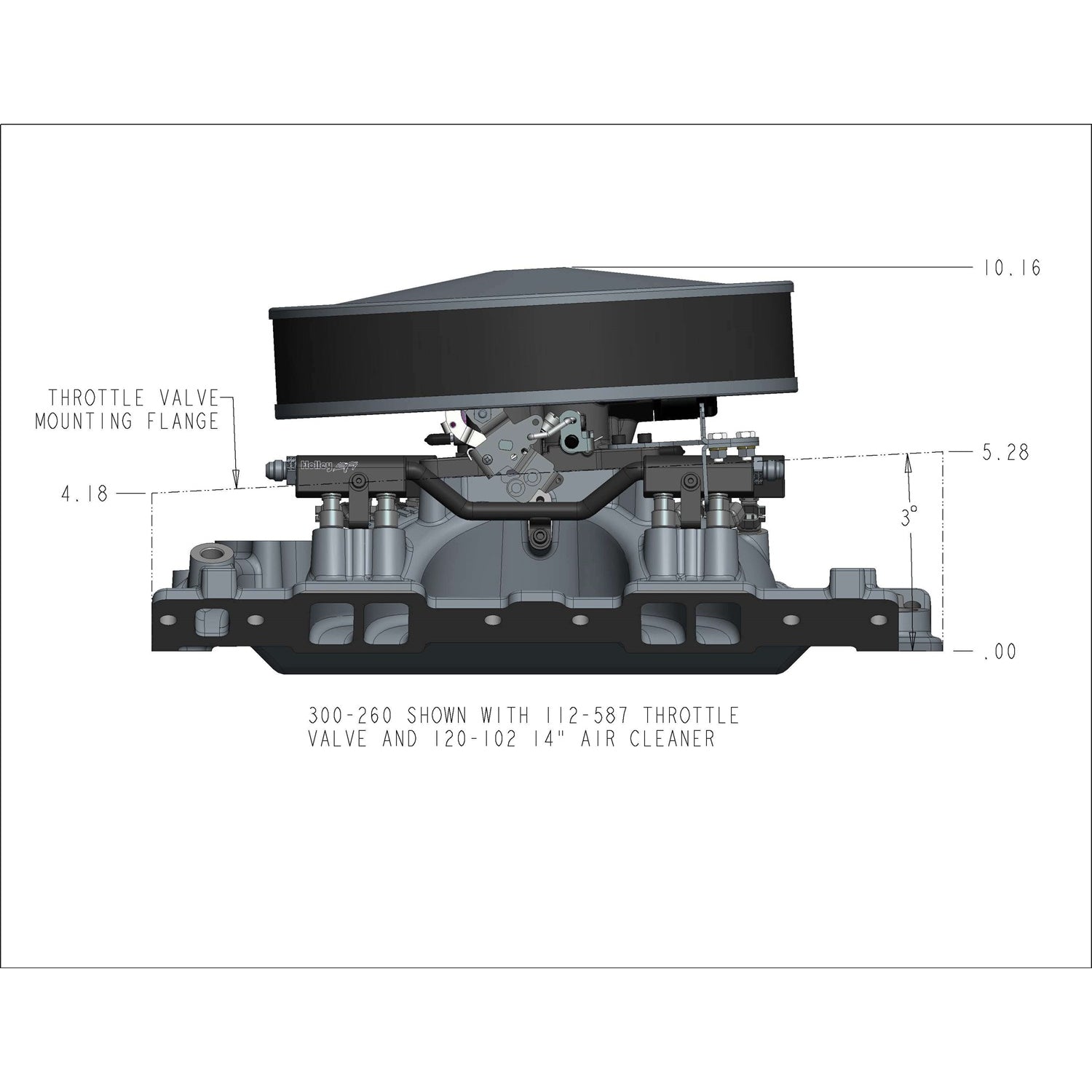

Height: Front 4.18", Rear 5.28"

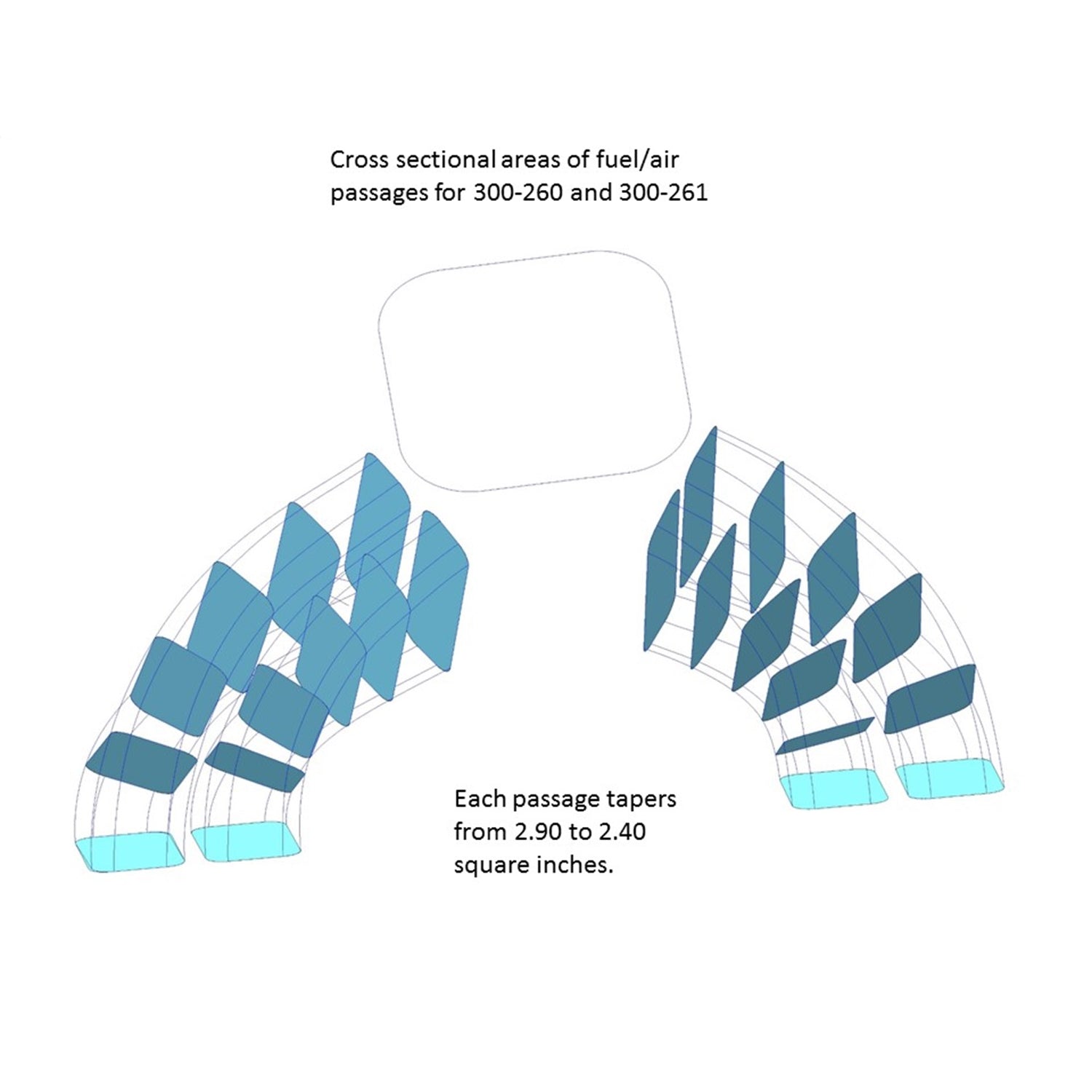

Port Size: 1.92" height 1.20" width

Lower Throttle Body Mounting height to help with hood clearance.

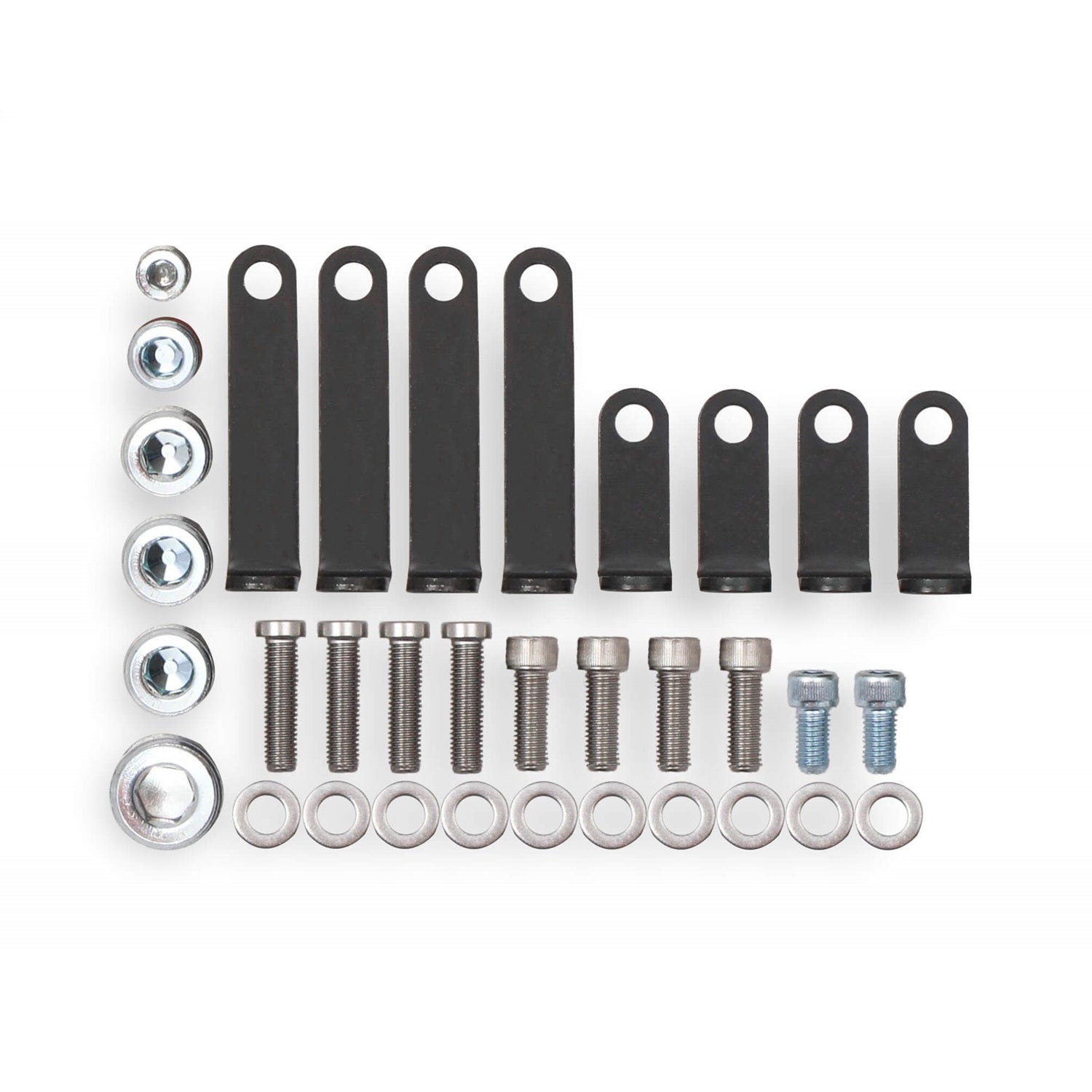

Holley laser etched logos on the black coated fuel rails and bracket assortment are included so that you can install the injectors of your choice.

Fuel injectors are not included

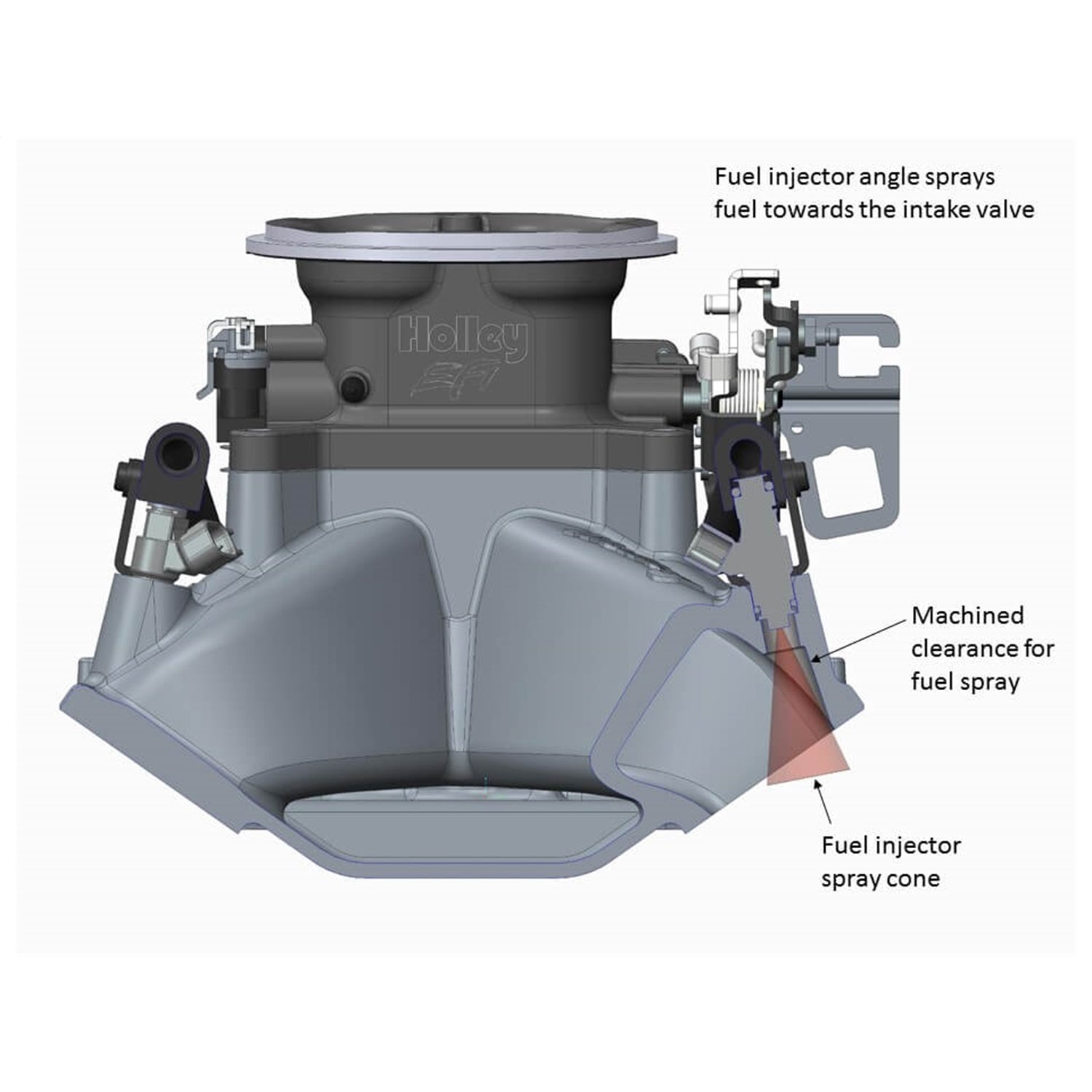

Fuel rail designed for maximum throttle lever clearance.

Product Description:

Intake Manifold

EFI

Square Bore

Single Plane

Rectangle Port

Aluminum

Natural

Small Block Chevy

Sold Individually

Holley is quickly becoming The New Standard In EFI! Holley’s HP ECU is standard equipment on the 2013/2014 Chevrolet COPO Camaro and Holley’s EFI throttle body powers every NASCAR Sprint Cup Series™ team. Top racers are making the switch to Holley EFI every day. Racers like Tom Bailey who set three new records and took the overall event win on the 2013 Hot Rod Magazine Drag Week and John Scali who used it to win the 2013 JEGS All-Star race. But that’s not all. The world’s best hot rod builders and tuners are making the switch to Holley EFI. Builders like Dave Lane who used Holley EFI to power the 2013 Goodguys Hot Rod of the Year and tuners like Steve Morris who use it to build some of the baddest forced induction beasts on the planet. It’s the easiest, most refined, feature-rich system that money can buy. But, don’t take our word for it, see what the best are saying about Holley EFI!
