Holley EFI HP ECU & Harness LS1/LS6 NTK

GM LS1/LS6 (24x crank sensor) with Jetronic/Minitimer (Bosch type) connectors on injector harness (fits Holley 522-xxx injectors), Includes NTK Oxygen Sensor

Holley is quickly becoming The New Standard In EFI! Holley's HP ECU is standard equipment on the 2013/2014 Chevrolet COPO Camaro and Holley's EFI throttle body powers every NASCAR Cup Series team. Top racers are making the switch to Holley EFI every day. Racers like Tom Bailey who set three new records and took the overall event win on the 2013 Hot Rod Magazine Drag Week and John Scali who used it to win the 2013 JEGS All Star race. But that's not all. The world's best street machine builders and tuners are making the switch to Holley EFI. Builders like Dave Lane who used Holley EFI to power the 2013 Goodguys Hot Rod of the Year and tuners like Steve Morris who use it to build some of the baddest forced induction beasts on the planet. It's the easiest, most refined, feature-rich system that money can buy. But, don't take our word for it, see what the best are saying about Holley EFI!

Holley is quickly becoming The New Standard In EFI! Holley's HP ECU is standard equipment on the 2013/2014 Chevrolet COPO Camaro and Holley's EFI throttle body powers every NASCAR Cup Series team. Top racers are making the switch to Holley EFI every day. Racers like Tom Bailey who set three new records and took the overall event win on the 2013 Hot Rod Magazine Drag Week and John Scali who used it to win the 2013 JEGS All Star race. But that's not all. The world's best street machine builders and tuners are making the switch to Holley EFI. Builders like Dave Lane who used Holley EFI to power the 2013 Goodguys Hot Rod of the Year and tuners like Steve Morris who use it to build some of the baddest forced induction beasts on the planet. It's the easiest, most refined, feature-rich system that money can buy. But, don't take our word for it, see what the best are saying about Holley EFI!

ECU is certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance.

Holley HP EFI systems are equipped with 4 programmable inputs and 4 programmable outputs that are ideal for most vehicles with a single power adder. This feature allows the user to configure the system to support a wide range of controls including boost control, progressive nitrous, water/meth injection, speed inputs, fuel pump control, AC inputs, timing retard inputs and various other uses. When selecting an ECU, users need to ensure their planned controls can be run with the 4 inputs and 4 outputs as certain combinations may use more I/Os than are available. If more I/Os are required, users should choose the Dominator VMS.
Software and firmware updates can be downloaded here for free.

More Functionality - Provides significantly more functionality than OEM or other competitive ECUs (boost control, nitrous control, water/meth injection, plus a host of additional inputs and outputs to control fans, pumps, relays etc.)

Easy To Use - Laptop programmable ECU includes a variety of base maps that will have you hitting the cruise or track in no time

Ideal For Everything - including stock 5.3L engine swaps or all out, 3,000+ horsepower race cars that need a simple and powerful ECU and harness solution

Industry Leading Self Tuning Fuel Strategy - means less time tuning and more time enjoying the power of your LS vehicle

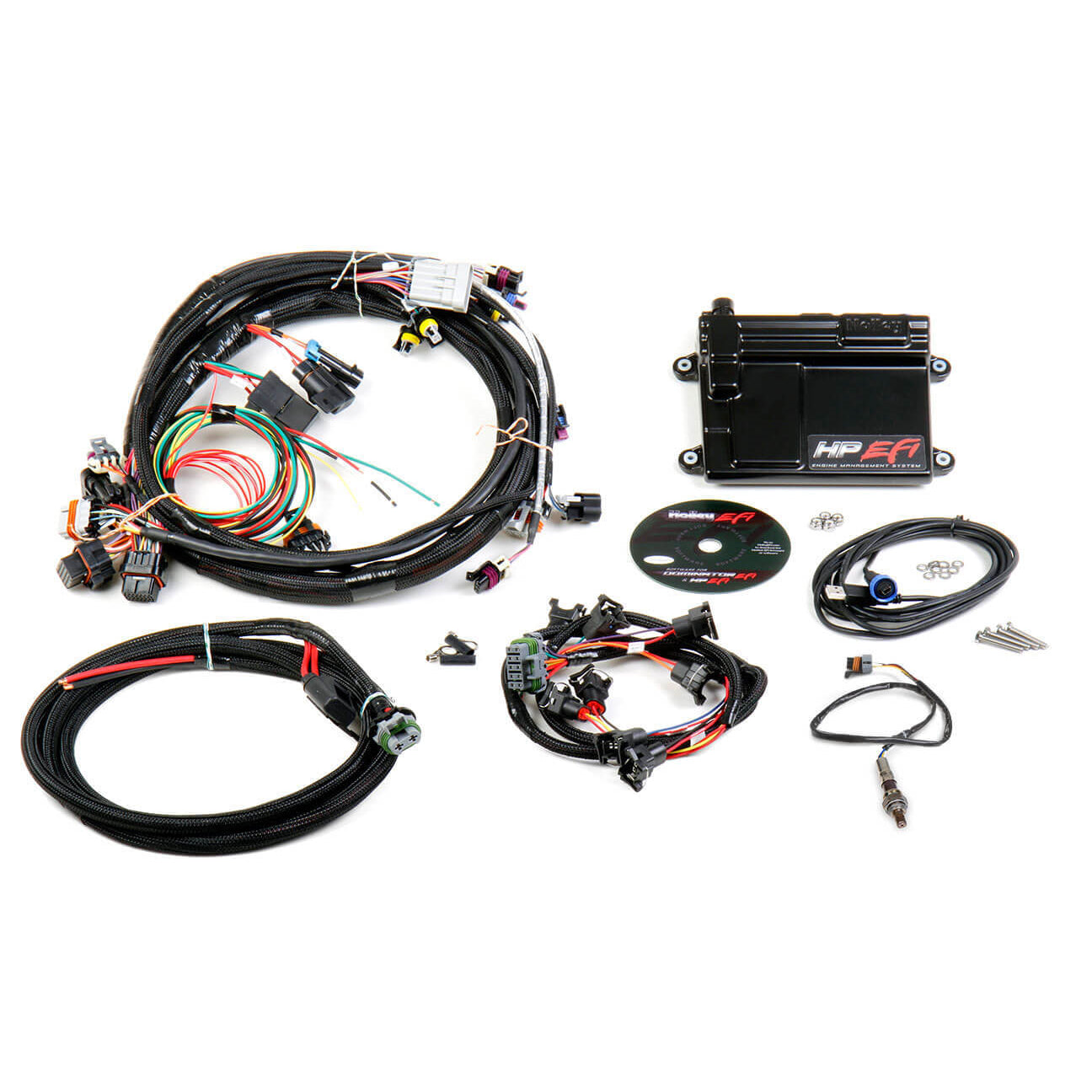

Kit includes ECU, harness, communication cable, software and and NTK wideband 02 sensor designed to be used with GM LS1/LS6 engines with factory GM coils and a 24 tooth crank sensor

The NTK Oxygen Sensor is recommended when using leaded or methanol fuels, high exhaust temperatures and forced induction applications or for highest precision feedback

ECU is fully potted and can be mounted in the engine compartment or interior

Sealed automotive and marine grade connectors

1-5 Bar MAP sensor capability

Optional plug and play hand-held programmer, 5.7" touchscreen and digital gauges are available for ultimate control and vehicle monitoring

ECU is certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance

For a full list of advanced features such as boost, nitrous, water/meth, individual cylinder control and more click the document icon under the product image!

Product Description:

Engine Control Module

HP EFI

Wiring Harness

NTK Oxygen Sensor

24x Reluctor Wheel

LS1 / LS6

GM LS-Series

Kit

Holley is quickly becoming The New Standard In EFI! Holley’s HP ECU is standard equipment on the 2013/2014 Chevrolet COPO Camaro and Holley’s EFI throttle body powers every NASCAR Sprint Cup Series™ team. Top racers are making the switch to Holley EFI every day. Racers like Tom Bailey who set three new records and took the overall event win on the 2013 Hot Rod Magazine Drag Week and John Scali who used it to win the 2013 JEGS All-Star race. But that’s not all. The world’s best hot rod builders and tuners are making the switch to Holley EFI. Builders like Dave Lane who used Holley EFI to power the 2013 Goodguys Hot Rod of the Year and tuners like Steve Morris who use it to build some of the baddest forced induction beasts on the planet. It’s the easiest, most refined, feature-rich system that money can buy. But, don’t take our word for it, see what the best are saying about Holley EFI!
