Universal V8 Multi-Point Fuel Injection, Includes Bosch Oxygen Sensor
Holley is quickly becoming The New Standard In EFI! Holley's HP ECU is standard equipment on the 2013/2014 Chevrolet COPO Camaro and Holley's EFI throttle body powers every NASCAR Cup Series team. Top racers are making the switch to Holley EFI every day. Racers like Tom Bailey who set three new records and took the overall event win on the 2013 Hot Rod Magazine Drag Week and John Scali who used it to win the 2013 JEGS All Star race. But that's not all. The world's best street machine builders and tuners are making the switch to Holley EFI. Builders like Dave Lane who used Holley EFI to power the 2013 Goodguys Hot Rod of the Year and tuners like Steve Morris who use it to build some of the baddest forced induction beasts on the planet. It's the easiest, most refined, feature-rich system that money can buy. But, don't take our word for it, see what the best are saying about Holley EFI!
Holley is quickly becoming The New Standard In EFI! Holley's HP ECU is standard equipment on the 2013/2014 Chevrolet COPO Camaro and Holley's EFI throttle body powers every NASCAR Cup Series team. Top racers are making the switch to Holley EFI every day. Racers like Tom Bailey who set three new records and took the overall event win on the 2013 Hot Rod Magazine Drag Week and John Scali who used it to win the 2013 JEGS All Star race. But that's not all. The world's best street machine builders and tuners are making the switch to Holley EFI. Builders like Dave Lane who used Holley EFI to power the 2013 Goodguys Hot Rod of the Year and tuners like Steve Morris who use it to build some of the baddest forced induction beasts on the planet. It's the easiest, most refined, feature-rich system that money can buy. But, don't take our word for it, see what the best are saying about Holley EFI!
ECU is certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance.
Holley HP EFI systems are equipped with 4 programmable inputs and 4 programmable outputs that are ideal for most vehicles with a single power adder. This feature allows the user to configure the system to support a wide range of controls including boost control, progressive nitrous, water/meth injection, speed inputs, fuel pump control, AC inputs, timing retard inputs and various other uses. When selecting an ECU, users need to ensure their planned controls can be run with the 4 inputs and 4 outputs as certain combinations may use more I/Os than are available. If more I/Os are required, users should choose the Dominator VMS.
Software and firmware updates can be downloaded here for free.
Eight sequentially driven 8:2 peak and hold injector drivers, capable of driving up to 16 low or high impedance injectors as a standard feature. Multiple staged injector strategies Eight channel Distributorless Ignition (DIS)outputs capable of directly driving ΓÇ £Smart" ignition coils or Holley DIS coils. Will drive 2 wire coils with the addition of PN 554-112 high current coil driver module Integrated single channel wide band oxygen sensor control. Works with NTK or Bosch sensors Internal data-logging standard with a huge 2GB of memory 4 Stage progressive nitrous control Turbo boost control Self-tuning fuel table strategy greatly simplifies tuning process Individual cylinder fuel and spark control allows you to unlock your engine's potential Works with 4, 6, 8 cylinder engines Unique lb/hr based fueling strategy greatly simplifies and commonizes tuning Advanced idle, closed loop, and enrichment strategies allow for very stable operation ECU is fully potted and can be mounted in the engine compartment or interior Sealed automotive and marine grade connectors Allows for use of common OEM sensors as well as customer sensor calibration input Ignition Plug and Play with GM HEI, Ford TFI, magnetic and hall effect trigger, and other ignition systems. New Plug and Play applications in process. Custom settings can be configured to allow many other applications 1-5 Bar MAP sensor capability Two channel knock control sensor Inputs for both one or two wire knock sensors Dedicated fuel and oil pressure inputs Controls both stepper and PWM Idle Air Control (IAC) motors Speed density, Alpha-N, or combination fueling strategies 4 Programmable high or low Pulse Width Modulated (PWM) outputs and 4 fully configurable inputs can be configured for use 4 Stage nitrous oxide control Fully featured nitrous control eliminates the need for a separate nitrous controller device Can be configured ΓÇ £Wet" or ΓÇ £Dry" with closed loop feedback Progressive control based on time, RPM, or boost, requires part # 554-111 Lean or rich safety cutoff Full timing retard/control configurability per stage based on RPM or time Integrated Water/Methanol injection control Uses Holley Water/Meth solenoids specially designed and calibrated for use with this EFI system to allow the user to enter Water/Meth flow as a percentage of fuel injector flow for Water/Meth tuning precision unmatched in the industryProduct Description:

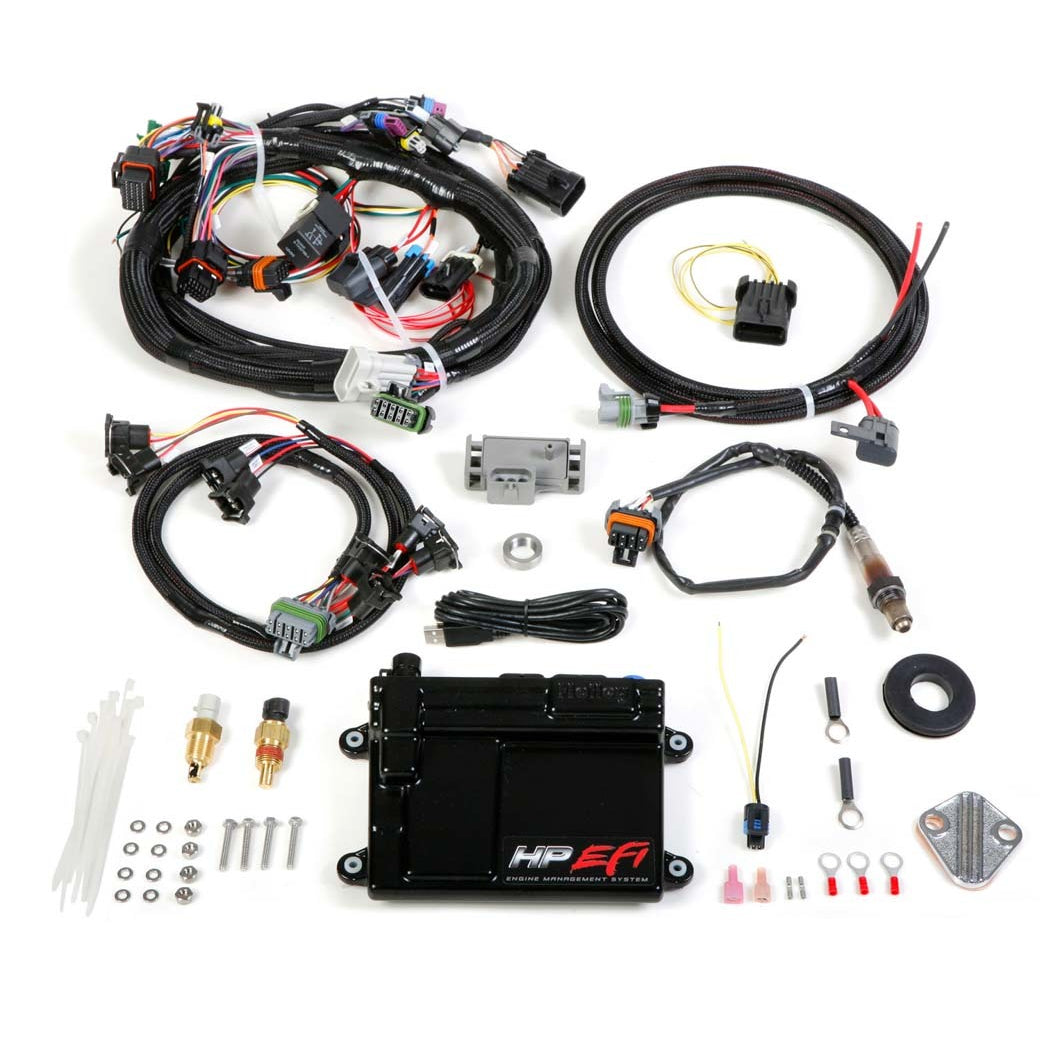

Engine Control Module HP EFI Wiring Harness V8 Multi Port Fuel Injection KitHolley is quickly becoming The New Standard In EFI! Holley’s HP ECU is standard equipment on the 2013/2014 Chevrolet COPO Camaro and Holley’s EFI throttle body powers every NASCAR Sprint Cup Series™ team. Top racers are making the switch to Holley EFI every day. Racers like Tom Bailey who set three new records and took the overall event win on the 2013 Hot Rod Magazine Drag Week and John Scali who used it to win the 2013 JEGS All-Star race. But that’s not all. The world’s best hot rod builders and tuners are making the switch to Holley EFI. Builders like Dave Lane who used Holley EFI to power the 2013 Goodguys Hot Rod of the Year and tuners like Steve Morris who use it to build some of the baddest forced induction beasts on the planet. It’s the easiest, most refined, feature-rich system that money can buy. But, don’t take our word for it, see what the best are saying about Holley EFI!
