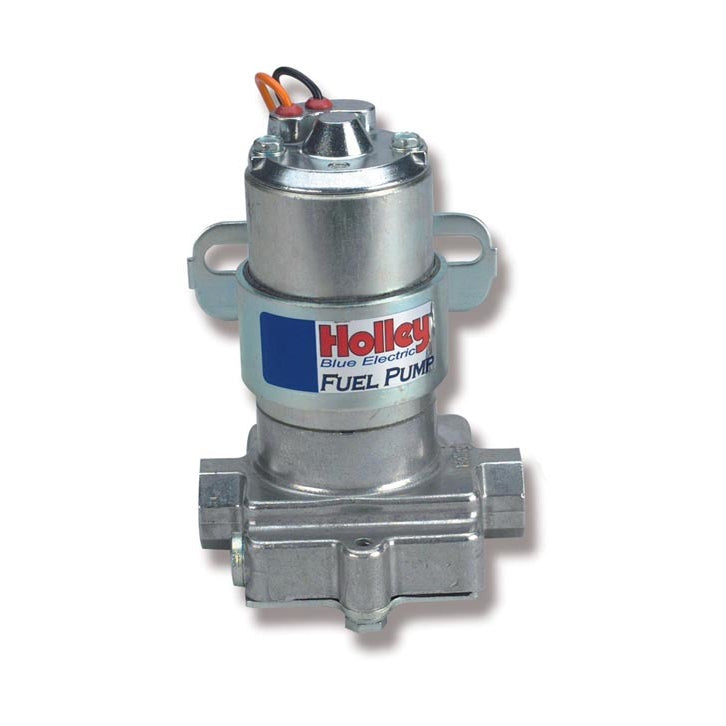

The world famous Red, Blue and Black fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package.
Features: Tumble polished billet look Lower housing casting designed for enhanced fuel flow and quiet operation Motor draws only 3 amps current 7 1/2 amp fuse recommended Improved design for street/strip applications Not designed for use on aircraft of any type. Distinctive OE Blue logo Flows 110 GPH (free flow) Flows 88 GPH at 9 psi maximum pressure is 14 psi Provides constant fuel flow with no pulsation Has externally accessible pressure relief valve (max 14 psi) Rotor/vane pump design is more tolerant of contaminated fuels Weighs only 3 lbs. Includes mounting bracket Repair kits are readily available Can be serviced from the pump end Not compatible with alcohol or methanol fuels Use of safety shut-off switch, P/N 12-810, strongly recommended Not designed or recommended for use with fuel injection systems Fuel pressure regulator not included SPECS: Application: Universal
Bracket Color: Silver Brand: Holley Emission Code: 3 Free Flow GPH: 110 Free Flow LPH: 416 Fuel System: Carbureted Fuel Type: Gasoline Inlet Size: 3/8 inch NPT Material: Aluminum Motor Finish: Silver Outlet Size: 3/8 inch NPT Product Type: Fuel Pump Pump Body Color: Silver Part Number: 12-812-1 Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

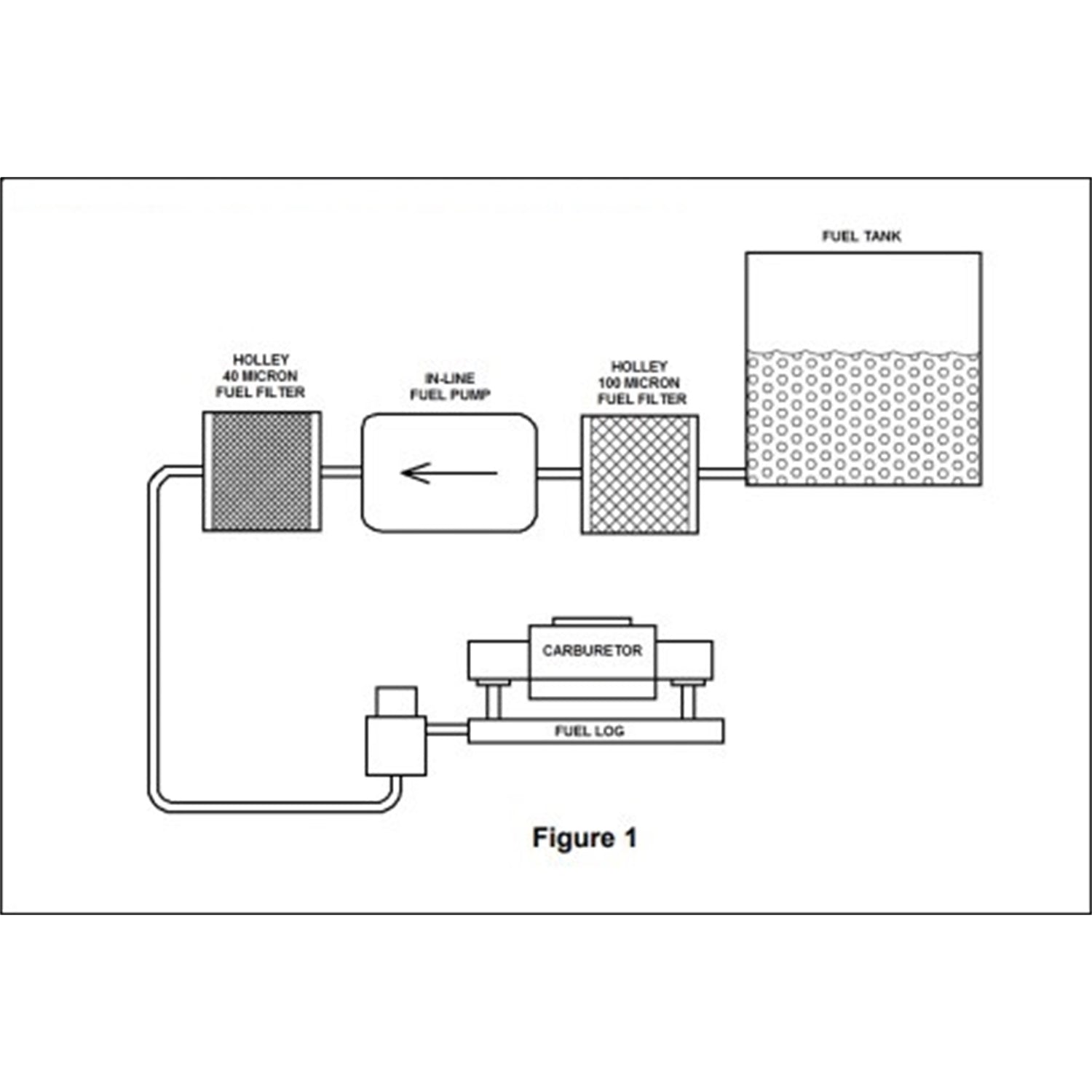

Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. These should be used with 12 volt systems only.
Lower housing casting designed for enhanced fuel flow and quiet operation Motor draws only 3 amps current 7 1/2 amp fuse recommended Improved design for street/strip applications Not designed for use on aircraft of any type. Distinctive ΓÇ £Blue" logo Flows 110 GPH (free flow) Flows 88 GPH at 9 psi maximum pressure is 14 psi Provides constant fuel flow with no pulsation Has externally accessible pressure relief valve (max 14 psi) Rotor/vane pump design is more tolerant of contaminated fuels Weighs only 3 lbs Includes mounting bracket Repair kits are readily available Can be serviced from the pump end Not compatible with alcohol or methanol fuels Use of safety shut-off switch, P/N 12-810, strongly recommended Not designed or recommended for use with fuel injection systems Fuel pressure regulator not includedProduct Description:
Fuel Pump Electric In-Line 88 gph at 9 psi 3/8 in NPT Female Inlet / Outlet Bracket Included Aluminum Silver Gas Sold IndividuallyFor over a century Holley has driven the cutting edge of fuel-system design. That work continues today through Holley’s market-leading EFI products as well as through Holley’s family of best-in-industry brands. Top brands like MSD, Flowmaster, Hurst, Accel, and many more make up the industry’s leading offering of enthusiast-driven products to deliver robust, complete performance solutions for builders, racers, and drivers. From propelling the LS-, Coyote-, and Gen 3 Hemi-swap trends, to continuously innovating late-model and vintage vehicle performance, Holley’s commitment to its customers and their cars is at the core of everything we do.
