The amazing HydraMat® is Holley's patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. HydraMat is the solution! Surface tension and fluid wicking are the secrets of the HydraMat, giving it the amazing ability to draw from nearly any area that has contact with fuel and then store it in its internal reservoir. As an area of the HydraMat is uncovered, the tiny pores of the media seal off through surface tension, forcing fuel to be contained in the reservoir and drawn from other areas of the mat where fuel continues to be available. The sheer size and coverage area of the HydraMat allows it to pull fuel from virtually any area in the tank or cell eliminating the need for specialty reservoirs and pick up pumps saving cost and greatly reducing complexity. HydraMats are available in various sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells.
Features: Patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells
Greatly reduces the potential for air to enter into the fuel system which can result in poor engine performance and/or engine stalling
Perfect for vehicles experiencing fuel starvation during hard cornering, acceleration, stopping, inclines, and low fuel conditions
Surface tension and fluid wicking allow the HydraMat to continue to draw fuel from the tank or cell even when part of the mat uncovered
As an area of the HydraMat is uncovered, tiny pores in the media seal off through surface tension, forcing fuel to be drawn from other areas of the mat where fuel continues to be available
Unique internal reservoir assists in keeping fuel available at the pickup even under extreme fuel slosh conditions
Eliminates the need for specialty reservoirs, sumps and pick up pumps saving cost and greatly reducing complexity
Also acts as a 15 micron pre-filter eliminating the need for a separate filter before the fuel pump
Can be folded and compressed for easy installation through a variety of fuel cell openings
HydraMats are also available in other sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells
Works with Alcohol, Ethanol, Methanol, and E-85 fuels
Works with 2-cycle oil blends as high as 20:1
Not for use with most oils (see previous point for exceptions)

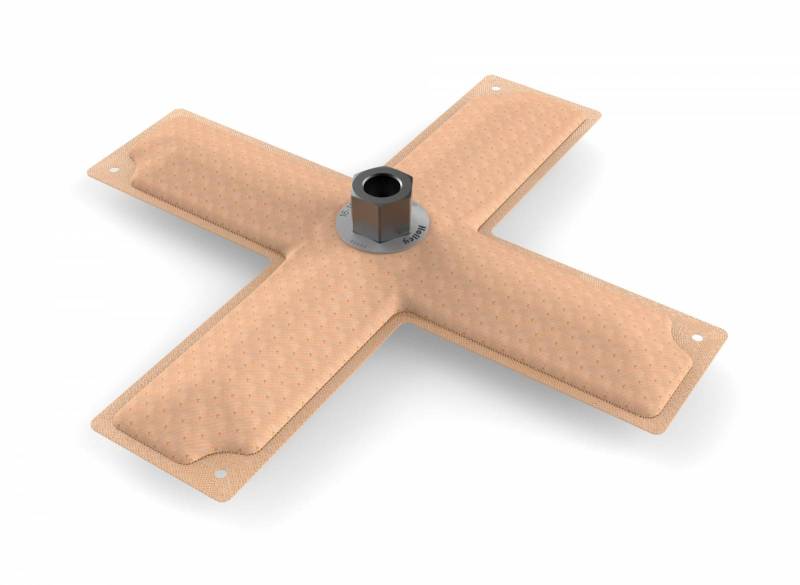

Not for use with diesel fuelsProduct Description: Fuel Pickup Reservoir, HydraMat, Cross, 11 in x 11 in, 3/8 in NPT Female Outlet, Center Outlet, Universal Fuel Pickup Reservoir, HydraMat, Cross, 11 in x 11 in, 3/8 in NPT Female Outlet, Center Outlet, UniversalPit Stop USA offers Holley 11" x 11" HydraMat®, Cross 16-104 at low everyday prices. Be sure to check out all our products from Holley Performance Products including Holley Fuel Cell/Tank Pickups.
This to fit flat bottom rectangular style fuel cells with minimum dimensions of 11" long and 11" wide cross
For best performance, the return fuel should be discharged near the pick-up of the HydraMat at a minimum distance of 1 inch above the mat.
HydraMats with a female NPT thread do not require the use of a sealing paste or tape. Use of a sealing paste or tape could result in fuel pump failure.
For in-tank fixed stud mounting, Click Bond stud kits are recommended.  Kits can be purchased from aircraft supply retailers such as Aircraft Spruce.
Greatly reduces the potential for air to enter into the fuel system which can result in poor engine performance and/or engine stalling Perfect for vehicles experiencing fuel starvation during hard cornering, acceleration, stopping, inclines, and low fuel conditions Surface tension and fluid wicking allow the HydraMat to continue to draw fuel from the tank or cell even when part of the mat uncovered As an area of the HydraMat is uncovered, tiny pores in the media seal off through surface tension, forcing fuel to be drawn from other areas of the mat where fuel continues to be available Unique internal reservoir assists in keeping fuel available at the pickup even under extreme fuel slosh conditions Eliminates the need for specialty reservoirs, sumps and pick up pumps saving cost and greatly reducing complexity Also acts as a 15 micron pre-filter eliminating the need for a separate filter before the fuel pump Can be folded and compressed for easy installation through a variety of fuel cell openings HydraMats are also available in other sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells Works with Alcohol, Ethanol, Methanol, and E-85 fuels Works with 2-cycle oil blends as high as 20:1 Not for use with most oils (see previous point for exceptions) Not for use with diesel fuelsProduct Description:
Fuel Pickup Reservoir HydraMat Cross 11 in x 11 in 3/8 in NPT Female Outlet Center Outlet Universal Sold IndividuallyFor over a century Holley has driven the cutting edge of fuel-system design. That work continues today through Holley’s market-leading EFI products as well as through Holley’s family of best-in-industry brands. Top brands like MSD, Flowmaster, Hurst, Accel, and many more make up the industry’s leading offering of enthusiast-driven products to deliver robust, complete performance solutions for builders, racers, and drivers. From propelling the LS-, Coyote-, and Gen 3 Hemi-swap trends, to continuously innovating late-model and vintage vehicle performance, Holley’s commitment to its customers and their cars is at the core of everything we do.
