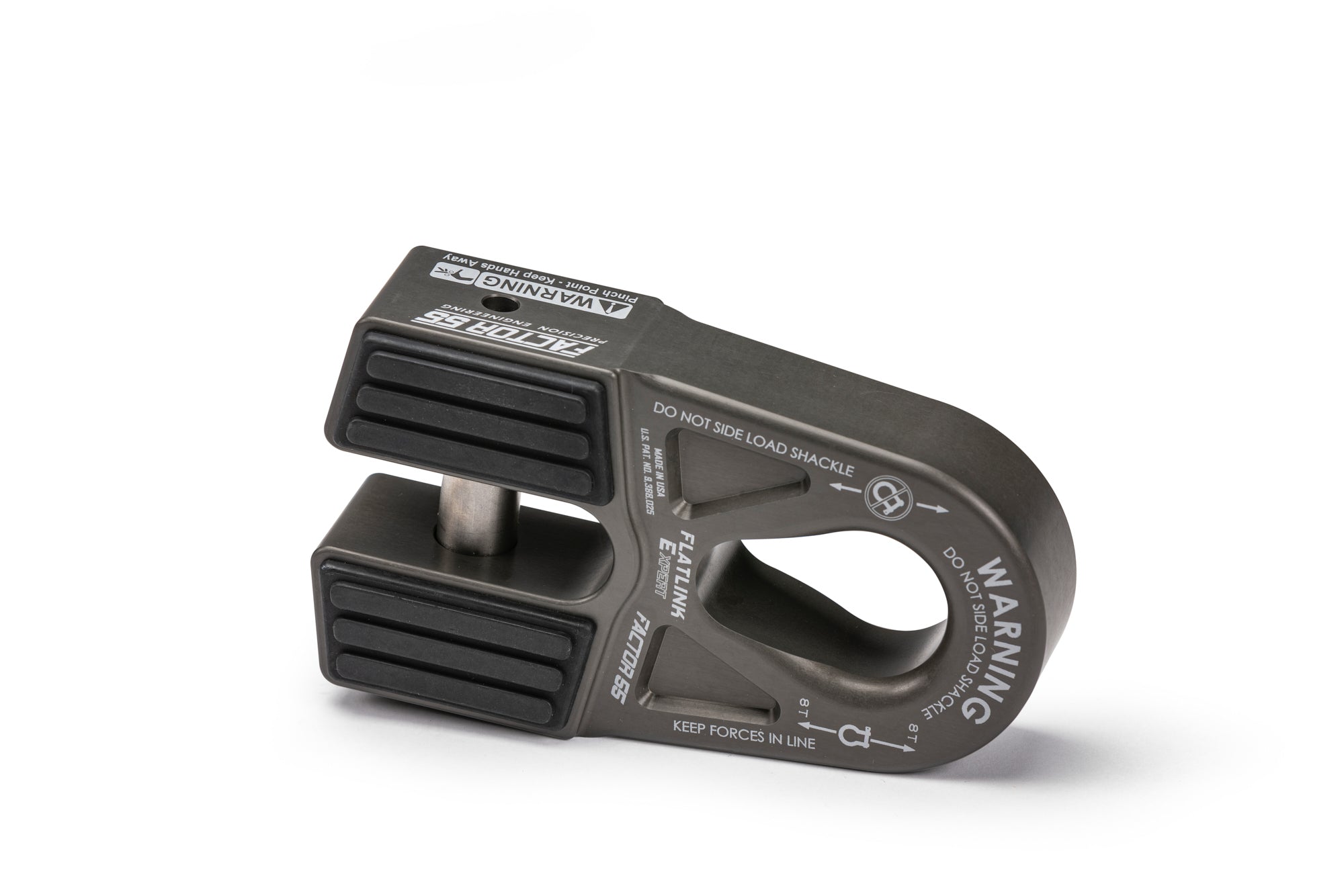

Factor 55 FlatLink-E Shackle Mount - Gray
The FlatLink E (Expert) is a variation of our popular foldable standard FlatLink winch shackle mount. The FlatLink E provides a means to eliminate the conventional winch hook and replace it with a safer and more secure screw pin shackle resulting in a Closed System Winching operation.The large pear shaped shackle mounting hole allows for attachment to either the pin or bow end of common screw pin shackles, as well as common OEM recovery points. This makes the new FlatLink E more versatile than the current FlatLink design, but it also adds the possibility of a dangerous shackle side loading condition (See Picture), especially during momentary slack conditions. A shackle side loading condition is not possible with our standardFlatLink shackle mount due to the shackle pin mounting constraint. For the recreational off roader we highly recommend the safer standard FlatLink product, not the FlatLink E. This way the winch operator does not have to monitor whether the shackle may have shifted and rotated in the recovery tackle.The FlatLink E is only available in the Military Specification Anodizing (Mil-A-8625 F Type III) hard anodized gray finish.Conventional winch hooks can cut and fray recovery straps and often allow strap ends to escape during momentary slack cycles of a typical winching recovery. Screw pin shackles do not allow strap loops to escape due to their secure screw pin attachment. The FlatLink E does not require splicing and is compatible with steel cables or synthetic ropes up to 3/8 inches in diameter. The cable eye is retained in the FlatLink E by a 5/8 inch diameter 6Al4VTitanium double shear pin and internal snap ring. Installation takes only minutes. The EPDM Rubber Guards protect alloy fairleads and are securely attached to the FlatLink E with 4 barbed tips each. The FlatLink E stows neatly against either roller or Hawse type fairleads and is designed to be used with common 3/4 inch shackles.Features:Color: Anodized GrayMade in the USAPrecision machined from 6000 series billet aluminumCompatible with all roller fairlead license plate mounting bracketsWhen folded flat - less than 1.75 inches of thicknessWeight - 26 ouncesMax load rating : 16,000 poundsUltimate failure : greater than 40,000 poundsFits steel cables and synthetic winch ropes to 3/8 inch diametersEPDM Rubber Guard protects alloy fairleads and cushions line stowageSimple snap ring removal for shear pinFits common 3/4 shackles/D-RingsEliminates hook rattle and fairlead damage
Product Description:
Located in Boise, Idaho we are an engineering design firm specializing in mechanical design and analysis. Our staff has extensive experience in the Aerospace, Defense, and semiconductor industry but we have always been passionate about off roading through out our careers. All of our products are designed in house using the latest 3D CAD software and optimized using Cosmos FEA ( Finite Element Analysis). Before we release any products to the public, we also perform a destructive test on each design with the assistance of a test facility equipped with test measurement and data recording equipment. We take great pride in knowing all of our products are derived from sound engineering disciplines.
Why go through all of this for the off road market? Simple, we want to make sure we are producing the highest quality, best value products for our customers.
