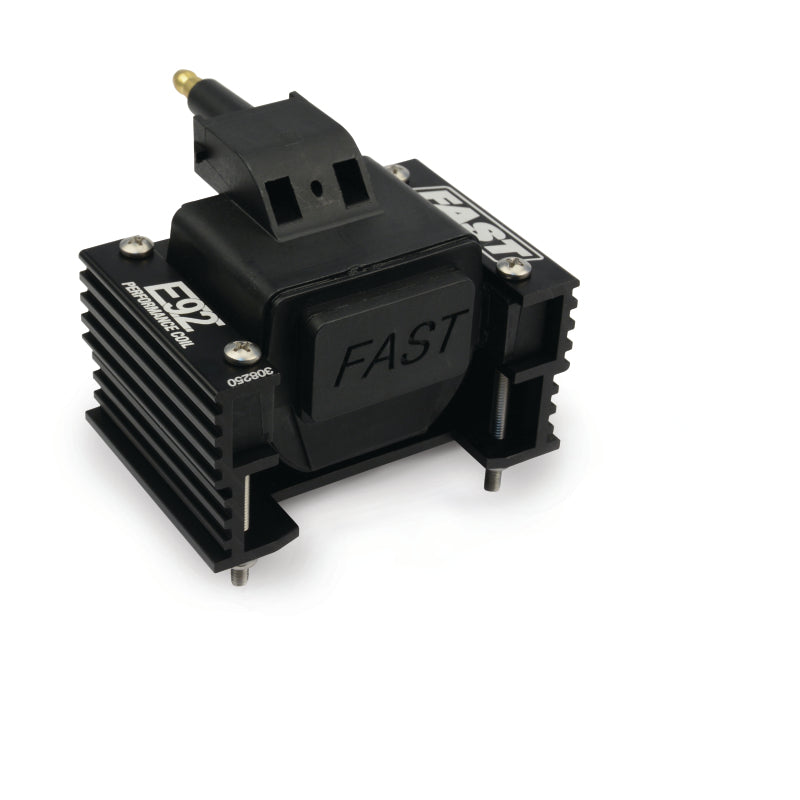

The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded metal housing provides a durable mount and acts as an effective heat sink as well.
The E92 features the more efficient E-Core Construction
Primary resistance .20 ohms, secondary resistance .82 ohms; Primary inductance 1.9mH, secondary inductance 6.8 mH; High-output E-core coils for race and street; Up to 70% higher energy at the spark plug than stockfor maximum performance, race or street; E-core design with closed magnetic path reduces leakage and improves energy transfer to the spark plug, for maximum ignition performance.; Plastic overmolded core with improved urethane encapsulation material provides protection against severe shock, harsh vibration, and high voltage breakdown by eliminating the exposed E-core; Insulated primary connector for enhanced safety with mating connector included; Improved coil wire retention and longer creep path protects against high voltage arcing; 50 state legal CARB E.O. D-225-60 Plastic overmolded core with improved urethane encapsulation material provides protection against severe shock, harsh vibration, and high voltage breakdown by eliminating the exposed E-core E-core design with closed magnetic path reduces leakage and improves energy transfer to the spark plug, for maximum ignition performance. Up to 70% higher energy at the spark plug than stock for maximum performance, race or street Improved coil wire retention and longer creep path protects against high voltage arcing Insulated primary connector for enhanced safety with mating connector included Primary resistance .20 ohms, secondary resistance .82 ohms Primary inductance 1.9mH, secondary inductance 6.8 mH High-output E-core coils for race and street 50 state legal CARB E.O. D-225-60FAST is the leading developer of electronic fuel injection systems, EFI components, intake manifolds, tuning tools for high performance and street applications. For over 10 years, FAST™ has been recognized as the leading developer of advanced electronic fuel injection technology. Our engineers have ignited new sparks never before seen in the EFI performance aftermarket year after year. With technical assistance that is beyond comparison, FAST™ has been able to build close relationships with customers. Many of these relationships have helped our Research & Development team stay on top simply by listening to the needs of our customers.
Product Descripton:
Ignition Coil E92 E-Core 0.230 ohm Male HEI Black / Red Sold Individually
