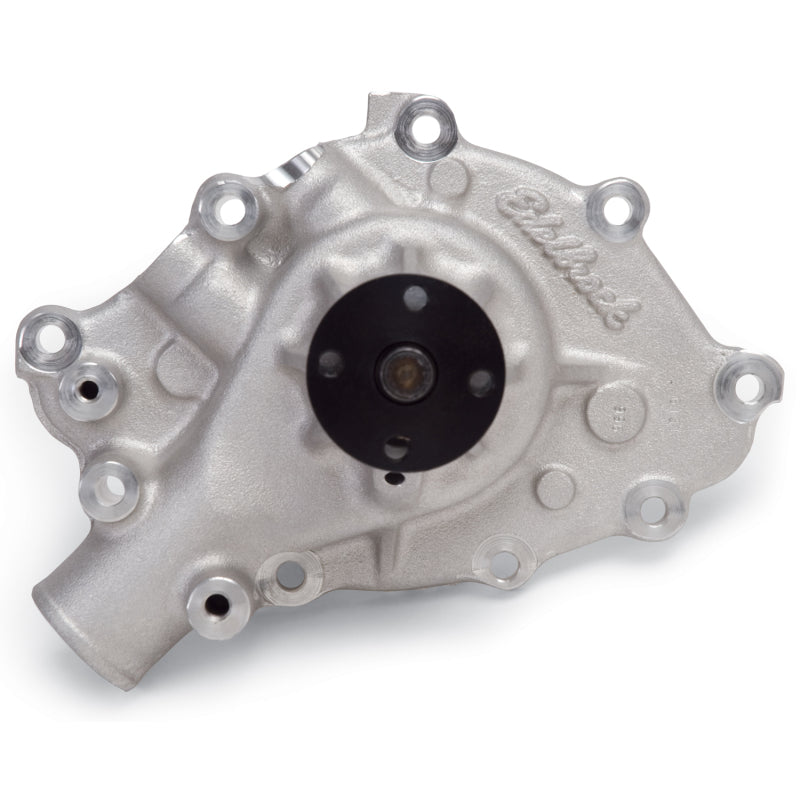

Edelbrock Victor Series Water Pump - 5/8 in Pilot - Small Block Ford

Only 5 left
SKU: EDE8842
Water Pump, Mechanical, Victor Series, 5/8 in Pilot, Aluminum, Natural, Small Block Ford, Each

Earn [points_amount] when you buy this item.

Regular price $285.95
Free Shipping on orders over $149! Exclusions may apply.
Ships same business day before 3:00 PM EST
PROP 65: This product can expose you to chemicals including Lead, which is/are known to the State of California to cause cancer and birth defects or other reproductive harm

Edelbrock Victor Series water pumps provide maximum cooling for the street and the race track. They're ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes.

  • Ford:Small-Block Special K :289 (4.7L)
  • Be sure that the fan bolts don't protrude through the hub so far that they hit the water pump housing
  • Check closely for any interference with drive belts
  • some filing for clearance may be necessary with some applications
  • The distance from the flange surface to the hub should measure 5.75".
  • Incorrect alignment or an unbalanced condition puts excessive strain on the pump's shaft and/or bearing and will result in early failure of the shaft and/or bearing. The balance of the assembly depends primarily upon the concentricity of the fan clutch with the pump shaft. Concentricity is not assured when universal type clutches are used. The universal fan clutch has a 3/4" pilot hole, so an adapter must be used when installing a water pump with a 5/8" shaft. This adapter bushing is supplied with the unit. These adapter bushings add to the machine tolerances of the assembly, so special care must be taken to maintain concentricity with the shaft and the clutch fan. The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump.

    Since 1938, Edelbrock has been committed to making the finest high performance products in the industry. The famous Edelbrock Intake Manifold, Edelbrock Aluminum Cylinder Heads and Edelbrock Water Pumps have become the industry standard. Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Edelbrock Victor Jr. cylinder heads are ideal for racers looking for an affordable head that makes maximum power. They have a high horsepower potential out-of-the-box, for a cost effective, race-winning set-up. Edelbrock Victor Cylinder Heads and Edelbrock Victor CNC Cylinder Heads are used by many of the best racers in the country and are the best choice for all-out competition. An Edelbrock intake manifold will provide the power right where you want it.

    Product Descripton:

  • Water Pump
  • Mechanical
  • Victor Series
  • 5/8 in Pilot
  • Aluminum
  • Natural
  • Small Block Ford
  • Sold Individually
